Tantalum - Polymer Capacitors- Page 38

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	Type	ESR(EquivalentSeriesResistance)	OperatingTemperature	Lifetime@Temp	MountingType	Size/Dimension	Height-Seated(Max)	LeadSpacing	ManufacturerSizeCode	Ratings
TCME687M006R0012 CAP TANT POLY 680UF 6.3V 2917 KYOCERA AVX	1,100	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	TCM	Active	680 µF	±20%	6.3 V	Molded	12mOhm @ 100kHz	-55°C ~ 105°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.170 (4.32mm)	-	E	-

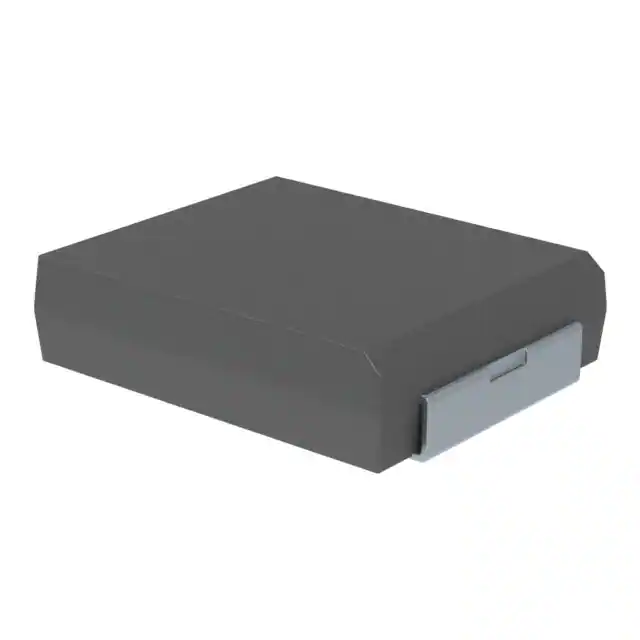

T520H827M010ATE070 CAP TANT POLY 820UF 10V 2924 KEMET	6,236	-	RFQ	Datasheet	2924 (7360 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T520	Active	820 µF	±20%	10 V	Molded	70mOhm @ 100kHz	-55°C ~ 85°C	2000 Hrs @ 85°C	Surface Mount	0.287 L x 0.236 W (7.30mm x 6.00mm)	0.079 (2.00mm)	-	H	-
T520H108M006ATE055 CAP TANT POLY 1000UF 6.3V 2924 KEMET	1,646	-	RFQ	Datasheet	2924 (7360 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T520	Active	1000 µF	±20%	6.3 V	Molded	55mOhm @ 100kHz	-55°C ~ 85°C	2000 Hrs @ 85°C	Surface Mount	0.287 L x 0.236 W (7.30mm x 6.00mm)	0.079 (2.00mm)	-	H	-
T530D687M2R5ATE010 CAP TANT POLY 680UF 2.5V 2917 KEMET	1,341	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T530	Active	680 µF	±20%	2.5 V	Molded	10mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.122 (3.10mm)	-	D	-
T530D687M2R5ATE007 CAP TANT POLY 680UF 2.5V 2917 KEMET	500	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T530	Active	680 µF	±20%	2.5 V	Molded	7mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 125°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.122 (3.10mm)	-	D	-
T521D107M025ATE050 CAP TANT POLY 100UF 25V 2917 KEMET	500	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T521	Active	100 µF	±20%	25 V	Molded	50mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 125°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.122 (3.10mm)	-	D	-
T530Y227M010ATE006 CAP TANT POLY 220UF 10V 2917 KEMET	1,250	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T530	Active	220 µF	±20%	10 V	Molded	6mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.157 (4.00mm)	-	Y	-
TCJU107M025R0070E CAP TANT POLY 100UF 25V 2924 KYOCERA AVX	1,799	-	RFQ	Datasheet	2924 (7361 Metric)	Tape & Reel (TR),Cut Tape (CT)	TCJ	Active	100 µF	±20%	25 V	Molded	70mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 125°C	Surface Mount	0.287 L x 0.240 W (7.30mm x 6.10mm)	0.169 (4.30mm)	-	U	-
TCJD685M075R0120E CAP TANT POLY 6.8UF 75V 2917 KYOCERA AVX	1,493	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	TCJ	Active	6.8 µF	±20%	75 V	Molded	120mOhm @ 100kHz	-55°C ~ 105°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.122 (3.10mm)	-	D	-
TCJD685M075R0120 CAP TANT POLY 6.8UF 75V 2917 KYOCERA AVX	2,588	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	TCJ	Active	6.8 µF	±20%	75 V	Molded	120mOhm @ 100kHz	-55°C ~ 105°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.122 (3.10mm)	-	D	-
TCQU107M025R0070E CAP TANT POLY 100UF 25V 2924 KYOCERA AVX	1,525	-	RFQ	Datasheet	2924 (7361 Metric)	Tape & Reel (TR),Cut Tape (CT)	TCQ	Active	100 µF	±20%	25 V	Molded	70mOhm @ 100kHz	-55°C ~ 125°C	1000 Hrs @ 125°C	Surface Mount	0.287 L x 0.240 W (7.30mm x 6.10mm)	0.169 (4.30mm)	-	U	AEC-Q200
T530D227M006ATE006 CAP TANT POLY 220UF 6.3V 2917 KEMET	1,950	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T530	Active	220 µF	±20%	6.3 V	Molded	6mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.122 (3.10mm)	-	D	-
T530D337M004ATE006 CAP TANT POLY 330UF 4V 2917 KEMET	510	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T530	Active	330 µF	±20%	4 V	Molded	6mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.122 (3.10mm)	-	D	-
TCJU157M025R0070E CAP TANT POLY 150UF 25V 2924 KYOCERA AVX	2,756	-	RFQ	Datasheet	2924 (7361 Metric)	Tape & Reel (TR),Cut Tape (CT)	TCJ	Active	150 µF	±20%	25 V	Molded	70mOhm @ 100kHz	-55°C ~ 105°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.240 W (7.30mm x 6.10mm)	0.169 (4.30mm)	-	U	-
20TQC22MYFD CAP TANT POLY 22UF 20V 2917 Panasonic Electronic Components	3,000	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	POSCAP™ TQC	Not For New Designs	22 µF	±20%	20 V	Molded	80mOhm @ 100kHz	-55°C ~ 105°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	-	D2	-
TCME686M020R0025E CAP TANT POLY 68UF 20V 2917 KYOCERA AVX	1,147	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	TCM	Active	68 µF	±20%	20 V	Molded	25mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 125°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.169 (4.30mm)	-	E	-
T530X157M016AHE025 CAP TANT POLY 150UF 16V 2917 KEMET	1,375	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T530	Active	150 µF	±20%	16 V	Molded	25mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 125°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.169 (4.30mm)	-	X	-
T520X477M006ATE040 CAP TANT POLY 470UF 6.3V 2917 KEMET	528	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T520	Active	470 µF	±20%	6.3 V	Molded	40mOhm @ 100kHz	-55°C ~ 105°C	2000 Hrs @ 105°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.169 (4.30mm)	-	X	-
T543B227K006AHW035D100 CAP TANT POLY 220UF 6.3V 1411 KEMET	492	-	RFQ	Datasheet	1411 (3528 Metric)	Tape & Reel (TR),Cut Tape (CT)	KO-CAP® T543	Active	220 µF	±10%	6.3 V	Molded	35mOhm @ 100kHz	-55°C ~ 105°C	2000 Hrs @ 105°C	Surface Mount	0.138 L x 0.110 W (3.50mm x 2.80mm)	0.083 (2.10mm)	-	B	COTS
TCME476M025R0060E CAP TANT POLY 47UF 25V 2917 KYOCERA AVX	1,200	-	RFQ	Datasheet	2917 (7343 Metric)	Tape & Reel (TR),Cut Tape (CT)	TCM	Active	47 µF	±20%	25 V	Molded	60mOhm @ 100kHz	-55°C ~ 125°C	2000 Hrs @ 125°C	Surface Mount	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.169 (4.30mm)	-	E	-
