Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Structure | NumberofSCRsDiodes | Voltage-OffState | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Current-NonRepSurge5060Hz(Itsm) | Current-Hold(Ih)(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VS-VSKH41/16MODULE THYRISTOR 45A ADD-A-PAK |
2,833 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 45 A | 100 A | 2.5 V | 150 mA | 850A, 890A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKH71/14MODULE THYRISTOR 75A ADD-A-PAK |
3,498 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 75 A | 165 A | 2.5 V | 150 mA | 1300A, 1360A | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKH105/04MODULE DIODE 400V 105A ADD-A-PAK |
2,992 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 105 A | 235 A | 2.5 V | 150 mA | 2000A, 2094A | 250 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |
VS-VSKH71/04MODULE THYRISTOR 75A ADD-A-PAK |
2,466 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 75 A | 165 A | 2.5 V | 150 mA | 1300A, 1360A | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKH91/04MODULE THYRISTOR 95A ADD-A-PAK |
3,352 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 95 A | 210 A | 2.5 V | 150 mA | 2000A, 2094A | 250 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKT250-16PBFMOD THY/THY 1600V 250A MAGNA-PAK |
3,363 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 150°C (TJ) | Chassis Mount | |

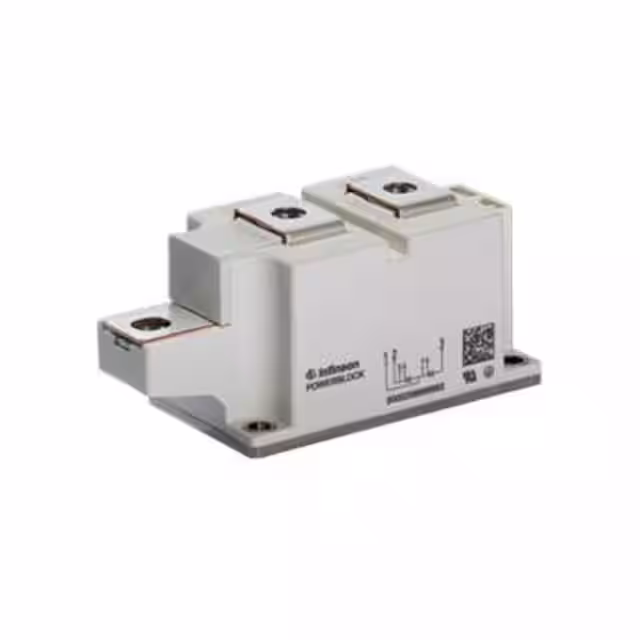

TT280N16SOFHPSA1SCR MODULE 1.6KV 520A MODULE |
2,760 | - |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 280 A | 520 A | 2 V | 150 mA | 9000A @ 50Hz | 150 mA | -40°C ~ 130°C | Chassis Mount | |
TD500N16KOFHPSA2SCR MODULE 1800V 900A MODULE |
3,361 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | |
TT500N16KOFTIMHPSA1SCR MODULE 1800V 900A MODULE |
3,362 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - SCR/Diode | 2 SCRs | 1.8 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | |
TZ800N16KOFTIMHPSA1SCR MODULE 1800V 1500A MODULE |
2,725 | - |
RFQ |
Datasheet |
Tray | - | Active | Single | 1 SCR | 1.8 kV | 819 A | 1500 A | 2 V | 250 mA | 35000A @ 50Hz | 500 mA | -40°C ~ 125°C | Chassis Mount | |
TZ800N18KOFTIMHPSA1SCR MODULE 1800V 1500A MODULE |
3,541 | - |
RFQ |
Datasheet |
Tray | - | Active | Single | 1 SCR | 1.8 kV | 819 A | 1500 A | 2 V | 250 mA | 35000A @ 50Hz | 500 mA | -40°C ~ 125°C | Chassis Mount | |

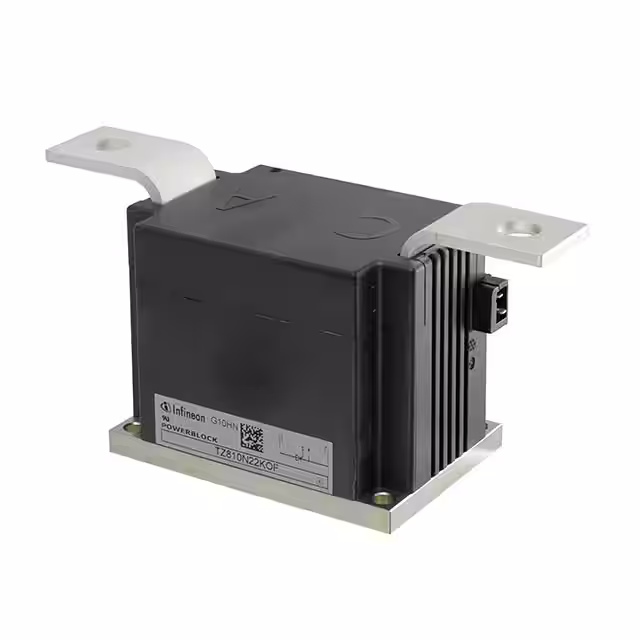

TZ810N22KOFHPSA2SCR MODULE 2.2KV 1500A MODULE |
3,709 | - |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | Single | 1 SCR | 2.2 kV | 819 A | 1500 A | 2 V | 250 mA | - | 500 mA | 125°C (TJ) | Surface Mount | |
VS-VSKT500-16PBFMODULE THY 500A SMAGN-A-PAK |
3,530 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 500 A | 785 A | 3 V | 200 mA | 17800A, 18700A | 500 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |
TT162N16KOFHPSA1SCR MODULE 1.6KV 260A MODULE |
2,268 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 162 A | - | 2 V | 150 mA | 5200A @ 50Hz | 200 mA | -40°C ~ 125°C | Chassis Mount | |
TT250N16KOFHPSA1SCR MODULE 1.6KV MODULE |
3,026 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | - | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | |
MCD72-08IO8BMOD THYRISTOR/DIO 800V TO-240AA |
2,211 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 115 A | 180 A | 2.5 V | 150 mA | 1700A, 1800A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-P102WSCR HY-BRIDGE 600V 25A PACE-PAK |
2,250 | - |
RFQ |
Datasheet |
Bulk | - | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
MCMA140PD1600TBSCR MODULE 1.6KV 140A TO240AA |
2,619 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 140 A | 220 A | 1.5 V | 150 mA | 2400A, 2590A | 200 mA | -40°C ~ 140°C (TJ) | Chassis Mount | |
VS-P105WSCR HY-BRIDGE 1200V 25A PACE-PAK |
2,346 | - |
RFQ |
Datasheet |
Bulk | - | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 2 V | 60 mA | 357A, 375A | 130 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKT56/12MODULE THYRISTOR 60A ADD-A-PAK |
3,873 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 60 A | 135 A | 2.5 V | 150 mA | 1200A, 1256A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
