Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Structure | NumberofSCRsDiodes | Voltage-OffState | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Current-NonRepSurge5060Hz(Itsm) | Current-Hold(Ih)(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
F1842CAH1000MODULE SCR/DIODE 40A 380VAC |
3,314 | - |
RFQ |
Datasheet |
Bulk | F18 | Not For New Designs | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 1 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
F1842HD1000MODULE SCR/DIODE 40A 380VAC |
100 | - |
RFQ |
Datasheet |
Bulk,Box | F18 | Not For New Designs | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
T820107504DHSCR PHASE CTRL MOD 1000V 750A |
3,441 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 1 kV | 750 A | 1175 A | 3 V | 150 mA | 10950A, 12000A | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
MCC225-16IO1MOD THYRISTOR DUAL 1600V Y1-CU |
3,262 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 221 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount | |
MCMA265PD1600KBSCR MODULE 1.6KV 268A Y1-CU |
3,985 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 268 A | 421 A | 2 V | 150 mA | 8500A, 9180A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount | |
ND470821MOD SCR/DIODE 210A 800V |
2,141 | - |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | ||
MCD255-12IO1MOD THYRISTOR/DIODE 1200V Y1-CU |
2,751 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | Chassis Mount | |

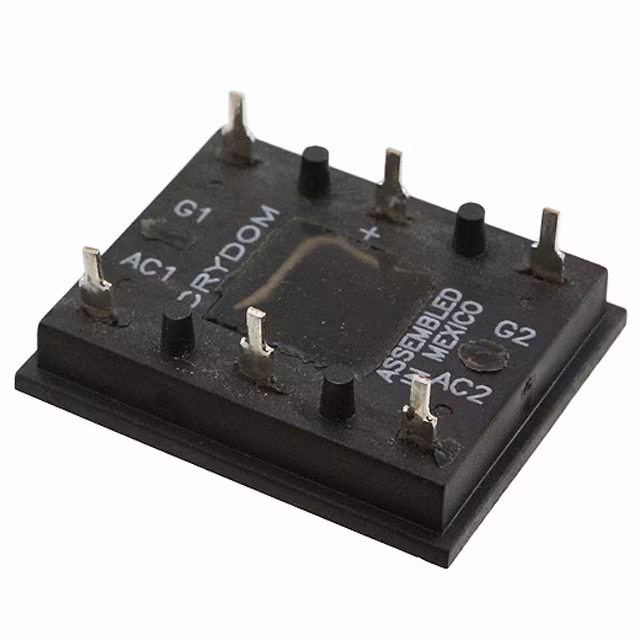

L613FMODULE SCR/DIO 42.5A 280VAC PCB |
2,608 | - |
RFQ |
Datasheet |
Bulk,Box | L | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 3 V | 100 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Through Hole | |
MDNA280UB2200P-PCMDNA280UB2200PTED-PC |
3,333 | - |
RFQ |
Box | - | Active | - | - | - | - | - | - | - | - | - | - | - | ||
T720224504DNSCR PHASE CTRL MOD 2200V 450A |
2,408 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 2.2 kV | 450 A | 700 A | 3 V | 150 mA | 7650A, 8400A | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
T820109004DHSCR PHASE CTRL MOD 1000V 900A |
2,045 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 1 kV | 900 A | 1410 A | 3 V | 150 mA | 13700A, 15000A | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
ND470825SCR MOD ISO DUAL 800V 250A |
2,999 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | Chassis Mount | |
ND471221MOD SCR/DIODE 210A 1200V |
2,860 | - |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | ||
F1857HD1000MODULE SCR/DIODE 55A 380VAC |
2,411 | - |
RFQ |
Datasheet |
Bulk,Box | F18 | Not For New Designs | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |

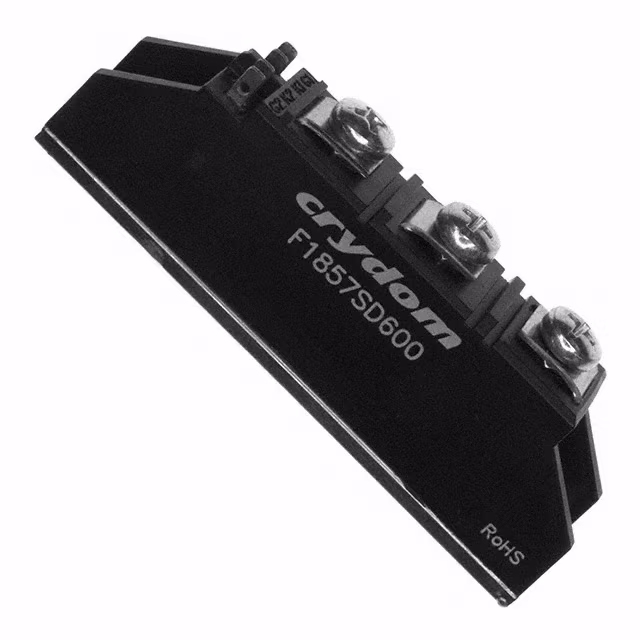

F1857SD600MODULE SCR/DIODE 55A 240VAC |
3,305 | - |
RFQ |
Datasheet |
Bulk | F18 | Not For New Designs | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
F1857SDK600MODULE SCR/DIODE 55A 240VAC |
125 | - |
RFQ |
Datasheet |
Bulk,Box | F18 | Not For New Designs | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
F1892CAH400MODULE SCR/DIODE 90A 120VAC |
3,945 | - |
RFQ |
Datasheet |
Bulk | F18 | Not For New Designs | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 400 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
F1892HD600MODULE SCR/DIODE 90A 240VAC |
113 | - |
RFQ |
Datasheet |
Bulk,Box | F18 | Not For New Designs | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
ND471225SCR MOD ISO DUAL 1200V 250A |
3,809 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 250 A | 393 A | 3 V | 150 mA | 8800A @ 60Hz | - | -40°C ~ 130°C (TJ) | Chassis Mount | |
T720N12TOFXPSA1SCR MODULE 1800V 1500A DO200AB |
3,210 | - |
RFQ |
Datasheet |
Tray | - | Active | Single | 1 SCR | 1.8 kV | 720 A | 1500 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount |
