Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N3165HA260SCR 2.6KV 6230A W79 |
2,753 | - |
RFQ |
Box | - | Active | 2.6 kV | 3 V | 300 mA | 1.3 V | 3165 A | 6230 A | 1 A | 150 mA | 40000A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount | ||
VS-ST1200C16K0SCR 1.6KV 3080A A24 |
3,565 | - |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.73 V | 1650 A | 3080 A | 600 mA | 100 mA | 30500A, 32000A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |

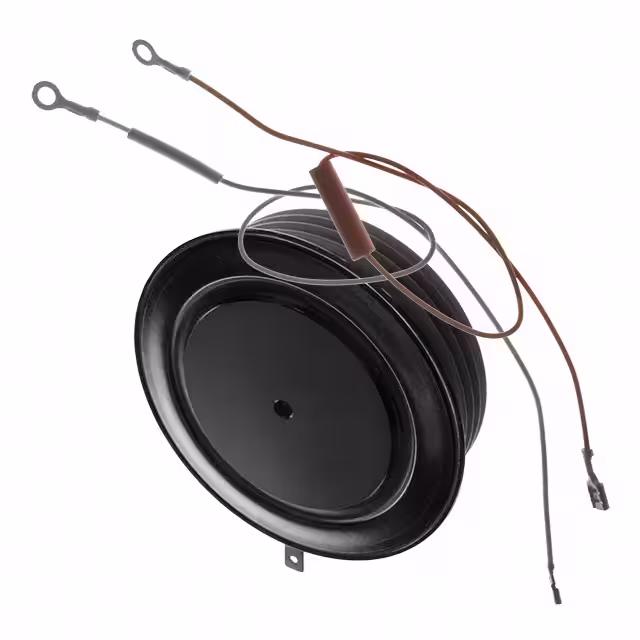

VS-ST1200C20K0SCR 2KV 3080A A24 |
3,566 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2 kV | 3 V | 200 mA | 1.73 V | 1650 A | 3080 A | 600 mA | 100 mA | 30500A, 32000A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |
VS-ST1200C20K0LSCR 2KV 3080A A24 |
3,137 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2 kV | 3 V | 200 mA | 1.73 V | 1650 A | 3080 A | 600 mA | 100 mA | 25700A, 26900A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |
VS-ST1200C16K3PSCR 1.6KV 3080A A24 |
2,986 | - |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.73 V | 1650 A | 3080 A | 600 mA | 100 mA | 25700A, 26900A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |
VS-ST1200C20K1PSCR 2KV 3080A A24 |
3,520 | - |
RFQ |
Datasheet |
Bulk | - | Not For New Designs | 2 kV | 3 V | 200 mA | 1.73 V | 1650 A | 3080 A | 600 mA | 100 mA | 25700A, 26900A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |
N3165HA280SCR 2.8KV 6230A W79 |
2,643 | - |
RFQ |
Box | - | Active | 2.8 kV | 3 V | 300 mA | 1.3 V | 3165 A | 6230 A | 1 A | 150 mA | 40000A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount | ||
TCU422320HDHSCR 2.3KV 5969A HOCKEY PUCK |
2,655 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2.3 kV | 4.5 V | 250 mA | 1.45 V | 3800 A | 5969 A | - | 250 mA | 72000A, 77000A | Standard Recovery | -40°C ~ 125°C (TJ) | Chassis Mount | |
TCU424320HDHSCR 2.4KV 5969A HOCKEY PUCK |
3,345 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2.4 kV | 4.5 V | 250 mA | 1.45 V | 3800 A | 5969 A | - | 250 mA | 72000A, 77000A | Standard Recovery | -40°C ~ 125°C (TJ) | Chassis Mount | |
R1446NC12DSCR 1.2KV 2940A W11 |
2,759 | - |
RFQ |
Box | - | Active | 1.2 kV | 3 V | 300 mA | 1.7 V | 1446 A | 2940 A | 1 A | 150 mA | 21500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount | ||
TCU426320HDHSCR 2.6KV 5969A HOCKEY PUCK |
3,761 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2.6 kV | 4.5 V | 250 mA | 1.45 V | 3800 A | 5969 A | - | 250 mA | 72000A, 77000A | Standard Recovery | -40°C ~ 125°C (TJ) | Chassis Mount | |
TCU428320HDHSCR 2.8KV 5969A HOCKEY PUCK |
2,528 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2.8 kV | 4.5 V | 250 mA | 1.45 V | 3800 A | 5969 A | - | 250 mA | 72000A, 77000A | Standard Recovery | -40°C ~ 125°C (TJ) | Chassis Mount | |
N3012ZC200SCR 2KV 5922A W13 |
3,356 | - |
RFQ |
Box | - | Active | 2 kV | 3 V | 300 mA | 1.4 V | 3012 A | 5922 A | 1 A | 200 mA | 49700A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount | ||
TBS7222503DHSCR PHASE CTRL DSC 2500A 2200V |
3,197 | - |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | Standard Recovery | - | - | ||
N3790TJ240SCR 2.4KV 7410A W81 |
3,917 | - |
RFQ |
Box | - | Active | 2.4 kV | 3 V | 300 mA | 2.1 V | 3790 A | 7410 A | 1 A | 250 mA | 55000A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount | ||
N4340TJ180SCR 1.8KV 8545A W81 |
3,995 | - |
RFQ |
Box | - | Active | 1.8 kV | 3 V | 300 mA | 2.12 V | 4340 A | 8545 A | 1 A | 200 mA | 60500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount | ||
TBS7242503DHSCR PHASE CTRL DSC 2500A 2400V |
2,223 | - |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | Standard Recovery | - | - | ||
N3790TE240SCR 2.4KV 7410A W82 |
3,130 | - |
RFQ |
Box | - | Active | 2.4 kV | 3 V | 300 mA | 2.1 V | 3790 A | 7410 A | 1 A | 250 mA | 55000A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount | ||
N3012ZC260SCR 2.6KV 5922A W13 |
2,981 | - |
RFQ |
Box | - | Active | 2.6 kV | 3 V | 300 mA | 1.4 V | 3012 A | 5922 A | 1 A | 200 mA | 49700A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount | ||
N3790TJ280SCR 2.8KV 7410A W81 |
3,514 | - |
RFQ |
Box | - | Active | 2.8 kV | 3 V | 300 mA | 2.1 V | 3790 A | 7410 A | 1 A | 250 mA | 55000A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
