Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

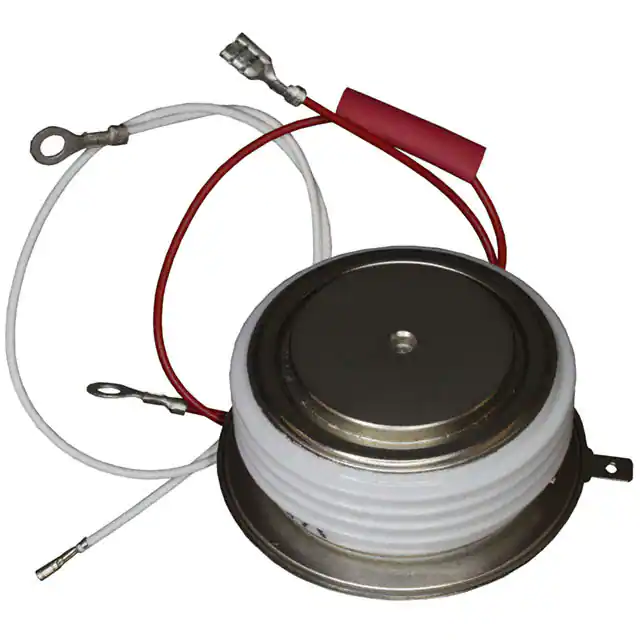

VS-ST730C16L0LSCR 1.6KV 2000A B-PUK |
3,920 | - |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.62 V | 990 A | 2000 A | 600 mA | 80 mA | 15000A, 15700A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |
VS-ST330C16L0SCR 1.6KV 1230A TO200AB |
2,204 | - |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.9 V | 650 A | 1230 A | 600 mA | 50 mA | 9000A, 9420A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |

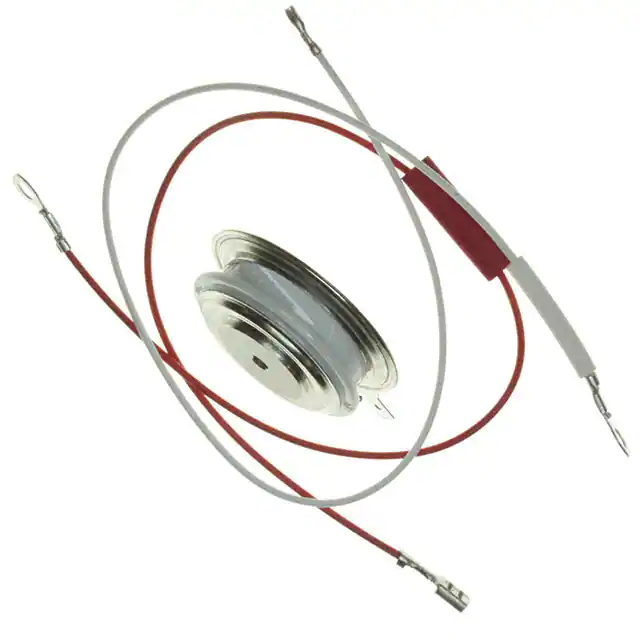

VS-ST230C12C0SCR 1.2KV 780A A-PUK |
2,526 | - |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 150 mA | 1.69 V | 410 A | 780 A | 600 mA | 30 mA | 5700A, 5970A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |

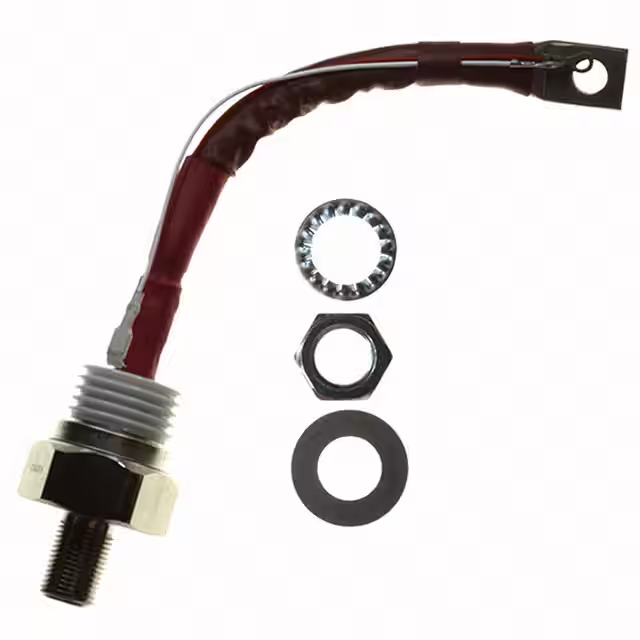

VS-ST330S08P0SCR 800V 520A TO209AE |
3,794 | - |
RFQ |
Datasheet |
Bulk | - | Active | 800 V | 3 V | 200 mA | 1.52 V | 330 A | 520 A | 600 mA | 50 mA | 9000A, 9420A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount | |
VS-ST330S12P0SCR 1.2KV 520A TO209AE |
3,209 | - |
RFQ |
Datasheet |
Bulk | - | Active | 1.2 kV | 3 V | 200 mA | 1.52 V | 330 A | 520 A | 600 mA | 50 mA | 9000A, 9420A | Standard Recovery | -40°C ~ 125°C | Chassis, Stud Mount | |
VS-ST1280C04K0SCR 400V 4150A A24 |
2,662 | - |
RFQ |
Datasheet |
Bulk | - | Active | 400 V | 3 V | 200 mA | 1.44 V | 2310 A | 4150 A | 600 mA | 100 mA | 42500A, 44500A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |
VS-ST730C16L0SCR 1.6KV 2000A B-PUK |
2,137 | - |
RFQ |
Datasheet |
Bulk | - | Active | 1.6 kV | 3 V | 200 mA | 1.62 V | 990 A | 2000 A | 600 mA | 80 mA | 17800A, 18700A | Standard Recovery | -40°C ~ 125°C | Chassis Mount | |
X00619MA2AL2SCR 600V 800MA TO92-3 |
3,683 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Active | 600 V | 800 mV | 200 µA | 1.35 V | 500 mA | 800 mA | 5 mA | 1 µA | 9A, 10A | Sensitive Gate | -40°C ~ 125°C | Through Hole | |
P0111DA 5AL3SCR 400V 800MA TO92-3 |
3,412 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 400 V | 800 mV | 25 µA | 1.95 V | 500 mA | 800 mA | 5 mA | 10 µA | 7A, 8A | Sensitive Gate | -40°C ~ 125°C | Through Hole | |
S8X8TSRPSCR 800V 800MA SOT223 |
3,055 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 800 V | 800 mV | 200 µA | 1.7 V | 510 mA | 800 mA | 5 mA | 3 µA | 8A, 10A | Sensitive Gate | -40°C ~ 125°C | Surface Mount | |
TN805-600B-TRSCR 600V 8A DPAK |
2,431 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 600 V | 1.3 V | 5 mA | 1.6 V | 5 A | 8 A | 25 mA | 5 µA | 70A, 73A | Standard Recovery | -40°C ~ 125°C | Surface Mount | |
TN1610H-6ISCR 600V 16A TO220AB |
3,105 | - |
RFQ |
Tube | ECOPACK®2 | Active | 600 V | 1.3 V | 10 mA | 1.6 V | 10 A | 16 A | 30 mA | 5 µA | 140A, 153A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole | ||
VS-25TTS16SLHM3SCR 1.6KV 25A TO263 |
2,234 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1.6 kV | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 10 mA | 350A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Surface Mount | |
TN1215-600GSCR 600V 12A D2PAK |
3,853 | - |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.3 V | 15 mA | 1.6 V | 8 A | 12 A | 30 mA | 5 µA | 140A, 145A | Standard Recovery | -40°C ~ 125°C | Surface Mount | |
SK012RTPSCR 1KV 12A TO220AB |
2,563 | - |
RFQ |
Datasheet |
Tube | - | Active | 1 kV | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 20 µA | 100A, 120A | Standard Recovery | -40°C ~ 125°C (TJ) | Through Hole | |
SJ6012R1TPSCR 600V 12A TO220AB |
3,379 | - |
RFQ |
Datasheet |
Tube | SJ | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 7.6 A | 12 A | 15 mA | 10 µA | 100A, 120A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole | |
SJ6012RTPSCR 600V 12A TO220AB |
3,815 | - |
RFQ |
Datasheet |
Tube | SJ | Active | 600 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 60 mA | 10 µA | 100A, 120A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole | |
S6025RTPSCR 600V 25A TO220AB-R |
3,258 | - |
RFQ |
Datasheet |
Tube | - | Active | 600 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 50 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 125°C | Through Hole | |
CS19-12HO1S-TUBSCR 1200V 31A TO263 |
2,599 | - |
RFQ |
Datasheet |
Tube | - | Active | 1200 V | 1.5 V | 28 mA | 1.32 V | 20 A | 31 A | 50 mA | 50 µA | 180A, 195A | Standard Recovery | -40°C ~ 125°C (TJ) | Surface Mount | |
VS-50TPS12L-M3SCR 1.2KV 79A TO247L |
3,223 | - |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 100 mA | 1.32 V | 50 A | 79 A | 300 mA | 50 µA | 530A @ 100Hz | Standard Recovery | -40°C ~ 150°C | Through Hole |
