Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransistorType	Current-Collector(Ic)(Max)	Voltage-CollectorEmitterBreakdown(Max)	VceSaturation(Max)@IbIc	Current-CollectorCutoff(Max)	DCCurrentGain(hFE)(Min)@IcVce	Power-Max	Frequency-Transition	OperatingTemperature	MountingType
2N4398 TRANS PNP 40V 30A TO3 NTE Electronics, Inc	154	-	RFQ	Datasheet	Bag	-	Active	PNP	30 A	40 V	4V @ 6A, 30A	5mA	40 @ 1A, 2V	5 W	4MHz	-65°C ~ 200°C	Through Hole

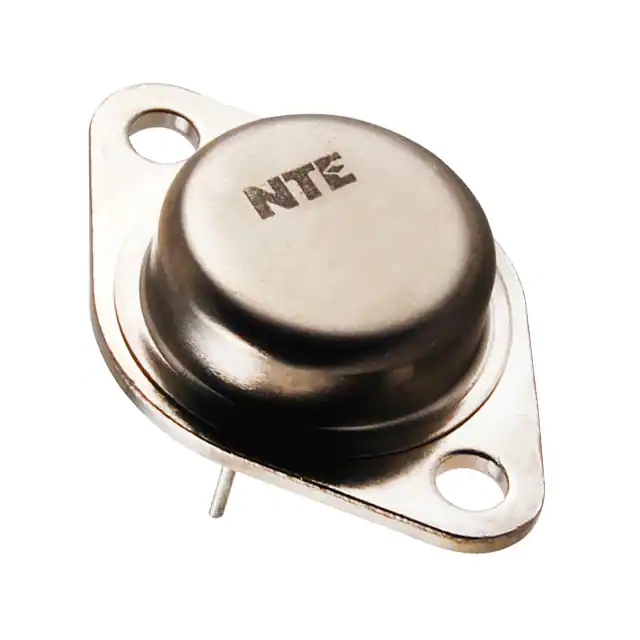

2N3773 TRANS NPN 140V 16A TO204 NTE Electronics, Inc	412	-	RFQ	Datasheet	Bag	-	Active	NPN	16 A	140 V	1.4V @ 800mA, 8A	10mA	15 @ 8A, 4V	150 W	-	-65°C ~ 200°C (TJ)	Through Hole
NTE226 TRANS PNP 35V 2A TO66 NTE Electronics, Inc	140	-	RFQ	Datasheet	Bag	-	Active	PNP	2 A	35 V	-	200µA (ICBO)	50 @ 200mA, 1.5V	12 W	-	85°C (TJ)	Through Hole

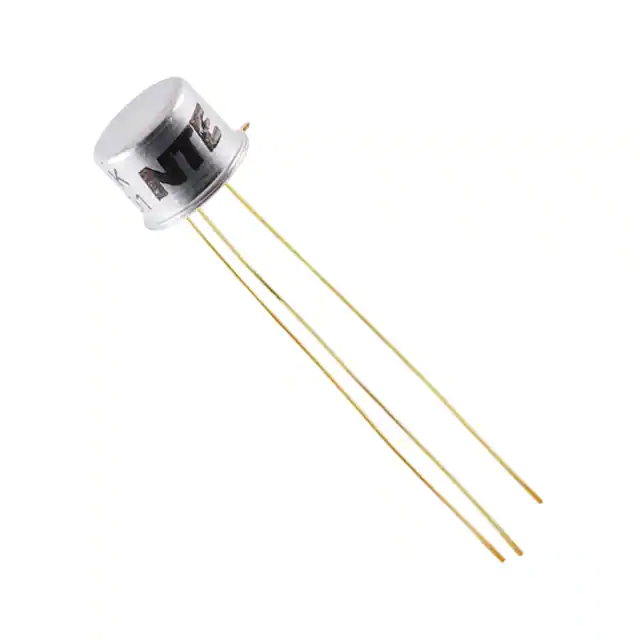

2N404 TRANS PNP 24V 0.1A TO5 NTE Electronics, Inc	114	-	RFQ	Datasheet	Bag	-	Active	PNP	100 mA	24 V	200mV @ 1mA, 24mA	5µA (ICBO)	-	150 mW	-	-	Through Hole
NTE215 TRANS NPN DARL 100V 8A TO3P NTE Electronics, Inc	3,982	-	RFQ	Datasheet	Bag	-	Active	NPN - Darlington	8 A	100 V	1.5V @ 8mA, 4A	100µA (ICBO)	1500 @ 4A, 3V	2.5 W	20MHz	150°C (TJ)	Through Hole

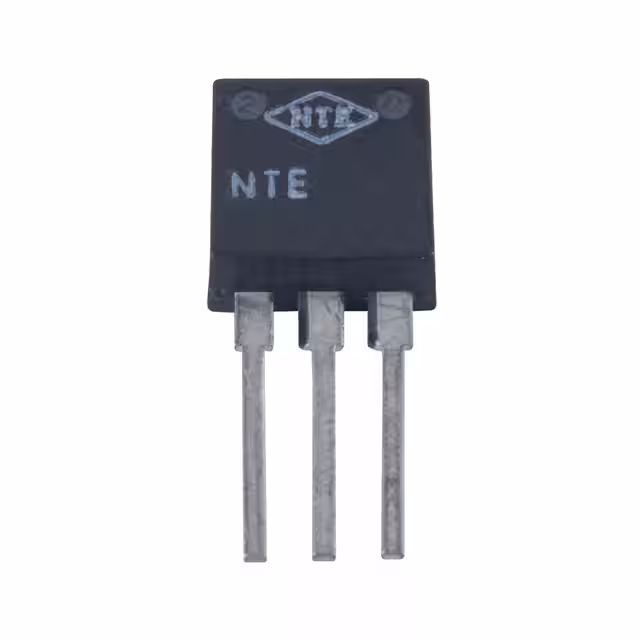

NTE2352 TRANS PNP DARL 80V 4A 3SIP NTE Electronics, Inc	364	-	RFQ	Datasheet	Bag	-	Active	PNP - Darlington	4 A	80 V	1.5V @ 6mA, 3A	20µA (ICBO)	2000 @ 1A, 2V	1 W	-	150°C (TJ)	Through Hole

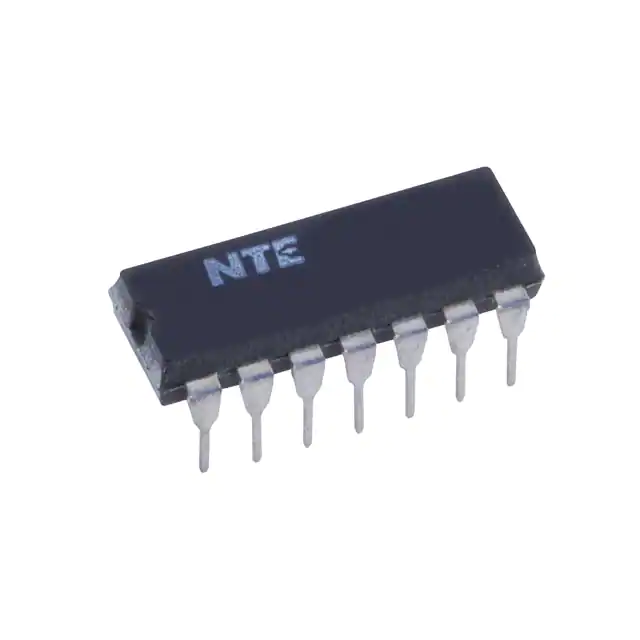

NTE2322 TRANS PNP 40V 0.6A 14DIP NTE Electronics, Inc	3,523	-	RFQ	Datasheet	Bag	-	Active	PNP	600 mA	40 V	1.6V @ 30mA, 300mA	50nA (ICBO)	100 @ 150mA, 10V	650 mW	200MHz	-55°C ~ 125°C (TJ)	Through Hole
NTE2686 TRANS PNP DARL 150V 8A TO3PML NTE Electronics, Inc	740	-	RFQ	Datasheet	Bag	-	Active	PNP - Darlington	8 A	150 V	2.5V @ 6mA, 6A	100µA (ICBO)	4000 @ 6A, 4V	75 W	65MHz	150°C (TJ)	Through Hole

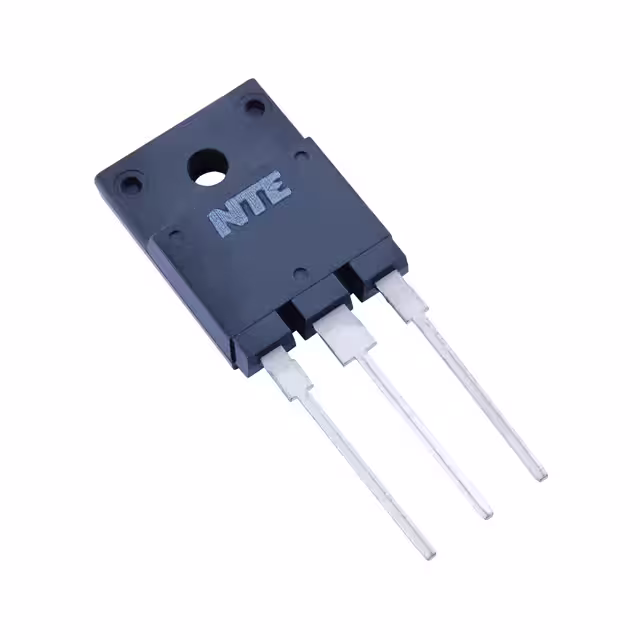

NTE2685 TRANS NPN DARL 150V 8A TO3PML NTE Electronics, Inc	724	-	RFQ	Datasheet	Bag	-	Active	NPN - Darlington	8 A	150 V	2.5V @ 6mA, 6A	100µA (ICBO)	4000 @ 6A, 4V	75 W	80MHz	150°C (TJ)	Through Hole
NTE94 TRANS NPN 300V 5A TO3 NTE Electronics, Inc	133	-	RFQ	Datasheet	Bag	-	Active	NPN	5 A	300 V	800mV @ 100mA, 1A	250µA	30 @ 1A, 5V	100 W	2.5MHz	-65°C ~ 150°C (TJ)	Through Hole
NTE2304 TRANS NPN 50V 15A TO3P NTE Electronics, Inc	552	-	RFQ	Datasheet	Bag	-	Active	NPN	15 A	50 V	400mV @ 400mA, 8A	100µA (ICBO)	100 @ 1A, 2V	90 W	20MHz	150°C (TJ)	Through Hole

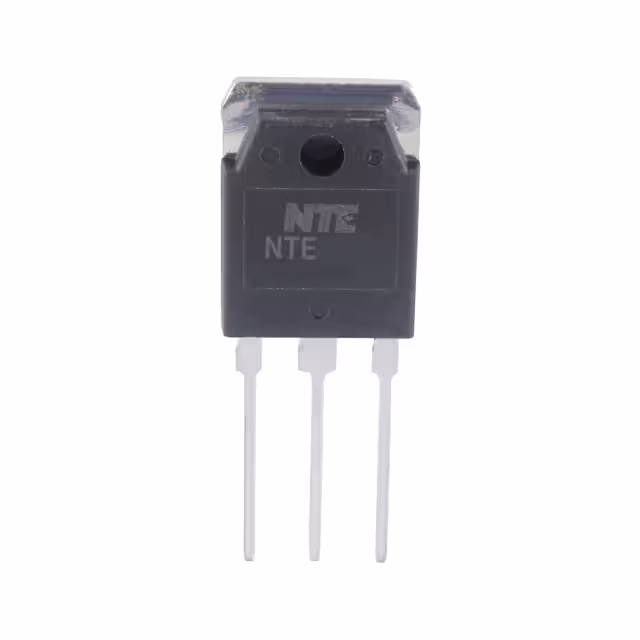

NTE2306 TRANS PNP 160V 16A TO3PN NTE Electronics, Inc	472	-	RFQ	Datasheet	Bag	-	Active	PNP	16 A	160 V	3.5V @ 2A, 16A	750µA	15 @ 8A, 2V	125 W	1MHz	-65°C ~ 150°C (TJ)	Through Hole

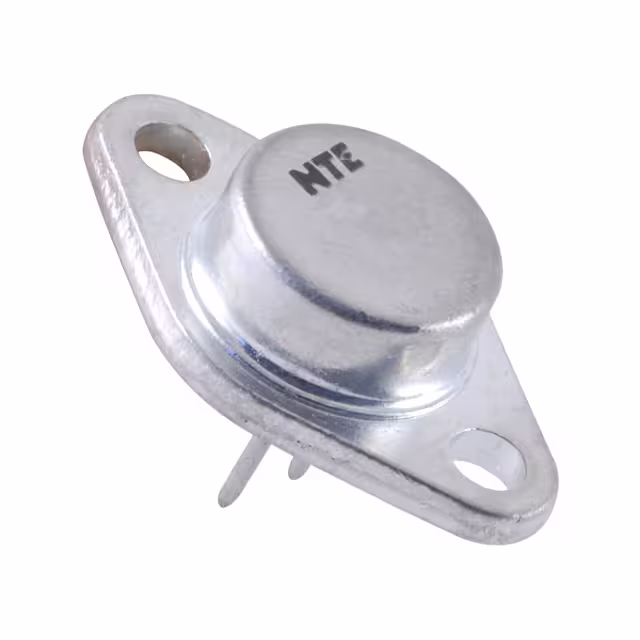

NTE155 TRANS NPN 32V 1A TO66 NTE Electronics, Inc	3,669	-	RFQ	Datasheet	Bag	-	Active	NPN	1 A	32 V	80mV @ 100mA, 1A	1mA	36 @ 1A, 0V	6 W	-	90°C (TJ)	Through Hole
CA3083Z-G TRANSISTOR HIGH CURRENT NPN TRAN Rochester Electronics, LLC	3,775	-	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-

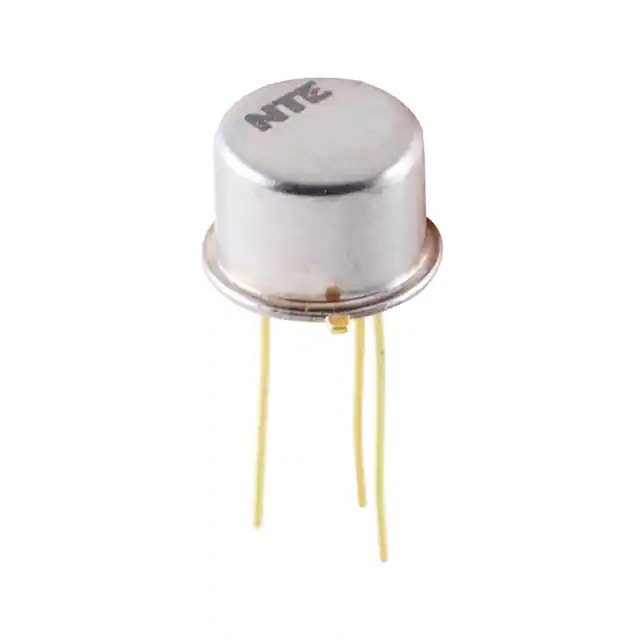

NTE2347 TRANS NPN 80V 5A TO39 NTE Electronics, Inc	162	-	RFQ	Datasheet	Bag	-	Active	NPN	5 A	80 V	1V @ 500mA, 5A	1mA	40 @ 2A, 2V	1 W	50MHz	200°C (TJ)	Through Hole

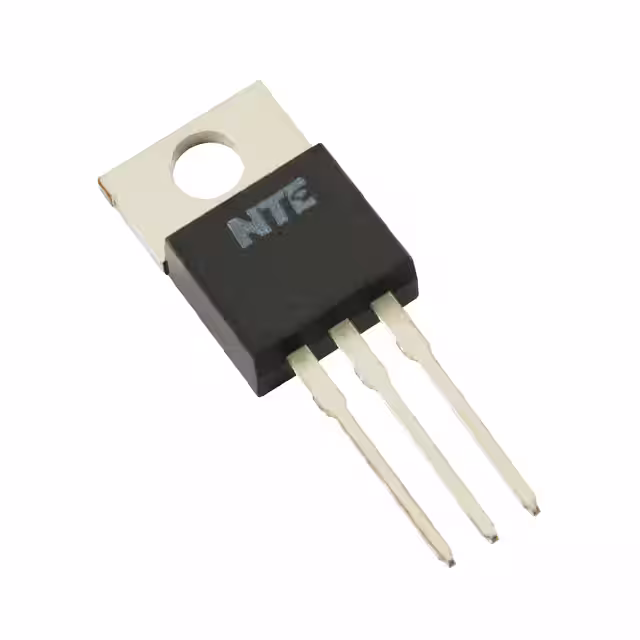

NTE2333 TRANS NPN 450V 6A TO220 NTE Electronics, Inc	363	-	RFQ	Datasheet	Bag	-	Active	NPN	6 A	450 V	700mV @ 600mA, 3A	100µA	14 @ 500mA, 5V	100 W	14MHz	150°C (TJ)	Through Hole
NTE2581 TRANS NPN 400V 12A TO220 NTE Electronics, Inc	138	-	RFQ	Datasheet	Bag	-	Active	NPN	12 A	400 V	800mV @ 1.6A, 8A	10µA (ICBO)	20 @ 1.6A, 5V	1.75 W	20MHz	150°C (TJ)	Through Hole

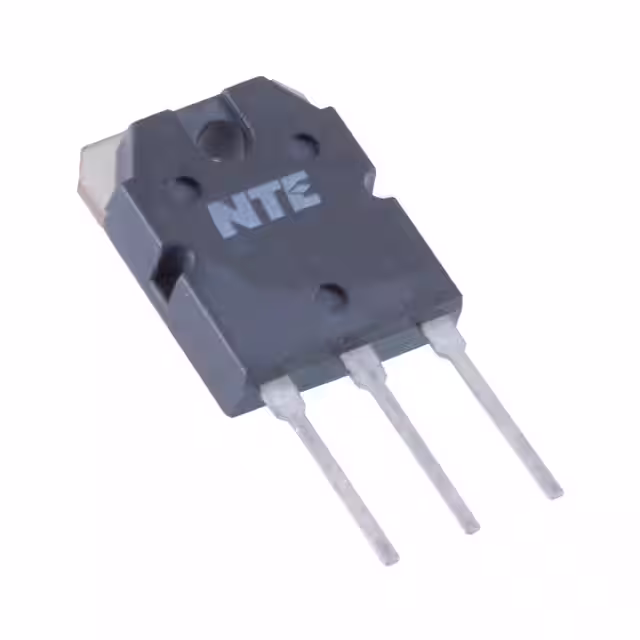

NTE37 TRANS PNP 140V 12A TO3P NTE Electronics, Inc	122	-	RFQ	Datasheet	Bag	-	Active	PNP	12 A	140 V	1.1V @ 500mA, 5A	100µA	60 @ 1A, 5V	100 W	15MHz	150°C (TJ)	Through Hole
NTE36 TRANS NPN 140V 12A TO3P NTE Electronics, Inc	533	-	RFQ	Datasheet	Bag	-	Active	NPN	12 A	140 V	2.5V @ 500mA, 5A	100µA	60 @ 1A, 5V	100 W	15MHz	150°C (TJ)	Through Hole
BUX10 TRANS NPN 125V 25A TO3 NTE Electronics, Inc	3,868	-	RFQ	Datasheet	Bag	-	Active	NPN	25 A	125 V	1.2V @ 2A, 20A	1.5mA	20 @ 10A, 2V	150 W	8MHz	200°C (TJ)	Chassis Mount
