Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransistorType	Current-Collector(Ic)(Max)	Voltage-CollectorEmitterBreakdown(Max)	VceSaturation(Max)@IbIc	Current-CollectorCutoff(Max)	DCCurrentGain(hFE)(Min)@IcVce	Power-Max	Frequency-Transition	OperatingTemperature	MountingType
BC546CTA TRANS NPN 65V 0.1A TO92-3 onsemi	3,770	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	-	Active	NPN	100 mA	65 V	600mV @ 5mA, 100mA	15nA (ICBO)	420 @ 2mA, 5V	500 mW	300MHz	150°C (TJ)	Through Hole
BC547BTF TRANS NPN 45V 0.1A TO92-3 onsemi	2,159	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	NPN	100 mA	45 V	600mV @ 5mA, 100mA	15nA (ICBO)	200 @ 2mA, 5V	500 mW	300MHz	150°C (TJ)	Through Hole
SBC857ALT1G TRANS PNP 45V 0.1A SOT23-3 onsemi	3,484	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	PNP	100 mA	45 V	650mV @ 5mA, 100mA	15nA (ICBO)	125 @ 2mA, 5V	300 mW	100MHz	-55°C ~ 150°C (TJ)	Surface Mount
KSA992FBTA TRANS PNP 120V 0.05A TO92-3 onsemi	2,944	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	-	Active	PNP	50 mA	120 V	300mV @ 1mA, 10mA	1µA	430 @ 1mA, 6V	500 mW	100MHz	150°C (TJ)	Through Hole
MMBT5401-G TRANS PNP 150V 0.6A SOT23-3 Comchip Technology	2,266	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	PNP	600 mA	150 V	500mV @ 5mA, 50mA	100nA (ICBO)	100 @ 10mA, 5V	300 mW	100MHz	-55°C ~ 150°C (TJ)	Surface Mount
BST62,115 TRANS PNP DARL 80V 1A SOT89 Nexperia USA Inc.	2,500	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	PNP - Darlington	1 A	80 V	1.3V @ 500µA, 500mA	50nA	2000 @ 500mA, 10V	1.3 W	200MHz	150°C (TJ)	Surface Mount
SPZT3904T1G TRANS NPN 40V 0.2A SOT223 onsemi	3,700	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	NPN	200 mA	40 V	300mV @ 5mA, 50mA	-	100 @ 10mA, 1V	1.5 W	300MHz	-55°C ~ 150°C (TJ)	Surface Mount
2SC3649T-TD-E TRANS NPN 160V 1.5A PCP onsemi	2,999	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	NPN	1.5 A	160 V	450mV @ 50mA, 500mA	1µA (ICBO)	100 @ 100mA, 5V	500 mW	120MHz	150°C (TJ)	Surface Mount
SPZT2222AT1G TRANS NPN 40V 0.6A SOT223 onsemi	3,896	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	NPN	600 mA	40 V	1V @ 50mA, 500mA	10nA (ICBO)	100 @ 150mA, 10V	1.5 W	300MHz	-55°C ~ 150°C (TJ)	Surface Mount
2N3906-G TRANS PNP 40V 0.2A TO92 Comchip Technology	2,483	-	RFQ	Datasheet	Bag	-	Active	PNP	200 mA	40 V	400mV @ 5mA, 50mA	100nA (ICBO)	30 @ 100mA, 1V	-	250MHz	-55°C ~ 150°C (TJ)	Through Hole
2N5088 PBFREE TRANS NPN 30V 0.05A TO-92 Central Semiconductor Corp	2,728	-	RFQ	Datasheet	Bulk	-	Active	NPN	50 mA	30 V	500mV @ 1mA, 10mA	50nA (ICBO)	300 @ 100µA, 5V	625 mW	50MHz	-65°C ~ 150°C (TJ)	Through Hole
2N5087 PBFREE TRANS PNP 50V 0.05A TO92-3 Central Semiconductor Corp	2,189	-	RFQ	Datasheet	Bulk	-	Active	PNP	50 mA	50 V	300mV @ 1mA, 10mA	50nA (ICBO)	250 @ 100µA, 5V	625 mW	40MHz	-65°C ~ 150°C (TJ)	Through Hole
PN2907BU TRANS PNP 40V 0.8A TO92-3 onsemi	2,762	-	RFQ	Datasheet	Bulk	-	Active	PNP	800 mA	40 V	1.6V @ 50mA, 500mA	20nA (ICBO)	100 @ 150mA, 10V	625 mW	-	-55°C ~ 150°C (TJ)	Through Hole
BC547B TRANS NPN 45V 0.1A TO92-3 onsemi	3,244	-	RFQ	Datasheet	Bulk	-	Active	NPN	100 mA	45 V	600mV @ 5mA, 100mA	15nA (ICBO)	200 @ 2mA, 5V	500 mW	300MHz	150°C (TJ)	Through Hole

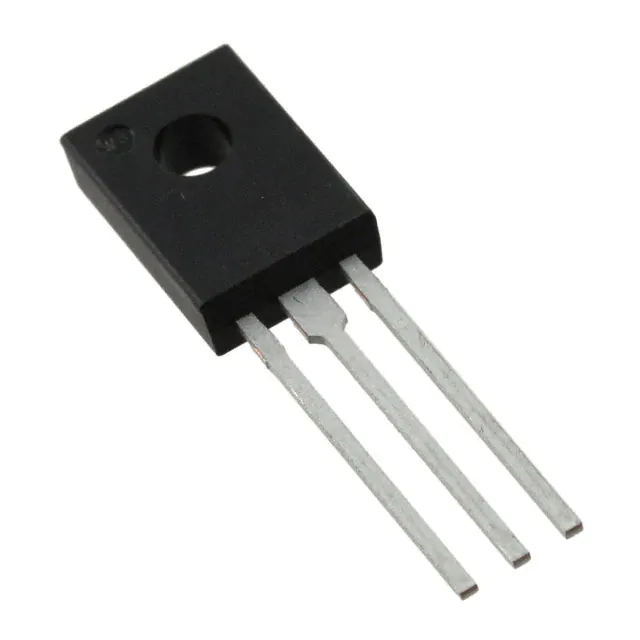

TTA004B,Q TRANS PNP 160V 1.5A TO126N Toshiba Semiconductor and Storage	3,933	-	RFQ	Datasheet	Bulk	-	Active	PNP	1.5 A	160 V	500mV @ 50mA, 500mA	100nA (ICBO)	140 @ 100mA, 5V	10 W	100MHz	150°C (TJ)	Through Hole
MJE15033G TRANS PNP 250V 8A TO220 onsemi	3,934	-	RFQ	Datasheet	Tube	-	Active	PNP	8 A	250 V	500mV @ 100mA, 1A	10µA (ICBO)	10 @ 2A, 5V	50 W	30MHz	-65°C ~ 150°C (TJ)	Through Hole
MJE5742G TRANS NPN DARL 400V 8A TO220 onsemi	3,871	-	RFQ	Datasheet	Tube	-	Active	NPN - Darlington	8 A	400 V	3V @ 400mA, 8A	-	200 @ 2A, 5V	2 W	-	-65°C ~ 150°C (TJ)	Through Hole
MJE15035G TRANS PNP 350V 4A TO220 onsemi	3,554	-	RFQ	Datasheet	Tube	-	Active	PNP	4 A	350 V	500mV @ 100mA, 1A	10µA (ICBO)	10 @ 2A, 5V	2 W	30MHz	-65°C ~ 150°C (TJ)	Through Hole
MJE15029G TRANS PNP 120V 8A TO220 onsemi	2,155	-	RFQ	Datasheet	Tube	-	Active	PNP	8 A	120 V	500mV @ 100mA, 1A	100µA	20 @ 4A, 2V	50 W	30MHz	-65°C ~ 150°C (TJ)	Through Hole
2N1711 PBFREE TRANS NPN 50V 0.5A TO39 Central Semiconductor Corp	2,114	-	RFQ	Datasheet	Box	-	Active	NPN	500 mA	50 V	1.5V @ 15mA, 150mA	10nA (ICBO)	100 @ 150mA, 10V	800 mW	70MHz	-65°C ~ 200°C (TJ)	Through Hole
