Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | FETFeature | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | InputCapacitance(Ciss)(Max)@Vds | Power-Max | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

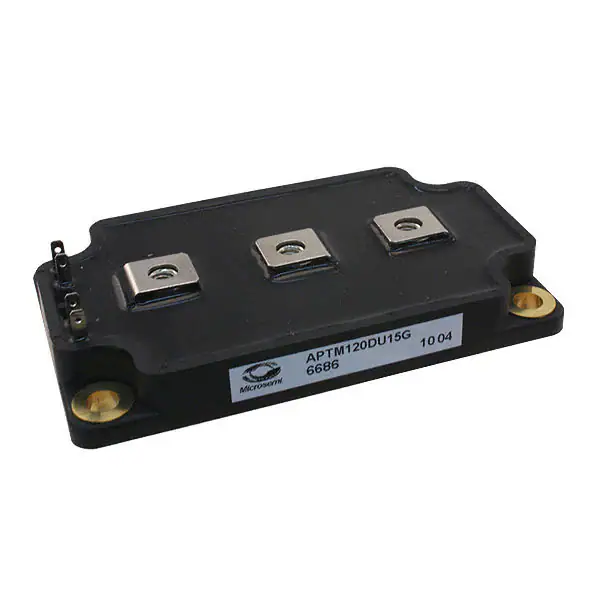

APTM120DU15GMOSFET 2N-CH 1200V 60A SP6 |
3,734 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Dual) | Standard | 1200V (1.2kV) | 60A | 175mOhm @ 30A, 10V | 5V @ 10mA | 748nC @ 10V | 20600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | Chassis Mount | |
MSCC60VRM45TAPGPM-MOSFET-COOLMOS-SP6P |
2,600 | - |
RFQ |
Datasheet |
Tube | - | Active | - | - | 600V | 40A (Tc) | - | - | - | - | - | - | Chassis Mount | |

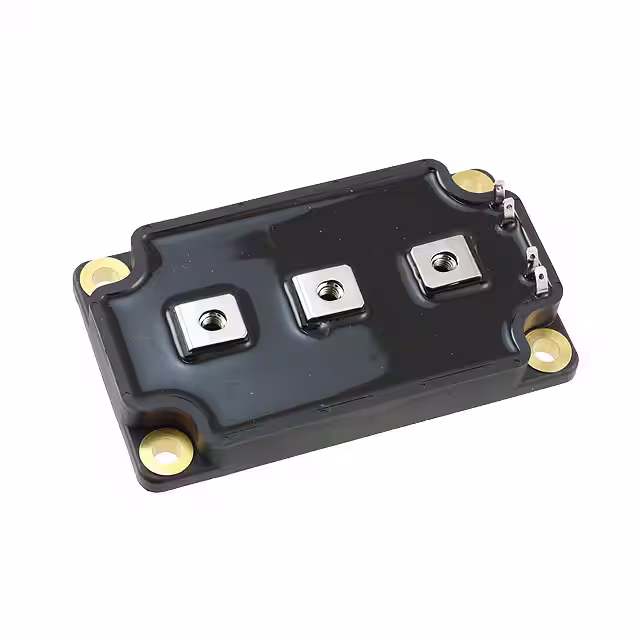

APTM10AM02FGMOSFET 2N-CH 100V 495A SP6 |
3,800 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Standard | 100V | 495A | 2.5mOhm @ 200A, 10V | 4V @ 10mA | 1360nC @ 10V | 40000pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | Chassis Mount | |
APTM20HM08FGMOSFET 4N-CH 200V 208A SP6 |
3,198 | - |
RFQ |
Datasheet |
Bulk | - | Active | 4 N-Channel (Half Bridge) | Standard | 200V | 208A | 10mOhm @ 104A, 10V | 5V @ 5mA | 280nC @ 10V | 14400pF @ 25V | 781W | -40°C ~ 150°C (TJ) | Chassis Mount | |
APTM50AM17FGMOSFET 2N-CH 500V 180A SP6 |
2,593 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Standard | 500V | 180A | 20mOhm @ 90A, 10V | 5V @ 10mA | 560nC @ 10V | 28000pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | Chassis Mount | |

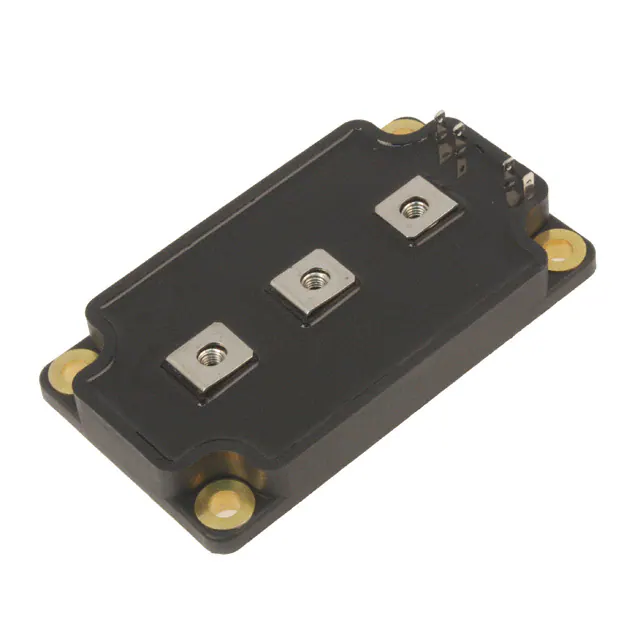

APTM100A13SCGMOSFET 2N-CH 1000V 65A SP6 |
3,369 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Standard | 1000V (1kV) | 65A | 156mOhm @ 32.5A, 10V | 5V @ 6mA | 562nC @ 10V | 15200pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | Chassis Mount | |
APTM50HM35FGMOSFET 4N-CH 500V 99A SP6 |
3,065 | - |
RFQ |
Datasheet |
Bulk | - | Active | 4 N-Channel (Half Bridge) | Standard | 500V | 99A | 39mOhm @ 49.5A, 10V | 5V @ 5mA | 280nC @ 10V | 14000pF @ 25V | 781W | -40°C ~ 150°C (TJ) | Chassis Mount | |

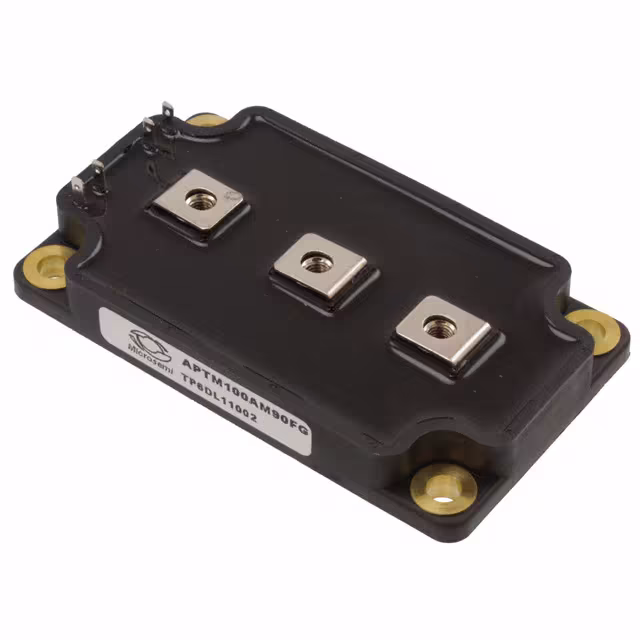

APTM100AM90FGMOSFET 2N-CH 1000V 78A SP6 |
3,218 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Standard | 1000V (1kV) | 78A | 105mOhm @ 39A, 10V | 5V @ 10mA | 744nC @ 10V | 20700pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | Chassis Mount | |
APTM120A15FGMOSFET 2N-CH 1200V 60A SP6 |
2,895 | - |
RFQ |
Datasheet |
Bulk | - | Active | 2 N-Channel (Half Bridge) | Standard | 1200V (1.2kV) | 60A | 175mOhm @ 30A, 10V | 5V @ 10mA | 748nC @ 10V | 20600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | Chassis Mount | |

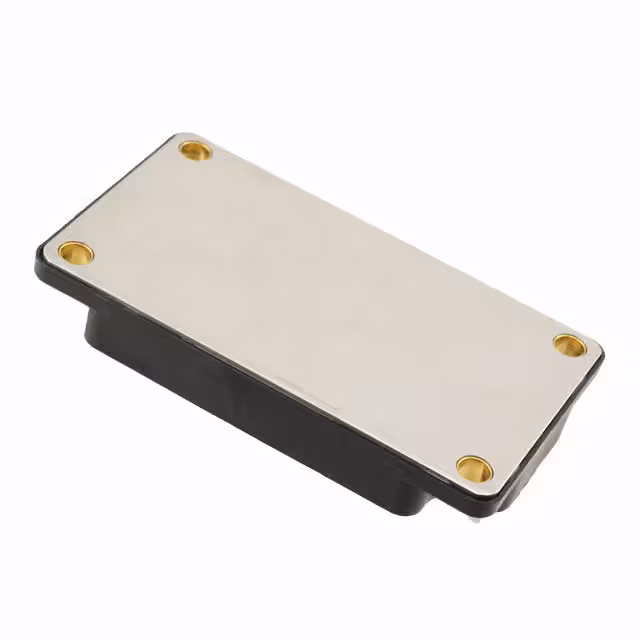

APTM100H18FGMOSFET 4N-CH 1000V 43A SP6 |
2,820 | - |
RFQ |
Datasheet |
Bulk | - | Active | 4 N-Channel (Half Bridge) | Standard | 1000V (1kV) | 43A | 210mOhm @ 21.5A, 10V | 5V @ 5mA | 372nC @ 10V | 10400pF @ 25V | 780W | -40°C ~ 150°C (TJ) | Chassis Mount | |

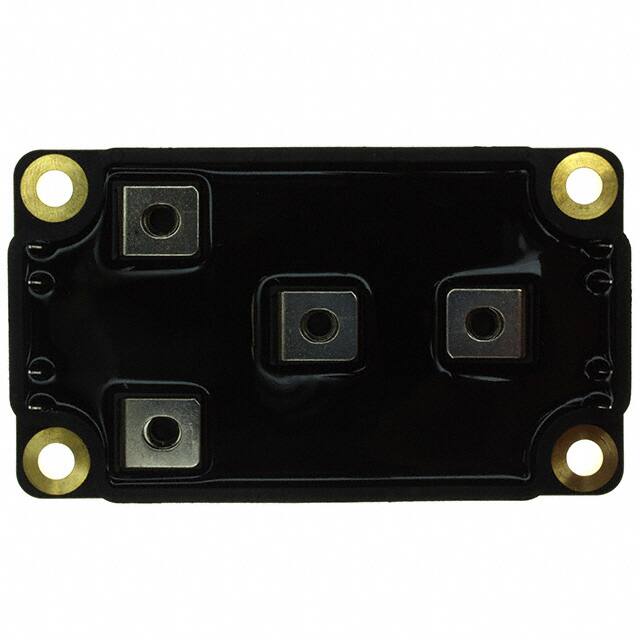

APTM120H29FGMOSFET 4N-CH 1200V 34A SP6 |
3,415 | - |
RFQ |
Datasheet |
Bulk | POWER MOS 7® | Active | 4 N-Channel (Half Bridge) | Standard | 1200V (1.2kV) | 34A | 348mOhm @ 17A, 10V | 5V @ 5mA | 374nC @ 10V | 10300pF @ 25V | 780W | -40°C ~ 150°C (TJ) | Chassis Mount | |
APTM100TA35SCTPGMOSFET 6N-CH 1000V 22A SP6P |
2,615 | - |
RFQ |
Datasheet |
Bulk | POWER MOS 7® | Active | 6 N-Channel (3-Phase Bridge) | Standard | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | Chassis Mount | |
CAS175M12BM3175A 1200V SIC HALF-BRIDGE MODUL |
2,831 | - |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 1200V (1.2kV) | 228A (Tc) | 10.4mOhm @ 175A, 15V | 3.6V @ 43mA | 422nC @ 15V | 12900pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount | |

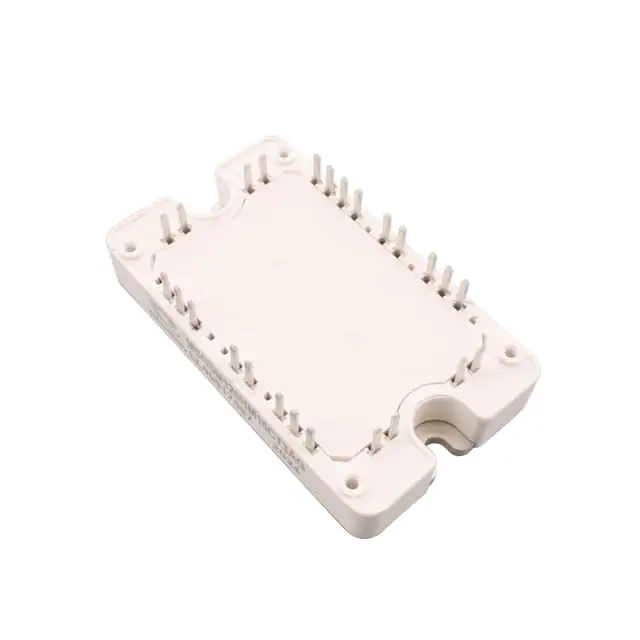

MSCSM120HM16CT3AGPM-MOSFET-SIC-SBD~-SP3F |
2,264 | - |
RFQ |
Datasheet |
Tube | - | Active | 4 N-Channel | Silicon Carbide (SiC) | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 745W (Tc) | -40°C ~ 175°C (TJ) | Chassis Mount | |
APTC60TAM21SCTPAGMOSFET 6N-CH 600V 116A SP6-P |
2,309 | - |
RFQ |
Datasheet |
Bulk | CoolMOS™ | Active | 6 N-Channel (3-Phase Bridge) | Standard | 600V | 116A | 21mOhm @ 88A, 10V | 3.6V @ 6mA | 580nC @ 10V | 13000pF @ 100V | 625W | -40°C ~ 150°C (TJ) | Chassis Mount | |

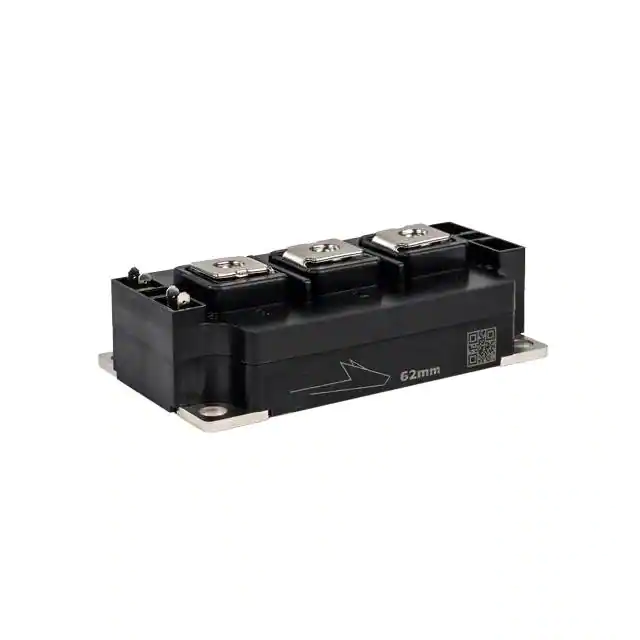

WAS175M12BM3SIC, MODULE, 175A, 1200V, 62MM |
3,054 | - |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 228A (Tc) | 10.4mOhm @ 175A, 15V | 3.6V @ 43mA | 422nC @ 15V | 12900pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount | |

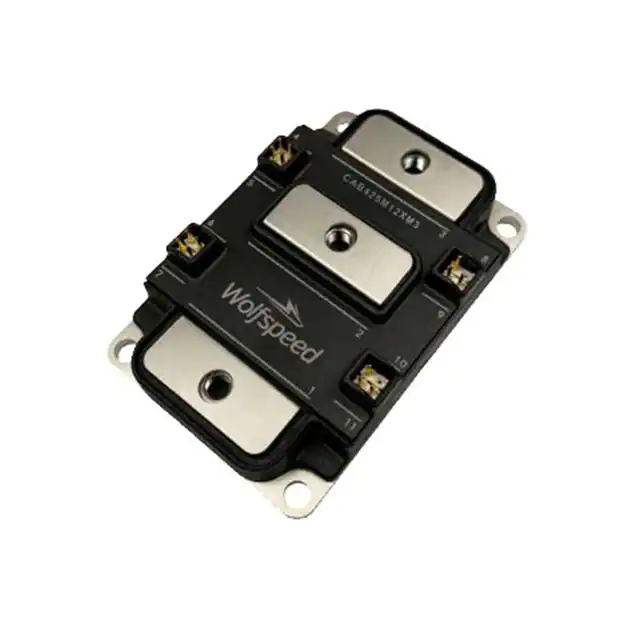

CAB425M12XM31.2KV, 425A SWITCHING LOSS OPTIM |
3,398 | - |
RFQ |
Datasheet |
Bulk | CAB425M12XM3 | Active | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1200V (1.2kV) | 450A | 4.2mOhm @ 425A, 15V | 3.6V @ 115mA | 1135nC @ 15V | 30.7nF @ 800V | 50mW | -40°C ~ 175°C (TJ) | Chassis Mount | |
MSCSM70HM05CAGPM-MOSFET-SIC-SBD-SP6C |
2,343 | - |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | ||
CAS350M12BM3350A 1200V SIC HALF-BRIDGE MODUL |
2,553 | - |
RFQ |
Datasheet |
Box | - | Active | 2 N-Channel (Dual) Common Source | Silicon Carbide (SiC) | 1200V (1.2kV) | 417A (Tc) | 5.2mOhm @ 350A, 15V | 3.6V @ 85mA | 844nC @ 15V | 25700pF @ 800V | - | -40°C ~ 150°C (TJ) | Chassis Mount | |
MSCSM70TAM10CTPAGPM-MOSFET-SIC-SBD~-SP6P |
3,734 | - |
RFQ |
Datasheet |
Tube | - | Active | 6 N-Channel (3-Phase Bridge) | Silicon Carbide (SiC) | 700V | 238A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | 9000pF @ 700V | 674W (Tc) | -40°C ~ 175°C (TJ) | Chassis Mount |
