Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NTD4N60T4TRANS MOSFET N-CH 600V 4A 3-PIN( |
7,138 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |

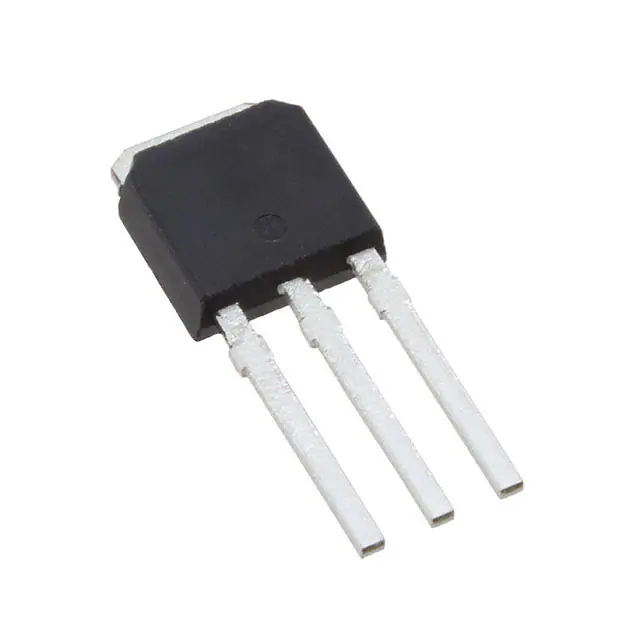

IRLU4343MOSFET N-CH 55V 26A I-PAK |
2,884 | - |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 26A (Tc) | 4.5V, 10V | 50mOhm @ 4.7A, 10V | 1V @ 250µA | 42 nC @ 10 V | ±20V | 740 pF @ 50 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IRLU9343MOSFET P-CH 55V 20A I-PAK |
3,477 | - |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 55 V | 20A (Tc) | 4.5V, 10V | 105mOhm @ 3.4A, 10V | 1V @ 250µA | 47 nC @ 10 V | ±20V | 660 pF @ 50 V | - | 79W (Tc) | -40°C ~ 175°C (TJ) | Through Hole | |
IRLZ44ZMOSFET N-CH 55V 51A TO220AB |
2,731 | - |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 51A (Tc) | 4.5V, 10V | 13.5mOhm @ 31A, 10V | 3V @ 250µA | 36 nC @ 5 V | ±16V | 1620 pF @ 25 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IRLZ44ZLMOSFET N-CH 55V 51A TO262 |
3,223 | - |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 51A (Tc) | 4.5V, 10V | 13.5mOhm @ 31A, 10V | 3V @ 250µA | 36 nC @ 5 V | ±16V | 1620 pF @ 25 V | - | 80W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IRL3714ZSTRLMOSFET N-CH 20V 36A D2PAK |
3,923 | - |
RFQ |
Datasheet |
Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 36A (Tc) | - | 16mOhm @ 15A, 10V | 2.55V @ 250µA | 7.2 nC @ 4.5 V | - | 550 pF @ 10 V | - | - | - | Surface Mount | |
IRLR3714ZTRLMOSFET N-CH 20V 37A DPAK |
3,946 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 37A (Tc) | 4.5V, 10V | 15mOhm @ 15A, 10V | 2.55V @ 250µA | 7.1 nC @ 4.5 V | ±20V | 560 pF @ 10 V | - | 35W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
IRLR4343TRLMOSFET N-CH 55V 26A DPAK |
3,962 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 26A (Tc) | 4.5V, 10V | 50mOhm @ 4.7A, 10V | 1V @ 250µA | 42 nC @ 10 V | ±20V | 740 pF @ 50 V | - | 79W (Tc) | -40°C ~ 175°C (TJ) | Surface Mount | |
2N7000MOSFET N-CH 60V 350MA TO92-3 |
3,971 | - |
RFQ |
Datasheet |
Bulk | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 350mA (Tc) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 3V @ 250µA | 2 nC @ 5 V | ±18V | 43 pF @ 25 V | - | 1W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
2N7002MOSFET N-CH 60V 200MA SOT23-3 |
3,969 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Tc) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 3V @ 250µA | 2 nC @ 5 V | ±18V | 43 pF @ 25 V | - | 350mW (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
IRF620MOSFET N-CH 200V 6A TO220AB |
3,932 | - |
RFQ |
Datasheet |
Tube | PowerMESH™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 6A (Tc) | 10V | 800mOhm @ 3A, 10V | 4V @ 250µA | 27 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 70W (Tc) | -65°C ~ 150°C (TJ) | Through Hole | |
STD30PF03LT4MOSFET P-CH 30V 24A DPAK |
3,751 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Tc) | 5V, 10V | 28mOhm @ 12A, 10V | 1V @ 250µA | 28 nC @ 5 V | ±16V | 1670 pF @ 25 V | - | 70W (Tc) | 175°C (TJ) | Surface Mount | |
STD5NM50T4MOSFET N-CH 500V 7.5A DPAK |
2,962 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | MDmesh™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 7.5A (Tc) | 10V | 800mOhm @ 2.5A, 10V | 5V @ 250µA | 13 nC @ 10 V | ±30V | 415 pF @ 25 V | - | 100W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
STD60NH03L-1MOSFET N-CH 30V 60A I-PAK |
3,557 | - |
RFQ |
Datasheet |
Tube | STripFET™ III | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 5V, 10V | 9mOhm @ 30A, 10V | 1V @ 250µA | 21 nC @ 5 V | ±20V | 2200 pF @ 25 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
STD70NH02LT4MOSFET N-CH 24V 60A DPAK |
2,897 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 60A (Tc) | 5V, 10V | 8mOhm @ 30A, 10V | 1.8V @ 250µA | 22 nC @ 10 V | ±20V | 2050 pF @ 25 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
STE180NE10MOSFET N-CH 100V 180A ISOTOP |
3,814 | - |
RFQ |
Datasheet |
Tube | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 180A (Tc) | 10V | 6Ohm @ 40A, 10V | 4V @ 250µA | 795 nC @ 10 V | ±20V | 21000 pF @ 25 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount | |
STE250NS10MOSFET N-CH 100V 220A ISOTOP |
2,378 | - |
RFQ |
Datasheet |
Tube | STripFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 220A (Tc) | 10V | 5.5mOhm @ 125A, 10V | 4V @ 250µA | 900 nC @ 10 V | ±20V | 31000 pF @ 25 V | - | 500W (Tc) | 150°C (TJ) | Chassis Mount | |
STE26NA90MOSFET N-CH 900V 26A ISOTOP |
2,447 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 26A (Tc) | 10V | 300mOhm @ 13A, 10V | 3.75V @ 1mA | 660 nC @ 10 V | ±30V | 1770 pF @ 25 V | - | 450W (Tc) | 150°C (TJ) | Chassis Mount | |
STE48NM60MOSFET N-CH 650V 48A ISOTOP |
3,104 | - |
RFQ |
Datasheet |
Tube | MDmesh™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 48A (Tc) | 10V | 110mOhm @ 22.5A, 10V | 5V @ 250µA | 134 nC @ 10 V | ±30V | 3800 pF @ 25 V | - | 450W (Tc) | 150°C (TJ) | Chassis Mount | |
STE70NM50MOSFET N-CH 500V 70A ISOTOP |
2,178 | - |
RFQ |
Datasheet |
Tube | MDmesh™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 70A (Tc) | 10V | 50mOhm @ 30A, 10V | 5V @ 250µA | 266 nC @ 10 V | ±30V | 7500 pF @ 25 V | - | 600W (Tc) | 150°C (TJ) | Chassis Mount |
