Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
CM150DY-24NF IGBT MOD 1200V 150A 780W Powerex Inc.	3,539	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	150 A	780 W	2.5V @ 15V, 150A	1 mA	35 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DY-28H IGBT MOD 1400V 150A 1100W Powerex Inc.	3,963	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1400 V	150 A	1100 W	4.2V @ 15V, 150A	1 mA	30 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DY-34A IGBT MOD 1700V 150A 1600W Powerex Inc.	3,198	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1700 V	150 A	1600 W	2.8V @ 15V, 150A	1 mA	37 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150E3U-12H IGBT MOD 600V 150A 600W Powerex Inc.	2,103	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	600 V	150 A	600 W	3V @ 15V, 150A	1 mA	13.2 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150E3U-24H IGBT MOD 1200V 150A 890W Powerex Inc.	2,920	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	1200 V	150 A	890 W	3.7V @ 15V, 150A	1 mA	22 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150RL-12NF IGBT MOD 600V 150A 730W Powerex Inc.	2,292	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter with Brake	600 V	150 A	730 W	2.2V @ 15V, 150A	1 mA	23 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150RL-24NF IGBT MOD 1200V 150A 890W Powerex Inc.	2,701	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter with Brake	1200 V	150 A	890 W	3V @ 15V, 150A	1 mA	23 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150RX-12A IGBT MOD 600V 150A 520W Powerex Inc.	2,630	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter with Brake	600 V	150 A	520 W	2.1V @ 15V, 150A	1 mA	18 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM150TF-12H IGBT MOD 600V 150A 600W Powerex Inc.	3,045	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	150 A	600 W	2.8V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150TL-12NF IGBT MOD 600V 150A 730W Powerex Inc.	3,334	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	150 A	730 W	2.2V @ 15V, 150A	1 mA	23 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150TL-24NF IGBT MOD 1200V 150A 890W Powerex Inc.	3,536	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	150 A	890 W	3V @ 15V, 150A	1 mA	23 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150TU-12F IGBT MOD 600V 150A 520W Powerex Inc.	3,676	-	RFQ		Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Three Phase Inverter	600 V	150 A	520 W	2.2V @ 15V, 150A	1 mA	41 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150TU-12H IGBT MOD 600V 150A 600W Powerex Inc.	3,774	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	150 A	600 W	3V @ 15V, 150A	1 mA	13.2 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM15TF-12H IGBT MODULE 600V 15A 100W Powerex Inc.	3,843	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	15 A	100 W	2.8V @ 15V, 15A	1 mA	1.5 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM15TF-24H IGBT MOD 1200V 15A 150W Powerex Inc.	3,893	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	1200 V	15 A	150 W	3.4V @ 15V, 15A	1 mA	3 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

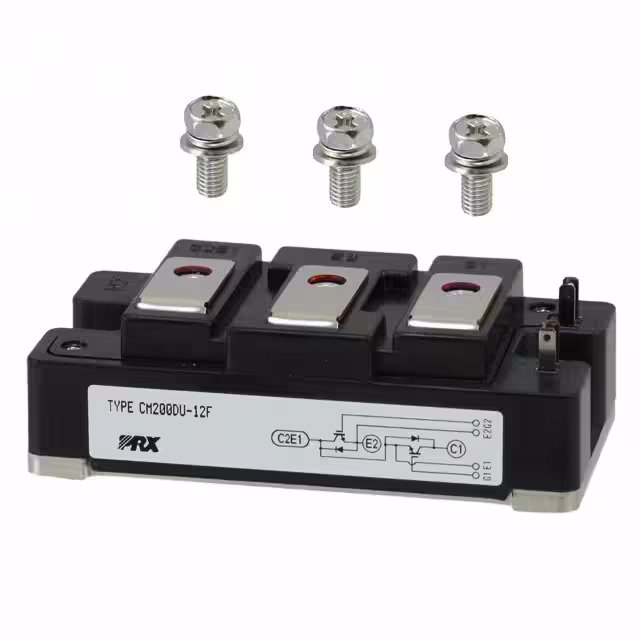

CM200DU-12F IGBT MOD 600V 200A 590W Powerex Inc.	3,935	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Half Bridge	600 V	200 A	590 W	2.2V @ 15V, 200A	1 mA	54 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DU-12H IGBT MOD 600V 200A 650W Powerex Inc.	3,996	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	200 A	650 W	3V @ 15V, 200A	1 mA	17.6 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

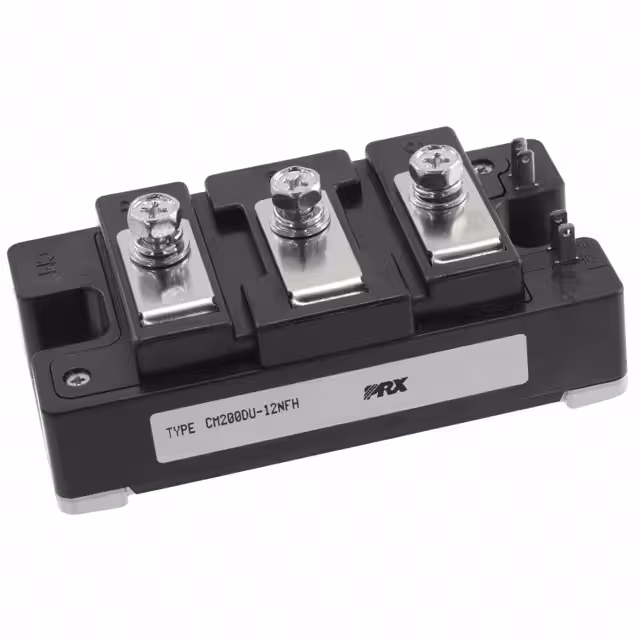

CM200DU-12NFH IGBT MOD 600V 200A 590W Powerex Inc.	2,174	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	600 V	200 A	590 W	2.7V @ 15V, 200A	1 mA	55 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

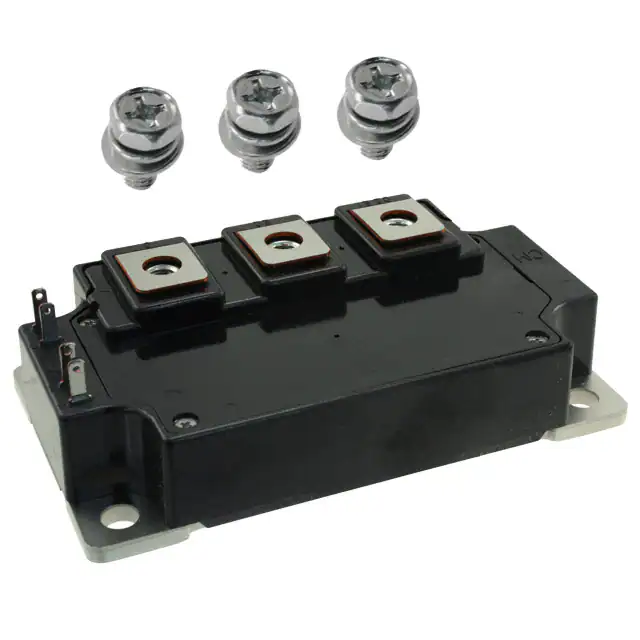

CM200DU-24F IGBT MOD 1200V 200A 890W Powerex Inc.	2,883	-	RFQ		Bulk	IGBTMOD™	Obsolete	Trench	Half Bridge	1200 V	200 A	890 W	2.4V @ 15V, 200A	1 mA	78 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DU-24H IGBT MOD 1200V 200A 1130W Powerex Inc.	3,891	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	200 A	1130 W	3.7V @ 15V, 200A	1 mA	30 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
