Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
GSID300A120S5C1 IGBT MOD 1200V 430A 1630W SemiQ	3,296	-	RFQ	Datasheet	Bulk	-	Obsolete	-	Three Phase Inverter	1200 V	430 A	1630 W	2.25V @ 15V, 300A	1 mA	30 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
VS-GA100TS60SF IGBT MOD 600V 220A INT-A-PAK Vishay General Semiconductor - Diodes Division	3,336	-	RFQ	Datasheet	Bulk	-	Obsolete	PT	Half Bridge	600 V	220 A	780 W	1.28V @ 15V, 100A	1 mA	16.25 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
VS-GT75LP120N IGBT MOD 1200V 150A INT-A-PAK Vishay General Semiconductor - Diodes Division	2,792	-	RFQ		Bulk	-	Obsolete	-	Half Bridge	1200 V	150 A	543 W	2.35V @ 15V, 75A	5 mA	5.52 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
FA300R12ME4BOSA1 MODULE IGBT ECONO DUAL 3 Infineon Technologies	3,954	-	RFQ	Datasheet	Bulk	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
FP30R06YE3BOMA1 MODULE IGBT CBI E2 Infineon Technologies	3,391	-	RFQ	Datasheet	Tray	*	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
BSM50GB170DN2HOSA1 IGBT MOD 1700V 72A 500W Infineon Technologies	3,094	-	RFQ	Datasheet	Bulk,Tray	-	Obsolete	-	Half Bridge	1700 V	72 A	500 W	3.9V @ 15V, 50A	-	8 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
BSM75GB170DN2HOSA1 IGBT MOD 1700V 110A 625W Infineon Technologies	642	-	RFQ	Datasheet	Bulk,Tray	-	Obsolete	-	Half Bridge	1700 V	110 A	625 W	3.9V @ 15V, 75A	-	11 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
MG12600WB-BR2MM IGBT MODULE 1200V 750A 2500W WB Littelfuse Inc.	2,379	-	RFQ	Datasheet	Bulk,Bulk	-	Obsolete	Trench Field Stop	Half Bridge	1200 V	750 A	2500 W	2.5V @ 15V, 600A	100 µA	60.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
MG12150S-DEN2MM IGBT MODULE 1200V 200A 625W S3 Littelfuse Inc.	3,296	-	RFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	2 Independent	1200 V	200 A	625 W	1.7V @ 15V, 150A (Typ)	1 mA	10.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
FP25R12KE3BOSA1 IGBT MOD 1200V 40A 155W Infineon Technologies	3,200	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	1200 V	40 A	155 W	2.15V @ 15V, 25A	1 mA	1.8 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount

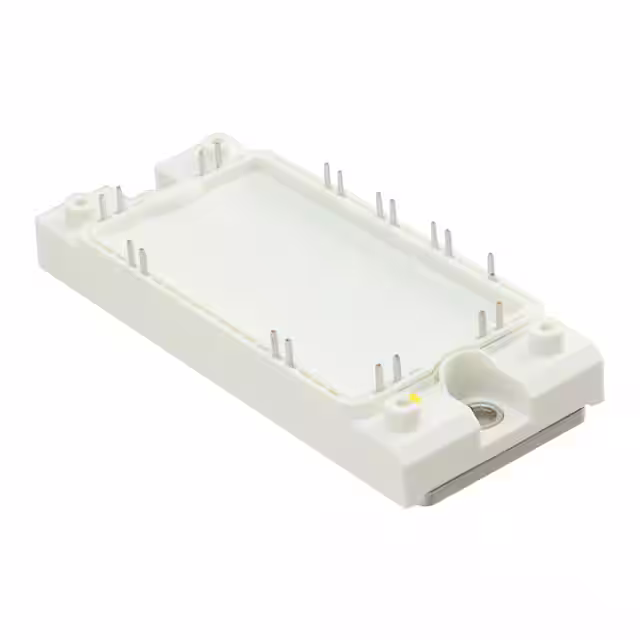

DDB6U134N16RRBOSA1 IGBT MOD 1600V 70A 500W Infineon Technologies	2,113	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	NPT	Single	1600 V	70 A	500 W	2.75V @ 15V, 70A	500 µA	5.1 nF @ 25 V	Standard	Yes	150°C (TJ)	Chassis Mount
BSM35GP120BOSA1 IGBT MOD 1200V 45A 230W Infineon Technologies	2,963	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	NPT	Three Phase Inverter	1200 V	45 A	230 W	-	500 µA	1.5 nF @ 25 V	-	Yes	150°C (TJ)	Surface Mount

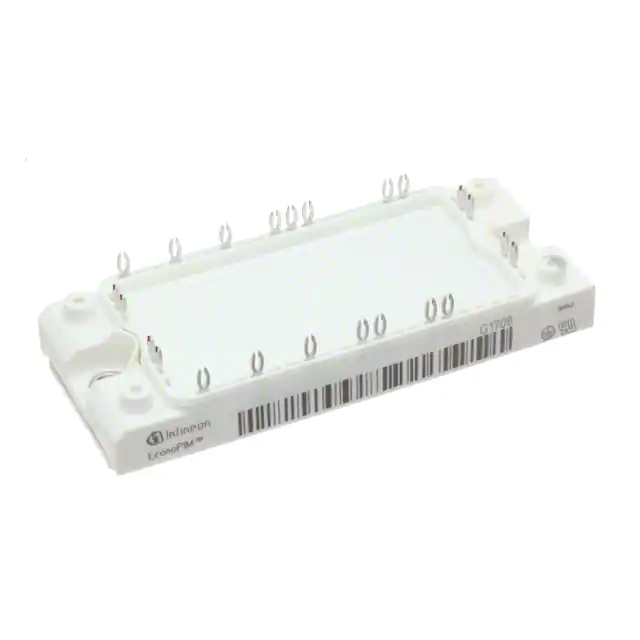

FP50R12KT4B11BOSA1 IGBT MOD 1200V 50A 280W Infineon Technologies	2,477	-	RFQ	Datasheet	Bulk,Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	1200 V	50 A	280 W	2.15V @ 15V, 50A	1 mA	2.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
DDB6U84N16RRBOSA1 IGBT MOD 1200V 50A 350W Infineon Technologies	3,494	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	NPT	Single Chopper	1200 V	50 A	350 W	3.2V @ 20V, 50A	1 mA	3.3 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
BSM50GD120DN2G IGBT MOD 1200V 78A 400W Infineon Technologies	2,040	-	RFQ	Datasheet	Bulk	-	Obsolete	-	Full Bridge	1200 V	78 A	400 W	3.7V @ 15V, 50A	-	33 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
DDB6U180N16RR IGBT MOD 1200V 140A 515W Infineon Technologies	3,719	-	RFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Dual Brake Chopper	1200 V	140 A	515 W	2.2V @ 15V, 100A	1 mA	6.3 nF @ 25 V	Standard	No	150°C (TJ)	Surface Mount
DF400R07PE4R_B6 IGBT MOD 650V 450A 1100W Infineon Technologies	2,473	-	RFQ	Datasheet	Bulk	EconoPACK™ 4	Obsolete	NPT	Single Chopper	650 V	450 A	1100 W	1.95V @ 15V, 400A	20 nA	18.5 nF @ 25 V	Standard	Yes	150°C (TJ)	Chassis Mount
F1235R12KT4GBOSA1 IGBT MOD 1200V 35A 210W Infineon Technologies	3,210	-	RFQ	Datasheet	Bulk,Bulk	-	Obsolete	Trench Field Stop	Single	1200 V	35 A	210 W	2.15V @ 15V, 35A	1 mA	2 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FS100R12KE3_B3 IGBT MOD 1200V 140A 480W Infineon Technologies	2,632	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Phase Inverter	1200 V	140 A	480 W	2.15V @ 15V, 100A	5 mA	7.1 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
FS75R12KE3_B3 IGBT MOD 1200V 100A 355W Infineon Technologies	3,529	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Phase Inverter	1200 V	100 A	355 W	2.15V @ 15V, 75A	5 mA	5.3 nF @ 25 V	Standard	Yes	150°C (TJ)	Chassis Mount
