Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FF401R17KF6C_B2 IGBT MOD 1700V 650A 3150W Infineon Technologies	2,422	-	RFQ	Datasheet	Bulk	-	Active	-	2 Independent	1700 V	650 A	3150 W	3.1V @ 15V, 400A	5 mA	27 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FS100R07N2E4B11BOSA1 IGBT MOD 650V 125A 20MW Infineon Technologies	3,240	-	RFQ	Datasheet	Bulk	EconoPACK™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	650 V	125 A	20 mW	1.95V @ 15V, 100A	1 mA	6.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP30R06KE3BOSA1 IGBT MODULE 600V 37A 125W Infineon Technologies	2,933	-	RFQ	Datasheet	Bulk,Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	600 V	37 A	125 W	2V @ 15V, 30A	1 mA	1.65 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP30R07U1E4BPSA1 IGBT MODULE 650V 50A 160W Infineon Technologies	2,945	-	RFQ	Datasheet	Bulk	SmartPIM1	Obsolete	Trench Field Stop	Three Phase Inverter	650 V	50 A	160 W	2V @ 15V, 30A	1 mA	1.9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FF450R17ME4B11BOSA1 IGBT MOD 1700V 600A 2500W Infineon Technologies	3,928	-	RFQ	Datasheet	Bulk	EconoDUAL™ 3	Discontinued at Mosen	Trench Field Stop	2 Independent	1700 V	600 A	2500 W	2.3V @ 15V, 450A	3 mA	36 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP50R06KE3BOSA1 IGBT MODULE 600V 60A 190W Infineon Technologies	2,802	-	RFQ	Datasheet	Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	600 V	60 A	190 W	1.9V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP50R07N2E4BOSA1 IGBT MODULE 650V 70A Infineon Technologies	2,227	-	RFQ	Datasheet	Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	650 V	70 A	-	1.95V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP50R07N2E4B11BOSA1 IGBT MODULE 650V 70A Infineon Technologies	2,012	-	RFQ	Datasheet	Bulk,Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	650 V	70 A	-	1.95V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP50R07U1E4BPSA1 IGBT MODULE 650V 75A 230W Infineon Technologies	231	-	RFQ	Datasheet	Bulk,Bulk	EconoPIM™ 2	Obsolete	Trench Field Stop	Three Phase Inverter	650 V	75 A	230 W	1.95V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount

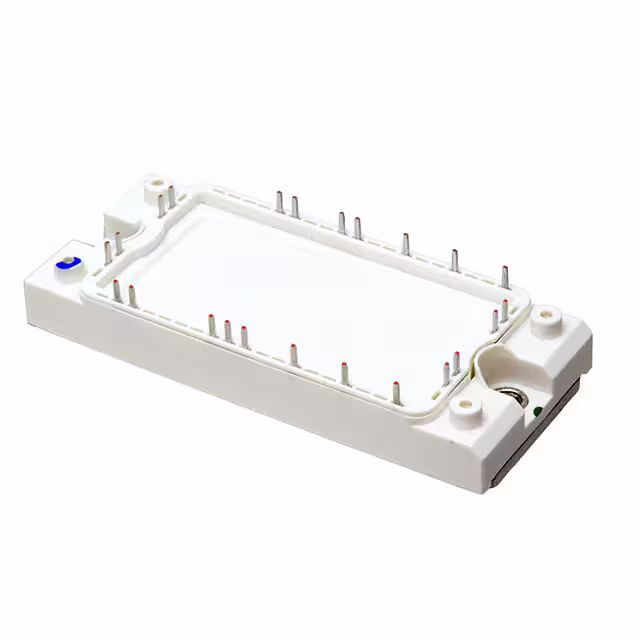

FP50R12KT4BOSA1 IGBT MOD 1200V 50A 280W Infineon Technologies	2,729	-	RFQ	Datasheet	Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	1200 V	50 A	280 W	2.25V @ 15V, 50A	1 mA	2.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FD600R06ME3_B11_S2 IGBT MOD 600V 600A 2250W Infineon Technologies	2,964	-	RFQ	Datasheet	Bulk	EconoDUAL™ 3	Active	Trench Field Stop	Single Chopper	600 V	600 A	2250 W	1.6V @ 15V, 600A	5 mA	60 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FD600R17KE3KB5NOSA1 IGBT MODULE 1700V 4300W Infineon Technologies	2,634	-	RFQ		Bulk	EasyPACK™	Active	-	Single Chopper	1700 V	-	4300 W	2.45V @ 15V, 600A	5 mA	54 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FF600R07ME4B11BOSA1 IGBT MOD 650V 700A 1800W Infineon Technologies	2,276	-	RFQ	Datasheet	Bulk	EconoDUAL™ 3	Discontinued at Mosen	Trench Field Stop	2 Independent	650 V	700 A	1800 W	1.95V @ 15V, 600A	1 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FF600R12IS4FBOSA1 IGBT MOD 1200V 600A 3700W Infineon Technologies	3,481	-	RFQ		Bulk	PrimePACK™2	Obsolete	-	2 Independent	1200 V	600 A	3700 W	3.75V @ 15V, 600A	5 mA	39 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FF600R12ME4B11BPSA1 IGBT MODULE 1200V 4050W Infineon Technologies	2,575	-	RFQ	Datasheet	Bulk	EconoDUAL™ 3	Discontinued at Mosen	Trench Field Stop	2 Independent	1200 V	-	4050 W	2.1V @ 15V, 600A	3 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FF600R12ME4CB11BOSA1 IGBT MOD 1200V 1060A 4050W Infineon Technologies	2,432	-	RFQ	Datasheet	Bulk	EconoDUAL™ 3	Discontinued at Mosen	Trench Field Stop	2 Independent	1200 V	1060 A	4050 W	2.1V @ 15V, 600A	3 mA	37 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
F475R12KS4BOSA1 IGBT MOD 1200V 100A 500W Infineon Technologies	2,436	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter	1200 V	100 A	500 W	3.75V @ 15V, 75A	5 mA	5.1 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
F475R12KS4B11BOSA1 IGBT MOD 1200V 100A 500W Infineon Technologies	2,885	-	RFQ	Datasheet	Bulk	EconoPACK™ 2	Discontinued at Mosen	-	Three Phase Inverter	1200 V	100 A	500 W	3.75V @ 15V, 75A	1 mA	5.1 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FP75R07N2E4BOSA1 IGBT MODULE 650V 95A Infineon Technologies	3,118	-	RFQ	Datasheet	Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	650 V	95 A	-	1.95V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP75R07N2E4B11BOSA1 IGBT MODULE 650V 75A Infineon Technologies	2,138	-	RFQ	Datasheet	Bulk,Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	650 V	75 A	-	1.95V @ 15V, 75A	1 mA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
