Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FF200R12KE4HOSA1IGBT MOD 1200V 240A 1100W |
2,090 | - |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 240 A | 1100 W | 2.15V @ 15V, 200A | 5 mA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

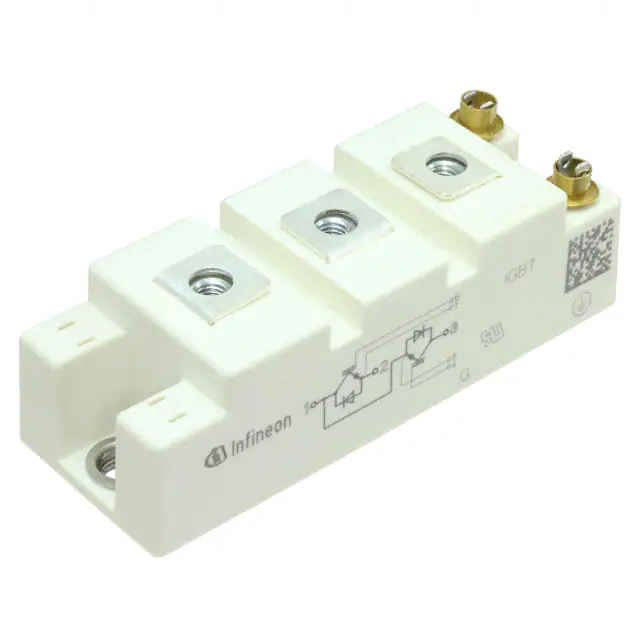

FF75R12RT4HOSA1IGBT MOD 1200V 75A 395W |
3,858 | - |
RFQ |
Datasheet |
Tray | PrimePACK™2 | Active | Trench Field Stop | 2 Independent | 1200 V | 75 A | 395 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |
FZ400R12KE3HOSA1IGBT MOD 1200V 650A 2250W |
2,500 | - |
RFQ |
Datasheet |
Tray | - | Active | - | Single | 1200 V | 650 A | 2250 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | |
FF200R12KS4PHOSA1IGBT MOD 1200V 275A 1400W |
2,925 | - |
RFQ |
Bulk,Tray | - | Active | - | Half Bridge | 1200 V | 275 A | 1400 W | 3.7V @ 15V, 200A | 5 mA | 13 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | ||
FF100R12RT4HOSA1IGBT MOD 1200V 100A 555W |
3,124 | - |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | 2 Independent | 1200 V | 100 A | 555 W | 2.15V @ 15V, 100A | 1 mA | 630 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |

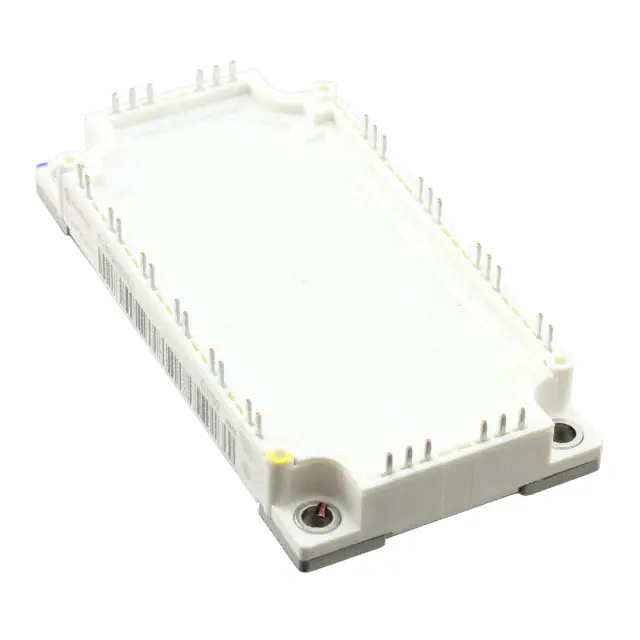

FS150R06KE3BOSA1IGBT MOD 600V 150A 430W |
2,847 | - |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 600 V | 150 A | 430 W | 1.9V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

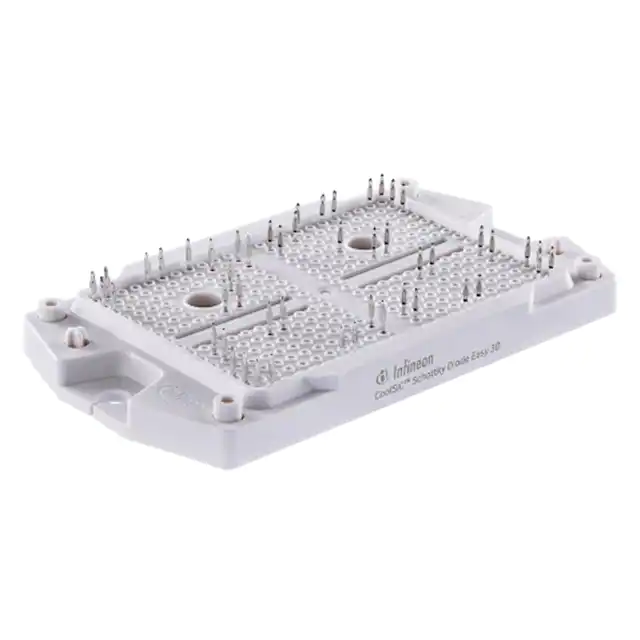

F3L400R10W3S7B11BPSA1IGBT MODULE LOW POWER EASY |
2,864 | - |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Trench | - | 950 V | - | - | 1.4V @ 15V, 150A | 70 µA | 25.2 nF @ 25 V | - | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |

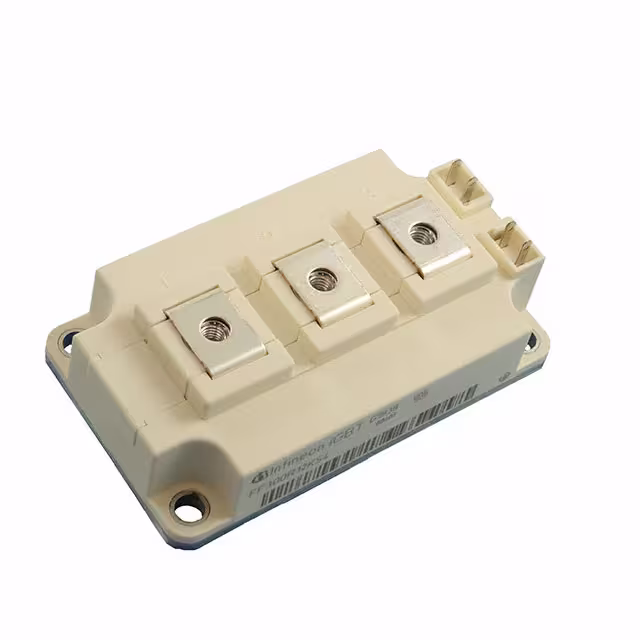

FF300R12KS4HOSA1IGBT MOD 1200V 370A 1950W |
3,779 | - |
RFQ |
Datasheet |
Tray | C | Active | - | 2 Independent | 1200 V | 370 A | 1950 W | 3.75V @ 15V, 300A | 5 mA | 20 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | |
FD300R17KE4PHOSA1IGBT MODULE 1700V 300A AG62MM-1 |
2,304 | - |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Single Chopper | 1700 V | 300 A | - | 2.3V @ 15V, 300A | 1 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | |
FF600R07ME4BPSA1GBT MODULE 650V 600A |
2,182 | - |
RFQ |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 650 V | 600 A | 20 mW | 1.95V @ 15V, 600A | 1 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ||
FF450R12KE4HOSA1IGBT MOD 1200V 520A 2400W |
3,998 | - |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 520 A | 2400 W | 2.15V @ 15V, 450A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

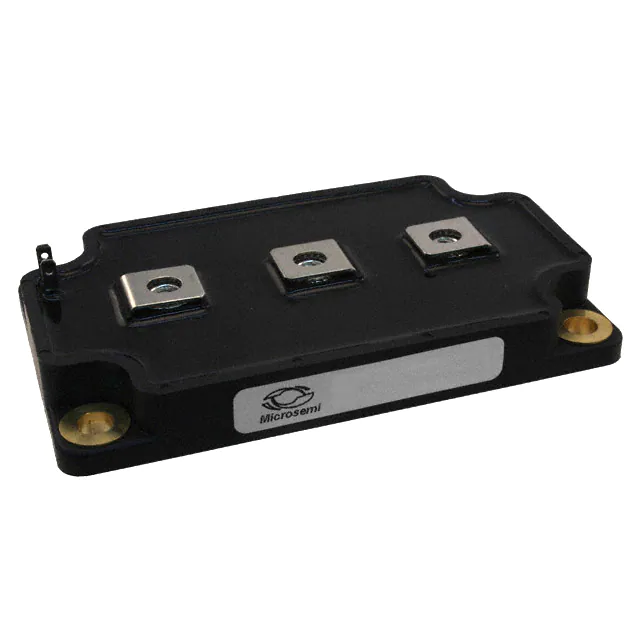

APTGT600SK60GIGBT MODULE 600V 700A 2300W SP6 |
3,442 | - |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 600 V | 700 A | 2300 W | 1.8V @ 15V, 600A | 750 µA | 49 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | |

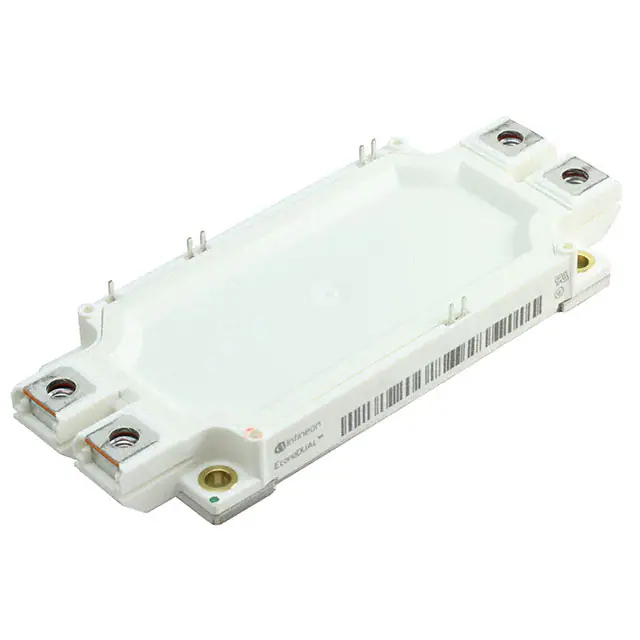

FF300R17ME4BOSA1IGBT MOD 1700V 375A 1800W |
3,217 | - |
RFQ |
Datasheet |
Bulk,Tray | C | Active | NPT | Half Bridge | 1700 V | 375 A | 1800 W | 2.3V @ 15V, 300A | 3 mA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
APTGT200A120GIGBT MODULE 1200V 280A 890W SP6 |
3,761 | - |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

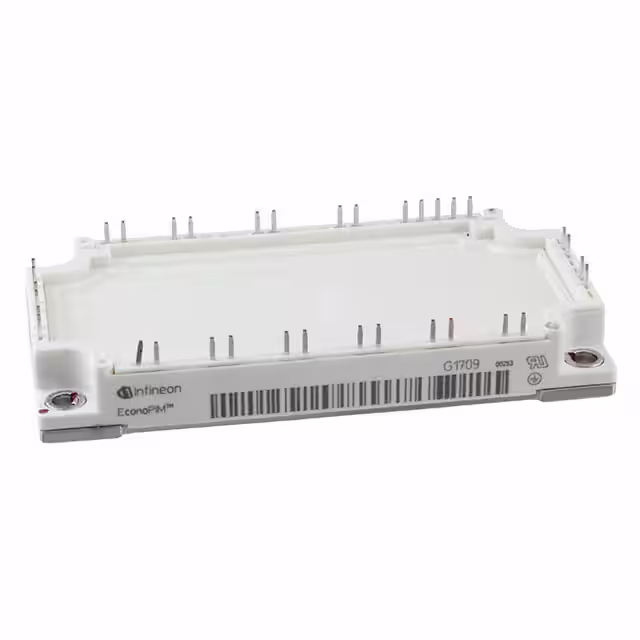

BSM50GP120BOSA1IGBT MODULE 1200V 50A |
3,154 | - |
RFQ |
Datasheet |
Tray | - | Not For New Designs | - | 3 Phase Inverter | 1200 V | 80 A | - | 2.55V @ 15V, 50A | 500 µA | 3.3 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C | Chassis Mount | |
FF600R12KE4EBOSA1IGBT MODULE 1200V 600A |
3,237 | - |
RFQ |
Datasheet |
Bulk,Tray | C | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |
FF600R12KE4PBOSA1IGBT MODULE 1200V |
2,486 | - |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
FF600R12ME4B72BOSA1IGBT MOD 1200V 1200A 20MW |
2,970 | - |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | Half Bridge | 1200 V | 1200 A | 20 mW | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |

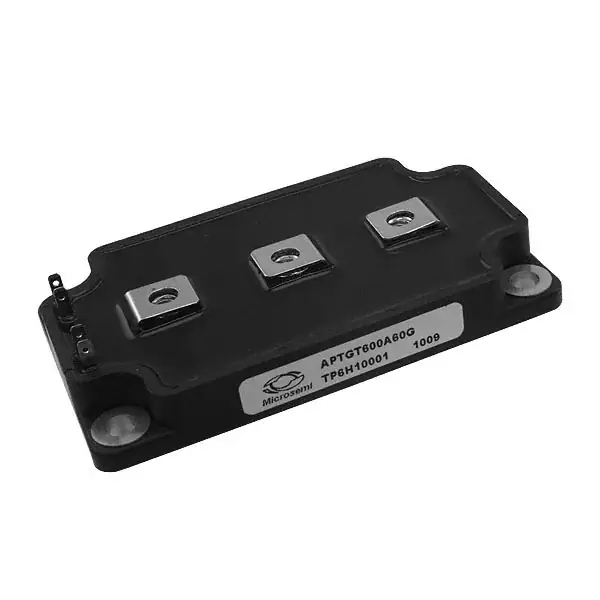

APTGT600A60GIGBT MODULE 600V 700A 2300W SP6 |
3,391 | - |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 600 V | 700 A | 2300 W | 1.8V @ 15V, 600A | 750 µA | 49 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | |

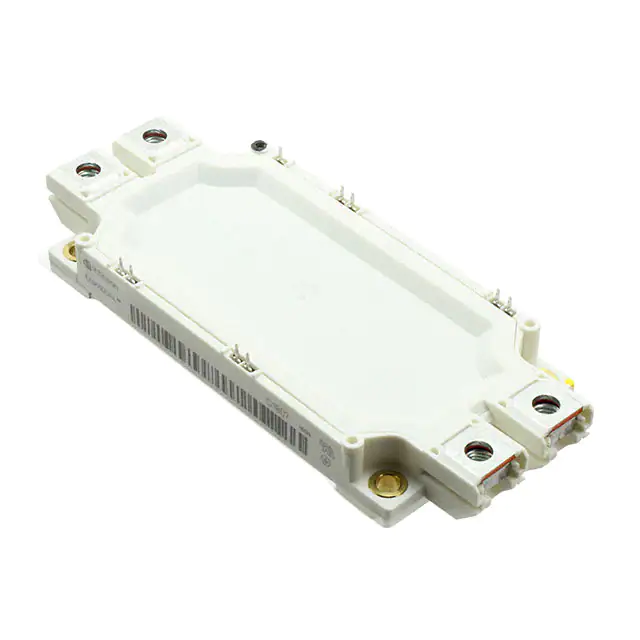

FF600R12ME4CBOSA1IGBT MOD 1200V 1060A 4050W |
2,046 | - |
RFQ |
Datasheet |
Bulk,Tray | - | Not For New Designs | Trench Field Stop | Half Bridge | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
