Transistors - IGBTs - Modules- Page 82

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FF450R33T3E3B5P6BPMA1 IHV IHM T XHP 3 3-6 5K Infineon Technologies	2,554	-	RFQ	Datasheet	Tray	XHP™3	Active	Trench Field Stop	2 Independent	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	84 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FZ1200R45HL3BPSA1 IGBT MODULE 4500V 1200A Infineon Technologies	2,394	-	RFQ	Datasheet	Bulk,Tray	IHM-B	Active	Trench Field Stop	Single Switch	4500 V	1200 A	15000 W	2.8V @ 15V, 1200A	5 mA	280 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FD800R45KL3KB5NPSA1 IGBT MOD 4500V 800A 9000W Infineon Technologies	2,021	-	RFQ	Datasheet	Tray	-	Active	-	Single Chopper	4500 V	800 A	9000 W	2.85V @ 15V, 800A	5 mA	185 nF @ 25 V	Standard	No	-50°C ~ 125°C	Chassis Mount
FZ1000R33HE3B60BPSA1 IHV IHM T XHP 3 3-6 5K AG-IHVB13 Infineon Technologies	2,443	-	RFQ		Tray	IHM-B	Active	Trench Field Stop	Single Switch	3300 V	1000 A	1.6 MW	3.1V @ 15V, 1kA	5 mA	190 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FZ1000R33HL3B60BOSA1 IHV IHM T XHP 3 3-6 5K AG-IHVB13 Infineon Technologies	2,153	-	RFQ		Tray	IHM-B	Active	Trench Field Stop	Dual Brake Chopper	3300 V	1000 A	1.6 MW	2.85V @ 15V, 1kA	5 mA	190 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FF225R65T3E3P2BPSA1 IHV IHM T XHP 3 3-6 5K AG-XHP3K6 Infineon Technologies	3,437	-	RFQ		Tray	XHP™3	Active	Trench Field Stop	2 Independent	5900 V	225 A	1000 kW	3.4V @ 15V, 225A	5 mA	65.6 nF @ 25 V	Standard	No	125°C (TJ)	Chassis Mount
FD16001200R17HP4B2BOSA2 IGBT MODULE VCES 1700V 1600A Infineon Technologies	2,727	-	RFQ	Datasheet	Bulk	IHM-B	Active	-	Dual Brake Chopper	1700 V	-	10500 W	2.25V @ 15V, 1600A	5 mA	130 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FF225R65T3E3P3BPMA1 IHV IHM T XHP 3 3-6 5K AG-XHP3K6 Infineon Technologies	3,321	-	RFQ		Tray	XHP™3	Active	Trench Field Stop	2 Independent	5900 V	225 A	1000 kW	3.4V @ 15V, 225A	5 mA	65.6 nF @ 25 V	Standard	No	125°C (TJ)	Chassis Mount
FF225R65T3E3P4BPMA1 IHV IHM T XHP 3 3-6 5K AG-XHP3K6 Infineon Technologies	2,426	-	RFQ		Tray	XHP™3	Active	Trench Field Stop	2 Independent	5900 V	225 A	1000 kW	3.4V @ 15V, 225A	5 mA	65.6 nF @ 25 V	Standard	No	125°C (TJ)	Chassis Mount
FF225R65T3E3P5BPMA1 IHV IHM T XHP 3 3-6 5K AG-XHP3K6 Infineon Technologies	2,167	-	RFQ		Tray	XHP™3	Active	Trench Field Stop	2 Independent	5900 V	225 A	1000 kW	3.4V @ 15V, 225A	5 mA	65.6 nF @ 25 V	Standard	No	125°C (TJ)	Chassis Mount
FF225R65T3E3P6BPMA1 IHV IHM T XHP 3 3-6 5K AG-XHP3K6 Infineon Technologies	3,556	-	RFQ		Tray	XHP™3	Active	Trench Field Stop	2 Independent	5900 V	225 A	1000 kW	3.4V @ 15V, 225A	5 mA	65.6 nF @ 25 V	Standard	No	125°C (TJ)	Chassis Mount
FD400R33KF2CNOSA1 IGBT MOD 3300V 660A 4800W Infineon Technologies	3,280	-	RFQ	Datasheet	Bulk	-	Last Time Buy	-	Single Chopper	3300 V	660 A	4800 W	4.25V @ 15V, 400A	5 mA	50 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FD400R33KF2CKNOSA1 IGBT MOD 3300V 660A 4800W Infineon Technologies	3,189	-	RFQ	Datasheet	Bulk,Bulk	-	Last Time Buy	-	Single Chopper	3300 V	660 A	4800 W	4.25V @ 15V, 400A	5 mA	50 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FD250R65KE3KNOSA1 IGBT MOD 6500V 250A 4800W Infineon Technologies	2,448	-	RFQ	Datasheet	Bulk,Bulk	-	Active	-	Single	6500 V	250 A	4800 W	3.4V @ 15V, 250A	5 mA	69 nF @ 25 V	Standard	No	-50°C ~ 125°C	Chassis Mount
FZ1200R33KF2CNOSA1 IGBT MODULE 3300V 2000A Infineon Technologies	110	-	RFQ	Datasheet	Bulk,Tray	-	Last Time Buy	-	Full Bridge	3300 V	2000 A	14500 W	4.25V @ 15V, 1200A	12 mA	150 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FD1000R33HE3KBPSA1 IGBT MODULE 3300V 1000A Infineon Technologies	3,733	-	RFQ	Datasheet	Bulk	IHM-B	Active	Trench Field Stop	Dual Brake Chopper	3300 V	1000 A	11500 W	3.1V @ 15V, 1000A	5 mA	190 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FD1000R33HL3KBPSA1 IGBT MODULE 3300V 1000A Infineon Technologies	2,717	-	RFQ	Datasheet	Bulk,Bulk	IHM-B	Active	Trench Field Stop	2 Independent	3300 V	1000 A	11500 W	2.85V @ 15V, 1000A	5 mA	190 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FZ1500R33HE3S6BOSA1 IHV IHM T XHP 3 3-6 5K AG-IHVB19 Infineon Technologies	2,825	-	RFQ		Tray	IHM-B	Active	Trench Field Stop	Single Switch	3300 V	1500 A	2.4 MW	3.1V @ 15V, 1.5kA	5 mA	280 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

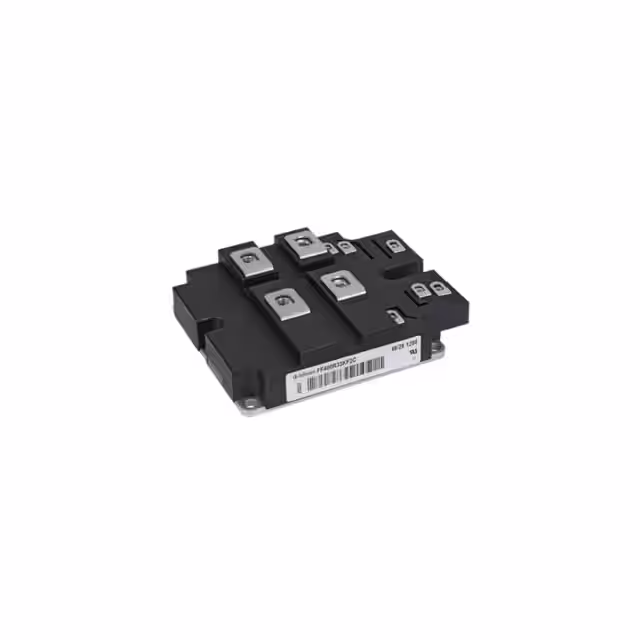

FF400R33KF2CNOSA1 IGBT MOD 3300V 660A 4800W Infineon Technologies	2,923	-	RFQ	Datasheet	Bulk	PrimePACK™2	Last Time Buy	-	2 Independent	3300 V	660 A	4800 W	4.25V @ 15V, 400A	5 mA	50 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FD1000R33HE3KB60BPSA1 IHV IHM T XHP 3 3-6 5K AG-IHVB19 Infineon Technologies	2,142	-	RFQ		Tray	IHM-B	Active	Trench Field Stop	Dual Brake Chopper	3300 V	1000 A	1.6 MW	3.15V @ 15V, 1kA	5 mA	190 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
