Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
MG12100W-XN2MM IGBT MOD 1200V 140A 450W Littelfuse Inc.	2,518	-	RFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Three Phase Inverter	1200 V	140 A	450 W	1.7V @ 15V, 100A (Typ)	1 mA	7.1 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
STGE50NC60VD IGBT MODULE 600V 90A 260W ISOTOP STMicroelectronics	3,399	-	RFQ	Datasheet	Tube	PowerMESH™	Obsolete	-	Single	600 V	90 A	260 W	2.5V @ 15V, 40A	150 µA	4.55 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
IRGTI090U06 IGBT MOD 600V 90A 298W INT-A-PAK Infineon Technologies	3,441	-	RFQ	Datasheet	-	-	Obsolete	-	Half Bridge	600 V	90 A	298 W	3V @ 15V, 90A	1 mA	5.8 nF @ 30 V	Standard	No	-	Chassis Mount
CPV362M4F IGBT MODULE 600V 8.8A 23W IMS-2 Vishay General Semiconductor - Diodes Division	3,010	-	RFQ		Bulk	-	Active	-	Three Phase Inverter	600 V	8.8 A	23 W	1.66V @ 15V, 8.8A	250 µA	340 pF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
CPV362M4K IGBT MODULE 600V 5.7A 23W IMS-2 Vishay General Semiconductor - Diodes Division	2,725	-	RFQ	Datasheet	Bulk	-	Active	-	Three Phase Inverter	600 V	5.7 A	23 W	1.93V @ 15V, 3A	250 µA	450 pF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
CPV362M4U IGBT MODULE 600V 7.2A 23W IMS-2 Vishay General Semiconductor - Diodes Division	2,594	-	RFQ	Datasheet	Bulk	-	Active	-	Three Phase Inverter	600 V	7.2 A	23 W	1.95V @ 15V, 7.2A	250 µA	530 pF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
CPV363M4F IGBT MODULE 600V 16A 36W IMS-2 Vishay General Semiconductor - Diodes Division	2,796	-	RFQ	Datasheet	-	-	Obsolete	-	Three Phase Inverter	600 V	16 A	36 W	1.63V @ 15V, 16A	250 µA	1.1 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
CPV363M4K IGBT MODULE 600V 11A 36W IMS-2 Vishay General Semiconductor - Diodes Division	2,198	-	RFQ	Datasheet	Bulk	-	Active	-	Three Phase Inverter	600 V	11 A	36 W	2V @ 15V, 11A	250 µA	740 pF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
CPV363M4U IGBT MODULE 600V 13A 36W IMS-2 Vishay General Semiconductor - Diodes Division	2,602	-	RFQ	Datasheet	Bulk	-	Active	-	Three Phase Inverter	600 V	13 A	36 W	2V @ 15V, 13A	250 µA	1.1 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
CPV364M4F IGBT MODULE 600V 27A 63W IMS-2 Vishay General Semiconductor - Diodes Division	2,414	-	RFQ		-	-	Obsolete	-	Three Phase Inverter	600 V	27 A	63 W	1.6V @ 15V, 27A	250 µA	2.2 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
VS-CPV364M4KPBF IGBT MODULE 600V 24A 63W IMS-2 Vishay General Semiconductor - Diodes Division	2,266	-	RFQ	Datasheet	Bulk	-	Obsolete	-	Three Phase Inverter	600 V	24 A	63 W	1.8V @ 15V, 24A	250 µA	1.6 nF @ 30 V	Standard	No	-55°C ~ 150°C (TJ)	Through Hole
50MT060WH IGBT MODULE 600V 114A 658W 12MTP Vishay General Semiconductor - Diodes Division	2,087	-	RFQ	Datasheet	-	-	Obsolete	PT	Half Bridge	600 V	114 A	658 W	3.2V @ 15V, 100A	400 µA	7.1 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
50MT060ULS IGBT MODULE 600V 100A 445W 10MTP Vishay General Semiconductor - Diodes Division	3,638	-	RFQ	Datasheet	-	-	Obsolete	-	Single	600 V	100 A	445 W	2.55V @ 15V, 100A	250 µA	14.7 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

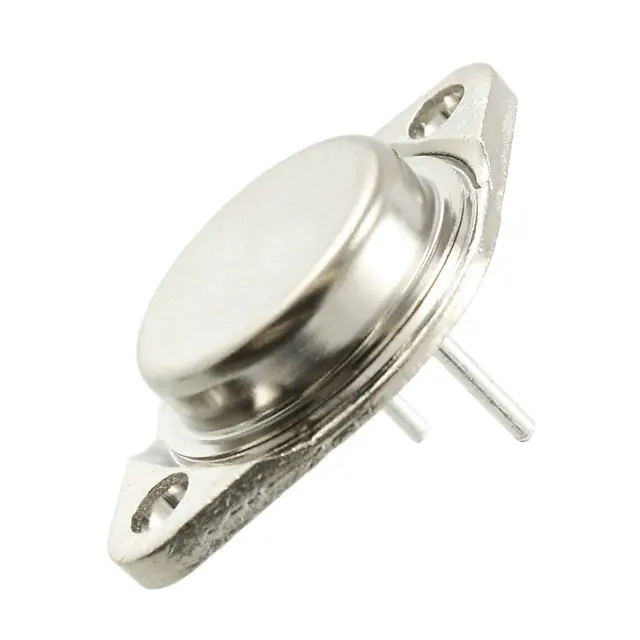

IXGM40N60A IGBT MODULE 600V 75A 250W TO204 IXYS	3,930	-	RFQ	Datasheet	-	-	Obsolete	-	Single	600 V	75 A	250 W	3V @ 15V, 40A	200 µA	4.5 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
GB35XF120K IGBT MODULE 1200V 50A 284W Vishay General Semiconductor - Diodes Division	2,736	-	RFQ	Datasheet	-	-	Obsolete	NPT	Three Phase Inverter	1200 V	50 A	284 W	3V @ 15V, 50A	100 µA	3.475 nF @ 30 V	Standard	No	150°C (TJ)	Chassis Mount
IXGN60N60 IGBT MOD 600V 100A 250W SOT227B IXYS	3,890	-	RFQ	Datasheet	Bulk	-	Obsolete	PT	Single	600 V	100 A	250 W	1.7V @ 15V, 60A	200 µA	4 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
MWI150-06A8 IGBT MODULE 600V 170A 515W E3 IXYS	3,241	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Phase Inverter	600 V	170 A	515 W	2.5V @ 15V, 150A	1.5 mA	6.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
FMG2G300LS60E IGBT MODULE 600V 300A 892W 7PMHA onsemi	2,534	-	RFQ	Datasheet	-	-	Obsolete	-	Half Bridge	600 V	300 A	892 W	1.8V @ 15V, 300A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FMG2G400LS60 IGBT MOD 600V 400A 1136W 7PMIA onsemi	2,948	-	RFQ	Datasheet	-	-	Obsolete	-	Half Bridge	600 V	400 A	1136 W	1.8V @ 15V, 400A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FMG2G50US120 IGBT MODULE 1200V 50A 320W 7PMGA onsemi	3,136	-	RFQ	Datasheet	-	-	Obsolete	-	Half Bridge	1200 V	50 A	320 W	3V @ 15V, 50A	3 mA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
