Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRGP6650D-EPBFIGBT WITH RECOVERY DIODE |
750 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | - | 600 V | 80 A | 105 A | 1.95V @ 15V, 35A | 306 W | 300µJ (on), 630µJ (off) | Standard | 75 nC | 40ns/105ns | 400V, 35A, 10Ohm, 15V | 50 ns | -40°C ~ 175°C (TJ) | Through Hole | |

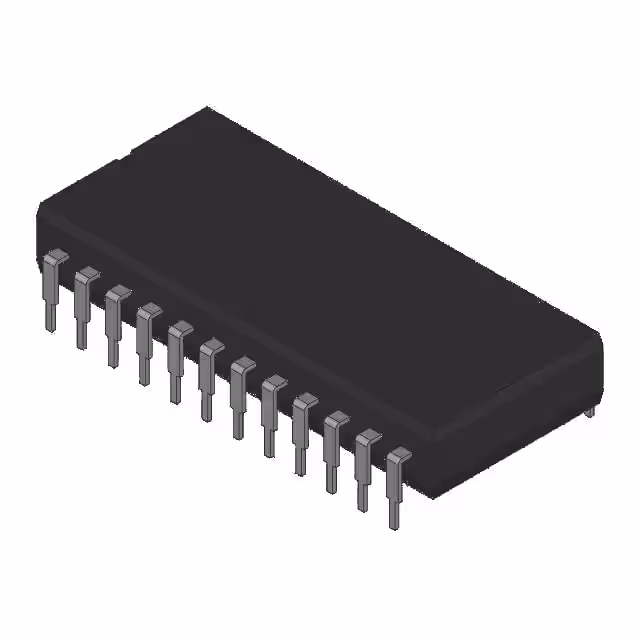

HGT1S20N60B3S40A, 600V, UFS N-CHANNEL IGBT |
635 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 600 V | 40 A | - | - | - | - | Standard | - | - | - | - | - | Surface Mount | |
SGH15N120RUFDTUIGBT, 24A, 1200V, N-CHANNEL |
626 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 1200 V | 24 A | 45 A | 3V @ 15V, 15A | 180 W | - | Standard | 108 nC | 20ns/60ns | 600V, 15A, 20Ohm, 15V | 100 ns | -55°C ~ 150°C (TJ) | Through Hole | |
HGTG27N60C3R54A, 600V, RUGGED N-CHANNEL IGBT |
297 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 600 V | 54 A | 108 A | 2.2V @ 15V, 27A | 208 W | - | Standard | 212 nC | - | - | - | -40°C ~ 150°C (TJ) | Through Hole | |
HGTP15N40C115A, 400V, N-CHANNEL IGBT |
368 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 400 V | 15 A | 35 A | 3.2V @ 20V, 35A | 75 W | - | Standard | 33 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole | |
HGTG2ON60C3DR40A, 600V, RUGGED UFS SERIES N C |
302 | - |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
IGTH20N40DN CHANNEL IGBT FOR SWITCHING APP |
248 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 400 V | 20 A | - | - | - | - | Standard | - | - | - | - | - | Through Hole | |
IGTH20N40ADN CHANNEL IGBT FOR SWITCHING APP |
444 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 400 V | 20 A | - | - | - | - | Standard | - | - | - | - | - | Through Hole | |
HGTH20N50E1D20A, 500V, N-CHANNEL IGBT |
325 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 500 V | 20 A | 35 A | 3.2V @ 20V, 35A | 100 W | - | Standard | 33 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole | |
HGTH20N50E120A, 500V, N-CHANNEL IGBT |
287 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 500 V | 20 A | 35 A | 3.2V @ 20V, 35A | 100 W | - | Standard | 33 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole | |
FGI40N60SFTUIGBT, 80A, 600V, N-CHANNEL |
900 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | Field Stop | 600 V | 80 A | 120 A | 2.9V @ 15V, 40A | 290 W | 1.13mJ (on), 310µJ (off) | Standard | 120 nC | 25ns/115ns | 400V, 40A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
IRGP4063D1PBFIGBT W/ULTRAFAST SOFT RECOVERY D |
2,507 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 600 V | 100 A | 200 A | 2.14V @ 15V, 48A | 330 W | 1.4µJ (on), 1.1µJ (off) | Standard | 150 nC | 60ns/160ns | 400V, 48A, 10Ohm, 15V | 80 ns | -40°C ~ 175°C (TJ) | Through Hole | |

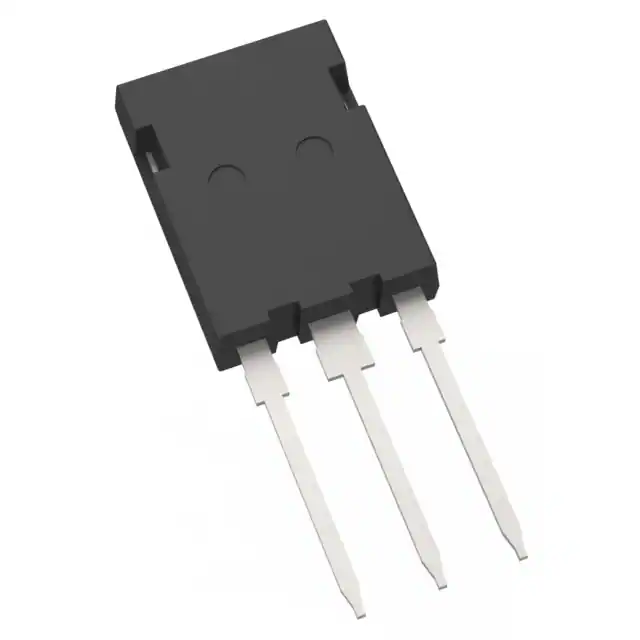

STGYA50H120DF2TRENCH GATE FIELD-STOP, 1200 V |
2,881 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 1200 V | 100 A | 200 A | 2.6V @ 15V, 50A | 535 W | 2mJ (on), 2.1mJ (off) | Standard | 210 nC | 40ns/284ns | 600V, 50A, 10Ohm, 15V | 340 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IGT6E2120A, 500V IGBT FOR MOTOR DRIVE |
289 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 500 V | 32 A | - | - | - | - | Standard | - | - | - | - | - | Through Hole | |
IGT6D2120A, 400V IGBT FOR MOTOR DRIVE |
209 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 400 V | 32 A | - | - | - | - | Standard | - | - | - | - | - | Through Hole | |
IGT6D2020A, 400V IGBT FOR MOTOR DRIVE |
146 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 400 V | 32 A | - | - | - | - | Standard | - | - | - | - | - | Through Hole | |
TMOSP7052N-CHANNEL IGBT, 41A, 600V |
120 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
HGTB12N60D1C12A, 600V N-CHANNEL IGBT |
598 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | 600 V | 12 A | 40 A | 2.7V @ 15V, 10A | 75 W | - | Standard | - | - | - | - | -55°C ~ 150°C (TJ) | Through Hole | |
STGYA50M120DF3TRENCH GATE FIELD-STOP, 1200 V |
2,926 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 1200 V | 100 A | 200 A | 2.2V @ 15V, 50A | 535 W | 2mJ (on), 3.2mJ (off) | Standard | 194 nC | 38ns/258ns | 600V, 50A, 10Ohm, 15V | 325 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IXYH90N65A5IGBT 650V 90A X5 XPT TO-247 |
2,639 | - |
RFQ |
Datasheet |
Tube | XPT™, GenX5™ | Active | PT | 650 V | 220 A | 600 A | 1.35V @ 15V, 60A | 650 W | 1.3mJ (on), 3.4mJ (off) | Standard | 260 nC | 40ns/420ns | 400V, 50A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole |
