Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AFGHL40T65SQDAEC 101 QUALIFIED, 650V, 40A FIE |
2,969 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Trench Field Stop | 650 V | 80 A | 160 A | 2.1V @ 15V, 40A | 238 W | 250µJ (on), 90µJ (off) | Standard | 68 nC | 15ns/70ns | 400V, 20A, 6Ohm, 15V | 28 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IXGA20N120A3IGBT 1200V 40A 180W TO263 |
3,288 | - |
RFQ |
Datasheet |
Tube | GenX3™ | Active | PT | 1200 V | 40 A | 120 A | 2.5V @ 15V, 20A | 180 W | 2.85mJ (on), 6.47mJ (off) | Standard | 50 nC | 16ns/290ns | 960V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | Surface Mount | |
IXGH48N60A3IGBT 600V 120A 300W TO247 |
3,531 | - |
RFQ |
Datasheet |
Tube | GenX3™ | Active | PT | 600 V | 120 A | 300 A | 1.35V @ 15V, 32A | 300 W | 950µJ (on), 2.9mJ (off) | Standard | 110 nC | 25ns/334ns | 480V, 32A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
IXYP20N120C3IGBT 1200V 40A 278W TO-220 |
3,790 | - |
RFQ |
Datasheet |
Tube | GenX3™, XPT™ | Active | - | 1200 V | 40 A | 96 A | 3.4V @ 15V, 20A | 278 W | 1.3mJ (on), 500µJ (off) | Standard | 53 nC | 20ns/90ns | 600V, 20A, 10Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
APT36GA60BD15IGBT 600V 65A 290W TO-247 |
2,359 | - |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | PT | 600 V | 65 A | 109 A | 2.5V @ 15V, 20A | 290 W | 307µJ (on), 254µJ (off) | Standard | 18 nC | 16ns/122ns | 400V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
IGW75N60TFKSA1IGBT TRENCH/FS 600V 150A TO247-3 |
2,426 | - |
RFQ |
Datasheet |
Bulk,Tube | TrenchStop® | Active | Trench Field Stop | 600 V | 150 A | 225 A | 2V @ 15V, 75A | 428 W | 4.5mJ | Standard | 470 nC | 33ns/330ns | 400V, 75A, 5Ohm, 15V | - | -40°C ~ 175°C (TJ) | Through Hole | |
IKFW40N60DH3EXKSA1IGBT TRENCH/FS 600V 34A TO247-3 |
3,051 | - |
RFQ |
Datasheet |
Bulk,Tube | TrenchStop™ | Active | Trench Field Stop | 600 V | 34 A | 90 A | 2.7V @ 15V, 30A | 111 W | 870µJ (on), 360µJ (off) | Standard | 107 nC | 18ns/144ns | 400V, 30A, 10Ohm, 15V | 72 ns | -40°C ~ 175°C (TJ) | Through Hole | |
IXXH30N60C3D1IGBT 600V 60A 270W TO247 |
3,977 | - |
RFQ |
Datasheet |
Tube | GenX3™, XPT™ | Active | PT | 600 V | 60 A | 110 A | 2.3V @ 15V, 24A | 270 W | 500µJ (on), 270µJ (off) | Standard | 37 nC | 23ns/77ns | 400V, 24A, 10Ohm, 15V | 25 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IKW50N60TFKSA1IGBT TRENCH/FS 600V 80A TO247-3 |
2,734 | - |
RFQ |
Datasheet |
Bulk,Tube | TrenchStop® | Active | Trench Field Stop | 600 V | 80 A | 150 A | 2V @ 15V, 50A | 333 W | 2.6mJ | Standard | 310 nC | 26ns/299ns | 400V, 50A, 7Ohm, 15V | 143 ns | -40°C ~ 175°C (TJ) | Through Hole | |
RGTV00TS65DGC11650V 50A FIELD STOP TRENCH IGBT |
3,739 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 95 A | 200 A | 1.9V @ 15V, 50A | 276 W | 1.17mJ (on), 940µJ (off) | Standard | 104 nC | 41ns/142ns | 400V, 50A, 10Ohm, 15V | 102 ns | -40°C ~ 175°C (TJ) | Through Hole | |
RGS60TS65DHRC11650V 30A FIELD STOP TRENCH IGBT. |
2,491 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 56 A | 90 A | 2.1V @ 15V, 30A | 223 W | 660µJ (on), 810µJ (off) | Standard | 36 nC | 28ns/104ns | 400V, 30A, 10Ohm, 15V | 103 ns | -40°C ~ 175°C (TJ) | Through Hole | |
APT40GR120BIGBT 1200V 88A 500W TO247 |
3,240 | - |
RFQ |
Datasheet |
Tube | - | Active | NPT | 1200 V | 88 A | 160 A | 3.2V @ 15V, 40A | 500 W | 1.38mJ (on), 906µJ (off) | Standard | 210 nC | 22ns/163ns | 600V, 40A, 4.3Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
IKZ50N65EH5XKSA1IGBT 650V 50A CO-PACK TO-247-4 |
2,728 | - |
RFQ |
Datasheet |
Tube | TrenchStop™ 5 | Active | Trench | 650 V | 85 A | 200 A | 2.1V @ 15V, 50A | 273 W | 410µJ (on), 190µJ (off) | Standard | 109 nC | 20ns/250ns | 400V, 25A, 12Ohm, 15V | 53 ns | -40°C ~ 175°C (TJ) | Through Hole | |

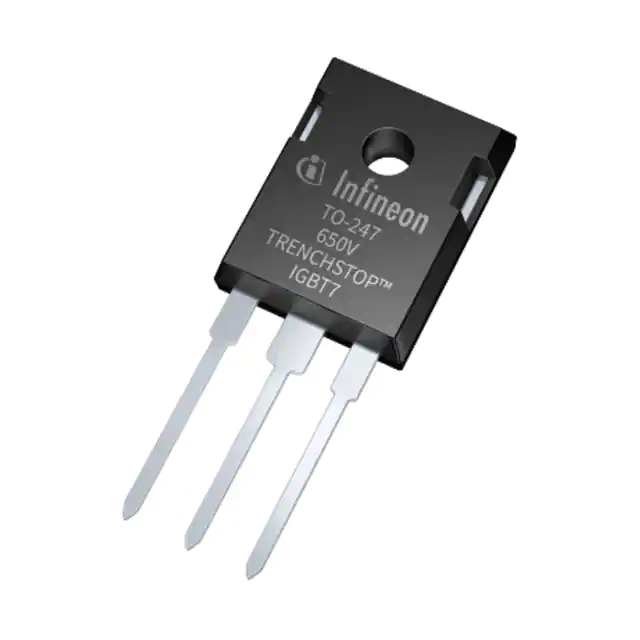

IKW40N65ET7XKSA1IKW40N65ET7XKSA1 |
3,920 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, TrenchStop™ | Active | Trench Field Stop | 650 V | 76 A | 120 A | 1.65V @ 15V, 40A | 230.8 W | 1.05mJ (on), 590µJ (off) | Standard | 235 nC | 20ns/310ns | 400V, 40A, 10Ohm, 15V | 85 ns | -40°C ~ 175°C (TJ) | Through Hole | |
IXYP50N65C3IGBT 650V 130A 600W TO220 |
3,414 | - |
RFQ |
Datasheet |
Tube | GenX3™, XPT™ | Active | PT | 650 V | 130 A | 250 A | 2.1V @ 15V, 36A | 600 W | 1.3mJ (on), 370µJ (off) | Standard | 80 nC | 22ns/80ns | 400V, 36A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
STGW80H65DFBIGBT 650V 120A 469W TO-247 |
3,309 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 120 A | 240 A | 2V @ 15V, 80A | 469 W | 2.1mJ (on), 1.5mJ (off) | Standard | 414 nC | 84ns/280ns | 400V, 80A, 10Ohm, 15V | 85 ns | -55°C ~ 175°C (TJ) | Through Hole | |
STGW80V60DFIGBT 600V 120A 469W TO247 |
2,306 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 600 V | 120 A | 240 A | 2.3V @ 15V, 80A | 469 W | 1.8mJ (on), 1mJ (off) | Standard | 448 nC | 60ns/220ns | 400V, 80A, 5Ohm, 15V | 60 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IKW75N65ES5XKSA1IGBT TRENCH 650V 80A TO247-3 |
3,602 | - |
RFQ |
Datasheet |
Tube | TrenchStop™ | Active | Trench | 650 V | 80 A | 300 A | 1.75V @ 15V, 75A | 395 W | 2.4mJ (on), 950µJ (off) | Standard | 164 nC | 40ns/144ns | 400V, 75A, 18Ohm, 15V | 85 ns | -40°C ~ 175°C (TJ) | Through Hole | |
RGS00TS65HRC11650V 50A FIELD STOP TRENCH IGBT. |
3,094 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 88 A | 150 A | 2.1V @ 15V, 50A | 326 W | 1.46mJ (on), 1.29mJ (off) | Standard | 58 nC | 36ns/115ns | 400V, 50A, 10Ohm, 15V | - | -40°C ~ 175°C (TJ) | Through Hole | |
IKFW50N60DH3EXKSA1IGBT TRENCH/FS 600V 40A TO247-3 |
452 | - |
RFQ |
Datasheet |
Bulk,Tube | TrenchStop™ | Active | Trench Field Stop | 600 V | 40 A | 120 A | 2.7V @ 15V, 40A | 130 W | 1.28mJ (on), 560µJ (off) | Standard | 160 nC | 21ns/174ns | 400V, 40A, 8Ohm, 15V | 64 ns | -40°C ~ 175°C (TJ) | Through Hole |
