Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
APT50GN120B2GIGBT 1200V 134A 543W TO-247 |
2,758 | - |
RFQ |
Datasheet |
Tube | - | Active | NPT, Trench Field Stop | 1200 V | 134 A | 150 A | 2.1V @ 15V, 50A | 543 W | 4495µJ (off) | Standard | 315 nC | 28ns/320ns | 800V, 50A, 2.2Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
STGWA40H120DF2TRENCH GATE IGBT TO247 PKG |
2,764 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 1200 V | 80 A | 160 A | 2.6V @ 15V, 40A | 468 W | 1mJ (on), 1.32mJ (off) | Standard | 158 nC | 18ns/152ns | 600V, 40A, 10Ohm, 15V | 488 ns | -55°C ~ 175°C (TJ) | Through Hole | |
RGT00TS65DGC135US SHORT-CIRCUIT TOLERANCE, 650 |
3,278 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 85 A | 150 A | 2.1V @ 15V, 50A | 277 W | - | Standard | 94 nC | 42ns/137ns | 400V, 50A, 10Ohm, 15V | 54 ns | -40°C ~ 175°C (TJ) | Through Hole | |
AFGHL50T65SQDCIGBT 650V A |
2,098 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Field Stop | 650 V | 100 A | 200 A | 2.1V @ 15V, 50A | 238 W | 131µJ (on), 96µJ (off) | Standard | 94 nC | 17.6ns/94.4ns | 400V, 12.5A, 4.7Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
RGT80TS65DGC135US SHORT-CIRCUIT TOLERANCE, 650 |
2,654 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 70 A | 120 A | 2.1V @ 15V, 40A | 234 W | - | Standard | 79 nC | 34ns/119ns | 400V, 40A, 10Ohm, 15V | 236 ns | -40°C ~ 175°C (TJ) | Through Hole | |
RGWX5TS65EHRC11HIGH-SPEED FAST SWITCHING TYPE |
2,978 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 132 A | 300 A | 1.9V @ 15V, 75A | 348 W | - | Standard | 213 nC | 59ns/243ns | 400V, 37.5A, 10Ohm, 15V | 100 ns | -40°C ~ 175°C (TJ) | Through Hole | |
RGSX5TS65EHRC118S SHORT-CIRCUIT TOLERANCE, 650V |
2,927 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 650 V | 114 A | 225 A | 2.15V @ 15V, 75A | 404 W | 3.44mJ (on), 1.9mJ (off) | Standard | 79 nC | 43ns/113ns | 400V, 75A, 10Ohm, 15V | 116 ns | -40°C ~ 175°C (TJ) | Through Hole | |

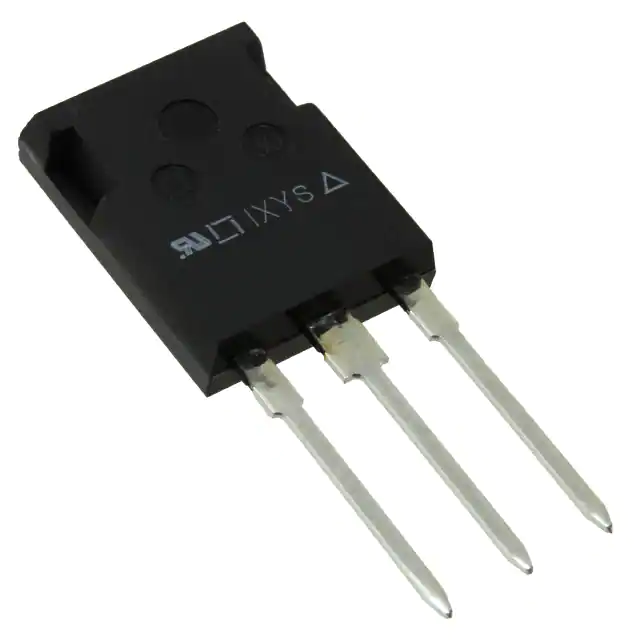

IXDR30N120D1IGBT 1200V 50A 200W ISOPLUS247 |
3,701 | - |
RFQ |
Datasheet |
Tube | - | Active | NPT | 1200 V | 50 A | 60 A | 2.9V @ 15V, 30A | 200 W | 4.6mJ (on), 3.4mJ (off) | Standard | 120 nC | - | 600V, 30A, 47Ohm, 15V | 40 ns | -55°C ~ 150°C (TJ) | Through Hole | |
APT64GA90B2D30IGBT 900V 117A 500W TO-247 |
3,394 | - |
RFQ |
Datasheet |
Tube | POWER MOS 8™ | Active | PT | 900 V | 117 A | 193 A | 3.1V @ 15V, 38A | 500 W | 1192µJ (on), 1088µJ (off) | Standard | 162 nC | 18ns/131ns | 600V, 38A, 4.7Ohm, 15V | - | -55°C ~ 150°C (TJ) | Through Hole | |
IXXH50N60C3D1IGBT 600V 100A 600W TO247AD |
3,722 | - |
RFQ |
Datasheet |
Tube | GenX3™, XPT™ | Active | PT | 600 V | 100 A | 200 A | 2.3V @ 15V, 36A | 600 W | 720µJ (on), 330µJ (off) | Standard | 64 nC | 24ns/62ns | 360V, 36A, 5Ohm, 15V | 25 ns | -55°C ~ 175°C (TJ) | Through Hole | |
RGW60TS65CHRC11HIGH-SPEED FAST SWITCHING TYPE |
3,509 | - |
RFQ |
Datasheet |
Tube | - | Active | - | 650 V | 64 A | 120 A | 1.9V @ 15V, 30A | 178 W | 70µJ (on), 220µJ (off) | Standard | 84 nC | 37ns/91ns | 400V, 15A, 10Ohm, 15V | 34 ns | -40°C ~ 175°C (TJ) | Through Hole | |
IKQ100N60TXKSA1IGBT TRENCH/FS 600V 160A TO247-3 |
2,379 | - |
RFQ |
Datasheet |
Bulk,Tube | TrenchStop™ | Active | Trench Field Stop | 600 V | 160 A | 400 A | 2V @ 15V, 100A | 714 W | 3.1mJ (on), 2.5mJ (off) | Standard | 610 nC | 30ns/290ns | 400V, 100A, 3.6Ohm, 15V | 230 ns | -40°C ~ 175°C (TJ) | Through Hole | |
RGW80TS65CHRC11HIGH-SPEED FAST SWITCHING TYPE |
3,369 | - |
RFQ |
Datasheet |
Tube | - | Active | - | 650 V | 81 A | 160 A | 1.9V @ 15V, 40A | 214 W | 120µJ (on), 340µJ (off) | Standard | 110 nC | 43ns/145ns | 400V, 20A, 10Ohm, 15V | 33 ns | -40°C ~ 175°C (TJ) | Through Hole | |
IXGH48N60B3D1IGBT 600V 300W TO247 |
3,707 | - |
RFQ |
Datasheet |
Tube | GenX3™ | Active | PT | 600 V | - | 280 A | 1.8V @ 15V, 32A | 300 W | 840µJ (on), 660µJ (off) | Standard | 115 nC | 22ns/130ns | 480V, 30A, 5Ohm, 15V | 100 ns | -55°C ~ 150°C (TJ) | Through Hole | |
STGWA60V60DWFAGAUTOMOTIVE-GRADE TRENCH FIELD-ST |
2,426 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Trench Field Stop | 600 V | 80 A | 240 A | 2.3V @ 15V, 60A | 375 W | 1.02mJ (on), 370µJ (off) | Standard | 314 nC | 35ns/190ns | 400V, 60A, 4.7Ohm, 15V | 200 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IXGH40N120C3D1IGBT 1200V 75A 380W TO247 |
2,222 | - |
RFQ |
Datasheet |
Tube | GenX3™ | Active | PT | 1200 V | 75 A | 180 A | 4.4V @ 15V, 30A | 380 W | 1.8mJ (on), 550µJ (off) | Standard | 142 nC | 17ns/130ns | 600V, 30A, 3Ohm, 15V | 100 ns | -55°C ~ 150°C (TJ) | Through Hole | |
RGW00TS65CHRC11HIGH-SPEED FAST SWITCHING TYPE |
3,012 | - |
RFQ |
Datasheet |
Tube | - | Active | - | 650 V | 96 A | 200 A | 1.9V @ 15V, 50A | 254 W | 180µJ (on), 420µJ (off) | Standard | 141 nC | 49ns/180ns | 400V, 25A, 10Ohm, 15V | 33 ns | -40°C ~ 175°C (TJ) | Through Hole | |
APT100GN60LDQ4GIGBT 600V 229A 625W TO264 |
3,780 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | 600 V | 229 A | 300 A | 1.85V @ 15V, 100A | 625 W | 4.75mJ (on), 2.675mJ (off) | Standard | 600 nC | 31ns/310ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole | |
STGYA120M65DF2TRENCH GATE FIELD-STOP IGBT, M S |
3,865 | - |
RFQ |
Datasheet |
Tube | M | Active | NPT, Trench Field Stop | 650 V | 160 A | 360 A | 1.95V @ 15V, 120A | 625 W | 1.8mJ (on), 4.41mJ (off) | Standard | 420 nC | 66ns/185ns | 400V, 120A, 4.7Ohm, 15V | 202 ns | -55°C ~ 175°C (TJ) | Through Hole | |
IXGH25N160IGBT 1600V 75A 300W TO247 |
3,330 | - |
RFQ |
Datasheet |
Tube | - | Active | NPT | 1600 V | 75 A | 200 A | 4.7V @ 20V, 100A | 300 W | - | Standard | 84 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole |
