Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CapacitanceRange | AdjustmentType | Voltage-Rated | DielectricMaterial | Q@Freq | Size/Dimension | Height-Seated(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMKJ10HVCAP TRIMMER 1-9PF 1000V SMD |
3,263 | - |
RFQ |
Datasheet |
Bulk | K_HV | Active | 1 ~ 9pF | Side | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.230 Dia (5.84mm) | 0.490 (12.45mm) | -65°C ~ 125°C | Surface Mount | |
NMAT10HVCAP TRIMMER 1-10PF 1000V PNL MNT |
2,138 | - |
RFQ |
Datasheet |
Bulk | NMA | Active | 1 ~ 10pF | Top | 1000 V | - | 2000 @ 100MHz | 0.300 Dia (7.62mm) | 0.610 (15.49mm) | - | Panel Mount | |
NMAM10HVCAP TRIMMER 1-10PF 1000V SMD |
2,902 | - |
RFQ |
Bulk | NMA | Active | 1 ~ 10pF | Top | 1000 V | - | 2000 @ 100MHz | 0.300 Dia (7.62mm) | 0.490 (12.45mm) | -65°C ~ 125°C | Surface Mount | ||
NMAP10HVCAP TRIMMER 1-10PF 1000V TH |
2,098 | - |
RFQ |
Datasheet |
Bulk | NMA | Active | 1 ~ 10pF | Side | 1000 V | - | 2000 @ 100MHz | 0.300 Dia (7.62mm) | 0.510 (12.95mm) | -65°C ~ 125°C | Through Hole | |
NMAJ10HVCAP TRIMMER 1-10PF 1000V SMD |
3,781 | - |
RFQ |
Bulk | NMA | Active | 1 ~ 10pF | Side | 1000 V | - | 2000 @ 100MHz | 0.300 Dia (7.62mm) | 0.500 (12.70mm) | -65°C ~ 125°C | Surface Mount | ||
NMAT25HVCAP TRIMMER 1-23PF 750V PNL MNT |
2,614 | - |
RFQ |
Datasheet |
Bulk | NMA | Active | 1 ~ 23pF | Top | 750 V | - | 2000 @ 100MHz | 0.300 Dia (7.62mm) | 0.610 (15.49mm) | - | Panel Mount | |
NMAP25HVCAP TRIMMER 1-23PF 750V TH |
3,727 | - |
RFQ |
Datasheet |
Bulk | NMA | Active | 1 ~ 23pF | Side | 750 V | - | 2000 @ 100MHz | 0.300 Dia (7.62mm) | 0.500 (12.70mm) | -65°C ~ 125°C | Through Hole | |
NMTM120CVARI CAP |
2,793 | - |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | ||
NMNT5-8CAP TRIMMER 1-5PF 4000V PNL MNT |
2,782 | - |
RFQ |
Datasheet |
Bulk | NT | Active | 1 ~ 5pF | Top | 4000 V | Polytetrafluoroethylene (PTFE) | - | - | - | -65°C ~ 125°C | Panel Mount | |

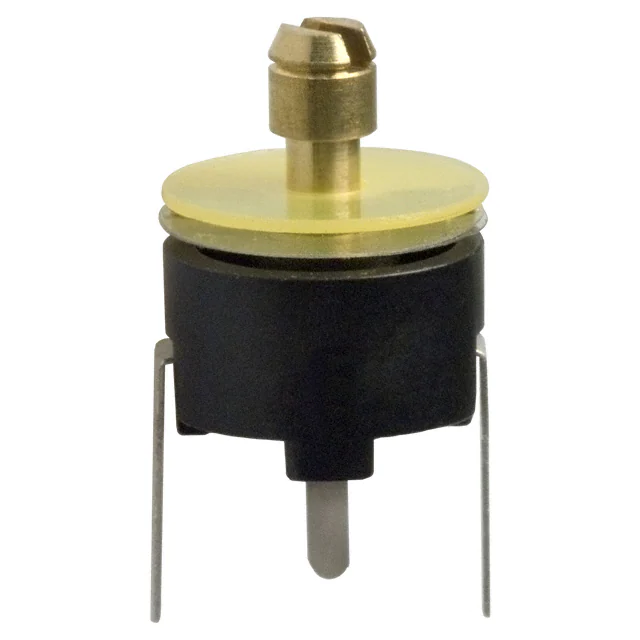

GYA10000CAP TRIMMER 2-10PF 100V TH |
2,404 | - |
RFQ |
Datasheet |
Bulk | FILMTRIM® | Obsolete | 2 ~ 10pF | Top and Bottom | 100 V | Polypropylene (PP) | 1000 @ 1MHz | 0.335 Dia (8.50mm) | 0.402 (10.20mm) | -40°C ~ 70°C | Through Hole | |
GMB30200CAP TRIMMER 7-40PF 175V TH |
3,180 | - |
RFQ |
Datasheet |
Bulk | GM | Obsolete | 7 ~ 40pF | Top | 175 V | Mica | - | 0.752 L x 0.375 W (19.10mm x 9.53mm) | 0.780 (19.80mm) | -35°C ~ 85°C | Through Hole | |
AT 27261CAP TRIMMER 0.3-1.2PF 500V TH |
2,403 | - |
RFQ |
Datasheet |
Bulk | Sapphire Trimmers | Active | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole | |
GHP23000CAP TRIMMER 0.8-23PF 750V |
3,158 | - |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 23pF | Top | 750 V | Glass | 700 @ 20MHz | 0.312 Dia (7.92mm) | 0.984 (24.99mm) | -55°C ~ 125°C | User Defined | |
GNC1R250CAP TRIMMER 0.3-1.2PF 500V TH |
3,289 | - |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.3 ~ 1.2pF | Side | 500 V | Sapphire | 4000 @ 250MHz | 0.075 Dia (1.90mm) | 0.230 (5.80mm) | -55°C ~ 125°C | Through Hole | |
GGC8R500CAP TRIMMER 0.8-8.5PF 750V TH |
2,718 | - |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 8.5pF | Side | 750 V | Glass | 500 @ 20MHz | 0.312 Dia (7.92mm) | 0.562 (14.27mm) | -55°C ~ 125°C | Through Hole | |

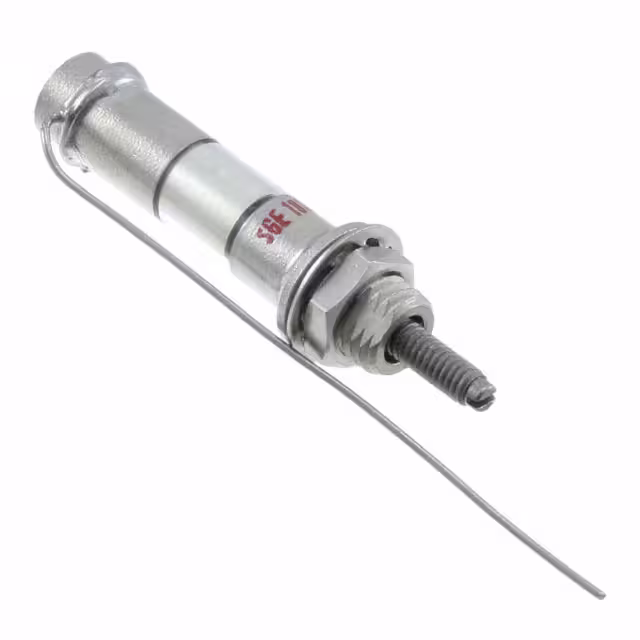

GSG905CAP TRIMMER 0.8-18PF 750V |
3,032 | - |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 18pF | - | 750 V | Glass | 500 @ 20MHz | 0.375 Dia (9.52mm) | 1.000 (25.40mm) | -55°C ~ 125°C | User Defined | |

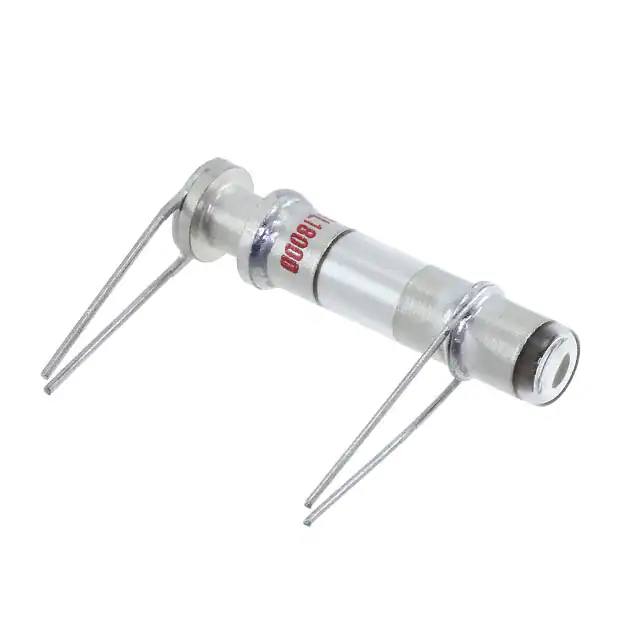

GGL18000CAP TRIMMER 0.8-18PF 1250V TH |
3,951 | - |
RFQ |
Datasheet |
Bulk | PISTONCAP® | Obsolete | 0.8 ~ 18pF | Side | 1250 V | Glass | 500 @ 20MHz | 0.312 Dia (7.92mm) | 1.359 (34.52mm) | -55°C ~ 125°C | Through Hole | |

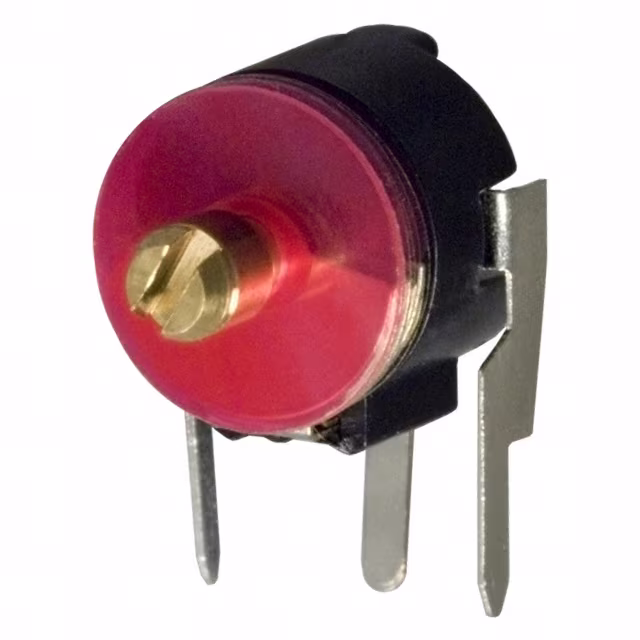

GYB27000CAP TRIMMER 2.3-27PF 100V TH |
3,533 | - |
RFQ |
Datasheet |
Bulk | FILMTRIM® | Obsolete | 2.3 ~ 27pF | Side | 100 V | Polypropylene (PP) | 1000 @ 1MHz | 0.335 Dia (8.50mm) | 0.402 (10.20mm) | -40°C ~ 70°C | Through Hole | |

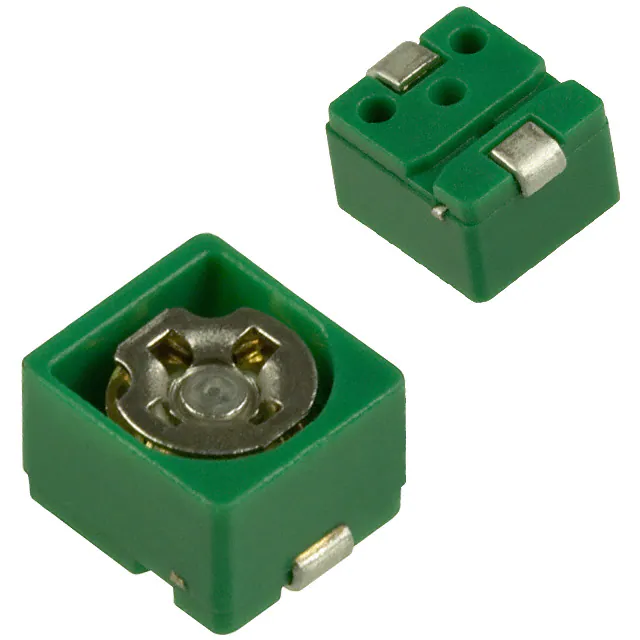

TZB4P300AA10R00CAP TRIMMER 6.5-30PF 100V SMD |
3,320 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZB4 | Obsolete | 6.5 ~ 30pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177 L x 0.157 W (4.50mm x 4.00mm) | 0.126 (3.20mm) | -25°C ~ 85°C | Surface Mount | |

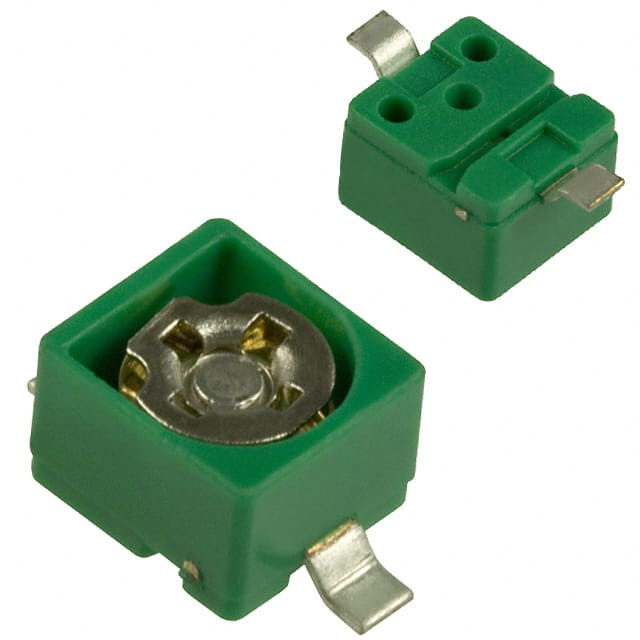

TZB4P300BA10R00CAP TRIMMER 6.5-30PF 100V SMD |
3,999 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TZB4 | Obsolete | 6.5 ~ 30pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177 L x 0.157 W (4.50mm x 4.00mm) | 0.126 (3.20mm) | -25°C ~ 85°C | Surface Mount |
