100% China made penetration, module power supply, SMD current transformer design and application

Fangcheng Electronics specializes in the design, manufacture and sale of inductors, transformers, current transformers, planar transformers and other magnetic component production plants. The team, including a group of senior engineers and mold automation design professionals, has advanced experimental development and product testing equipment, reaching the domestic leading technical level.

Main application areas of products; photovoltaic / wind power inverters, charging piles, new energy vehicles, communication and module power supplies, communication equipment, industrial control, rail transit, military / medical, aviation power supply and other fields.

1. Smd current transformers series:

FC-SCT4.2/ FC-SCT4.6/ FC-SCT5.0/FC-SCT6.0/FC-SCTEE8.3/FCSCT2010 FC-SCT2108-Series

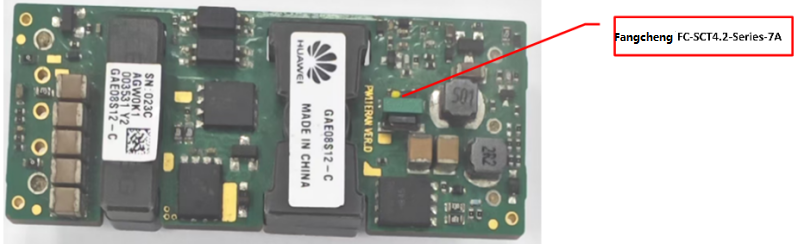

2. Module communication power supply and rail transit module power supply application

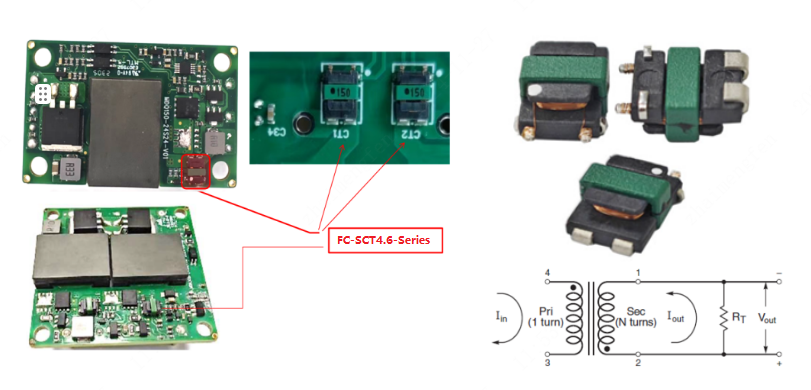

3. Module communication power supply and rail transit module power supply application

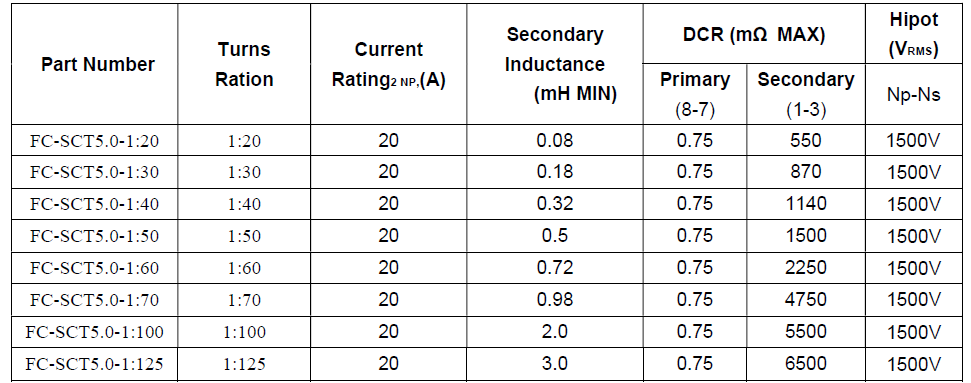

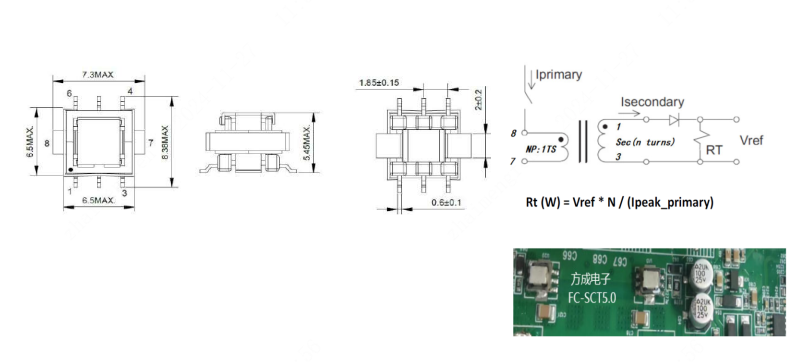

4. New energy in the field of medical power supply FC-SCT5.0-Series design and application: Mechanical dimensions for the FC-SCT5.0-series current sense teansformer

5. The product design structure is small in size, realizing SMT automated installation, meeting UL safety regulations creepage distance: 3750V-5000V

FC‐SCT2108‐Series Current Sense Transformers

Features:

1. Current Rating: up to 50A

2. Footprint: 12.8mm x 20.5mm x 7.5mm Max

3. Frequency Range: 20kHz to 1MHz

4. Insulation: Reinforced, 10mm creepage and clearance

5. Hipot Isolation: 5000 Vdc, 6 sec

6. Voltage Rating: Up to 1000 Vpk

7. Operating temperature: –40℃ to +130℃
