Diodes Incorporated|Diodes-Rectifiers-Single - Page 1

MAX3232IDR DSPIC30F2010-30I/SP 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
PDS4200H-13 DIODE SCHOTTKY 200V 4A POWERDI5 Diodes Incorporated	3,852	-	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	25 ns	1 µA @ 200 V	200 V	4A	-65°C ~ 175°C	840 mV @ 4 A
SBR1045SP5-13 DIODE SBR 45V 10A POWERDI5 Diodes Incorporated	3,808	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, SBR®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Super Barrier	Active	Surface Mount	500pF @ 4V, 1MHz	-	450 µA @ 45 V	45 V	10A	-65°C ~ 150°C	550 mV @ 10 A
SBR12U45LH1-13R DIODE SBR 45V 12A POWERDI5SP Diodes Incorporated	3,328	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SBR®	RoHS	Standard Recovery >500ns, > 200mA (Io)	Super Barrier	Active	Surface Mount	-	-	300 µA @ 45 V	45 V	12A	-65°C ~ 150°C	500 mV @ 12 A
SDT12A120P5-7 DIODE SCHOTTKY 120V 12A POWRDI 5 Diodes Incorporated	2,231	-	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	500 µA @ 120 V	120 V	12A	-55°C ~ 150°C	800 mV @ 12 A
SDT12A120P5-7D DIODE SCHOTTKY 120V 12A POWRDI 5 Diodes Incorporated	2,819	-	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	500 µA @ 120 V	120 V	12A	-55°C ~ 150°C	800 mV @ 12 A
SDT15H100P5-13 SCHOTTKY RECTIFIER PDI5 T&R 5K Diodes Incorporated	3,315	-	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	250 µA @ 100 V	100 V	15A	-55°C ~ 150°C	660 mV @ 15 A
MMBD4448W-7-F DIODE GEN PURP 75V 250MA SOT323 Diodes Incorporated	2,135	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	2pF @ 0V, 1MHz	4 ns	1 µA @ 75 V	75 V	250mA	-65°C ~ 150°C	1.25 V @ 150 mA
SBR130SV-7 DIODE SBR 30V 1A SOT563 Diodes Incorporated	8,100	-	RFQ	Datasheet	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)	SBR®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Super Barrier	Active	Surface Mount	-	-	100 µA @ 30 V	30 V	1A	-65°C ~ 150°C	560 mV @ 1 A
BAV5004WS-7 DIODE GP 350V 300MA SOD323 Diodes Incorporated	507	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Last Time Buy	Surface Mount	2.5pF @ 0V, 1MHz	50 ns	1 µA @ 240 V	350 V	300mA	-55°C ~ 150°C	1.29 V @ 200 mA
BAL99-7 DIODE GEN PURP 75V 300MA SOT23-3 Diodes Incorporated	10,105	-	RFQ	Datasheet	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Discontinued at Digi-Key	Surface Mount	2pF @ 0V, 1MHz	4 ns	2.5 µA @ 75 V	75 V	300mA (DC)	-65°C ~ 150°C	1.25 V @ 150 mA
SDT15H100P5-7 SCHOTTKY RECTIFIER PDI5 T&R 1.5K Diodes Incorporated	2,450	-	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	250 µA @ 100 V	100 V	15A	-55°C ~ 150°C	660 mV @ 15 A
BAV5004LP-7B DIODE GEN PURP 350V 300MA 2DFN Diodes Incorporated	57,894	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Last Time Buy	Surface Mount	2.5pF @ 0V, 1MHz	50 ns	1 µA @ 240 V	350 V	300mA (DC)	-55°C ~ 150°C	1.29 V @ 200 mA
HER102-T DIODE GEN PURP 100V 1A DO41 Diodes Incorporated	5,000	-	RFQ	Datasheet	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Obsolete	Through Hole	-	50 ns	5 µA @ 100 V	100 V	1A	-65°C ~ 150°C	1.1 V @ 1 A
B190BQ-13-F DIODE SCHOTTKY 90V 1A SMB Diodes Incorporated	2,739	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	80pF @ 4V, 1MHz	-	500 µA @ 90 V	90 V	1A	-65°C ~ 150°C	790 mV @ 1 A
ZLLS400TA DIODE SCHOTTKY 40V 520MA SOD323 Diodes Incorporated	3,147	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	15pF @ 30V, 1MHz	3 ns	10 µA @ 30 V	40 V	520mA (DC)	150°C (Max)	500 mV @ 400 mA
B320AF-13 DIODE SCHOTTKY 20V 3A SMAF Diodes Incorporated	7,301	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	140pF @ 4V, 1MHz	-	200 µA @ 20 V	20 V	3A	-55°C ~ 150°C	500 mV @ 3 A
SDM1A30CSP-7 SCHOTTKY DIODE X3-WLB1006-2 Diodes Incorporated	4,880	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	40pF @ 4V, 1MHz	-	100 µA @ 30 V	30 V	1A	-55°C ~ 150°C	525 mV @ 1 A
SBR12M120P5-13D DIODE SBR 120V 12A POWERDI5 Diodes Incorporated	2,220	-	RFQ	Datasheet	Tape & Reel (TR)	SBR®	RoHS	Standard Recovery >500ns, > 200mA (Io)	Super Barrier	Active	Surface Mount	-	-	200 µA @ 120 V	120 V	12A	-55°C ~ 150°C	830 mV @ 12 A

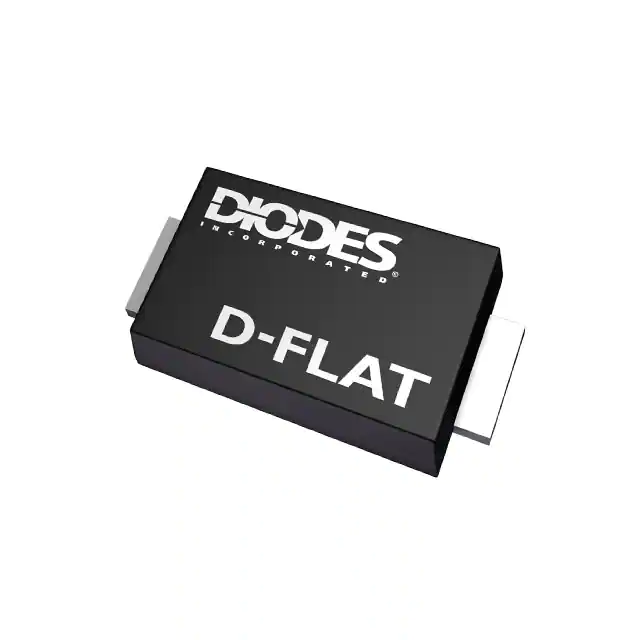

S1MDFQ-13 DIODE GEN PURP 1KV 1A DFLAT Diodes Incorporated	8,664	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	6pF @ 4V, 1MHz	-	5 µA @ 1000 V	1000 V	1A	-55°C ~ 150°C	1.1 V @ 1 A
UF1003-T DIODE GEN PURP 200V 1A DO41 Diodes Incorporated	14,842	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	20pF @ 4V, 1MHz	50 ns	5 µA @ 200 V	200 V	1A	-65°C ~ 150°C	1 V @ 1 A
