IXYS|Transistors - IGBTs - Modules - Page 1

MAX3232IDR DSPIC30F2010-30I/SP 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
IXXN110N65B4H1 IGBT MOD 650V 215A 750W SOT227B IXYS	3,089	-	RFQ	Datasheet	Tube	XPT™, GenX4™	Active	PT	Single	650 V	215 A	750 W	2.1V @ 15V, 110A	50 µA	3.65 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount
IXDN75N120 IGBT MOD 1200V 150A 660W SOT227B IXYS	330	-	RFQ	Datasheet	Tube	-	Active	NPT	Single	1200 V	150 A	660 W	2.7V @ 15V, 75A	4 mA	5.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
IXYN100N65C3H1 IGBT MOD 650V 166A 600W SOT227B IXYS	2,502	-	RFQ	Datasheet	Tube	XPT™, GenX3™	Active	PT	Single	650 V	166 A	600 W	2.3V @ 15V, 70A	50 µA	4.98 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis, Stud Mount
IXYN140N120A4 IGBT 140A 1200V SOT227B MINIBLOC IXYS	3,353	-	RFQ	Datasheet	Tube	XPT™, GenX4™	Active	PT	Single	1200 V	380 A	1070 W	1.7V @ 15V, 140A	25 µA	8.3 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount

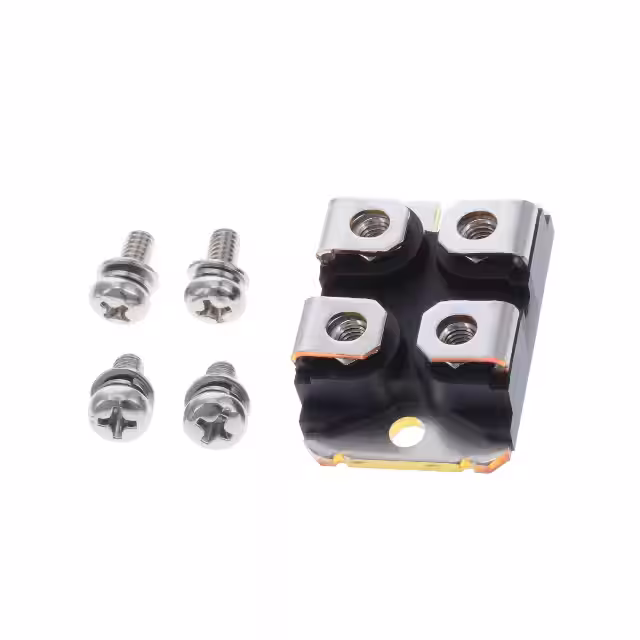

IXYN120N120C3 IGBT MOD 1200V 240A SOT227B IXYS	3,847	-	RFQ	Datasheet	Tube	XPT™, GenX3™	Active	-	Single	1200 V	240 A	1200 W	3.2V @ 15V, 120A	25 µA	-	Standard	No	-55°C ~ 175°C (TJ)	Surface Mount
MDI145-12A3 IGBT MODULE 1200V 160A 700W Y4M5 IXYS	3,382	-	RFQ	Datasheet	Box	-	Active	NPT	Single	1200 V	160 A	700 W	2.7V @ 15V, 100A	6 mA	6.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
MKI50-12F7 IGBT MODULE 1200V 65A 350W E2 IXYS	2,791	-	RFQ	Datasheet	Box	-	Active	NPT	Full Bridge Inverter	1200 V	65 A	350 W	3.8V @ 15V, 50A	700 µA	3.3 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
IXXN200N60B3 IGBT MOD 600V 280A 940W SOT227B IXYS	3,199	-	RFQ	Datasheet	Tube	XPT™, GenX3™	Active	PT	Single	600 V	280 A	940 W	1.7V @ 15V, 100A	50 µA	9.97 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount
IXYN82N120C3 IGBT MOD 1200V 105A 500W SOT227B IXYS	3,309	-	RFQ	Datasheet	Tube	XPT™, GenX3™	Active	-	Single	1200 V	105 A	500 W	3.2V @ 15V, 82A	25 µA	4.1 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount
MID75-12A3 IGBT MODULE 1200V 90A 370W Y4M5 IXYS	3,948	-	RFQ	Datasheet	Box	-	Active	NPT	Single	1200 V	90 A	370 W	2.7V @ 15V, 50A	4 mA	3.3 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
MDI100-12A3 IGBT MODULE 1200V 135A 560W Y4M5 IXYS	3,714	-	RFQ	Datasheet	Box	-	Active	NPT	Single	1200 V	135 A	560 W	2.7V @ 15V, 75A	5 mA	5.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
MIXA300PF1200TSF IGBT MOD 1200V 465A 1500W IXYS	2,864	-	RFQ	Datasheet	Box	-	Active	PT	Half Bridge	1200 V	465 A	1500 W	2.1V @ 15V, 300A	300 µA	-	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
MIXA20WB1200TED IGBT MODULE 1200V 28A 100W E2 IXYS	2,725	-	RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	28 A	100 W	2.1V @ 15V, 16A	1.5 mA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
MIXA61H1200ED IGBT MODULE 1200V 85A 290W E2 IXYS	3,820	-	RFQ	Datasheet	Box	-	Active	PT	Full Bridge Inverter	1200 V	85 A	290 W	2.1V @ 15V, 55A	500 µA	-	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
MUBW25-12A7 IGBT MODULE 1200V 50A 225W E2 IXYS	2,074	-	RFQ	Datasheet	Bulk	-	Active	NPT	Three Phase Inverter with Brake	1200 V	50 A	225 W	2.7V @ 15V, 25A	900 µA	1.65 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
MIXG240RF1200PTED IGBT MODULE - BRAKE E2-PACK-PFP IXYS	3,720	-	RFQ		Box	-	Active	PT	Single Chopper	1200 V	335 A	1250 W	2V @ 15V, 200A	200 µA	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MKI100-12F8 IGBT MODULE 1200V 125A 640W E3 IXYS	3,400	-	RFQ	Datasheet	Box	-	Active	NPT	Full Bridge Inverter	1200 V	125 A	640 W	3.9V @ 15V, 100A	1.3 mA	6.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
MUBW20-06A7 IGBT MODULE 600V 35A 125W E2 IXYS	3,343	-	RFQ	Datasheet	Box	-	Obsolete	NPT	Three Phase Inverter with Brake	600 V	35 A	125 W	2.3V @ 15V, 20A	600 µA	1.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
IXXN110N65C4H1 IGBT MOD 650V 210A 750W SOT227B IXYS	2,509	-	RFQ	Datasheet	Tube	XPT™, GenX4™	Active	PT	Single	650 V	210 A	750 W	2.35V @ 15V, 110A	50 µA	3.69 nF @ 25 V	Standard	No	-55°C ~ 175°C (TJ)	Chassis Mount

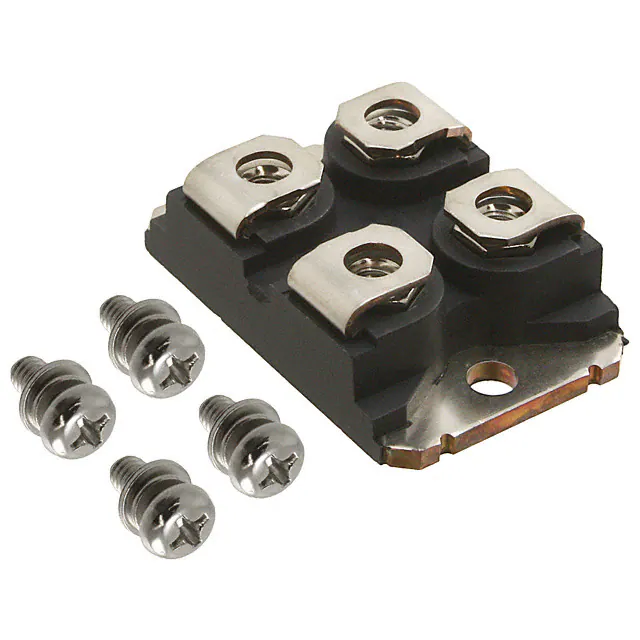

IXGN320N60A3 IGBT MOD 600V 320A 735W SOT227B IXYS	2,732	-	RFQ	Datasheet	Tube	GenX3™	Active	PT	Single	600 V	320 A	735 W	1.25V @ 15V, 100A	150 µA	18 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
