Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

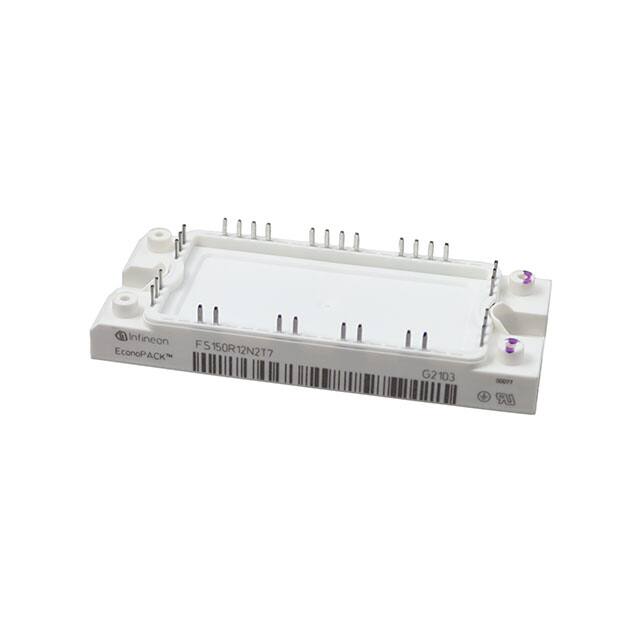

FS150R12N2T7BPSA1 LOW POWER ECONO AG-ECONO2-6 Infineon Technologies	3,882	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Three Level Inverter	1200 V	150 A	20 mW	1.8V @ 15V, 150A	1.2 µA	30.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

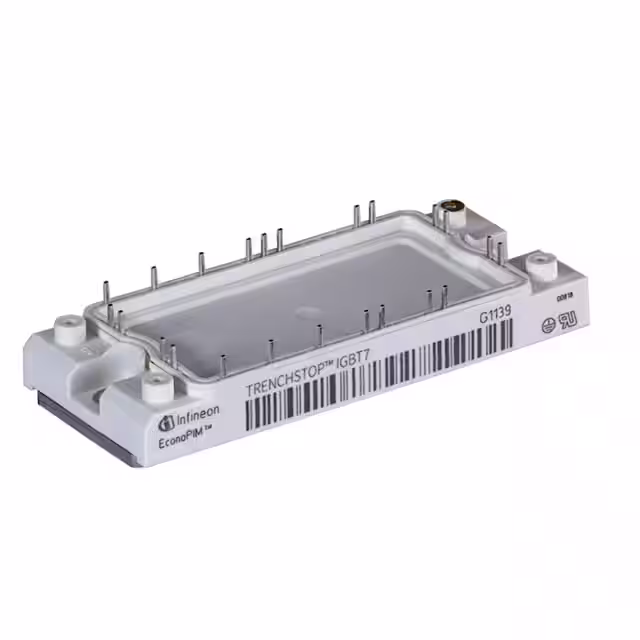

FP100R12N2T7B11BPSA1 LOW POWER ECONO Infineon Technologies	3,052	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	100 A	20 mW	1.5V @ 15V, 100A	10 µA	21.7 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FMG1G400US60H IGBT, 400A, 600V, N-CHANNEL Fairchild Semiconductor	3,558	-	RFQ	Datasheet	Bulk	-	Active	-	Single	600 V	400 A	1136 W	2.7V @ 15V, 400A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FMG1G400US60L IGBT, 400A, 600V, N-CHANNEL Fairchild Semiconductor	2,835	-	RFQ	Datasheet	Bulk	-	Active	-	Single	600 V	400 A	1136 W	2.7V @ 15V, 400A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FS100R07N3E4_B11 IGBT, 100A, 650V, N-CHANNEL Infineon Technologies	3,528	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Phase Inverter	650 V	100 A	335 W	1.95V @ 15V, 100A	1 mA	6.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
DDB6U84N16RRBPSA1 LOW POWER ECONO AG-ECONO2A-211 Infineon Technologies	2,350	-	RFQ	Datasheet	Tray	-	Not For New Designs	-	Single Chopper	1200 V	50 A	350 W	3.2V @ 20V, 50A	1 mA	3.3 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount

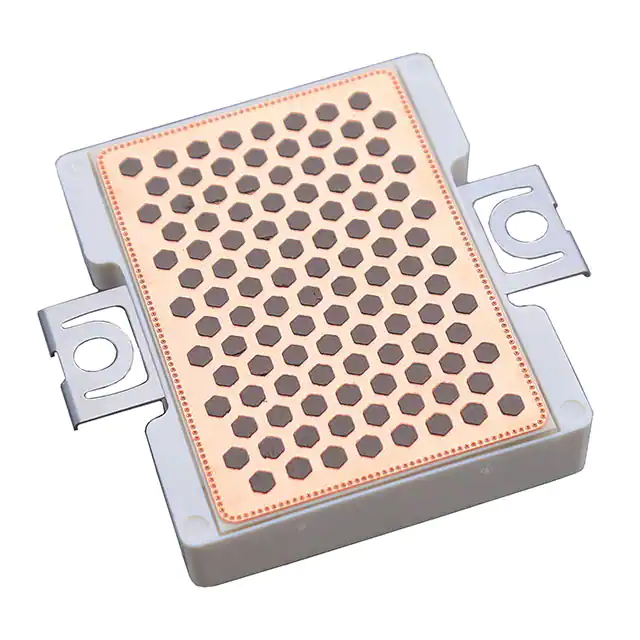

FS100R12W2T7PBPSA1 LOW POWER EASY AG-EASY2B-711 Infineon Technologies	3,982	-	RFQ		Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	1200 V	70 A	20 mW	-	9 µA	21.7 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
F3L11MR12W2M1B74BOMA1 LOW POWER EASY Infineon Technologies	2,618	-	RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Level Inverter	1200 V	100 A	20 mW	1.5V @ 15V, 100A	9 µA	21.7 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FS150R12N2T7B54BPSA1 LOW POWER ECONO Infineon Technologies	2,795	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Full Bridge Inverter	1200 V	150 A	20 mW	1.8V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FS150R12N2T7B15BPSA1 LOW POWER ECONO Infineon Technologies	2,568	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Full Bridge Inverter	1200 V	150 A	20 mW	1.8V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP50R07N2E4BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	2,819	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	650 V	70 A	20 mW	1.95V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
DDB6U100N16RRBPSA1 LOW POWER ECONO AG-ECONO2A-211 Infineon Technologies	2,248	-	RFQ	Datasheet	Tray	-	Not For New Designs	-	Single Chopper	1200 V	50 A	350 W	3.2V @ 20V, 50A	1 mA	3.3 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
IFS100B12N3E4B31BOSA1 IGBT MOD 1200V 200A 515W Infineon Technologies	2,570	-	RFQ	Datasheet	Tray	MIPAQ™	Active	Trench Field Stop	Full Bridge	1200 V	200 A	515 W	2.1V @ 15V, 100A	1 mA	6.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP35R12KT4B15BPSA1 LOW POWER ECONO AG-ECONO2C-211 Infineon Technologies	3,709	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	210 W	2.15V @ 15V, 35A	1 mA	2 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

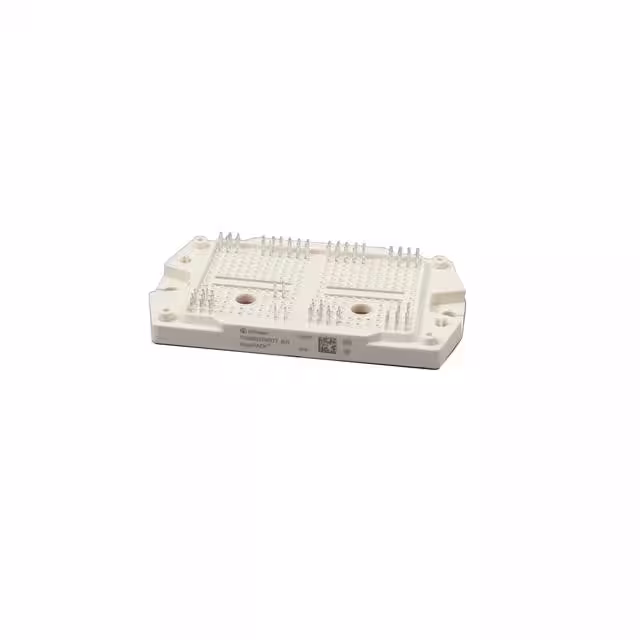

FS100R12W3T7B11BPSA1 LOW POWER EASY AG-EASY3B-711 Infineon Technologies	3,351	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FF600R12KT4HOSA1 62MM POWER MODULE 1200 V WITH IG Infineon Technologies	2,927	-	RFQ	Datasheet	Tray	C	Active	Trench Field Stop	2 Independent	1200 V	600 A	-	2.2V @ 15V, 600A	5 mA	38 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FP50R12W3T7B11BPSA1 LOW POWER EASY AG-EASY3B-1 Infineon Technologies	2,250	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP150R12N3T7B11BPSA1 LOW POWER ECONO Infineon Technologies	3,599	-	RFQ	Datasheet	Tray	EconoPIM™3	Active	Trench Field Stop	Three Phase Inverter	1200 V	150 A	20 mW	1.8V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP150R12N3T7PB11BPSA1 LOW POWER ECONO Infineon Technologies	2,245	-	RFQ	Datasheet	Tray	EconoPIM™3	Active	Trench Field Stop	Three Phase Inverter with Brake	1200 V	150 A	20 mW	1.8V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP150R12N3T7BPSA1 LOW POWER ECONO AG-ECONO3-3 Infineon Technologies	3,258	-	RFQ	Datasheet	Tray	EconoPIM™ 3	Active	Trench Field Stop	Three Phase Inverter	1200 V	150 A	20 mW	1.55V @ 15V, 150A	12 µA	30.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
