Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NXH40B120MNQ1SNG30KW Q1BOOST FULL SIC |
3,058 | - |
RFQ |
Datasheet |
Tray | - | Active | - | Triple, Dual - Common Source | - | - | 156 W | - | - | 3.227 nF @ 800 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

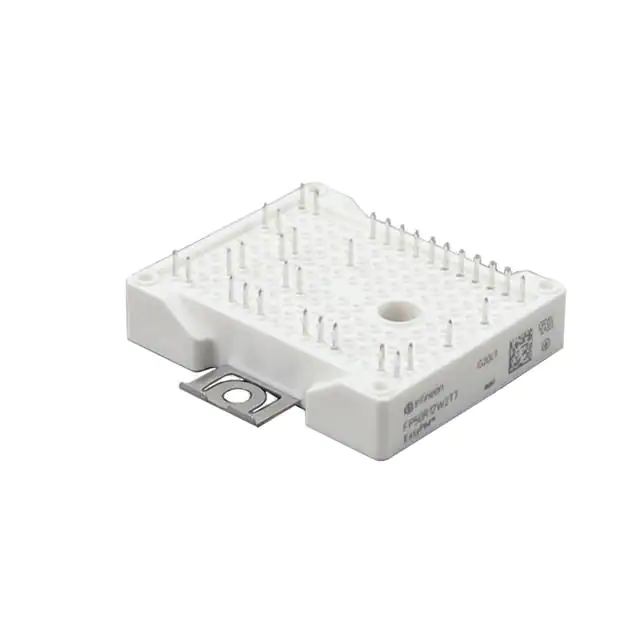

FP50R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
2,949 | - |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | - | 8 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FS75R12N2T7B15BPSA2LOW POWER ECONO |
3,547 | - |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | 20 mW | 1.8V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FP50R12N2T7PBPSA11200 V, 50 A PIM IGBT MODULE |
2,950 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 2, TRENCHSTOP™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | 1.85V @ 15V, 25A | 4 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FP50R12N2T7BPSA2LOW POWER ECONO |
3,744 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FP75R12N2T7BPSA1LOW POWER ECONO AG-ECONO2B-711 |
2,651 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 20 mW | 1.55V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

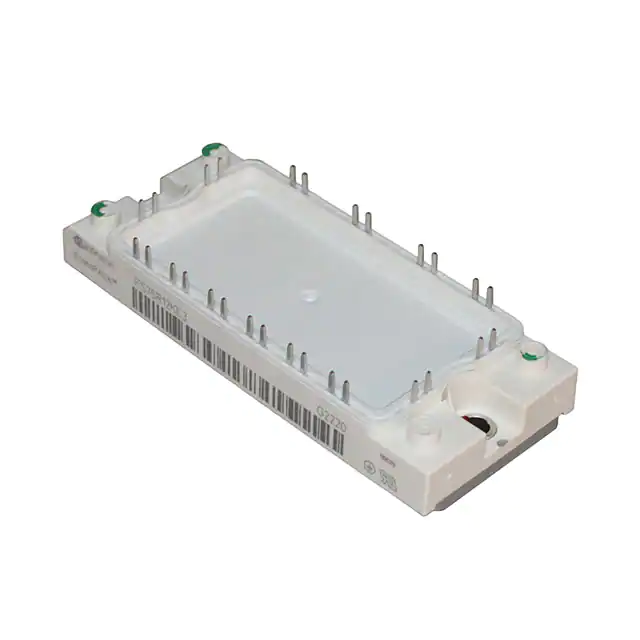

FS75R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
2,077 | - |
RFQ |
Datasheet |
Tray | - | Active | - | Full Bridge Inverter | 1200 V | 105 A | 350 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FP15R12KE3GBPSA1LOW POWER ECONO AG-ECONO2C-311 |
3,154 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 105 W | 2.45V @ 15V, 10A | 1 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | |
BSM100GB120DN2B2HOSA1IGBT MODULE |
2,372 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |

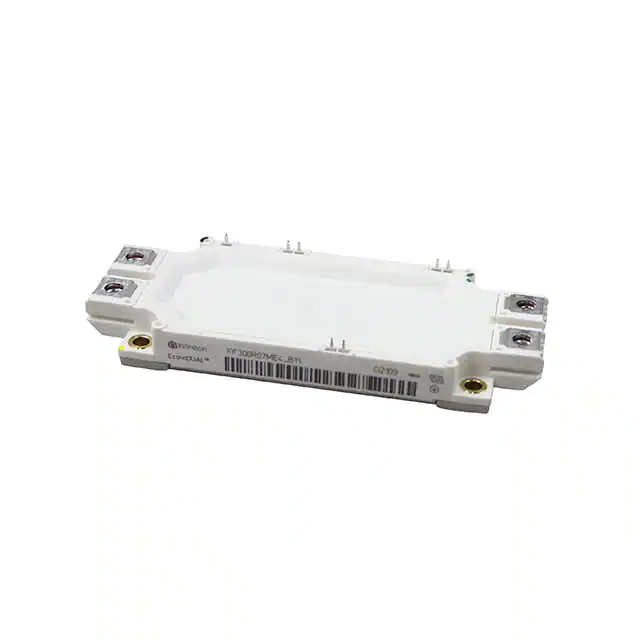

FF300R07ME4B11BPSA1MEDIUM POWER ECONO |
2,567 | - |
RFQ |
Datasheet |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 650 V | 390 A | 1100 W | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FF150R12KE3B8BDLA1IGBT MODULE |
3,702 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | Half Bridge | 1200 V | 225 A | 1250 W | 3.7V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | |
F3L75R12W1H3B11BPSA1IGBT MOD 1200V 45A 275W |
3,765 | - |
RFQ |
Datasheet |
Tray | - | Active | - | Single Chopper | 1200 V | 45 A | 275 W | 1.7V @ 15V, 30A | 1 mA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
APTGT35A120T1GIGBT MODULE 1200V 55A 208W SP1 |
2,381 | - |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
NXH50M65L4Q1PTG6KW H6.5 50A Q1PACK PRESS-FIT PI |
2,611 | - |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Full Bridge | 650 V | 48 A | 86 W | 2.22V @ 15V, 50A | 300 µA | 3.137 nF @ 20 V | Standard | Yes | 175°C (TJ) | Chassis Mount | |
FS50R12W2T4B11BOMA1IGBT MOD 1200V 83A 335W |
3,911 | - |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 83 A | 335 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
MIXG240RF1200PTEDIGBT MODULE - BRAKE E2-PACK-PFP |
3,720 | - |
RFQ |
Box | - | Active | PT | Single Chopper | 1200 V | 335 A | 1250 W | 2V @ 15V, 200A | 200 µA | - | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | ||
FS50R12KT4PB11BPSA1IGBT MOD 1200V 100A 20MW |
2,870 | - |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 20 mW | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
FS75R07N2E4B11BPSA1LOW POWER ECONO AG-ECONO2B-411 |
3,188 | - |
RFQ |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Three Phase Inverter | 650 V | 75 A | 250 W | 1.95V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ||
APTGT100DH60TGIGBT MODULE 600V 150A 340W SP4 |
3,331 | - |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Asymmetrical Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
BSM15GD120DLCE3224BPSA1LOW POWER ECONO AG-ECONO2A-211 |
3,092 | - |
RFQ |
Tray | * | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - |
