Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FP50R12W2T7B11BOMA1LOW POWER EASY |
2,681 | - |
RFQ |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | 1.5V @ 15V, 50A | 8 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | ||

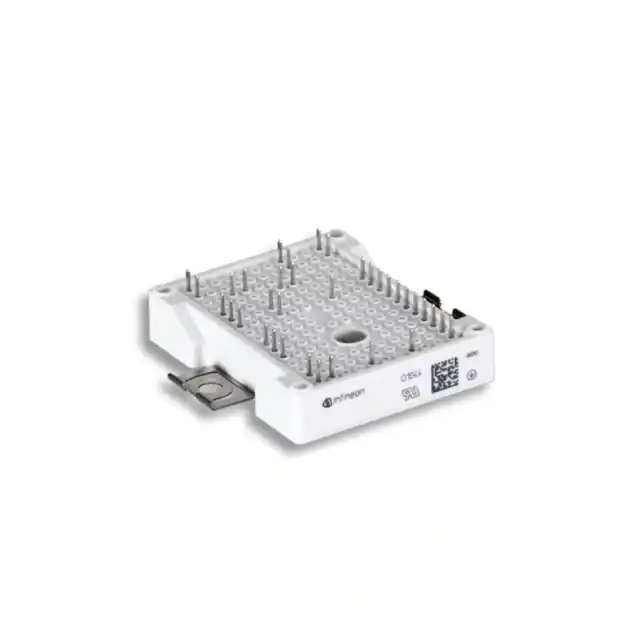

DF300R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 |
3,871 | - |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||

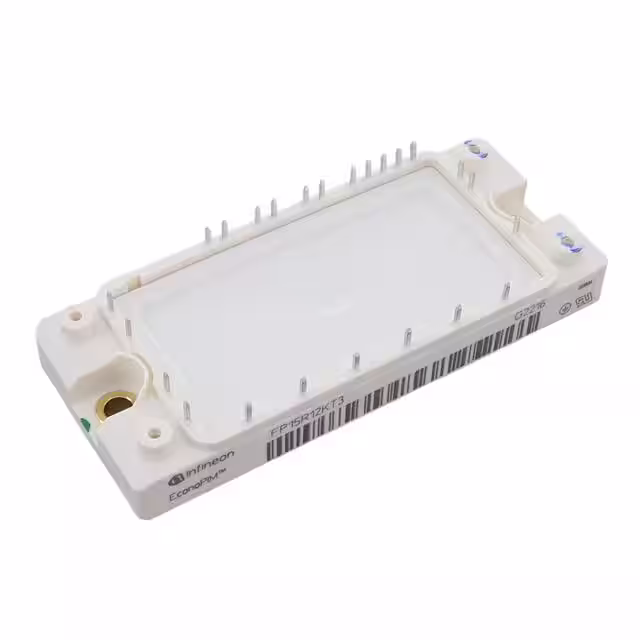

FP15R12KT3BPSA1LOW POWER ECONO AG-ECONO2C-311 |
2,333 | - |
RFQ |
Datasheet |
Tray | - | Active | - | Three Phase Inverter | 1200 V | 25 A | 105 W | 2.45V @ 15V, 10A | 5 mA | 1.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | |

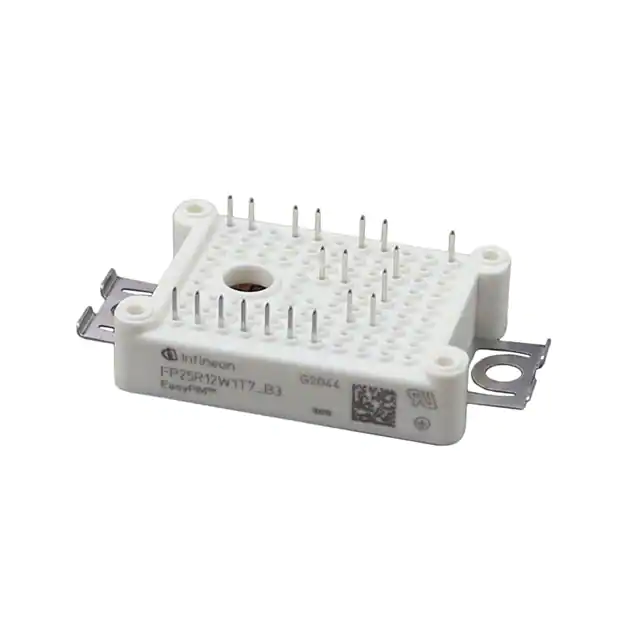

FP25R12W1T7B3BPSA1LOW POWER EASY AG-EASY1B-711 |
3,777 | - |
RFQ |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 20 mW | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | ||
MIXA61H1200EDIGBT MODULE 1200V 85A 290W E2 |
3,820 | - |
RFQ |
Datasheet |
Box | - | Active | PT | Full Bridge Inverter | 1200 V | 85 A | 290 W | 2.1V @ 15V, 55A | 500 µA | - | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | |
FMG1G200US60LIGBT, 200A, 600V, N-CHANNEL |
2,081 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | Single | 600 V | 200 A | 695 W | 2.7V @ 15V, 200A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
FMG2G75US120IGBT, 75A, 1200V, N-CHANNEL |
2,359 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | Half Bridge | 1.2 V | 75 A | 445 W | 3V @ 15V, 75A | 3 mA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
FP25R12W1T7BOMA1LOW POWER EASY AG-EASY1B-1 |
3,070 | - |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 20 mW | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FP30R06KE3BPSA1LOW POWER ECONO AG-ECONO2C-311 |
2,051 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 600 V | 37 A | 125 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FF300R08W2P2B11ABOMA1EASY PACK AG-EASY2B-3 |
3,258 | - |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | - | 2 Independent | 750 V | 200 A | 20 mW | 1.18V @ 15V, 200A | 1 mA | 53 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FP25R12W2T7BPSA1LOW POWER EASY AG-EASY2B-711 |
2,234 | - |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 20 mW | - | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
MUBW25-12A7IGBT MODULE 1200V 50A 225W E2 |
2,074 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPT | Three Phase Inverter with Brake | 1200 V | 50 A | 225 W | 2.7V @ 15V, 25A | 900 µA | 1.65 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | |
FP35R12N2T7B11BPSA1LOW POWER ECONO AG-ECONO2B-711 |
2,766 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 20 mW | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FP50R06KE3BPSA1LOW POWER ECONO AG-ECONO2C-311 |
2,137 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 600 V | 60 A | 190 W | 2V @ 15V, 30A | 1 mA | 3.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |

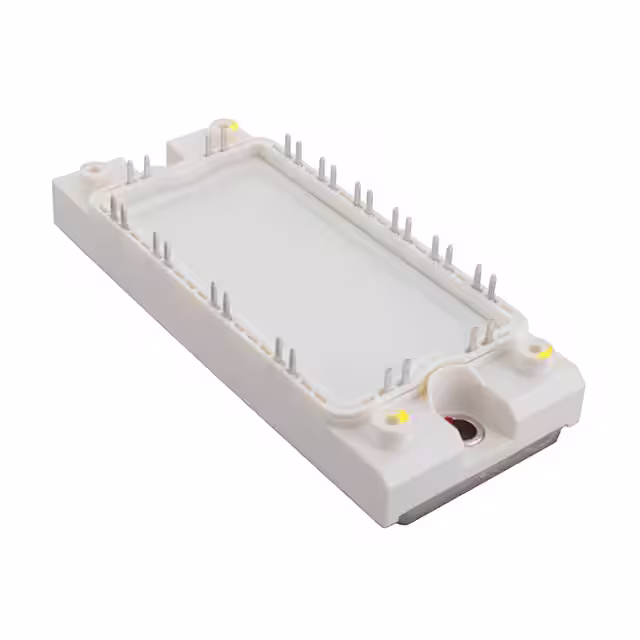

FS75R06KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
2,912 | - |
RFQ |
Datasheet |
Tray | EconoPACK™ | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 75 A | 250 W | 1.9V @ 15V, 75A | 1 mA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FS50R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
2,848 | - |
RFQ |
Datasheet |
Tray | - | Active | - | Full Bridge Inverter | 1200 V | 75 A | 270 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | |
FS50R12KT3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
2,146 | - |
RFQ |
Datasheet |
Tray | EconoPACK™ 2 | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | |
FMG1G300US60LEIGBT, 300A, 600V, N-CHANNEL |
2,484 | - |
RFQ |
Datasheet |
Bulk | - | Active | - | Single | 600 V | 300 A | 892 W | 2.7V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

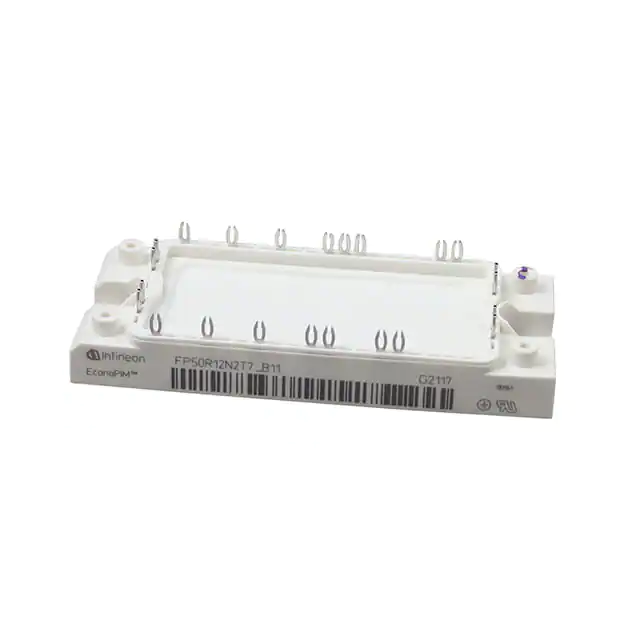

FP50R12N2T7B11BPSA1LOW POWER ECONO AG-ECONO2B-711 |
3,595 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 2 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 20 mW | 1.5V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |

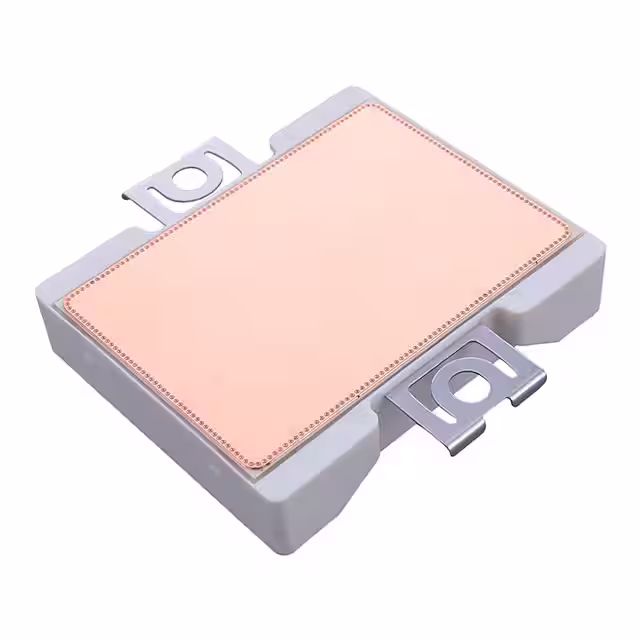

F3L100R07W2H3B11BPSA1LOW POWER EASY AG-EASY2B-411 |
3,997 | - |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
