Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
EEU-FS1C821 CAP ALUM 820UF 20% 16V RADIAL Panasonic Electronic Components	237	-	RFQ	Datasheet	Bulk	FS-A	Active	820 µF	±20%	16 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	967.5 mA @ 120 Hz	1.29 A @ 100 kHz	43 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
ESC227M035AH1AA CAP ALUM 220UF 20% 35V RADIAL KEMET	5,368	-	RFQ	Datasheet	Bulk	ESC	Active	220 µF	±20%	35 V	69mOhm @ 100kHz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	560 mA @ 120 Hz	800 mA @ 100 kHz	69 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.531 (13.50mm)	-	Through Hole
UPJ1C221MPD CAP ALUM 220UF 20% 16V RADIAL Nichicon	1,918	-	RFQ	Datasheet	Bulk	UPJ	Not For New Designs	220 µF	±20%	16 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	335 mA @ 120 Hz	-	260 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.492 (12.50mm)	-	Through Hole
515D106M063JA6AE3 CAP ALUM 10UF 20% 63V RADIAL Vishay Sprague	1,348	-	RFQ	Datasheet	Bulk	515D	Last Time Buy	10 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	70 mA @ 120 Hz	140 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.433 (11.00mm)	-	Through Hole
UPW1H331MPD CAP ALUM 330UF 20% 50V RADIAL Nichicon	2,242	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	330 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	669.5 mA @ 120 Hz	1.03 A @ 100 kHz	90 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.787 (20.00mm)	-	Through Hole
UHE1H271MHD6 CAP ALUM 270UF 20% 50V RADIAL Nichicon	4,950	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	270 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	882 mA @ 120 Hz	1.26 A @ 100 kHz	61 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.591 (15.00mm)	-	Through Hole

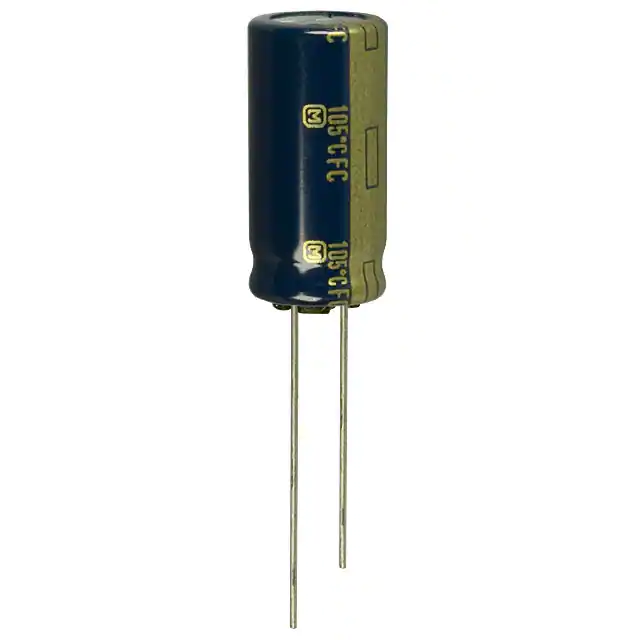

EEU-FC1A122 CAP ALUM 1200UF 20% 10V RADIAL Panasonic Electronic Components	5,816	-	RFQ	Datasheet	Bulk	FC	Active	1200 µF	±20%	10 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	976 mA @ 120 Hz	1.22 A @ 100 kHz	52 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.787 (20.00mm)	-	Through Hole
UHE1E681MPD CAP ALUM 680UF 20% 25V RADIAL Nichicon	10,500	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	680 µF	±20%	25 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.05 A @ 120 Hz	1.4 A @ 100 kHz	46 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.787 (20.00mm)	-	Through Hole

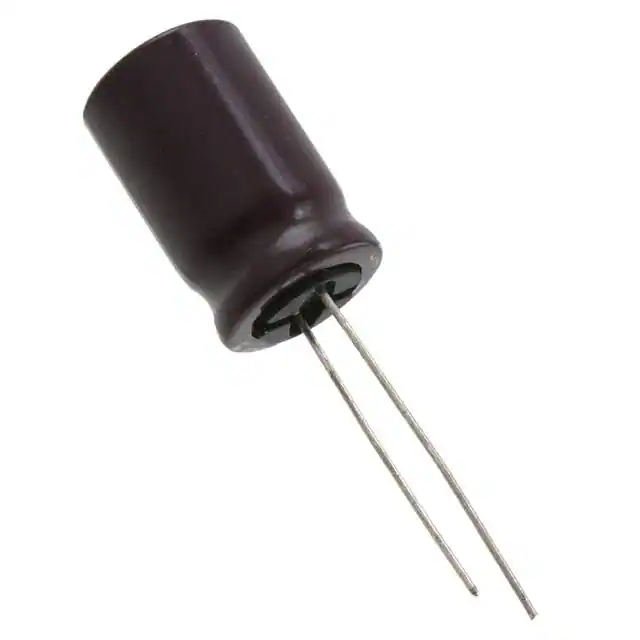

UCA2W100MHD1TO CAP ALUM 10UF 20% 450V RADIAL Nichicon	3,961	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UCA	Not For New Designs	10 µF	±20%	450 V	-	12000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	160 mA @ 120 Hz	320 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole

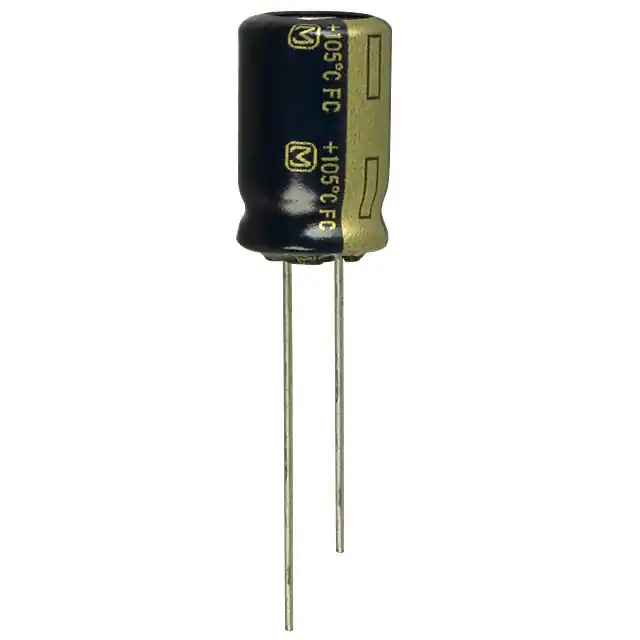

EEU-FC1V271 CAP ALUM 270UF 20% 35V RADIAL Panasonic Electronic Components	2,766	-	RFQ	Datasheet	Bulk	FC	Active	270 µF	±20%	35 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	682.5 mA @ 120 Hz	1.05 A @ 100 kHz	68 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.630 (16.00mm)	-	Through Hole

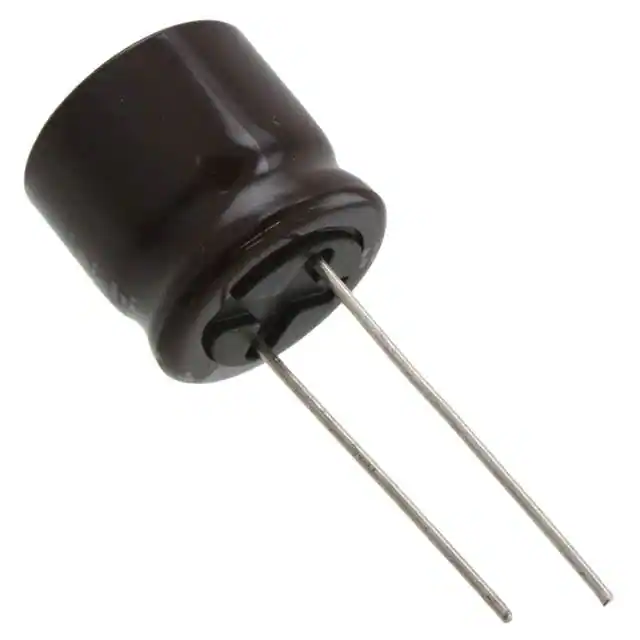

UPM1J221MHD6TN CAP ALUM 220UF 20% 63V RADIAL Nichicon	9,207	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPM	Not For New Designs	220 µF	±20%	63 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	820 mA @ 120 Hz	1.12 A @ 10 kHz	70 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.669 (17.00mm)	-	Through Hole
16ZLH680MEFC10X12.5 CAP ALUM 680UF 20% 16V RADIAL Rubycon	26,773	-	RFQ	Datasheet	Bulk	ZLH	Active	680 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	731.5 mA @ 120 Hz	1.33 A @ 100 kHz	39 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
ESK477M025AH1AA CAP ALUM 470UF 20% 25V RADIAL KEMET	8,489	-	RFQ	Datasheet	Box	ESK	Active	470 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.531 (13.50mm)	-	Through Hole
UKL1E470MEDANA CAP ALUM 47UF 20% 25V RADIAL Nichicon	4,318	-	RFQ	Datasheet	Bulk	UKL	Not For New Designs	47 µF	±20%	25 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	170 mA @ 120 Hz	340 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.472 (12.00mm)	-	Through Hole

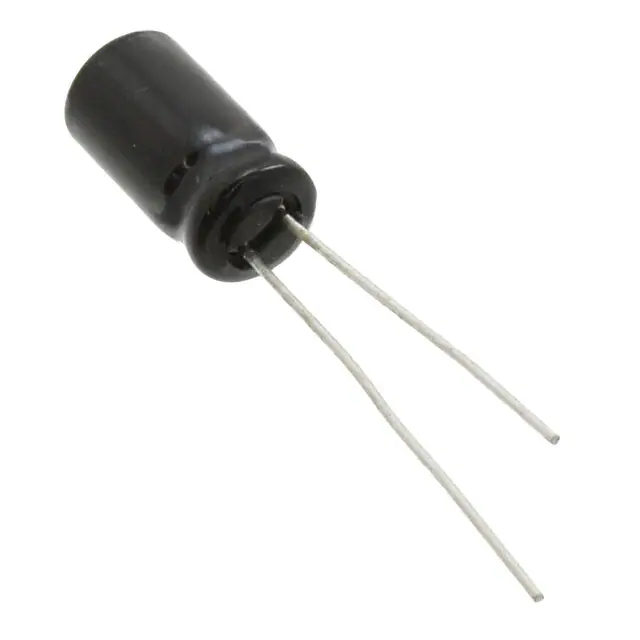

UVP2A3R3MED CAP ALUM 3.3UF 20% 100V RADIAL Nichicon	3,286	-	RFQ	Datasheet	Bulk	UVP	Not For New Designs	3.3 µF	±20%	100 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	General Purpose	39 mA @ 120 Hz	78 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
16YXJ2200M12.5X20 CAP ALUM 2200UF 20% 16V RADIAL Rubycon	10,377	-	RFQ	Datasheet	Bulk	YXJ	Active	2200 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.52 A @ 120 Hz	1.9 A @ 100 kHz	41 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
B43851A9106M000 CAP ALUM 10UF 20% 400V RADIAL EPCOS - TDK Electronics	18,475	-	RFQ	Datasheet	Bulk	B43851	Active	10 µF	±20%	400 V	33Ohm @ 120Hz	3000 Hrs @ 105°C	-	Polar	-	General Purpose	80 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
UVZ2D470MHD CAP ALUM 47UF 20% 200V RADIAL Nichicon	5,303	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	47 µF	±20%	200 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	195 mA @ 120 Hz	312 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
UPS1E221MPD CAP ALUM 220UF 20% 25V RADIAL Nichicon	2,340	-	RFQ	Datasheet	Bulk	UPS	Not For New Designs	220 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	205 mA @ 120 Hz	410 mA @ 100 kHz	280 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.453 (11.50mm)	-	Through Hole
16ZLH2200MEFC12.5X20 CAP ALUM 2200UF 20% 16V RADIAL Rubycon	2,021	-	RFQ	Datasheet	Bulk	ZLH	Active	2200 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.736 A @ 120 Hz	2.48 A @ 100 kHz	17 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
