Aluminum Electrolytic Capacitors- Page 104

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
EEU-FC1E102B CAP ALUM 1000UF 20% 25V RADIAL Panasonic Electronic Components	2,070	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FC	Active	1000 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.241 A @ 120 Hz	1.655 A @ 100 kHz	38 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
UHE1E681MHD6 CAP ALUM 680UF 20% 25V RADIAL Nichicon	15,229	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	680 µF	±20%	25 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.088 A @ 120 Hz	1.45 A @ 100 kHz	49 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.591 (15.00mm)	-	Through Hole
UVZ1A332MHD CAP ALUM 3300UF 20% 10V RADIAL Nichicon	740	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	3300 µF	±20%	10 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1 A @ 120 Hz	1.15 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
EKZN350ELL101MF11D CAP ALUM 100UF 20% 35V RADIAL United Chemi-Con	8,471	-	RFQ	Datasheet	Bulk	KZN	Active	100 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	280 mA @ 120 Hz	700 mA @ 100 kHz	170 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
35ZL1000MEFC12.5X25 CAP ALUM 1000UF 20% 35V RADIAL Rubycon	18,001	-	RFQ	Datasheet	Bulk	ZL	Active	1000 µF	±20%	35 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.662 A @ 120 Hz	2.77 A @ 100 kHz	18 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
EKYB350ELL101MF11D CAP ALUM 100UF 20% 35V RADIAL United Chemi-Con	3,892	-	RFQ	Datasheet	Bulk	KYB	Active	100 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	216 mA @ 120 Hz	540 mA @ 100 kHz	150 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UKL1E470KEDANA CAP ALUM 47UF 10% 25V RADIAL Nichicon	2,018	-	RFQ	Datasheet	Bulk	UKL	Not For New Designs	47 µF	±10%	25 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	170 mA @ 120 Hz	340 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.472 (12.00mm)	-	Through Hole
UPM1V470MED CAP ALUM 47UF 20% 35V RADIAL Nichicon	1,995	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	47 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	160 mA @ 120 Hz	270 mA @ 10 kHz	340 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UKL2A1R5KDD CAP ALUM 1.5UF 10% 100V RADIAL Nichicon	1,559	-	RFQ	Datasheet	Bulk	UKL	Not For New Designs	1.5 µF	±10%	100 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	23 mA @ 120 Hz	46 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole

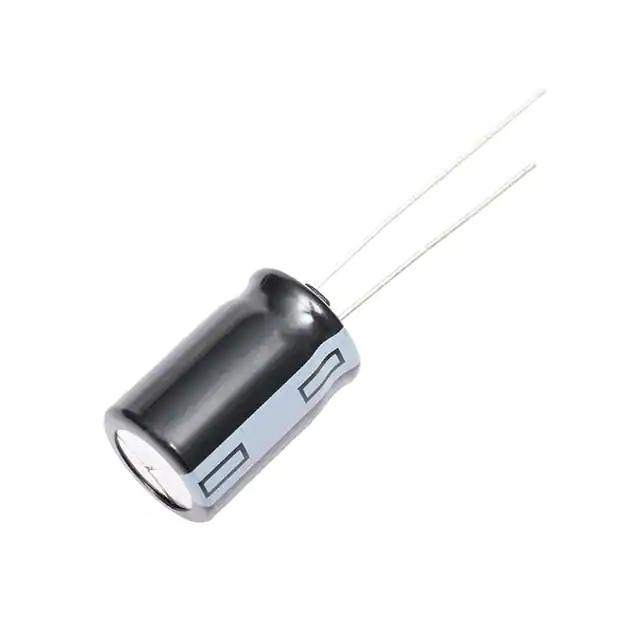

EEU-FP1E681B CAP ALUM 680UF 20% 25V RADIAL Panasonic Electronic Components	2,984	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FP	Active	680 µF	±20%	25 V	68mOhm @ 100kHz	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.625 A @ 120 Hz	2.5 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
EKYC160ELL202MJ20S CAP ALUM 2000UF 20% 16V RADIAL United Chemi-Con	3,218	-	RFQ	Datasheet	Bulk	KYC	Active	2000 µF	±20%	16 V	65mOhm @ 100kHz	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	1.164 A @ 120 Hz	1.94 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
EEU-FM0J222L CAP ALUM 2200UF 20% 6.3V RADIAL Panasonic Electronic Components	3,421	-	RFQ	Datasheet	Bulk	FM-A	Active	2200 µF	±20%	6.3 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.976 A @ 120 Hz	2.47 A @ 100 kHz	18 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole

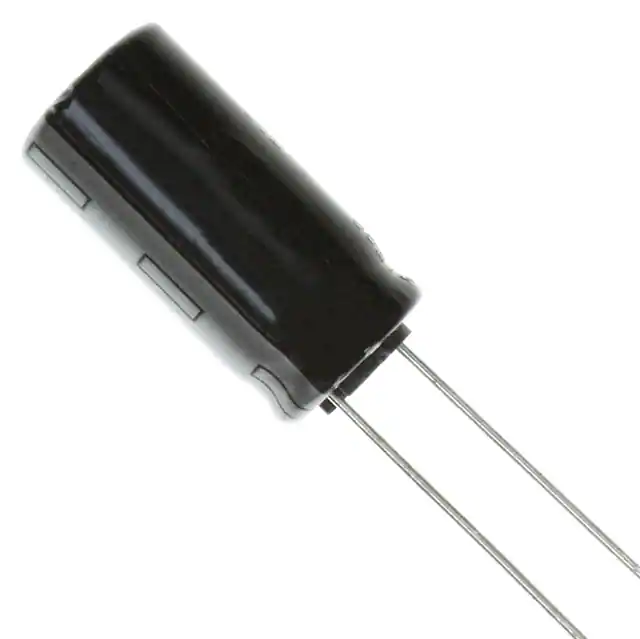

EEU-ED2C220 CAP ALUM 22UF 20% 160V RADIAL Panasonic Electronic Components	1,431	-	RFQ	Datasheet	Bulk	ED-A	Active	22 µF	±20%	160 V	-	8000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	200 mA @ 120 Hz	500 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.787 (20.00mm)	-	Through Hole
UVZ2W100MHD CAP ALUM 10UF 20% 450V RADIAL Nichicon	3,175	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	10 µF	±20%	450 V	-	1000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	65 mA @ 120 Hz	104 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
107CKH050M CAP ALUM 100UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	34,719	-	RFQ	Datasheet	Bulk	CKH	Active	100 µF	±20%	50 V	1.658Ohm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	230 mA @ 120 Hz	379.5 mA @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
UVZ2A101MPD CAP ALUM 100UF 20% 100V RADIAL Nichicon	2,791	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	100 µF	±20%	100 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	265 mA @ 120 Hz	397.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
UFG1E470MEM CAP ALUM 47UF 20% 25V RADIAL Nichicon	9,928	-	RFQ	Datasheet	Bulk	UFG	Not For New Designs	47 µF	±20%	25 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	85 mA @ 120 Hz	170 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

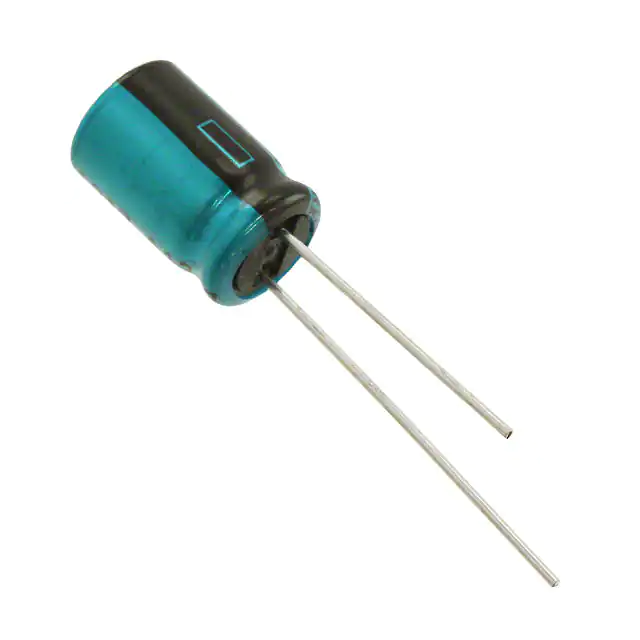

25RX30220M8X11.5 CAP ALUM 220UF 20% 25V RADIAL Rubycon	6,838	-	RFQ	Datasheet	Bulk	RX30	Active	220 µF	±20%	25 V	-	2000 Hrs @ 130°C	-40°C ~ 130°C	Polar	AEC-Q200	Automotive	252 mA @ 120 Hz	360 mA @ 100 kHz	220 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.531 (13.50mm)	-	Through Hole
35YXG330MEFC10X16 CAP ALUM 330UF 20% 35V RADIAL Rubycon	6,419	-	RFQ	Datasheet	Bulk	YXG	Active	330 µF	±20%	35 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	665.5 mA @ 120 Hz	1.21 A @ 100 kHz	60 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
10AX680MEFC8X10.8 CAP ALUM 680UF 20% 10V RADIAL Rubycon	4,350	-	RFQ	Datasheet	Bulk	AX	Active	680 µF	±20%	10 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	42 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.484 (12.30mm)	-	Through Hole
