Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
SK010M063ST CAP ALUM 1UF 20% 63V RADIAL Cornell Dubilier Electronics (CDE)	7,603	-	RFQ	Datasheet	Bulk	SK	Active	1 µF	±20%	63 V	119.43Ohm	2000 Hrs @ 85°C	-40°C ~ 85°C	-	-	General Purpose	-	-	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.512 (13.00mm)	-	Through Hole
SK010M050ST CAP ALUM 1UF 20% 50V RADIAL Cornell Dubilier Electronics (CDE)	6,609	-	RFQ	Datasheet	Bulk	SK	Active	1 µF	±20%	50 V	132.7Ohm	2000 Hrs @ 85°C	-40°C ~ 85°C	-	-	General Purpose	-	-	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.512 (13.00mm)	-	Through Hole
SK2R2M063ST CAP ALUM 2.2UF 20% 63V RADIAL Cornell Dubilier Electronics (CDE)	6,312	-	RFQ	Datasheet	Bulk	SK	Active	2.2 µF	±20%	63 V	54.28Ohm	2000 Hrs @ 85°C	-40°C ~ 85°C	-	-	General Purpose	-	-	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.512 (13.00mm)	-	Through Hole
SK100M050ST CAP ALUM 10UF 20% 50V RADIAL Cornell Dubilier Electronics (CDE)	4,751	-	RFQ	Datasheet	Bulk	SK	Active	10 µF	±20%	50 V	13.27Ohm	2000 Hrs @ 85°C	-40°C ~ 85°C	-	-	General Purpose	-	-	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.512 (13.00mm)	-	Through Hole
UFG1J100MEM CAP ALUM 10UF 20% 63V RADIAL Nichicon	4,609	-	RFQ	Datasheet	Bulk	UFG	Not For New Designs	10 µF	±20%	63 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	50 mA @ 120 Hz	100 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UEP1H2R2MDD CAP ALUM 2.2UF 20% 50V RADIAL Nichicon	4,154	-	RFQ	Datasheet	Bulk	UEP	Not For New Designs	2.2 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Bi-Polar	-	General Purpose	18 mA @ 120 Hz	36 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPJ1E271MPD6 CAP ALUM 270UF 20% 25V RADIAL Nichicon	3,524	-	RFQ	Datasheet	Bulk	UPJ	Not For New Designs	270 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	525 mA @ 120 Hz	700 mA @ 10 kHz	180 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.650 (16.50mm)	-	Through Hole
UVR2E470MHD CAP ALUM 47UF 20% 250V RADIAL Nichicon	4,980	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	47 µF	±20%	250 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	300 mA @ 120 Hz	480 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
UBT1J221MHD1TO CAP ALUM 220UF 20% 63V RADIAL Nichicon	5,446	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UBT	Active	220 µF	±20%	63 V	-	5000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	525 mA @ 120 Hz	1.05 A @ 100 kHz	160 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

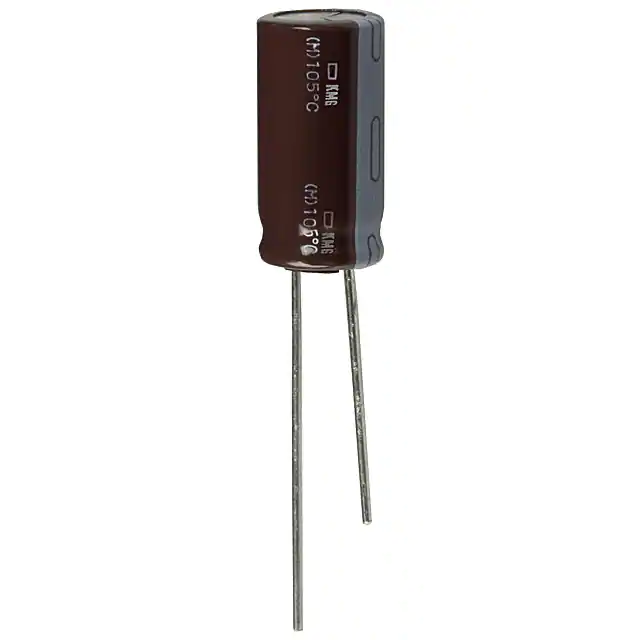

EKMG401ELL100MJ20S CAP ALUM 10UF 20% 400V RADIAL United Chemi-Con	8,846	-	RFQ	Datasheet	Bulk	KMG	Active	10 µF	±20%	400 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	80 mA @ 120 Hz	144 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
UHE2A151MHD CAP ALUM 150UF 20% 100V RADIAL Nichicon	5,600	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	150 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	626.5 mA @ 120 Hz	895 mA @ 100 kHz	140 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.591 (15.00mm)	-	Through Hole

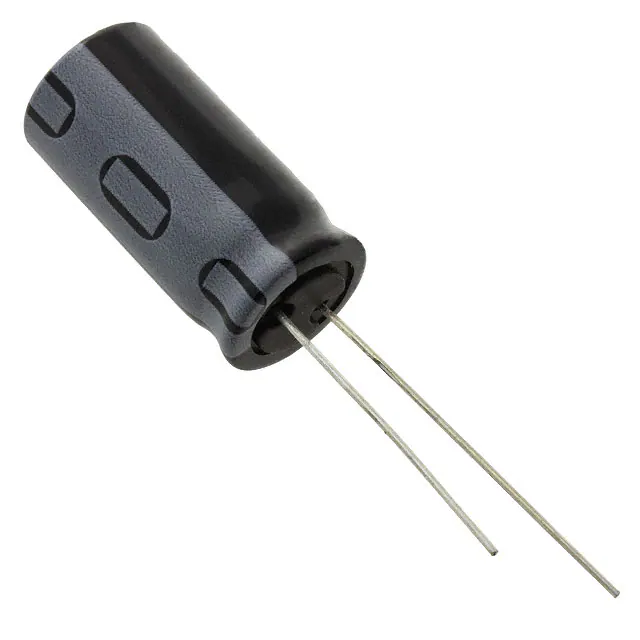

B41821F5228M000 CAP ALUM 2200UF 20% 25V RADIAL EPCOS - TDK Electronics	3,065	-	RFQ	Datasheet	Bulk	B41821	Not For New Designs	2200 µF	±20%	25 V	140mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.55 A @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
UHE1C152MPD CAP ALUM 1500UF 20% 16V RADIAL Nichicon	2,311	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	1500 µF	±20%	16 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.528 A @ 120 Hz	1.91 A @ 100 kHz	31 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.240 (31.50mm)	-	Through Hole
50SEV470M16X16.5 CAP ALUM 470UF 20% 50V SMD Rubycon	6,756	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SEV	Active	470 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	AEC-Q200	Automotive	740 mA @ 120 Hz	888 mA @ 10 kHz	-	-	0.630 Dia (16.00mm)	0.669 (17.00mm)	0.669 L x 0.669 W (17.00mm x 17.00mm)	Surface Mount
EEU-FM1V681 CAP ALUM 680UF 20% 35V RADIAL Panasonic Electronic Components	11,500	-	RFQ	Datasheet	Bulk	FM-A	Active	680 µF	±20%	35 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.95 A @ 120 Hz	2.6 A @ 100 kHz	18 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

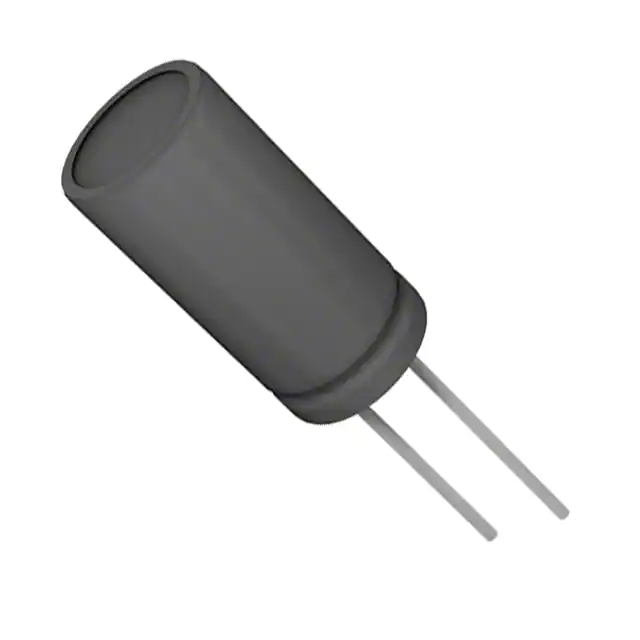

10YXJ2200M10X20 CAP ALUM 2200UF 20% 10V RADIAL Rubycon	6,363	-	RFQ	Datasheet	Bulk	YXJ	Active	2200 µF	±20%	10 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.12 A @ 120 Hz	1.4 A @ 100 kHz	46 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
16YXF2200MEFC12.5X25 CAP ALUM 2200UF 20% 16V RADIAL Rubycon	2,864	-	RFQ	Datasheet	Bulk	YXF	Active	2200 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.32 A @ 120 Hz	1.65 A @ 100 kHz	48 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
UHE1E102MPD CAP ALUM 1000UF 20% 25V RADIAL Nichicon	3,953	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	1000 µF	±20%	25 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.433 A @ 120 Hz	1.91 A @ 100 kHz	31 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.240 (31.50mm)	-	Through Hole
UFG1H220MEM CAP ALUM 22UF 20% 50V RADIAL Nichicon	6,111	-	RFQ	Datasheet	Bulk	UFG	Not For New Designs	22 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	65 mA @ 120 Hz	130 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
ROB-25V101MG3# CAP ALUM 100UF 20% 25V RADIAL Elna America	1,858	-	RFQ	Datasheet	Bulk	ROB, TONEREX	Active	100 µF	±20%	25 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	165 mA @ 120 Hz	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.453 (11.50mm)	-	Through Hole
