Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
B41858C7108M000 CAP ALUM 1000UF 20% 35V RADIAL EPCOS - TDK Electronics	2,767	-	RFQ	Datasheet	Bulk	B41858	Active	1000 µF	±20%	35 V	41mOhm @ 10kHz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Automotive	-	2.028 A @ 100 kHz	34 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
50YXF470MEFC12.5X20 CAP ALUM 470UF 20% 50V RADIAL Rubycon	7,709	-	RFQ	Datasheet	Bulk	YXF	Active	470 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	975 mA @ 120 Hz	1.3 A @ 100 kHz	62 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
EKXG401ELL100MJ20S CAP ALUM 10UF 20% 400V RADIAL United Chemi-Con	2,371	-	RFQ	Datasheet	Bulk	KXG	Active	10 µF	±20%	400 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	140 mA @ 120 Hz	350 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.787 (20.00mm)	-	Through Hole
50YXJ470M12.5X20 CAP ALUM 470UF 20% 50V RADIAL Rubycon	2,452	-	RFQ	Datasheet	Bulk	YXJ	Active	470 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.245 A @ 120 Hz	1.66 A @ 100 kHz	45 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
865060557008 CAP ALUM 220UF 20% 35V SMD Würth Elektronik	3,474	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLL	Active	220 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	435.5 mA @ 120 Hz	670 mA @ 100 kHz	90 mOhms	-	0.394 Dia (10.00mm)	0.413 (10.50mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
EKMG401ELL2R2MHB5D CAP ALUM 2.2UF 20% 400V RADIAL United Chemi-Con	2,998	-	RFQ	Datasheet	Bulk	KMG	Active	2.2 µF	±20%	400 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	26 mA @ 120 Hz	65 mA @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
63ZLH470MEFC12.5X25 CAP ALUM 470UF 20% 63V RADIAL Rubycon	13,987	-	RFQ	Datasheet	Bulk	ZLH	Active	470 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.095 A @ 120 Hz	-	43 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
106TTA035M CAP ALUM 10UF 20% 35V AXIAL Cornell Dubilier / Illinois Capacitor	15,381	-	RFQ	Datasheet	Bulk	TTA	Active	10 µF	±20%	35 V	23.2101Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	41 mA @ 120 Hz	-	-	-	0.197 Dia x 0.512 L (5.00mm x 13.00mm)	-	-	Through Hole

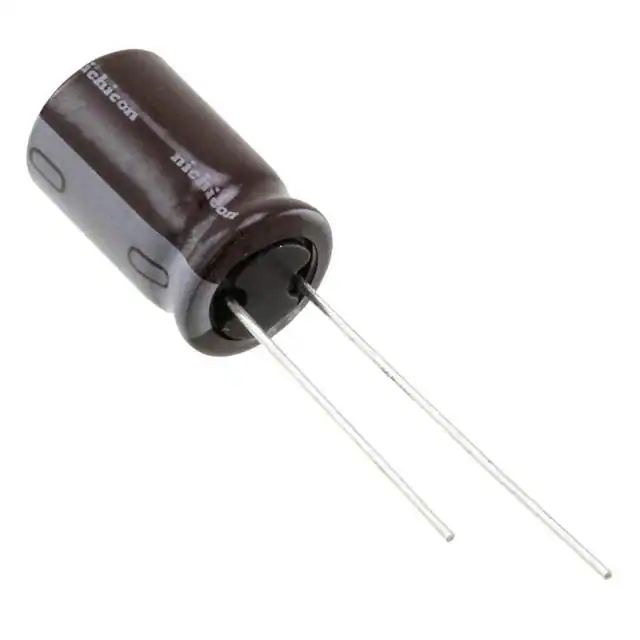

UVC2G150MPD CAP ALUM 15UF 20% 400V RADIAL Nichicon	16,901	-	RFQ	Datasheet	Bulk	UVC	Active	15 µF	±20%	400 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	150 mA @ 120 Hz	225 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole
ESY476M100AH1AA CAP ALUM 47UF 20% 100V RADIAL KEMET	9,178	-	RFQ	Datasheet	Bulk	ESY	Active	47 µF	±20%	100 V	240mOhm @ 100kHz	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	240 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.531 (13.50mm)	-	Through Hole
UHE2A221MHD CAP ALUM 220UF 20% 100V RADIAL Nichicon	32,985	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	220 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	707 mA @ 120 Hz	1.01 A @ 100 kHz	100 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.240 (31.50mm)	-	Through Hole
50PX1000MEFC12.5X25 CAP ALUM 1000UF 20% 50V RADIAL Rubycon	16,241	-	RFQ	Datasheet	Bulk	PX	Active	1000 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.06 A @ 120 Hz	1.272 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

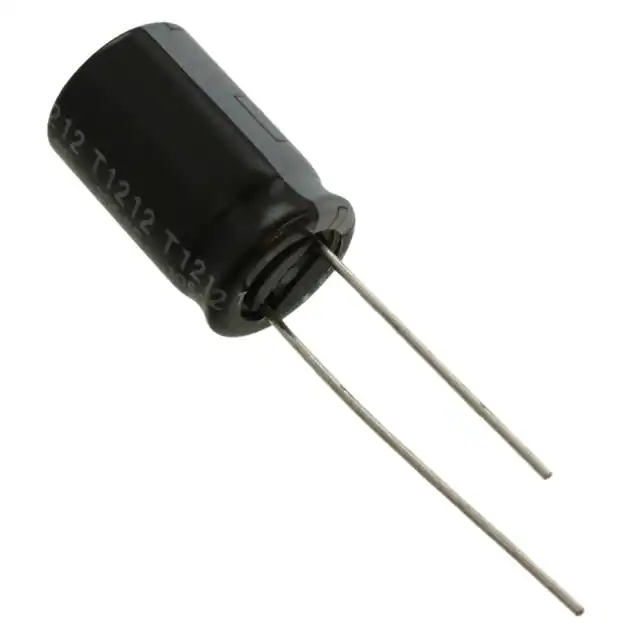

10ZLH1500MEFC10X16 CAP ALUM 1500UF 20% 10V RADIAL Rubycon	7,693	-	RFQ	Datasheet	Bulk	ZLH	Active	1500 µF	±20%	10 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.056 A @ 120 Hz	1.76 A @ 100 kHz	28 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

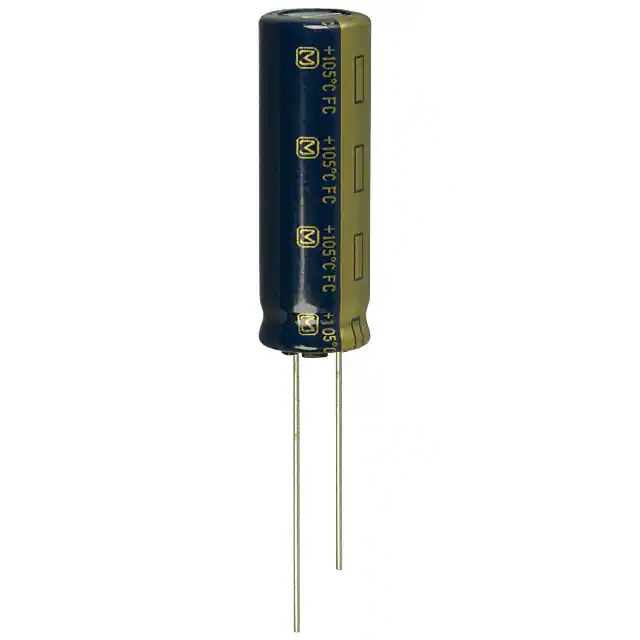

EEU-FC1E102L CAP ALUM 1000UF 20% 25V RADIAL Panasonic Electronic Components	5,488	-	RFQ	Datasheet	Bulk	FC	Active	1000 µF	±20%	25 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.361 A @ 120 Hz	1.815 A @ 100 kHz	35 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.181 (30.00mm)	-	Through Hole
EEA-GA1C101 CAP ALUM 100UF 20% 16V RADIAL Panasonic Electronic Components	3,976	-	RFQ	Datasheet	Bulk	GA-A	Active	100 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	120 mA @ 120 Hz	186 mA @ 100 kHz	-	0.098 (2.50mm)	0.315 Dia (8.00mm)	0.276 (7.00mm)	-	Through Hole
UPJ1E331MPD6 CAP ALUM 330UF 20% 25V RADIAL Nichicon	2,271	-	RFQ	Datasheet	Bulk	UPJ	Not For New Designs	330 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	575 mA @ 120 Hz	750 mA @ 10 kHz	150 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.650 (16.50mm)	-	Through Hole
MAL202190538E3 CAP ALUM 100UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	3,704	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	100 µF	±20%	40 V	1.8Ohm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	221 mA @ 10 kHz	700 mOhms	-	0.315 Dia x 0.433 L (8.00mm x 11.00mm)	-	-	Through Hole
ESY477M025AH2AA CAP ALUM 470UF 20% 25V RADIAL KEMET	1,524	-	RFQ	Datasheet	Box	ESY	Active	470 µF	±20%	25 V	-	-	-40°C ~ 105°C	Polar	-	General Purpose	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole
UKA1V101MED CAP ALUM 100UF 20% 35V RADIAL Nichicon	1,312	-	RFQ	Datasheet	Bulk	UKA	Not For New Designs	100 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	150 mA @ 120 Hz	225 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UFW1V221MPD CAP ALUM 220UF 20% 35V RADIAL Nichicon	1,108	-	RFQ	Datasheet	Bulk	UFW	Not For New Designs	220 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	370 mA @ 120 Hz	555 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole
