Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UKA0J221MED CAP ALUM 220UF 20% 6.3V RADIAL Nichicon	1,094	-	RFQ	Datasheet	Bulk	UKA	Not For New Designs	220 µF	±20%	6.3 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	160 mA @ 120 Hz	240 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
100ZL220MEFC12.5X30 CAP ALUM 220UF 20% 100V RADIAL Rubycon	3,195	-	RFQ	Datasheet	Bulk	ZL	Active	220 µF	±20%	100 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	705 mA @ 120 Hz	1.41 A @ 100 kHz	63 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.260 (32.00mm)	-	Through Hole

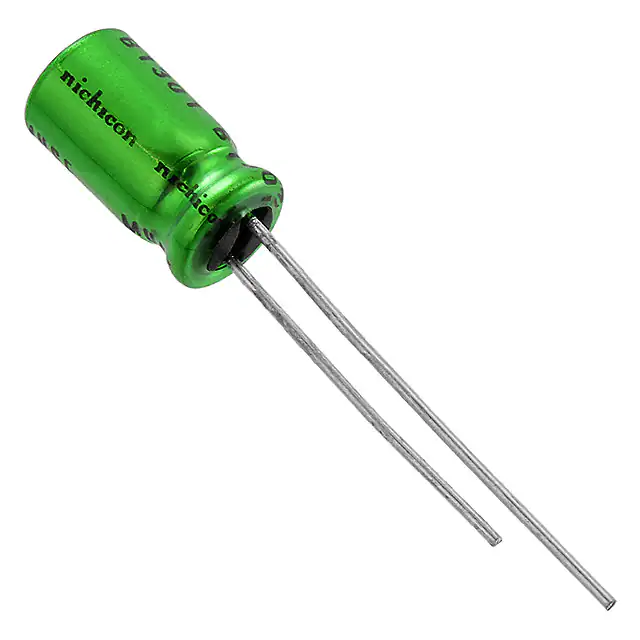

UES1C330MEM CAP ALUM 33UF 20% 16V RADIAL Nichicon	1,731	-	RFQ	Datasheet	Bulk	UES	Not For New Designs	33 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
105TTA100M CAP ALUM 1UF 20% 100V AXIAL Cornell Dubilier / Illinois Capacitor	1,708	-	RFQ	Datasheet	Bulk	TTA	Active	1 µF	±20%	100 V	331.573Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	18 mA @ 120 Hz	30.6 mA @ 50 kHz	-	-	0.197 Dia x 0.512 L (5.00mm x 13.00mm)	-	-	Through Hole
UFW1H221MPD CAP ALUM 220UF 20% 50V RADIAL Nichicon	1,405	-	RFQ	Datasheet	Bulk	UFW	Not For New Designs	220 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	410 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole
25ZLJ1500M12.5X20 CAP ALUM 1500UF 20% 25V RADIAL Rubycon	11,982	-	RFQ	Datasheet	Bulk	ZLJ	Active	1500 µF	±20%	25 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.56 A @ 120 Hz	2.6 A @ 100 kHz	25 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
ECA-1HM102 CAP ALUM 1000UF 20% 50V RADIAL Panasonic Electronic Components	3,612	-	RFQ	Datasheet	Bulk	M-A	Active	1000 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.05 A @ 120 Hz	1.785 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
EKXG251ELL220MJ20S CAP ALUM 22UF 20% 250V RADIAL United Chemi-Con	1,109	-	RFQ	Datasheet	Bulk	KXG	Active	22 µF	±20%	250 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	200 mA @ 120 Hz	500 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.787 (20.00mm)	-	Through Hole

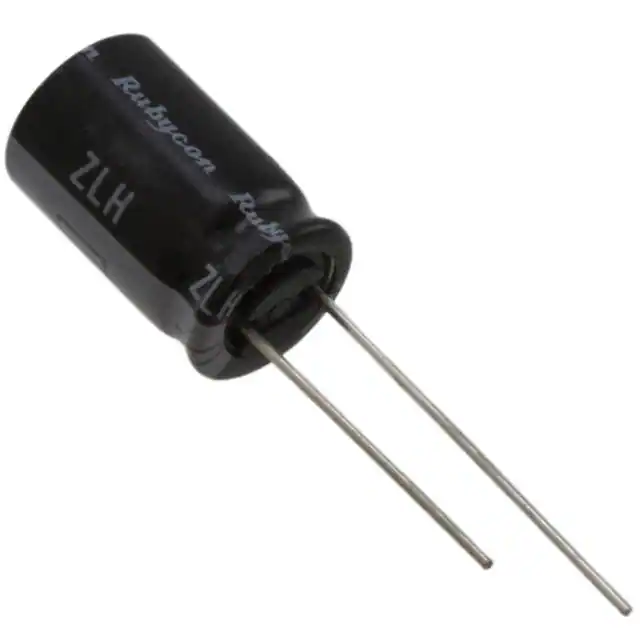

16ZLH1000MEFC10X16 CAP ALUM 1000UF 20% 16V RADIAL Rubycon	24,166	-	RFQ	Datasheet	Bulk	ZLH	Active	1000 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.056 A @ 120 Hz	1.76 A @ 100 kHz	28 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
226TTA035M CAP ALUM 22UF 20% 35V AXIAL Cornell Dubilier / Illinois Capacitor	13,755	-	RFQ	Datasheet	Bulk	TTA	Active	22 µF	±20%	35 V	10.55Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	70 mA @ 120 Hz	107.1 mA @ 50 kHz	-	-	0.197 Dia x 0.512 L (5.00mm x 13.00mm)	-	-	Through Hole
ECA-2WM100 CAP ALUM 10UF 20% 450V RADIAL Panasonic Electronic Components	3,328	-	RFQ	Datasheet	Bulk	M-A	Active	10 µF	±20%	450 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	130 mA @ 120 Hz	221 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

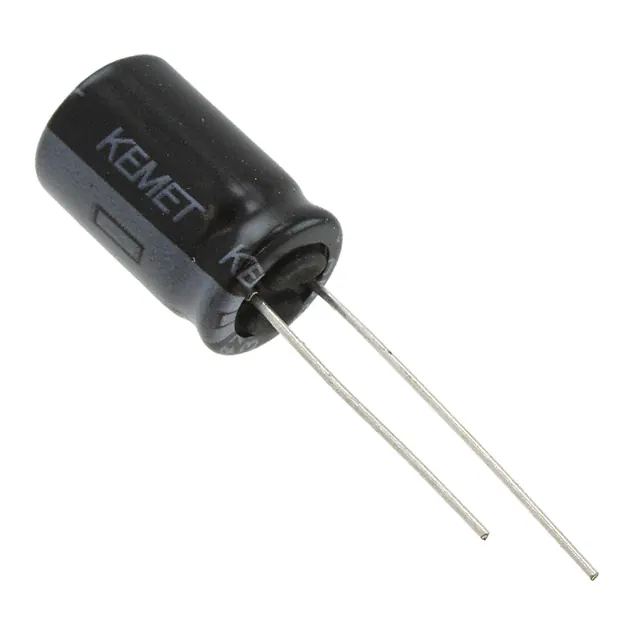

ESH477M035AH3AA CAP ALUM 470UF 20% 35V RADIAL KEMET	8,881	-	RFQ	Datasheet	Bulk	ESH	Active	470 µF	±20%	35 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.748 (19.00mm)	-	Through Hole
ECA-2AM221 CAP ALUM 220UF 20% 100V RADIAL Panasonic Electronic Components	3,295	-	RFQ	Datasheet	Bulk	M-A	Active	220 µF	±20%	100 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	550 mA @ 120 Hz	935 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
UHE1A332MHD CAP ALUM 3300UF 20% 10V RADIAL Nichicon	2,340	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	3300 µF	±20%	10 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.784 A @ 120 Hz	2.23 A @ 100 kHz	27 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)	-	Through Hole
ESK106M350AH2AA CAP ALUM 10UF 20% 350V RADIAL KEMET	4,429	-	RFQ	Datasheet	Bulk	ESK	Active	10 µF	±20%	350 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	70 mA @ 120 Hz	98 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole
6.3ZLJ1000M8X16 CAP ALUM 1000UF 20% 6.3V RADIAL Rubycon	2,716	-	RFQ	Datasheet	Bulk	ZLJ	Active	1000 µF	±20%	6.3 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	750 mA @ 120 Hz	1.25 A @ 100 kHz	59 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)	-	Through Hole
475TTA050M CAP ALUM 4.7UF 20% 50V AXIAL Cornell Dubilier / Illinois Capacitor	2,193	-	RFQ	Datasheet	Bulk	TTA	Active	4.7 µF	±20%	50 V	42.3284Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	36 mA @ 120 Hz	-	-	-	0.197 Dia x 0.512 L (5.00mm x 13.00mm)	-	-	Through Hole
UPV1A101MGD CAP ALUM 100UF 20% 10V RADIAL Nichicon	1,779	-	RFQ	Datasheet	Bulk	UPV	Not For New Designs	100 µF	±20%	10 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	940 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

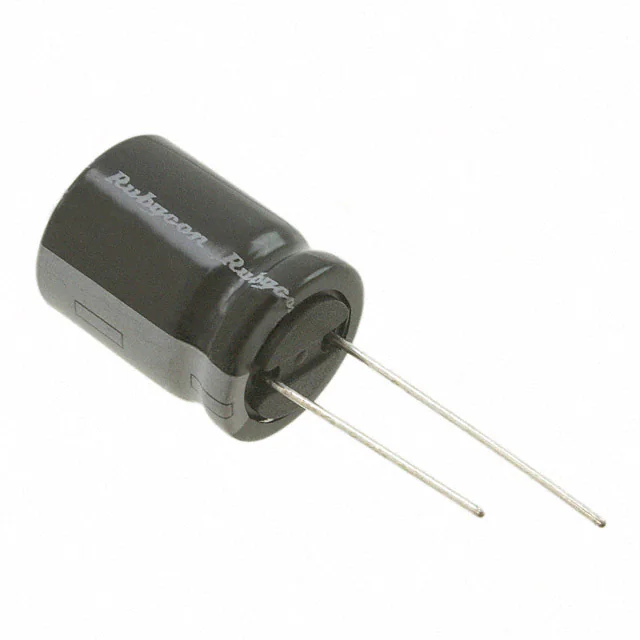

50WA1000MEFC16X20 CAP ALUM 1000UF 20% 50V RADIAL Rubycon	5,700	-	RFQ	Datasheet	Bulk	WA	Active	1000 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.05 A @ 120 Hz	-	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole
B41858C9107M000 CAP ALUM 100UF 20% 100V RADIAL EPCOS - TDK Electronics	23,046	-	RFQ	Datasheet	Bulk	B41858	Active	100 µF	±20%	100 V	305mOhm @ 10kHz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Automotive	-	647 mA @ 100 kHz	281 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
