Aluminum Electrolytic Capacitors- Page 112

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UKL1A221KPDANA CAP ALUM 220UF 10% 10V RADIAL Nichicon	1,756	-	RFQ	Datasheet	Bulk	UKL	Not For New Designs	220 µF	±10%	10 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	310 mA @ 120 Hz	465 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.492 (12.50mm)	-	Through Hole
ECA-1EM222 CAP ALUM 2200UF 20% 25V RADIAL Panasonic Electronic Components	8,522	-	RFQ	Datasheet	Bulk	M-A	Active	2200 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.2 A @ 120 Hz	2.04 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

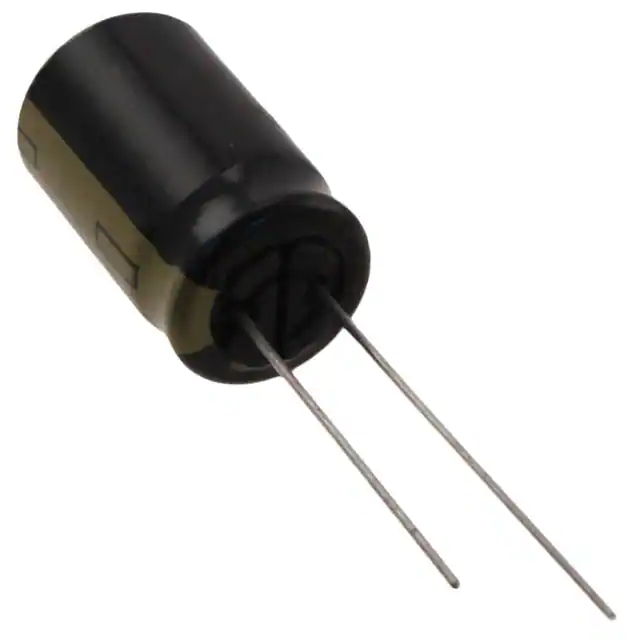

EEU-FM1A332 CAP ALUM 3300UF 20% 10V RADIAL Panasonic Electronic Components	686	-	RFQ	Datasheet	Bulk	FM-A	Active	3300 µF	±20%	10 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.552 A @ 120 Hz	3.19 A @ 100 kHz	15 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

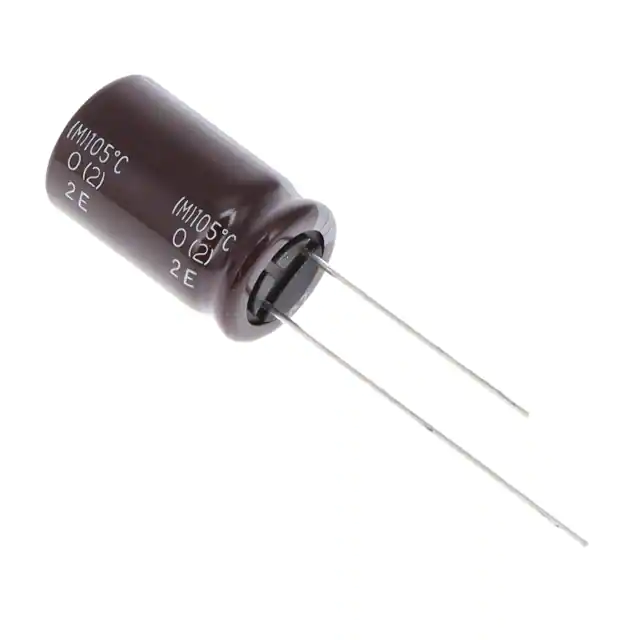

EKYC250ELL202MK20S CAP ALUM 2000UF 20% 25V RADIAL United Chemi-Con	1,403	-	RFQ	Datasheet	Bulk	KYC	Active	2000 µF	±20%	25 V	50mOhm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	1.29 A @ 120 Hz	2.15 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
B41888C5158M000 CAP ALUM 1500UF 20% 25V RADIAL EPCOS - TDK Electronics	27,728	-	RFQ	Datasheet	Bulk	B41888	Active	1500 µF	±20%	25 V	30mOhm @ 10kHz	10000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	-	2.459 A @ 100 kHz	27 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

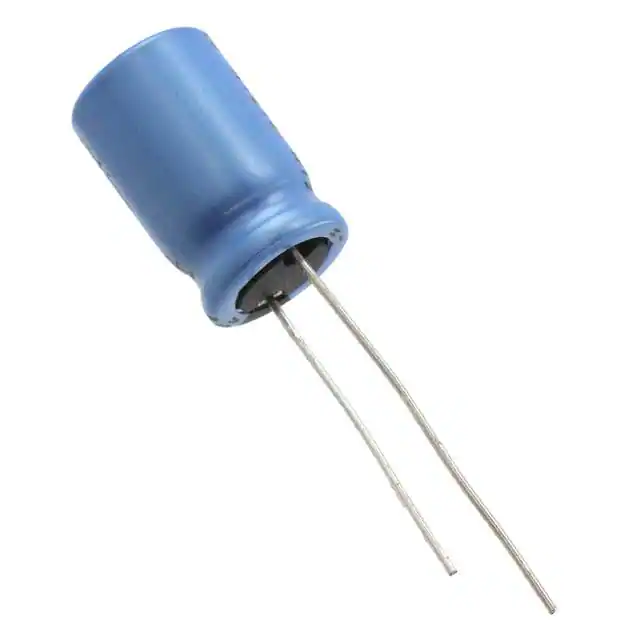

UKA1V471MPD1TD CAP ALUM 470UF 20% 35V RADIAL Nichicon	10,707	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKA	Not For New Designs	470 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	460 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
107CKR063M CAP ALUM 100UF 20% 63V RADIAL Cornell Dubilier / Illinois Capacitor	53,016	-	RFQ	Datasheet	Bulk	CKR	Active	100 µF	±20%	63 V	1.658Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	330 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
EMVH630ARA221MKG5S CAP ALUM 220UF 20% 63V SMD United Chemi-Con	3,840	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Alchip™- MVH	Active	220 µF	±20%	63 V	200mOhm @ 100kHz	5000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	300 mA @ 120 Hz	600 mA @ 100 kHz	-	-	0.492 Dia (12.50mm)	0.630 (16.00mm)	0.512 L x 0.512 W (13.00mm x 13.00mm)	Surface Mount
35ZLJ220M8X16 CAP ALUM 220UF 20% 35V RADIAL Rubycon	4,949	-	RFQ	Datasheet	Bulk	ZLJ	Active	220 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	800 mA @ 120 Hz	1.6 A @ 100 kHz	59 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)	-	Through Hole
EEU-EE2D470 CAP ALUM 47UF 20% 200V RADIAL Panasonic Electronic Components	1,072	-	RFQ	Datasheet	Bulk	EE-A	Active	47 µF	±20%	200 V	-	10000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	385 mA @ 120 Hz	1.1 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

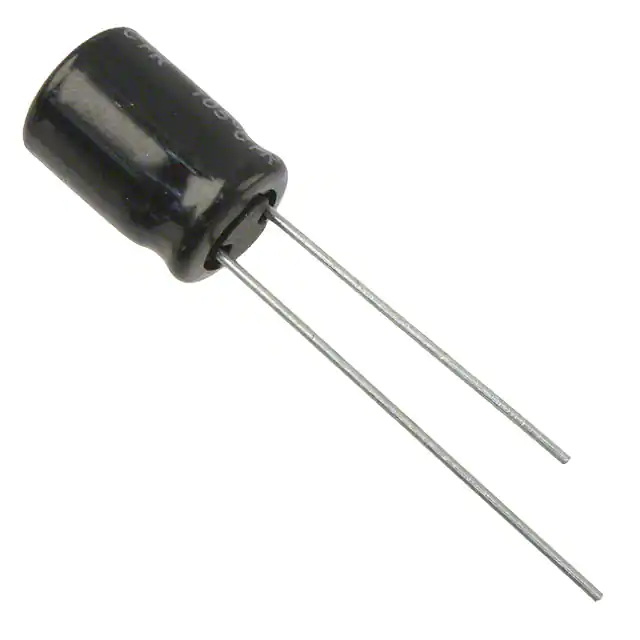

EEU-FR1V181 CAP ALUM 180UF 20% 35V RADIAL Panasonic Electronic Components	4,261	-	RFQ	Datasheet	Bulk	FR-A	Active	180 µF	±20%	35 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	665 mA @ 120 Hz	950 mA @ 100 kHz	56 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole

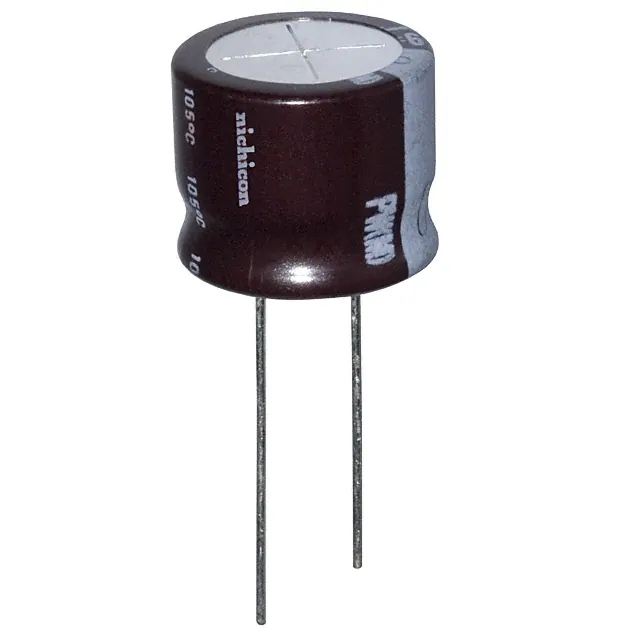

UPW1J391MHD6 CAP ALUM 390UF 20% 63V RADIAL Nichicon	1,015	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	390 µF	±20%	63 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.268 A @ 120 Hz	1.69 A @ 100 kHz	86 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.591 (15.00mm)	-	Through Hole

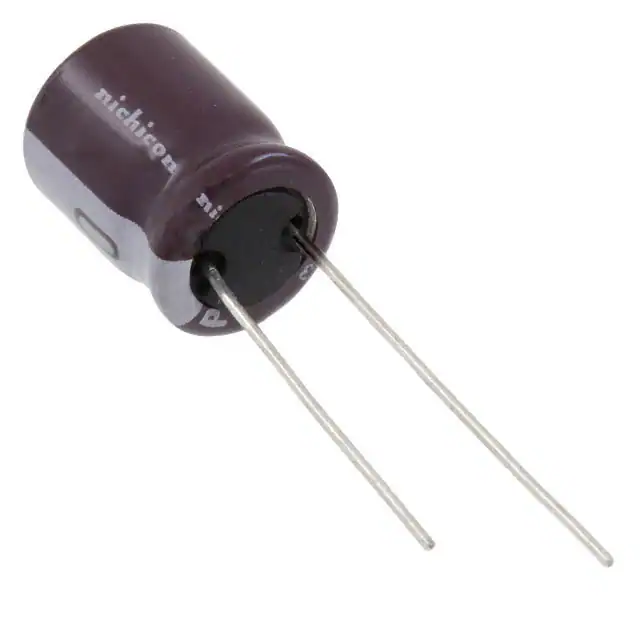

UPM1A471MPD6 CAP ALUM 470UF 20% 10V RADIAL Nichicon	3,408	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	470 µF	±20%	10 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	535 mA @ 120 Hz	670 mA @ 10 kHz	130 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.571 (14.50mm)	-	Through Hole
MAL213631101E3 CAP ALUM 100UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	3,006	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	136 RVI	Active	100 µF	±20%	50 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	240 mA @ 100 Hz	-	200 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.531 (13.50mm)	-	Through Hole
MAL203038478E3 CAP ALUM 4.7UF 63V AXIAL Vishay Beyschlag/Draloric/BC Components	4,943	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	4.7 µF	-10%, +50%	63 V	30.5Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	40 mA @ 100 Hz	-	12 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
MAL203038108E3 CAP ALUM 1UF 63V AXIAL Vishay Beyschlag/Draloric/BC Components	6,040	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	1 µF	-10%, +50%	63 V	143Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	13 mA @ 100 Hz	-	55 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
MAL203035339E3 CAP ALUM 33UF 16V AXIAL Vishay Beyschlag/Draloric/BC Components	4,355	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	33 µF	-10%, +50%	16 V	7.72Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	65 mA @ 100 Hz	-	3.6 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
MAL203034479E3 CAP ALUM 47UF 10V AXIAL Vishay Beyschlag/Draloric/BC Components	3,673	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	47 µF	-10%, +50%	10 V	6.78Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	70 mA @ 100 Hz	-	3.4 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
MAL203036229E3 CAP ALUM 22UF 25V AXIAL Vishay Beyschlag/Draloric/BC Components	3,952	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	22 µF	-10%, +50%	25 V	10.2Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	60 mA @ 100 Hz	-	4.1 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
MAL203037159E3 CAP ALUM 15UF 40V AXIAL Vishay Beyschlag/Draloric/BC Components	2,271	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	15 µF	-10%, +50%	40 V	11.7Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	55 mA @ 100 Hz	-	4.7 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
