Aluminum Electrolytic Capacitors- Page 113

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
MAL203038338E3 CAP ALUM 3.3UF 63V AXIAL Vishay Beyschlag/Draloric/BC Components	2,918	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	3.3 µF	-10%, +50%	63 V	46.5Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	35 mA @ 100 Hz	-	17 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
50ZLH820MEFC16X20 CAP ALUM 820UF 20% 50V RADIAL Rubycon	1,873	-	RFQ	Datasheet	Bulk	ZLH	Active	820 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.638 A @ 120 Hz	-	23 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole
UPW2A221MHD CAP ALUM 220UF 20% 100V RADIAL Nichicon	3,627	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	220 µF	±20%	100 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	578.5 mA @ 120 Hz	890 mA @ 100 kHz	100 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)	-	Through Hole
UFW1J101MPD CAP ALUM 100UF 20% 63V RADIAL Nichicon	3,356	-	RFQ	Datasheet	Bulk	UFW	Not For New Designs	100 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	300 mA @ 120 Hz	450 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole
475CKS400M CAP ALUM 4.7UF 20% 400V RADIAL Cornell Dubilier / Illinois Capacitor	1,119	-	RFQ	Datasheet	Bulk	CKS	Active	4.7 µF	±20%	400 V	70.547Ohm @ 120Hz	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	75 mA @ 120 Hz	187.5 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
MAL202136331E3 CAP ALUM 330UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	5,506	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	330 µF	±20%	25 V	680mOhm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	442 mA @ 10 kHz	360 mOhms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole
MAL202133102E3 CAP ALUM 1000UF 20% 6.3V AXIAL Vishay Beyschlag/Draloric/BC Components	2,496	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	1000 µF	±20%	6.3 V	400mOhm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	480 mA @ 10 kHz	500 mOhms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole
MAL202135471E3 CAP ALUM 470UF 20% 16V AXIAL Vishay Beyschlag/Draloric/BC Components	2,378	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	470 µF	±20%	16 V	550mOhm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	456 mA @ 10 kHz	340 mOhms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole

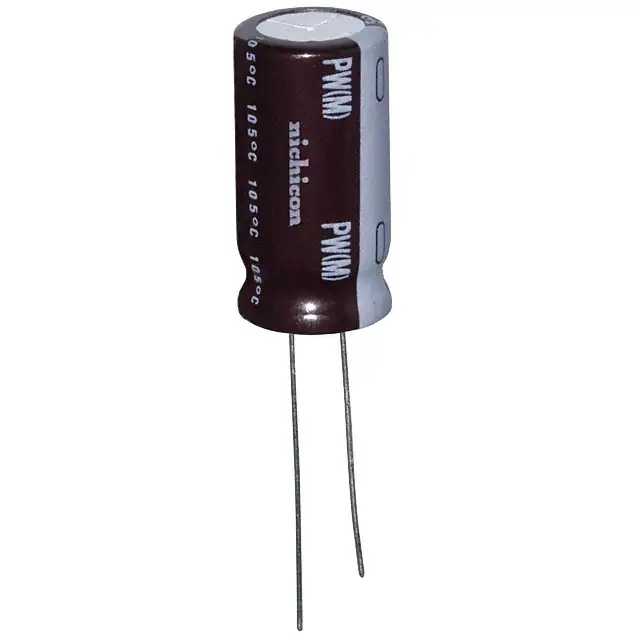

UPW1V102MHD CAP ALUM 1000UF 20% 35V RADIAL Nichicon	3,458	-	RFQ	Datasheet	Bulk	UPW	Active	1000 µF	±20%	35 V	-	7000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.463 A @ 120 Hz	1.95 A @ 100 kHz	30 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)	-	Through Hole
160LLE22MEFC10X12.5 CAP ALUM 22UF 20% 160V RADIAL Rubycon	28,565	-	RFQ	Datasheet	Bulk	LLE	Active	22 µF	±20%	160 V	-	15000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	121 mA @ 120 Hz	217 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.571 (14.50mm)	-	Through Hole
EEV-FK1K331M CAP ALUM 330UF 20% 80V SMD Panasonic Electronic Components	1,485	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	330 µF	±20%	80 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	594.8 mA @ 120 Hz	793 mA @ 100 kHz	170 mOhms	-	0.630 Dia (16.00mm)	0.669 (17.00mm)	0.669 L x 0.669 W (17.00mm x 17.00mm)	Surface Mount
MAL214038479E3 CAP ALUM 47UF 20% 63V RADIAL Vishay Beyschlag/Draloric/BC Components	6,712	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	140 RTM	Active	47 µF	±20%	63 V	-	2500 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	General Purpose	190 mA @ 100 Hz	-	300 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.531 (13.50mm)	-	Through Hole

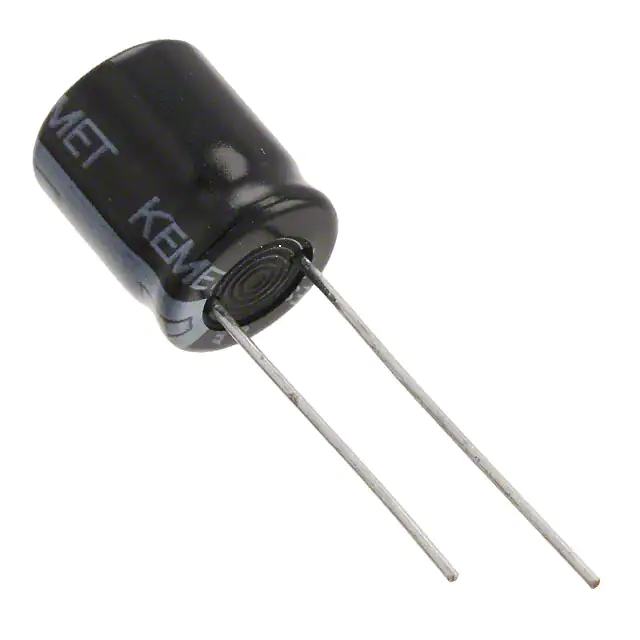

ESY227M035AH1AA CAP ALUM 220UF 20% 35V RADIAL KEMET	2,732	-	RFQ	Datasheet	Bulk	ESY	Active	220 µF	±20%	35 V	53mOhm @ 100kHz	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	53 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.531 (13.50mm)	-	Through Hole
UVY1H221MPD CAP ALUM 220UF 20% 50V RADIAL Nichicon	1,750	-	RFQ	Datasheet	Bulk	UVY	Not For New Designs	220 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	300 mA @ 120 Hz	450 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
MAL213831109E3 CAP ALUM 10UF 20% 50V AXIAL Vishay Beyschlag/Draloric/BC Components	813	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	10 µF	±20%	50 V	14Ohm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	51 mA @ 100 Hz	71.4 mA @ 10 kHz	7 Ohms	-	0.248 Dia x 0.500 L (6.30mm x 12.70mm)	-	-	Through Hole
UHE1E102MHD3 CAP ALUM 1000UF 20% 25V RADIAL Nichicon	3,643	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	1000 µF	±20%	25 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.455 A @ 120 Hz	1.94 A @ 100 kHz	42 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.591 (15.00mm)	-	Through Hole
MAL202128109E3 CAP ALUM 10UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	8,243	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	021 ASM	Active	10 µF	±20%	63 V	13Ohm @ 100Hz	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	50 mA @ 100 Hz	-	5.5 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
100YXF220MEFC16X25 CAP ALUM 220UF 20% 100V RADIAL Rubycon	8,749	-	RFQ	Datasheet	Bulk	YXF	Active	220 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	630 mA @ 120 Hz	900 mA @ 100 kHz	73 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
SEK101M035ST CAP ALUM 100UF 20% 35V RADIAL Cornell Dubilier Electronics (CDE)	47,692	-	RFQ	Datasheet	Bulk	SEK	Active	100 µF	±20%	35 V	1.86Ohm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.453 (11.50mm)	-	Through Hole
SEK101M016ST CAP ALUM 100UF 20% 16V RADIAL Cornell Dubilier Electronics (CDE)	13,512	-	RFQ	Datasheet	Bulk	SEK	Active	100 µF	±20%	16 V	2.39Ohm @ 120Hz	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	135 mA @ 120 Hz	-	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.433 (11.00mm)	-	Through Hole
