Aluminum Electrolytic Capacitors- Page 114

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

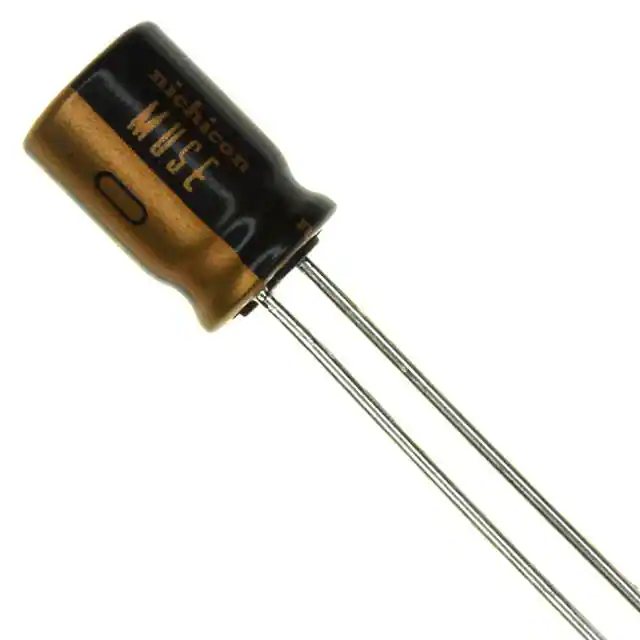

UKZ1H220MPM CAP ALUM 22UF 20% 50V RADIAL Nichicon	6,554	-	RFQ	Datasheet	Bulk	UKZ	Active	22 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.453 (11.50mm)	-	Through Hole

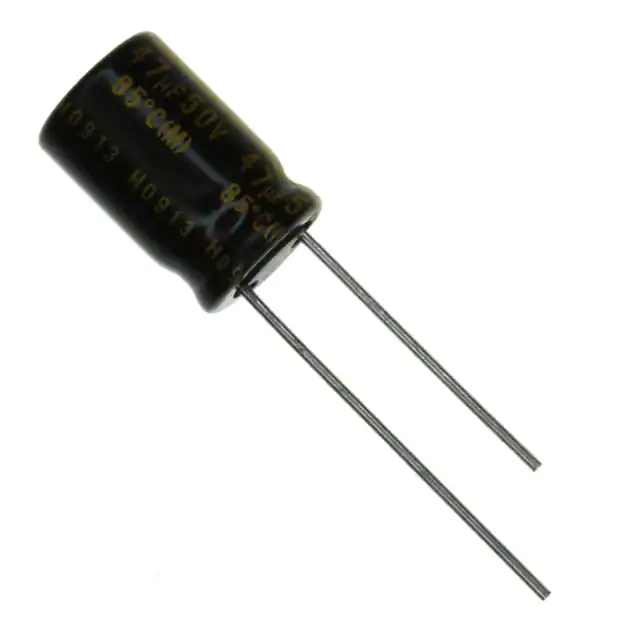

UKZ1H470MPM CAP ALUM 47UF 20% 50V RADIAL Nichicon	5,028	-	RFQ	Datasheet	Bulk	UKZ	Active	47 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.630 (16.00mm)	-	Through Hole
UES1C470MPM CAP ALUM 47UF 20% 16V RADIAL Nichicon	4,870	-	RFQ	Datasheet	Bulk	UES	Not For New Designs	47 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
UVR1E332MHD CAP ALUM 3300UF 20% 25V RADIAL Nichicon	3,359	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	3300 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.98 A @ 120 Hz	2.277 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole

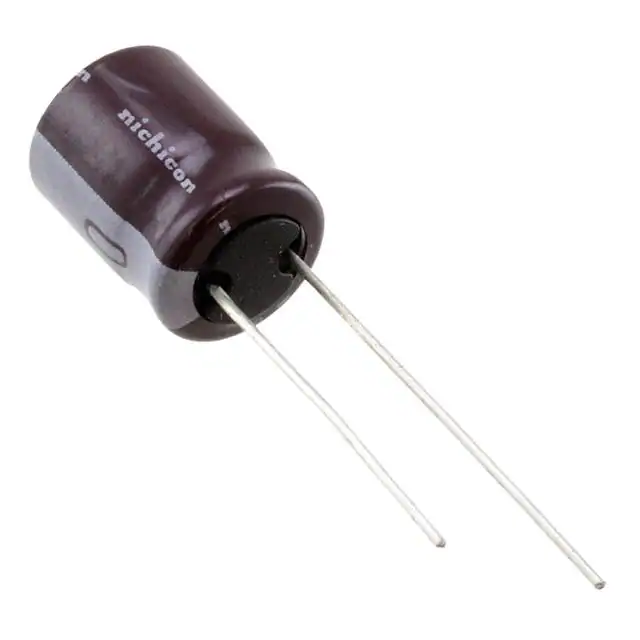

UPS1V221MPD CAP ALUM 220UF 20% 35V RADIAL Nichicon	2,217	-	RFQ	Datasheet	Bulk	UPS	Not For New Designs	220 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	300 mA @ 120 Hz	600 mA @ 100 kHz	190 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
108CKE010M CAP ALUM 1000UF 20% 10V RADIAL Cornell Dubilier / Illinois Capacitor	1,261	-	RFQ	Datasheet	Bulk	CKE	Active	1000 µF	±20%	10 V	315mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	570 mA @ 120 Hz	798 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
10ZLH4700MEFC12.5X30 CAP ALUM 4700UF 20% 10V RADIAL Rubycon	1,587	-	RFQ	Datasheet	Bulk	ZLH	Active	4700 µF	±20%	10 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.415 A @ 120 Hz	3.45 A @ 100 kHz	13 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.260 (32.00mm)	-	Through Hole
10PX2200MEFC10X16 CAP ALUM 2200UF 20% 10V RADIAL Rubycon	45,430	-	RFQ	Datasheet	Bulk	PX	Active	2200 µF	±20%	10 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	860 mA @ 120 Hz	989 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
35PX680MEFC10X16 CAP ALUM 680UF 20% 35V RADIAL Rubycon	22,750	-	RFQ	Datasheet	Bulk	PX	Active	680 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	760 mA @ 120 Hz	912 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

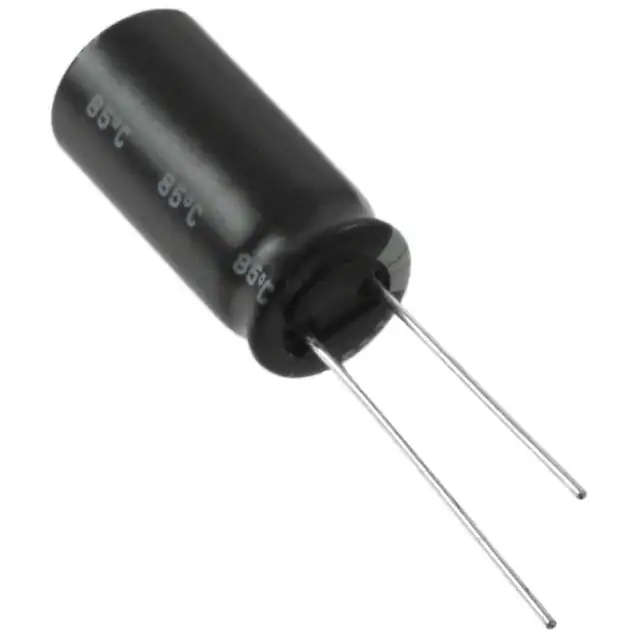

16PK2200MEFC10X20 CAP ALUM 2200UF 20% 16V RADIAL Rubycon	9,654	-	RFQ	Datasheet	Bulk	PK	Active	2200 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.32 A @ 120 Hz	1.518 A @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
UVY2V100MPD CAP ALUM 10UF 20% 350V RADIAL Nichicon	6,034	-	RFQ	Datasheet	Bulk	UVY	Not For New Designs	10 µF	±20%	350 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	64 mA @ 120 Hz	73.6 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
25ZLH470MEFC8X16 CAP ALUM 470UF 20% 25V RADIAL Rubycon	5,123	-	RFQ	Datasheet	Bulk	ZLH	Active	470 µF	±20%	25 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)	-	Through Hole
UES1H100MPM CAP ALUM 10UF 20% 50V RADIAL Nichicon	4,220	-	RFQ	Datasheet	Bulk	UES	Not For New Designs	10 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
UFG1V101MPM CAP ALUM 100UF 20% 35V RADIAL Nichicon	3,946	-	RFQ	Datasheet	Bulk	UFG	Not For New Designs	100 µF	±20%	35 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	176 mA @ 120 Hz	264 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
UPX1V470MPD CAP ALUM 47UF 20% 35V RADIAL Nichicon	2,952	-	RFQ	Datasheet	Bulk	UPX	Not For New Designs	47 µF	±20%	35 V	-	20000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	315 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
UBC1V101MNS1GS CAP ALUM 100UF 20% 35V SMD Nichicon	11,840	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UBC	Not For New Designs	100 µF	±20%	35 V	-	1000 Hrs @ 150°C	-40°C ~ 150°C	Polar	-	Automotive	80.4 mA @ 120 Hz	120 mA @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.453 (11.50mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
B41888C7108M000 CAP ALUM 1000UF 20% 35V RADIAL EPCOS - TDK Electronics	17,459	-	RFQ	Datasheet	Bulk	B41888	Active	1000 µF	±20%	35 V	30mOhm @ 10kHz	10000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	-	2.459 A @ 100 kHz	27 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
477CKE025M CAP ALUM 470UF 20% 25V RADIAL Cornell Dubilier / Illinois Capacitor	51,805	-	RFQ	Datasheet	Bulk	CKE	Active	470 µF	±20%	25 V	493.8mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	470 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
ESG475M400AH2AA CAP ALUM 4.7UF 20% 400V RADIAL KEMET	15,238	-	RFQ	Datasheet	Bulk	ESG	Active	4.7 µF	±20%	400 V	3.5Ohm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	50 mA @ 120 Hz	80 mA @ 10 kHz	3.5 Ohms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole
SEK100M050ST CAP ALUM 10UF 20% 50V RADIAL Cornell Dubilier Electronics (CDE)	14,963	-	RFQ	Datasheet	Bulk	SEK	Active	10 µF	±20%	50 V	15.92Ohm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.512 (13.00mm)	-	Through Hole
