Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
337CKS050M CAP ALUM 330UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	1,396	-	RFQ	Datasheet	Bulk	CKS	Active	330 µF	±20%	50 V	502.4mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	710 mA @ 120 Hz	1.1715 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
EKZN800ELL470MHB5D CAP ALUM 47UF 20% 80V RADIAL United Chemi-Con	1,175	-	RFQ	Datasheet	Bulk	KZN	Active	47 µF	±20%	80 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	248 mA @ 120 Hz	620 mA @ 100 kHz	200 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
MAL211837479E3 CAP ALUM 47UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	3,626	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	47 µF	±20%	40 V	3.72Ohm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	-	116.7 mA @ 10 kHz	2.8 Ohms	-	0.256 Dia x 0.709 L (6.50mm x 18.00mm)	-	-	Through Hole
MAL211839109E3 CAP ALUM 10UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	2,558	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	10 µF	±20%	100 V	11Ohm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	-	72.8 mA @ 10 kHz	9 Ohms	-	0.256 Dia x 0.709 L (6.50mm x 18.00mm)	-	-	Through Hole
MAL213835471E3 CAP ALUM 470UF 20% 16V AXIAL Vishay Beyschlag/Draloric/BC Components	1,418	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	470 µF	±20%	16 V	540mOhm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	360 mA @ 100 Hz	468 mA @ 10 kHz	340 mOhms	-	0.394 Dia x 0.709 L (10.00mm x 18.00mm)	-	-	Through Hole
10PX3300MEFC10X20 CAP ALUM 3300UF 20% 10V RADIAL Rubycon	37,868	-	RFQ	Datasheet	Bulk	PX	Active	3300 µF	±20%	10 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.1 A @ 120 Hz	1.265 A @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole

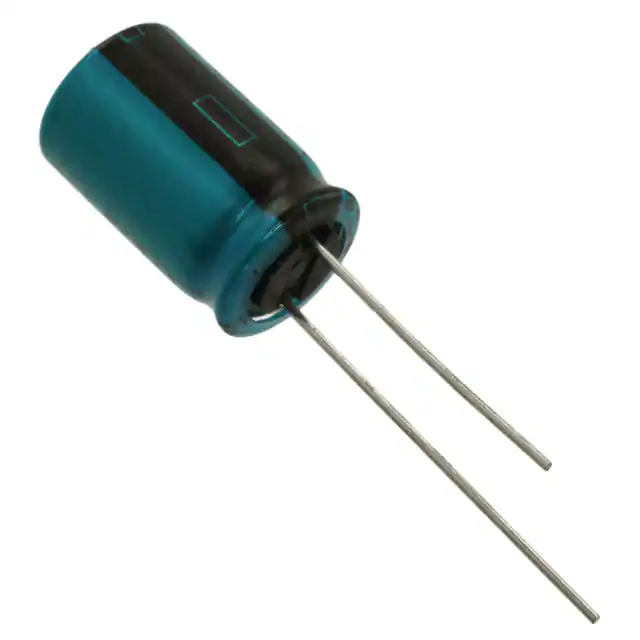

63RX30100M10X16 CAP ALUM 100UF 20% 63V RADIAL Rubycon	28,000	-	RFQ	Datasheet	Bulk	RX30	Active	100 µF	±20%	63 V	-	2000 Hrs @ 130°C	-40°C ~ 130°C	Polar	AEC-Q200	Automotive	315 mA @ 120 Hz	450 mA @ 100 kHz	200 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole

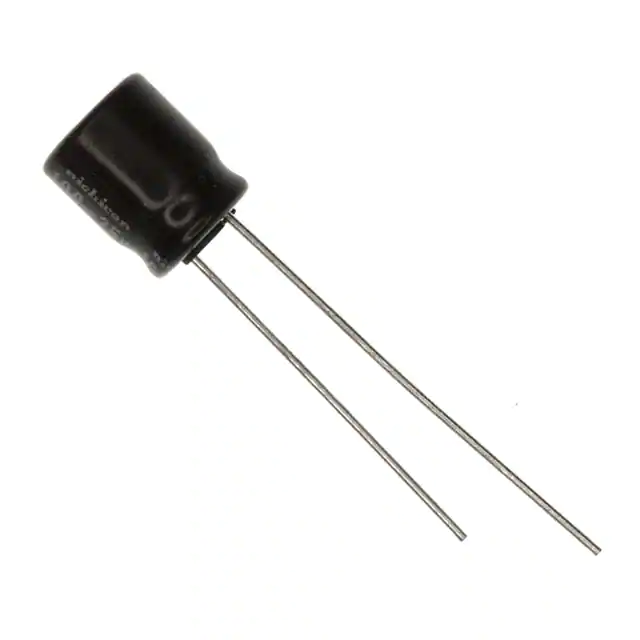

UTT1C471MPD CAP ALUM 470UF 20% 16V RADIAL Nichicon	14,285	-	RFQ	Datasheet	Bulk	UTT	Last Time Buy	470 µF	±20%	16 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	-	-	General Purpose	178.8 mA @ 120 Hz	298 mA @ 100 kHz	400 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.453 (11.50mm)	-	Through Hole
EKZN500ELL101MHB5D CAP ALUM 100UF 20% 50V RADIAL United Chemi-Con	5,740	-	RFQ	Datasheet	Bulk	KZN	Active	100 µF	±20%	50 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	480 mA @ 120 Hz	1.2 A @ 100 kHz	85 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
108CKS016MLN CAP ALUM 1000UF 20% 16V RADIAL Cornell Dubilier / Illinois Capacitor	2,152	-	RFQ	Datasheet	Bulk	CKS	Active	1000 µF	±20%	16 V	331.6mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	700 mA @ 120 Hz	980 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole

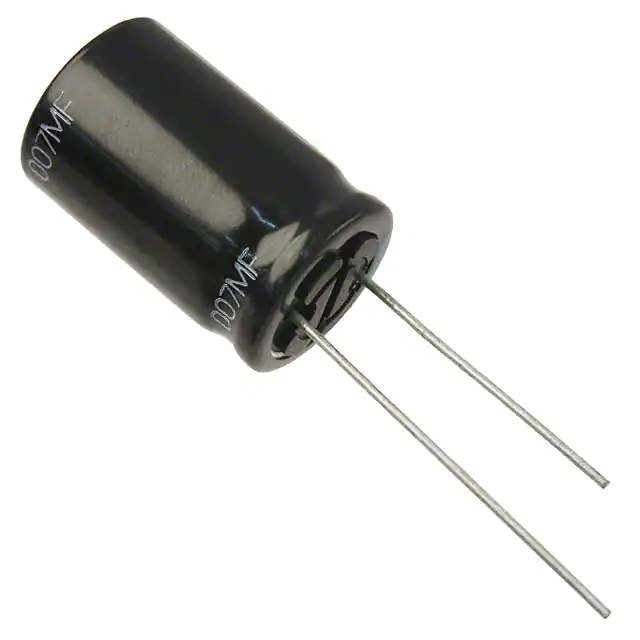

EEU-FR1J471B CAP ALUM 470UF 20% 63V RADIAL Panasonic Electronic Components	3,192	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FR-A	Active	470 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.496 A @ 120 Hz	1.995 A @ 100 kHz	27 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
MAL203037339E3 CAP ALUM 33UF 40V AXIAL Vishay Beyschlag/Draloric/BC Components	5,274	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	33 µF	-10%, +50%	40 V	5.31Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	95 mA @ 100 Hz	-	2.1 Ohms	-	0.236 Dia x 0.394 L (6.00mm x 10.00mm)	-	-	Through Hole
MAL203034101E3 CAP ALUM 100UF 10V AXIAL Vishay Beyschlag/Draloric/BC Components	3,851	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	100 µF	-10%, +50%	10 V	3.19Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	110 mA @ 100 Hz	-	1.6 Ohms	-	0.236 Dia x 0.394 L (6.00mm x 10.00mm)	-	-	Through Hole

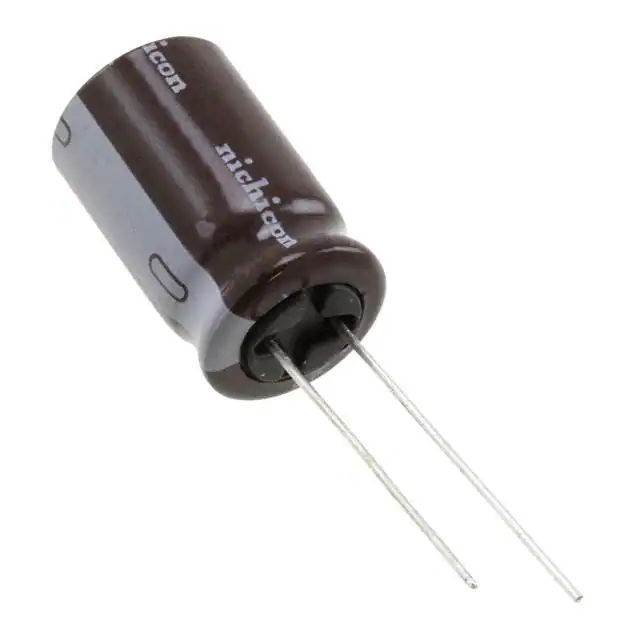

UCY2H100MHD CAP ALUM 10UF 20% 500V RADIAL Nichicon	1,270	-	RFQ	Datasheet	Bulk	UCY	Active	10 µF	±20%	500 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	160 mA @ 120 Hz	320 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
MAL202127229E3 CAP ALUM 22UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	4,453	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	021 ASM	Active	22 µF	±20%	40 V	8Ohm @ 100Hz	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	60 mA @ 100 Hz	-	3.2 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole

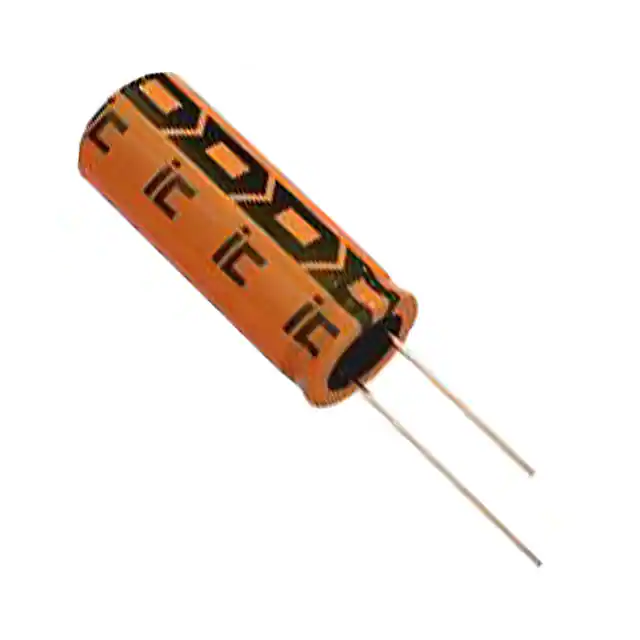

107RZM050M CAP ALUM 100UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	26,664	-	RFQ	Datasheet	Bulk	RZM	Active	100 µF	±20%	50 V	1.989Ohm @ 120Hz	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	-	1.05 Ohms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
35ZLJ330M8X20 CAP ALUM 330UF 20% 35V RADIAL Rubycon	12,839	-	RFQ	Datasheet	Bulk	ZLJ	Active	330 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.078 A @ 120 Hz	-	41 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.866 (22.00mm)	-	Through Hole
106CKH250M CAP ALUM 10UF 20% 250V RADIAL Cornell Dubilier / Illinois Capacitor	7,332	-	RFQ	Datasheet	Bulk	CKH	Active	10 µF	±20%	250 V	24.868Ohm @ 120Hz	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	90 mA @ 120 Hz	162 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

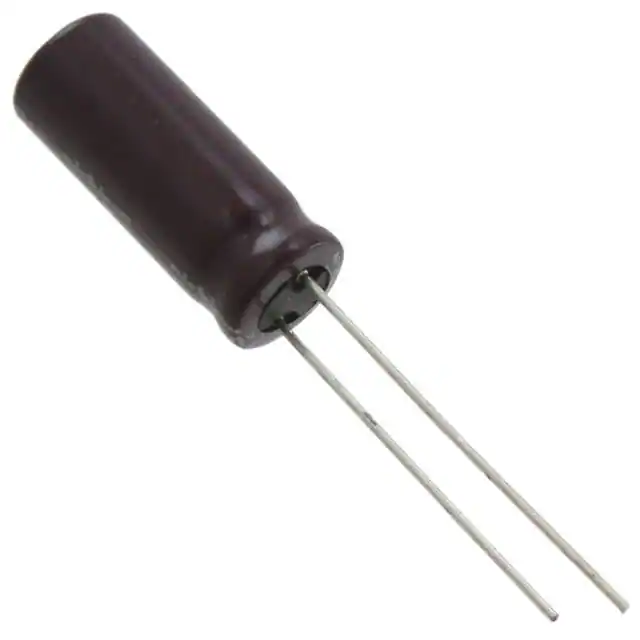

UPM1H101MPD CAP ALUM 100UF 20% 50V RADIAL Nichicon	3,872	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	100 µF	±20%	50 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	410 mA @ 120 Hz	-	140 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.846 (21.50mm)	-	Through Hole
UVK1E102MPD CAP ALUM 1000UF 20% 25V RADIAL Nichicon	3,263	-	RFQ	Datasheet	Bulk	UVK	Not For New Designs	1000 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	860 mA @ 120 Hz	989 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
