Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

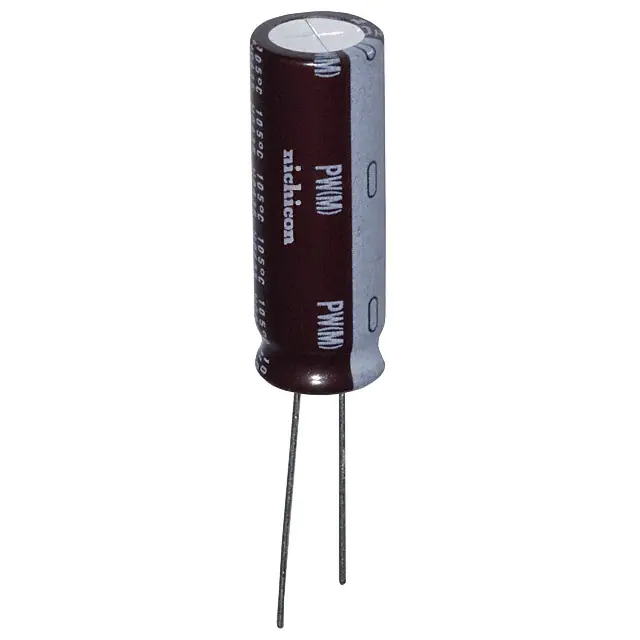

UPW1V152MHD6 CAP ALUM 1500UF 20% 35V RADIAL Nichicon	1,912	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	1500 µF	±20%	35 V	-	7000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.134 A @ 120 Hz	2.51 A @ 100 kHz	22 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.398 (35.50mm)	-	Through Hole
MAL211835221E3 CAP ALUM 220UF 20% 16V AXIAL Vishay Beyschlag/Draloric/BC Components	2,341	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	220 µF	±20%	16 V	1.81Ohm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	145 mA @ 100 Hz	-	1.5 Ohms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole
MAL213836471E3 CAP ALUM 470UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	2,450	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	138 AML	Active	470 µF	±20%	25 V	440mOhm @ 100Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	470 mA @ 100 Hz	611 mA @ 10 kHz	260 mOhms	-	0.394 Dia x 0.984 L (10.00mm x 25.00mm)	-	-	Through Hole
50ZLJ220M10X16 CAP ALUM 220UF 20% 50V RADIAL Rubycon	17,807	-	RFQ	Datasheet	Bulk	ZLJ	Active	220 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	825 mA @ 120 Hz	1.65 A @ 100 kHz	53 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
160LLE33MEFC10X16 CAP ALUM 33UF 20% 160V RADIAL Rubycon	6,004	-	RFQ	Datasheet	Bulk	LLE	Active	33 µF	±20%	160 V	-	20000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	158 mA @ 120 Hz	284 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole
MAL202190512E3 CAP ALUM 220UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	4,008	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	220 µF	±20%	63 V	600mOhm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	602 mA @ 10 kHz	250 mOhms	-	0.394 Dia x 0.984 L (10.00mm x 25.00mm)	-	-	Through Hole
EEU-FR1E471L CAP ALUM 470UF 20% 25V RADIAL Panasonic Electronic Components	2,632	-	RFQ	Datasheet	Bulk	FR-A	Active	470 µF	±20%	25 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.17 A @ 120 Hz	1.56 A @ 100 kHz	30 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.866 (22.00mm)	-	Through Hole
UHV1A102MPD6 CAP ALUM 1000UF 20% 10V RADIAL Nichicon	1,039	-	RFQ	Datasheet	Bulk	UHV	Not For New Designs	1000 µF	±20%	10 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	798 mA @ 120 Hz	1.33 A @ 100 kHz	46 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.650 (16.50mm)	-	Through Hole
860020778021 CAP ALUM 470UF 20% 63V RADIAL Würth Elektronik	1,206	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	470 µF	±20%	63 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	690 mA @ 120 Hz	952.2 mA @ 100 kHz	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.846 (21.50mm)	-	Through Hole

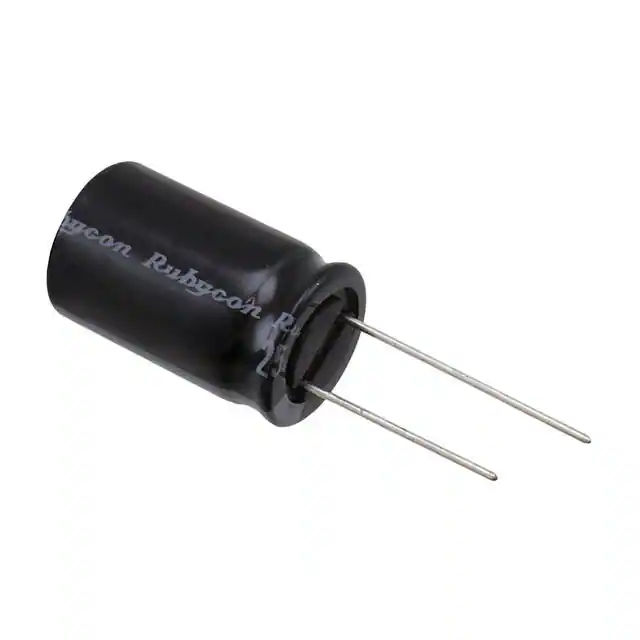

25YXF2200MEFC16X25 CAP ALUM 2200UF 20% 25V RADIAL Rubycon	4,776	-	RFQ	Datasheet	Bulk	YXF	Active	2200 µF	±20%	25 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.48 A @ 120 Hz	1.85 A @ 100 kHz	34 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole

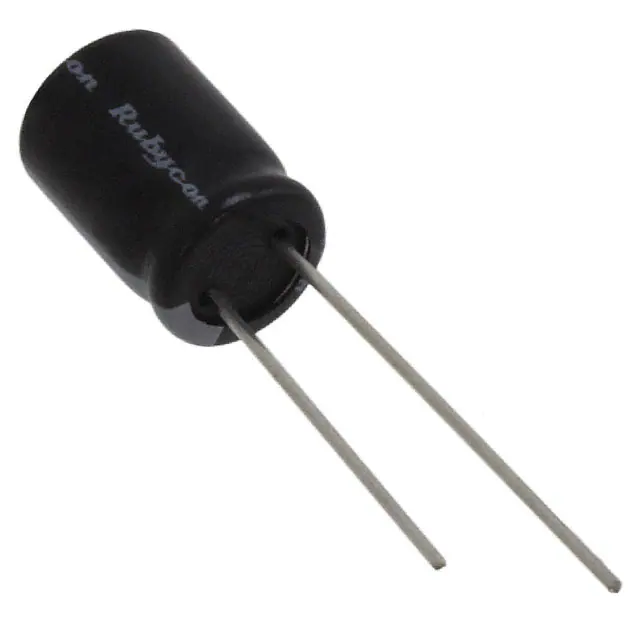

400AX6.8MEFC8X10.8 CAP ALUM 6.8UF 20% 400V RADIAL Rubycon	27,444	-	RFQ	Datasheet	Bulk	AX	Active	6.8 µF	±20%	400 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.484 (12.30mm)	-	Through Hole
476TTA016M CAP ALUM 47UF 20% 16V AXIAL Cornell Dubilier / Illinois Capacitor	17,785	-	RFQ	Datasheet	Bulk	TTA	Active	47 µF	±20%	16 V	7.0547Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	90 mA @ 120 Hz	137.7 mA @ 50 kHz	-	-	0.197 Dia x 0.512 L (5.00mm x 13.00mm)	-	-	Through Hole
50ZLJ330M10X20 CAP ALUM 330UF 20% 50V RADIAL Rubycon	10,179	-	RFQ	Datasheet	Bulk	ZLJ	Active	330 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.133 A @ 120 Hz	2.06 A @ 100 kHz	38 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
107CKE100MLQ CAP ALUM 100UF 20% 100V RADIAL Cornell Dubilier / Illinois Capacitor	5,827	-	RFQ	Datasheet	Bulk	CKE	Active	100 µF	±20%	100 V	1.326Ohm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	240 mA @ 120 Hz	396 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

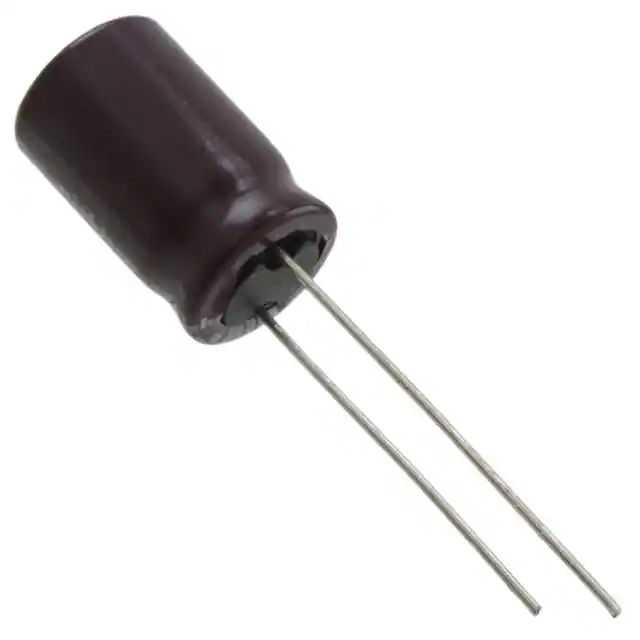

UPM1H101MPD6 CAP ALUM 100UF 20% 50V RADIAL Nichicon	1,400	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	100 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	385 mA @ 120 Hz	580 mA @ 10 kHz	160 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole

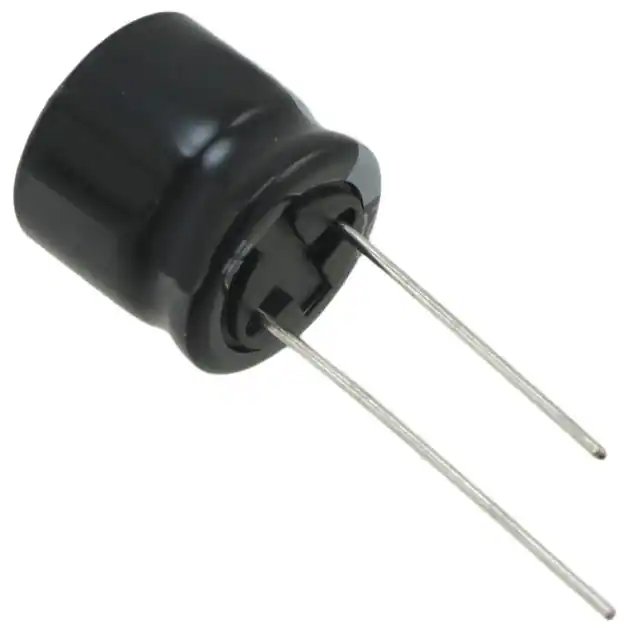

UHE1H471MHD3TN CAP ALUM 470UF 20% 50V RADIAL Nichicon	8,111	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UHE	Not For New Designs	470 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.268 A @ 120 Hz	1.69 A @ 100 kHz	55 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.650 (16.50mm)	-	Through Hole

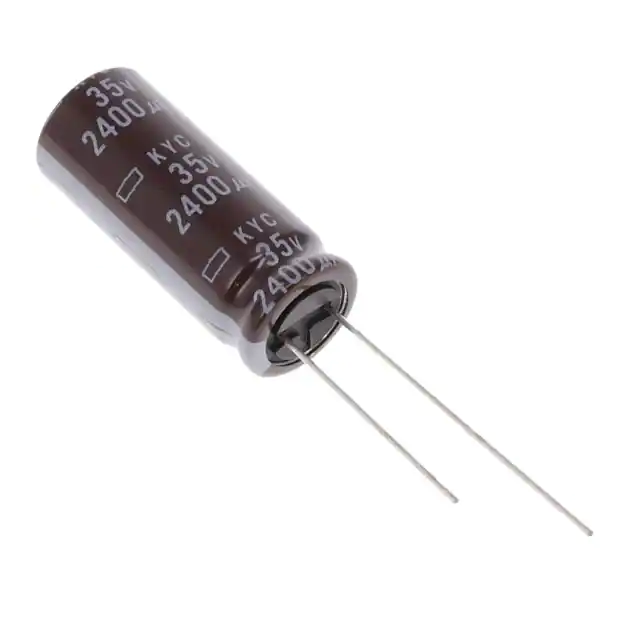

EKYC350ELL242MK30S CAP ALUM 2400UF 20% 35V RADIAL United Chemi-Con	2,364	-	RFQ	Datasheet	Bulk	KYC	Active	2400 µF	±20%	35 V	29mOhm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	2.34 A @ 120 Hz	3.12 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.240 (31.50mm)	-	Through Hole
MAL211890536E3 CAP ALUM 47UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	947	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	47 µF	±20%	100 V	2.6Ohm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	-	238 mA @ 10 kHz	2 Ohms	-	0.394 Dia x 0.984 L (10.00mm x 25.00mm)	-	-	Through Hole
MAL211836221E3 CAP ALUM 220UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	728	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	220 µF	±20%	25 V	1.3Ohm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	-	235.2 mA @ 10 kHz	1.25 Ohms	-	0.394 Dia x 0.709 L (10.00mm x 18.00mm)	-	-	Through Hole

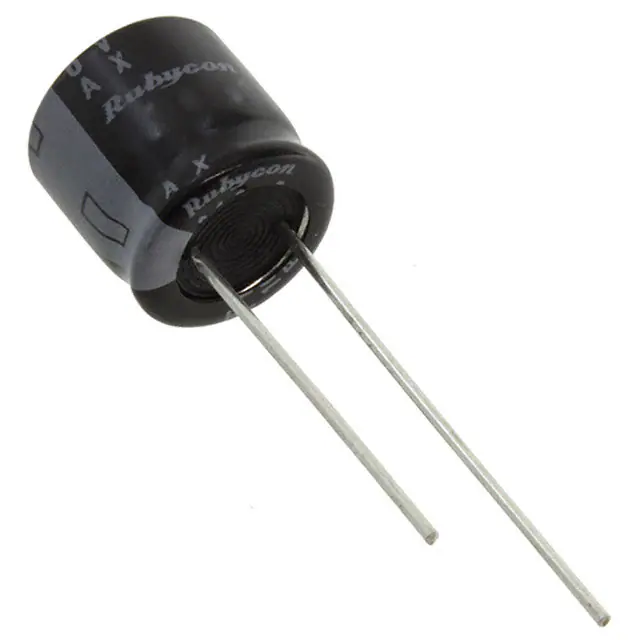

400AX8.2MEFC10X9 CAP ALUM 8.2UF 20% 400V RADIAL Rubycon	26,394	-	RFQ	Datasheet	Bulk	AX	Active	8.2 µF	±20%	400 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.413 (10.50mm)	-	Through Hole
