Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UVY2A101MPD CAP ALUM 100UF 20% 100V RADIAL Nichicon	5,061	-	RFQ	Datasheet	Bulk	UVY	Not For New Designs	100 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	240 mA @ 120 Hz	360 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
227CKH050M CAP ALUM 220UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	4,316	-	RFQ	Datasheet	Bulk	CKH	Active	220 µF	±20%	50 V	753.63mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	510 mA @ 120 Hz	841.5 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
MAL211890514E3 CAP ALUM 100UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	2,412	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	100 µF	±20%	63 V	1.1Ohm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	-	315.9 mA @ 10 kHz	700 mOhms	-	0.394 Dia x 0.984 L (10.00mm x 25.00mm)	-	-	Through Hole
MAL211890509E3 CAP ALUM 470UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	1,868	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	470 µF	±20%	25 V	610mOhm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	-	392.4 mA @ 10 kHz	570 mOhms	-	0.394 Dia x 0.984 L (10.00mm x 25.00mm)	-	-	Through Hole
MAL211890512E3 CAP ALUM 220UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	3,320	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	118 AHT	Active	220 µF	±20%	40 V	800mOhm	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	-	373.1 mA @ 10 kHz	680 mOhms	-	0.394 Dia x 0.984 L (10.00mm x 25.00mm)	-	-	Through Hole

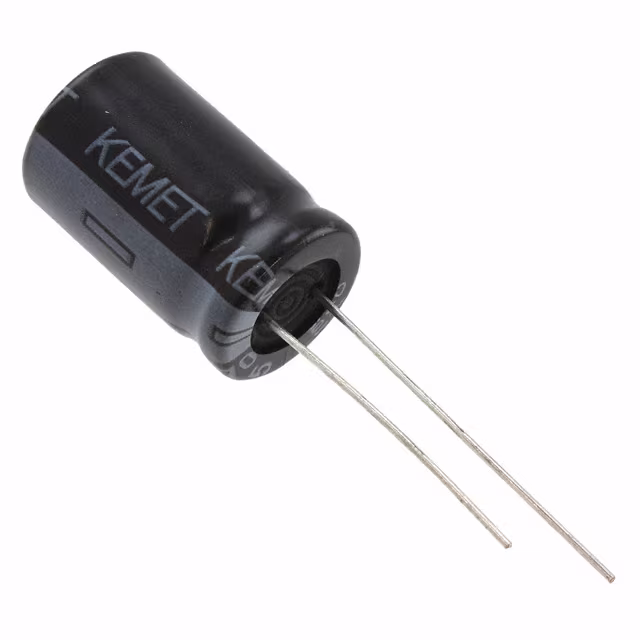

ESH477M050AL3AA CAP ALUM 470UF 20% 50V RADIAL KEMET	3,555	-	RFQ	Datasheet	Bulk	ESH	Active	470 µF	±20%	50 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	730 mA @ 120 Hz	1.095 A @ 10 kHz	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.866 (22.00mm)	-	Through Hole
35PK1000MEFCCE10X20 CAP ALUM 1000UF 20% 35V RADIAL Rubycon	3,474	-	RFQ	Datasheet	Bulk	PK	Active	1000 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.18 A @ 120 Hz	1.416 A @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
250BXC100MEFC16X25 CAP ALUM 100UF 20% 250V RADIAL Rubycon	3,846	-	RFQ	Datasheet	Bulk	BXC	Active	100 µF	±20%	250 V	-	12000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	688.5 mA @ 120 Hz	1.53 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole

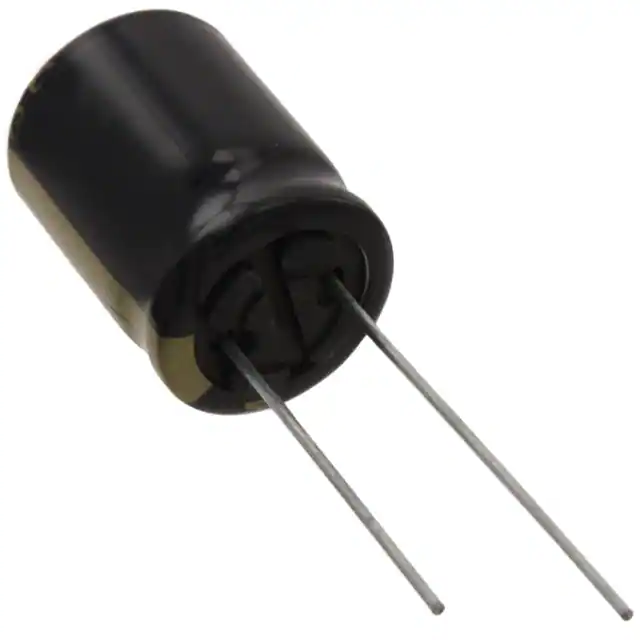

EEU-FM1A562 CAP ALUM 5600UF 20% 10V RADIAL Panasonic Electronic Components	3,930	-	RFQ	Datasheet	Bulk	FM-A	Active	5600 µF	±20%	10 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	3.056 A @ 120 Hz	3.82 A @ 100 kHz	14 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
25ZLH1000MEFC10X20 CAP ALUM 1000UF 20% 25V RADIAL Rubycon	2,951	-	RFQ	Datasheet	Bulk	ZLH	Active	1000 µF	±20%	25 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.35 A @ 120 Hz	2.25 A @ 100 kHz	18 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
228CKS016MLU CAP ALUM 2200UF 20% 16V RADIAL Cornell Dubilier / Illinois Capacitor	1,704	-	RFQ	Datasheet	Bulk	CKS	Active	2200 µF	±20%	16 V	151mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.01 A @ 120 Hz	1.414 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
ESG226M250AL3AA CAP ALUM 22UF 20% 250V RADIAL KEMET	1,683	-	RFQ	Datasheet	Bulk	ESG	Active	22 µF	±20%	250 V	2.5Ohm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	160 mA @ 120 Hz	256 mA @ 10 kHz	2.5 Ohms	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.866 (22.00mm)	-	Through Hole
25ZLS680MEFC10X16 CAP ALUM 680UF 20% 25V RADIAL Rubycon	1,165	-	RFQ	Datasheet	Bulk	ZLS	Active	680 µF	±20%	25 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	907.5 mA @ 120 Hz	1.65 A @ 100 kHz	32 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
UCY2W560MHD3TN CAP ALUM 56UF 20% 450V RADIAL Nichicon	498	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UCY	Active	56 µF	±20%	450 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	560 mA @ 120 Hz	1.12 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole
UPW1E222MHD6 CAP ALUM 2200UF 20% 25V RADIAL Nichicon	5,902	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	2200 µF	±20%	25 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.117 A @ 120 Hz	2.49 A @ 100 kHz	28 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.787 (20.00mm)	-	Through Hole
500BXC10MEFC12.5X20 CAP ALUM 10UF 20% 500V RADIAL Rubycon	1,343	-	RFQ	Datasheet	Bulk	BXC	Active	10 µF	±20%	500 V	-	12000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	96 mA @ 120 Hz	320 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole
107TTA010M CAP ALUM 100UF 20% 10V AXIAL Cornell Dubilier / Illinois Capacitor	57,797	-	RFQ	Datasheet	Bulk	TTA	Active	100 µF	±20%	10 V	3.9789Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	130 mA @ 120 Hz	198.9 mA @ 50 kHz	-	-	0.248 Dia x 0.512 L (6.30mm x 13.00mm)	-	-	Through Hole
UKZ2A100MPM CAP ALUM 10UF 20% 100V RADIAL Nichicon	2,890	-	RFQ	Datasheet	Bulk	UKZ	Active	10 µF	±20%	100 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.453 (11.50mm)	-	Through Hole
RFS-50V220MH3#5 CAP ALUM 22UF 20% 50V RADIAL Elna America	1,711	-	RFQ	Datasheet	Bulk	RFS, SILMIC II	Last Time Buy	22 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	130 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole
UPX1V3R3MPD CAP ALUM 3.3UF 20% 35V RADIAL Nichicon	1,803	-	RFQ	Datasheet	Bulk	UPX	Not For New Designs	3.3 µF	±20%	35 V	-	20000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	75.75 mA @ 120 Hz	101 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
