Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

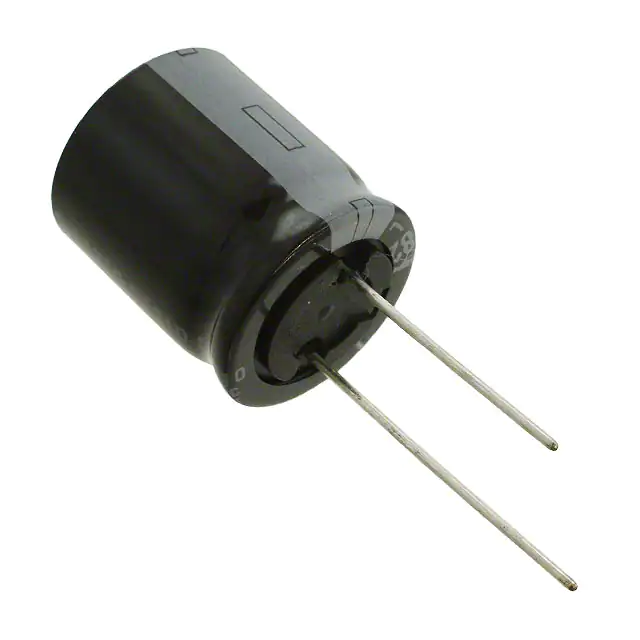

80ZLH560MEFC18X20 CAP ALUM 560UF 20% 80V RADIAL Rubycon	7,915	-	RFQ	Datasheet	Bulk	ZLH	Active	560 µF	±20%	80 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.073 A @ 120 Hz	-	54 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)	-	Through Hole
50PX2200MEFC16X31.5 CAP ALUM 2200UF 20% 50V RADIAL Rubycon	1,153	-	RFQ	Datasheet	Bulk	PX	Active	2200 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.6 A @ 120 Hz	1.84 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole

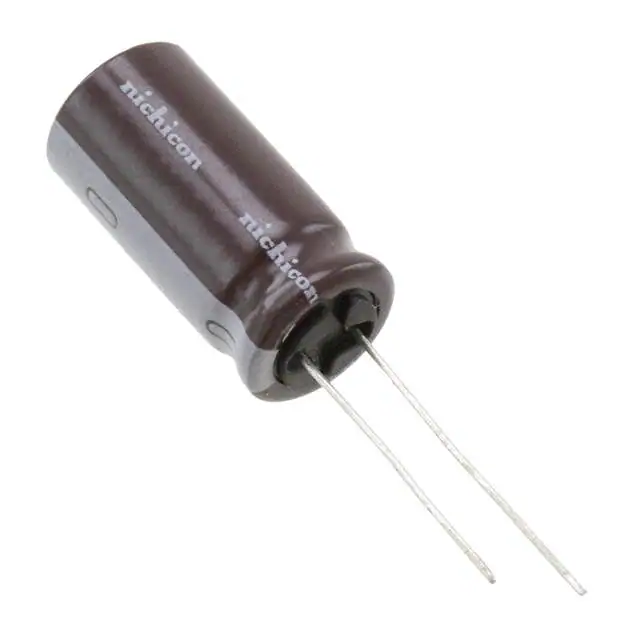

UCY2D101MHD1TO CAP ALUM 100UF 20% 200V RADIAL Nichicon	4,663	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UCY	Active	100 µF	±20%	200 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	695 mA @ 120 Hz	1.39 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
EKMG350ELL222ML25S CAP ALUM 2200UF 20% 35V RADIAL United Chemi-Con	716	-	RFQ	Datasheet	Bulk	KMG	Active	2200 µF	±20%	35 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.26 A @ 120 Hz	1.3608 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UKA1H101MPD CAP ALUM 100UF 20% 50V RADIAL Nichicon	5,844	-	RFQ	Datasheet	Bulk	UKA	Not For New Designs	100 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	190 mA @ 120 Hz	285 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole

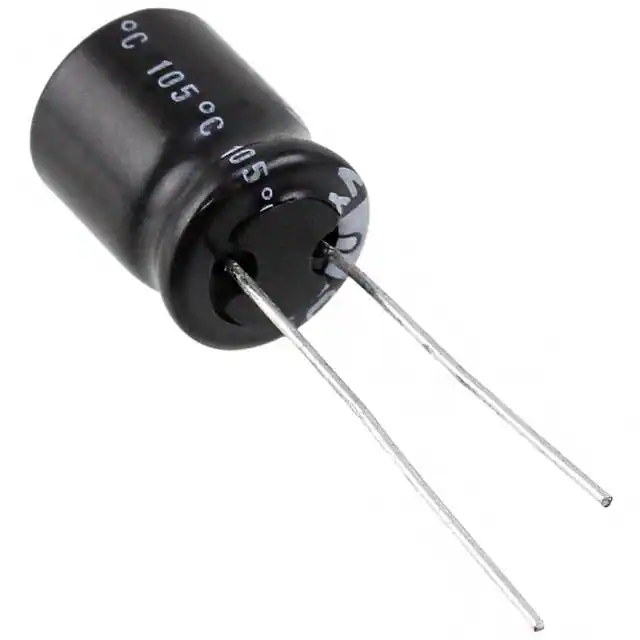

UVY2W4R7MPD CAP ALUM 4.7UF 20% 450V RADIAL Nichicon	2,074	-	RFQ	Datasheet	Bulk	UVY	Not For New Designs	4.7 µF	±20%	450 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	32 mA @ 120 Hz	36.8 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
6.3ZLJ1800M10X16 CAP ALUM 1800UF 20% 6.3V RADIAL Rubycon	1,147	-	RFQ	Datasheet	Bulk	ZLJ	Active	1800 µF	±20%	6.3 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.056 A @ 120 Hz	1.76 A @ 100 kHz	38 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

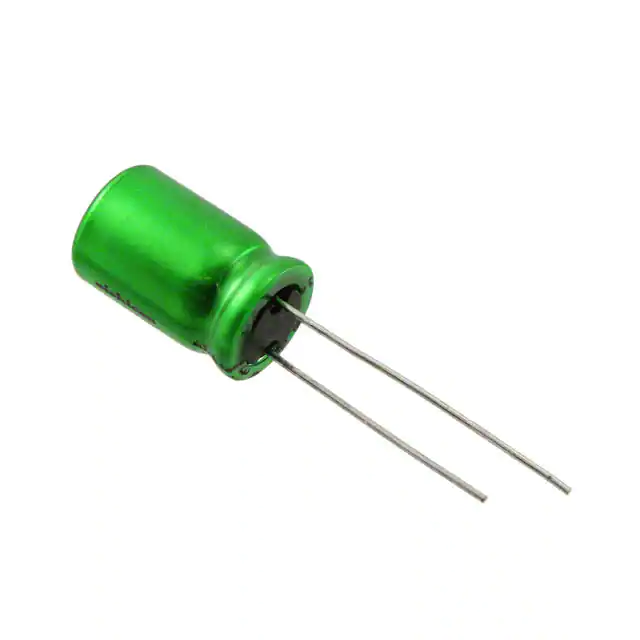

UES1H330MPM CAP ALUM 33UF 20% 50V RADIAL Nichicon	1,089	-	RFQ	Datasheet	Bulk	UES	Not For New Designs	33 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
EEU-EB2V470 CAP ALUM 47UF 20% 350V RADIAL Panasonic Electronic Components	1,860	-	RFQ	Datasheet	Bulk	EB-A	Active	47 µF	±20%	350 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	320 mA @ 120 Hz	640 mA @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
EKXJ161ELL221MK35S CAP ALUM 220UF 20% 160V RADIAL United Chemi-Con	3,165	-	RFQ	Datasheet	Bulk	KXJ	Active	220 µF	±20%	160 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	1.04 A @ 120 Hz	2.34 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.437 (36.50mm)	-	Through Hole

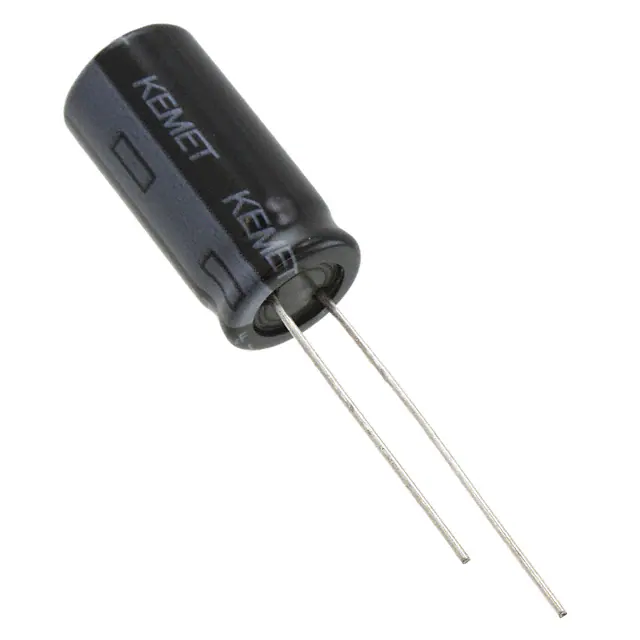

ESY108M016AH4AA CAP ALUM 1000UF 20% 16V RADIAL KEMET	12,990	-	RFQ	Datasheet	Bulk	ESY	Active	1000 µF	±20%	16 V	26mOhm @ 100kHz	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.365 A @ 120 Hz	1.82 A @ 100 kHz	26 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.827 (21.00mm)	-	Through Hole
UES1E101MPM CAP ALUM 100UF 20% 25V RADIAL Nichicon	5,759	-	RFQ	Datasheet	Bulk	UES	Not For New Designs	100 µF	±20%	25 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
ESK228M016AL3AA CAP ALUM 2200UF 20% 16V RADIAL KEMET	1,940	-	RFQ	Datasheet	Box	ESK	Active	2200 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.1 A @ 120 Hz	1.265 A @ 10 kHz	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.866 (22.00mm)	-	Through Hole
MAL214630471E3 CAP ALUM 470UF 20% 35V RADIAL Vishay Beyschlag/Draloric/BC Components	5,599	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	146 RTI	Active	470 µF	±20%	35 V	-	3000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	-	1.25 A @ 100 kHz	60 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole

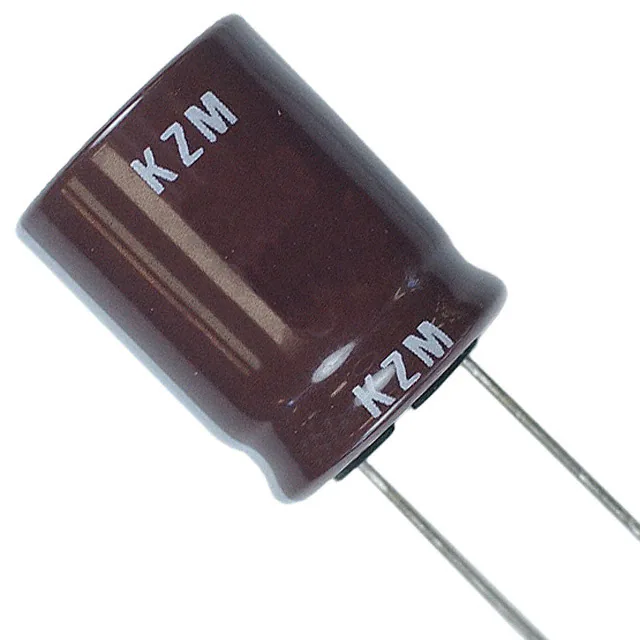

EKZM350ELL102MK20S CAP ALUM 1000UF 20% 35V RADIAL United Chemi-Con	397	-	RFQ	Datasheet	Bulk	KZM	Active	1000 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.488 A @ 120 Hz	2.48 A @ 100 kHz	17 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
EEU-FR1E471Y CAP ALUM 470UF 20% 25V RADIAL Panasonic Electronic Components	8,442	-	RFQ	Datasheet	Bulk	FR-A	Active	470 µF	±20%	25 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	930 mA @ 120 Hz	1.24 A @ 100 kHz	41 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.650 (16.50mm)	-	Through Hole

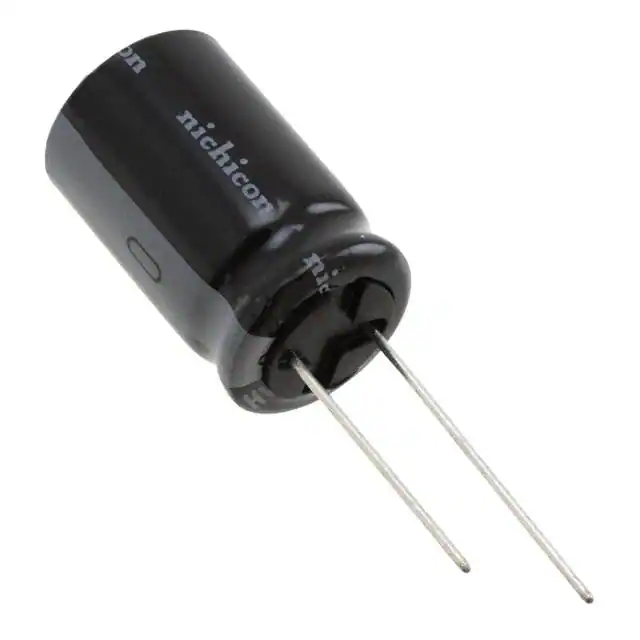

UHW1H102MHD6 CAP ALUM 1000UF 20% 50V RADIAL Nichicon	1,603	-	RFQ	Datasheet	Bulk	UHW	Not For New Designs	1000 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.962 A @ 120 Hz	3.27 A @ 100 kHz	21 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole

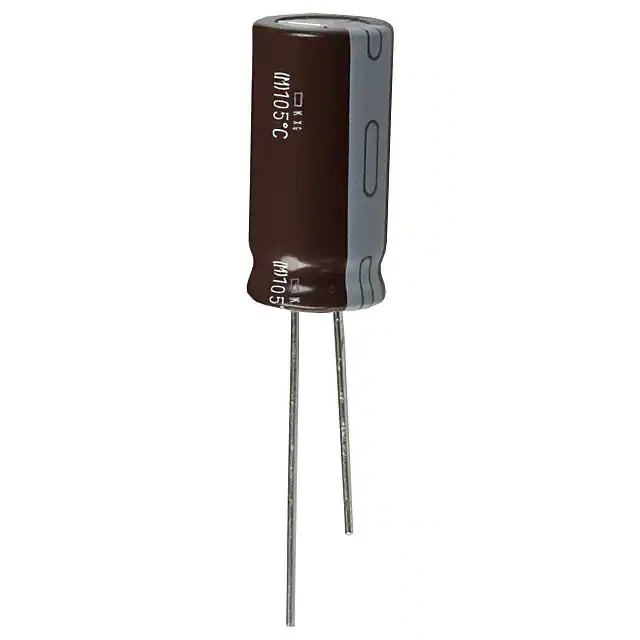

EKXG161ELL101MK25S CAP ALUM 100UF 20% 160V RADIAL United Chemi-Con	608	-	RFQ	Datasheet	Bulk	KXG	Active	100 µF	±20%	160 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	620 mA @ 120 Hz	1.395 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)	-	Through Hole

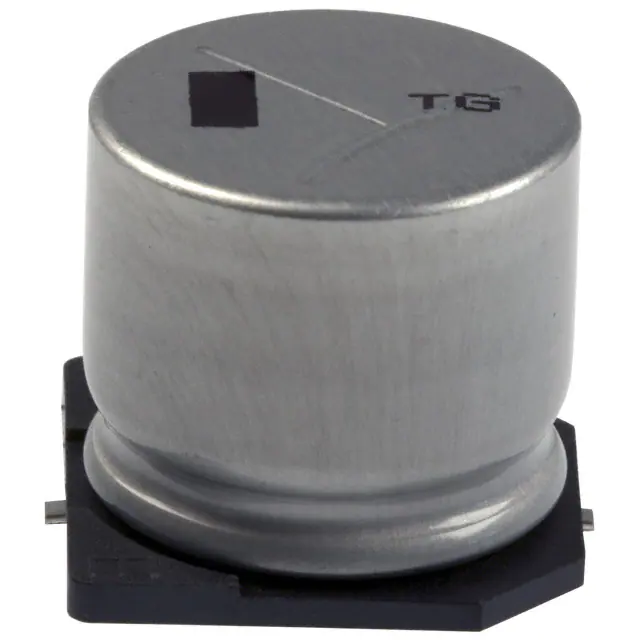

EEV-TG2A221M CAP ALUM 220UF 20% 100V SMD Panasonic Electronic Components	1,075	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TG	Active	220 µF	±20%	100 V	280mOhm @ 100kHz	2000 Hrs @ 125°C	-40°C ~ 125°C	Polar	AEC-Q200	Automotive	182 mA @ 120 Hz	400 mA @ 100 kHz	-	-	0.709 Dia (18.00mm)	0.650 (16.50mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
EKXJ401ELL470ML20S CAP ALUM 47UF 20% 400V RADIAL United Chemi-Con	721	-	RFQ	Datasheet	Bulk	KXJ	Active	47 µF	±20%	400 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	435 mA @ 120 Hz	1.0875 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.846 (21.50mm)	-	Through Hole
