Aluminum Electrolytic Capacitors- Page 125

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
URZ1V471MHD CAP ALUM 470UF 20% 35V RADIAL Nichicon	3,324	-	RFQ	Datasheet	Bulk	URZ	Active	470 µF	±20%	35 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	420 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.551 (14.00mm)	-	Through Hole
UCY2E220MPD CAP ALUM 22UF 20% 250V RADIAL Nichicon	2,921	-	RFQ	Datasheet	Bulk	UCY	Active	22 µF	±20%	250 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	225 mA @ 120 Hz	450 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
ESK108M035AL3AA CAP ALUM 1000UF 20% 35V RADIAL KEMET	2,399	-	RFQ	Datasheet	Box	ESK	Active	1000 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	950 mA @ 120 Hz	1.093 A @ 10 kHz	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.866 (22.00mm)	-	Through Hole

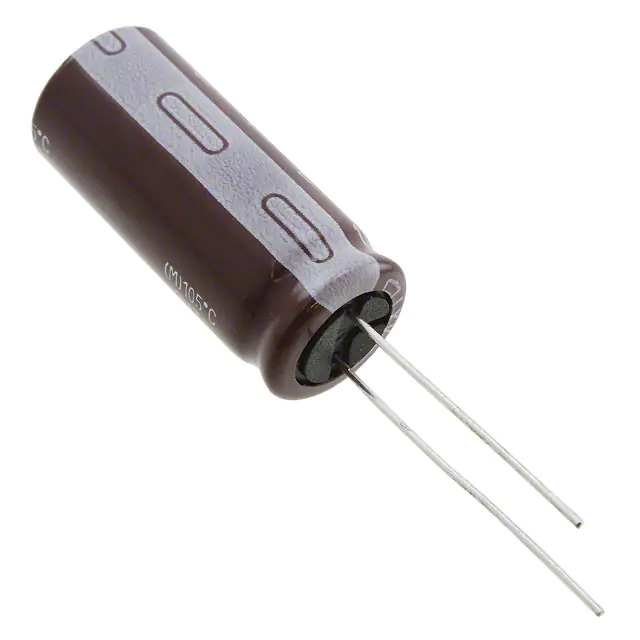

ELXV101ELL331ML30S CAP ALUM 330UF 20% 100V RADIAL United Chemi-Con	175	-	RFQ	Datasheet	Bulk	LXV	Active	330 µF	±20%	100 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	895 mA @ 120 Hz	1.79 A @ 100 kHz	58 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.240 (31.50mm)	-	Through Hole
B41858C4108M000 CAP ALUM 1000UF 20% 16V RADIAL EPCOS - TDK Electronics	9,423	-	RFQ	Datasheet	Bulk	B41858	Active	1000 µF	±20%	16 V	73mOhm @ 10kHz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Automotive	-	1.202 A @ 100 kHz	62 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
63ZLJ270M10X20 CAP ALUM 270UF 20% 63V RADIAL Rubycon	5,485	-	RFQ	Datasheet	Bulk	ZLJ	Active	270 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	785 mA @ 120 Hz	1.57 A @ 100 kHz	56 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
EEU-FR1V471 CAP ALUM 470UF 20% 35V RADIAL Panasonic Electronic Components	2,738	-	RFQ	Datasheet	Bulk	FR-A	Active	470 µF	±20%	35 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.343 A @ 120 Hz	1.79 A @ 100 kHz	28 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
UEP1V470MPD CAP ALUM 47UF 20% 35V RADIAL Nichicon	2,693	-	RFQ	Datasheet	Bulk	UEP	Not For New Designs	47 µF	±20%	35 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Bi-Polar	-	General Purpose	86 mA @ 120 Hz	172 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
EEU-EE2D101S CAP ALUM 100UF 20% 200V RADIAL Panasonic Electronic Components	3,432	-	RFQ	Datasheet	Bulk	EE-A	Active	100 µF	±20%	200 V	-	10000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	666 mA @ 120 Hz	1.665 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)	-	Through Hole
ESK478M010AL4AA CAP ALUM 4700UF 20% 10V RADIAL KEMET	2,627	-	RFQ	Datasheet	Box	ESK	Active	4700 µF	±20%	10 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.5 A @ 120 Hz	1.725 A @ 10 kHz	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	1.063 (27.00mm)	-	Through Hole
6.3ZLJ3300M10X25 CAP ALUM 3300UF 20% 6.3V RADIAL Rubycon	15,902	-	RFQ	Datasheet	Bulk	ZLJ	Active	3300 µF	±20%	6.3 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.575 A @ 120 Hz	2.25 A @ 100 kHz	24 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
400AX18MEFC10X16 CAP ALUM 18UF 20% 400V RADIAL Rubycon	6,604	-	RFQ	Datasheet	Bulk	AX	Active	18 µF	±20%	400 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	150 mA @ 120 Hz	225 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole

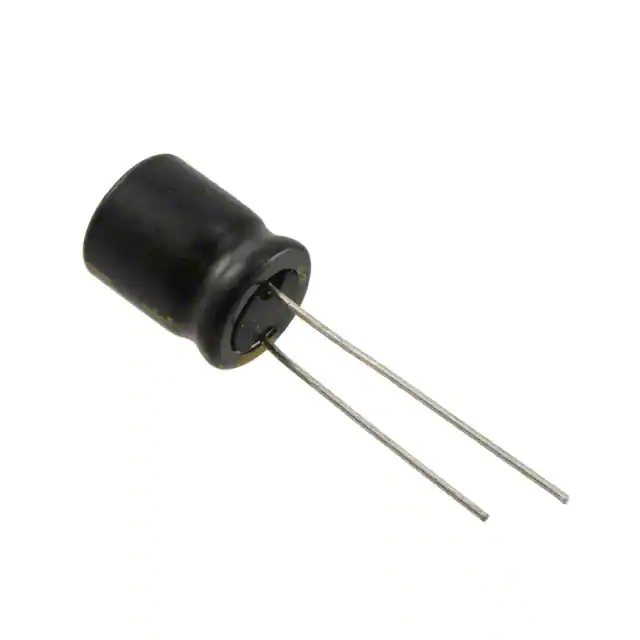

UKW1J101MPD CAP ALUM 100UF 20% 63V RADIAL Nichicon	2,488	-	RFQ	Datasheet	Bulk	UKW	Not For New Designs	100 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	300 mA @ 120 Hz	450 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole

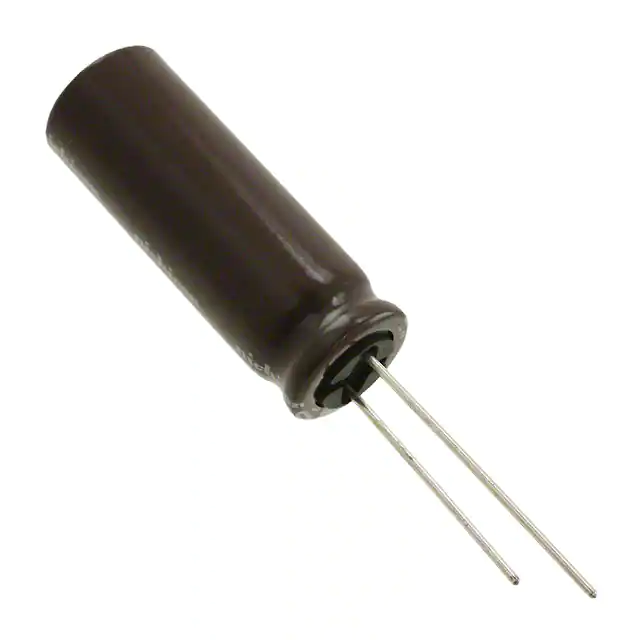

UPM1H221MHD6 CAP ALUM 220UF 20% 50V RADIAL Nichicon	2,263	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	220 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	670 mA @ 120 Hz	920 mA @ 10 kHz	80 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.669 (17.00mm)	-	Through Hole
ESH108M035AL4AA CAP ALUM 1000UF 20% 35V RADIAL KEMET	6,038	-	RFQ	Datasheet	Box	ESH	Active	1000 µF	±20%	35 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	995 mA @ 120 Hz	1.144 A @ 10 kHz	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	1.063 (27.00mm)	-	Through Hole
UPW1E332MHD CAP ALUM 3300UF 20% 25V RADIAL Nichicon	3,837	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	3300 µF	±20%	25 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.559 A @ 120 Hz	3.01 A @ 100 kHz	18 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.240 (31.50mm)	-	Through Hole
106CKS450MLU CAP ALUM 10UF 20% 450V RADIAL Cornell Dubilier / Illinois Capacitor	17,036	-	RFQ	Datasheet	Bulk	CKS	Active	10 µF	±20%	450 V	33.16Ohm @ 120Hz	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	80 mA @ 120 Hz	144 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole

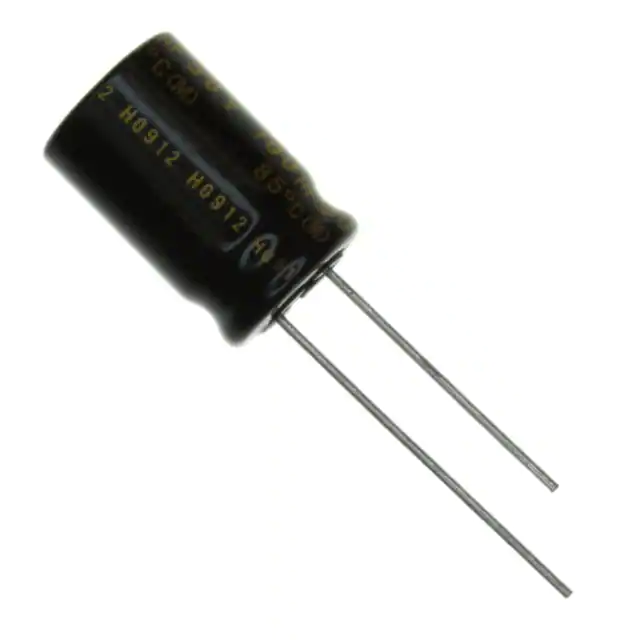

UKZ1H101MHM CAP ALUM 100UF 20% 50V RADIAL Nichicon	5,436	-	RFQ	Datasheet	Bulk	UKZ	Active	100 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	-	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.787 (20.00mm)	-	Through Hole
157TTA025M CAP ALUM 150UF 20% 25V AXIAL Cornell Dubilier / Illinois Capacitor	1,741	-	RFQ	Datasheet	Bulk	TTA	Active	150 µF	±20%	25 V	1.7684Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	260 mA @ 120 Hz	358.8 mA @ 50 kHz	-	-	0.315 Dia x 0.630 L (8.00mm x 16.00mm)	-	-	Through Hole
ESG106M400AH4AA CAP ALUM 10UF 20% 400V RADIAL KEMET	1,727	-	RFQ	Datasheet	Bulk	ESG	Active	10 µF	±20%	400 V	2.9Ohm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	100 mA @ 120 Hz	160 mA @ 10 kHz	2.9 Ohms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.827 (21.00mm)	-	Through Hole
