Aluminum Electrolytic Capacitors- Page 126

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
25PX6800MEFC16X31.5 CAP ALUM 6800UF 20% 25V RADIAL Rubycon	3,737	-	RFQ	Datasheet	Bulk	PX	Active	6800 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	-	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole
MAL203127101E3 CAP ALUM 100UF 40V AXIAL Vishay Beyschlag/Draloric/BC Components	1,856	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	031 AS	Active	100 µF	-10%, +50%	40 V	1.75Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	220 mA @ 100 Hz	-	700 mOhms	-	0.315 Dia x 0.709 L (8.00mm x 18.00mm)	-	-	Through Hole
B41888G6108M000 CAP ALUM 1000UF 20% 50V RADIAL EPCOS - TDK Electronics	2,286	-	RFQ	Datasheet	Bulk	B41888	Active	1000 µF	±20%	50 V	39mOhm @ 10kHz	10000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	-	2.541 A @ 100 kHz	36 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)	-	Through Hole
B41858C7228M000 CAP ALUM 2200UF 20% 35V RADIAL EPCOS - TDK Electronics	1,543	-	RFQ	Datasheet	Bulk	B41858	Active	2200 µF	±20%	35 V	27mOhm @ 10kHz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Automotive	-	2.941 A @ 100 kHz	24 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.063 (27.00mm)	-	Through Hole
MAL203658109E3 CAP ALUM 10UF 20% 63V RADIAL Vishay Beyschlag/Draloric/BC Components	5,844	-	RFQ	Datasheet	Bulk	036 RSP	Active	10 µF	±20%	63 V	-	3000 Hrs @ 85°C	-55°C ~ 85°C	Polar	-	Automotive	70 mA @ 100 Hz	-	4 Ohms	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
MAL215097601E3 CAP ALUM 330UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components	4,990	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	150 CRZ	Active	330 µF	±20%	25 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	448 mA @ 100 Hz	-	140 mOhms	-	0.394 Dia (10.00mm)	0.512 (13.00mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
EEE-FK1V222SV CAP ALUM 2200UF 20% 35V SMD Panasonic Electronic Components	2,526	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FKS, Anti-Vibration	Active	2200 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.545 A @ 120 Hz	2.06 A @ 100 kHz	-	-	0.709 Dia (18.00mm)	0.669 (17.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
EEU-FS1K101 CAP ALUM 100UF 20% 80V RADIAL Panasonic Electronic Components	25,339	-	RFQ	Datasheet	Bulk	FS-A	Active	100 µF	±20%	80 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	420 mA @ 120 Hz	600 mA @ 100 kHz	112 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
10ZLQ3300MEFC10X25 CAP ALUM 3300UF 20% 10V RADIAL Rubycon	4,544	-	RFQ	Datasheet	Bulk	ZLQ	Active	3300 µF	±20%	10 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.75 A @ 120 Hz	2.5 A @ 100 kHz	15 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
16ZLS2200MEFC10X25 CAP ALUM 2200UF 20% 16V RADIAL Rubycon	3,176	-	RFQ	Datasheet	Bulk	ZLS	Active	2200 µF	±20%	16 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.75 A @ 120 Hz	2.5 A @ 100 kHz	17 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
EEU-FK0J102 CAP ALUM 1000UF 20% 6.3V RAD TH Panasonic Electronic Components	1,526	-	RFQ	Datasheet	Bulk	FK	Active	1000 µF	±20%	6.3 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	675 mA @ 120 Hz	900 mA @ 100 kHz	63 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole

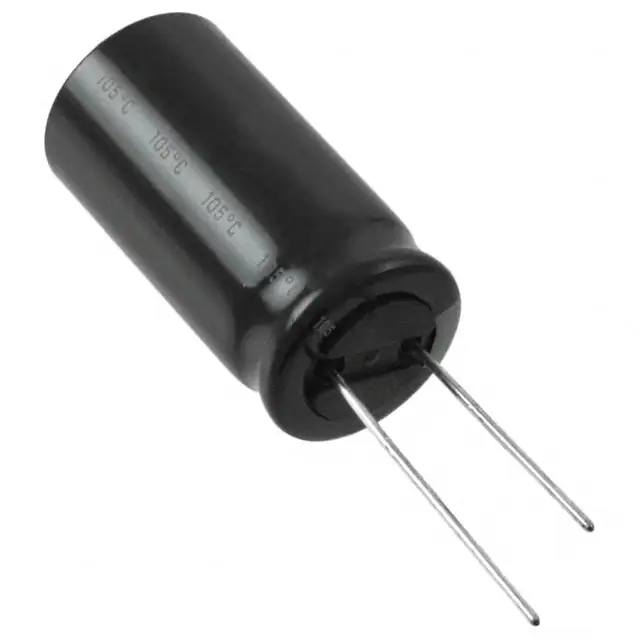

63ZLH1500MEFC16X35.5 CAP ALUM 1500UF 20% 63V RADIAL Rubycon	2,306	-	RFQ	Datasheet	Bulk	ZLH	Active	1500 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.824 A @ 120 Hz	-	21 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.476 (37.50mm)	-	Through Hole

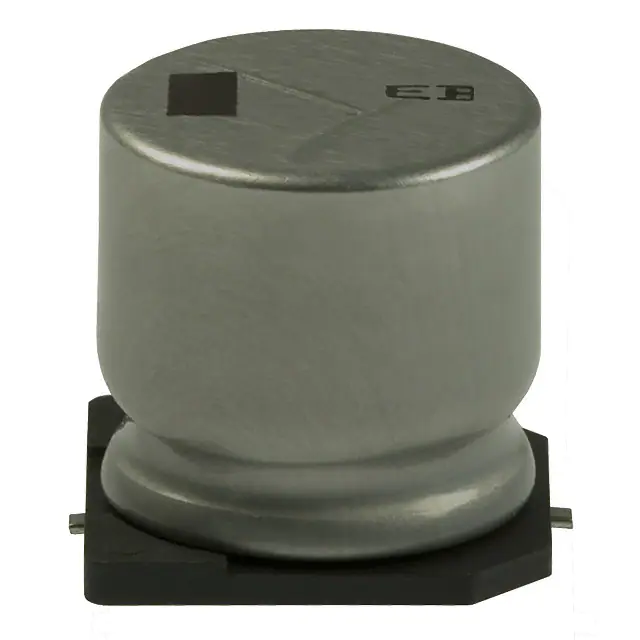

EEV-EB2E220SM CAP ALUM 22UF 20% 250V SMD Panasonic Electronic Components	29,729	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EB	Last Time Buy	22 µF	±20%	250 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	308 mA @ 120 Hz	560 mA @ 100 kHz	-	-	0.630 Dia (16.00mm)	0.669 (17.00mm)	0.669 L x 0.669 W (17.00mm x 17.00mm)	Surface Mount
EEV-EB2G100SM CAP ALUM 10UF 20% 400V SMD Panasonic Electronic Components	12,320	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EB	Last Time Buy	10 µF	±20%	400 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	125 mA @ 120 Hz	250 mA @ 100 kHz	-	-	0.630 Dia (16.00mm)	0.669 (17.00mm)	0.669 L x 0.669 W (17.00mm x 17.00mm)	Surface Mount

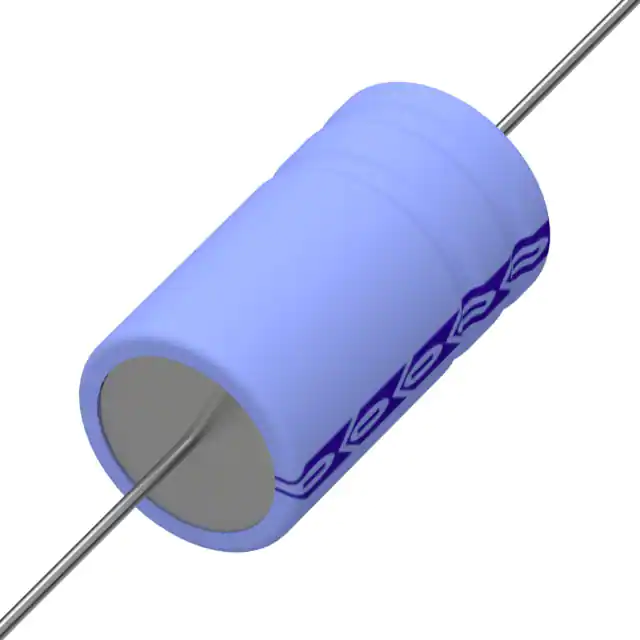

MAL203136221E3 CAP ALUM 220UF 25V AXIAL Vishay Beyschlag/Draloric/BC Components	1,767	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	031 AS	Active	220 µF	-10%, +50%	25 V	1.02Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	350 mA @ 100 Hz	-	410 mOhms	-	0.394 Dia x 0.709 L (10.00mm x 18.00mm)	-	-	Through Hole
108CKE025M CAP ALUM 1000UF 20% 25V RADIAL Cornell Dubilier / Illinois Capacitor	13,341	-	RFQ	Datasheet	Bulk	CKE	Active	1000 µF	±20%	25 V	232.1mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	820 mA @ 120 Hz	1.148 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

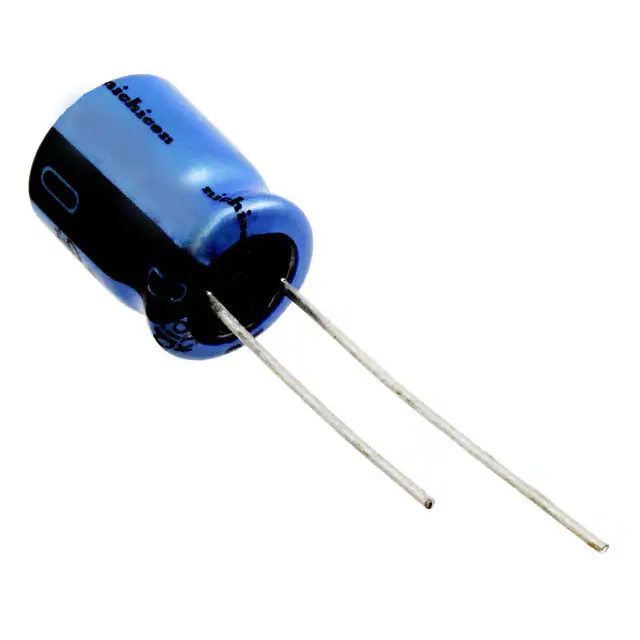

UKT1H221MPD CAP ALUM 220UF 20% 50V RADIAL Nichicon	1,046	-	RFQ	Datasheet	Bulk	UKT	Not For New Designs	220 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	300 mA @ 120 Hz	450 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole

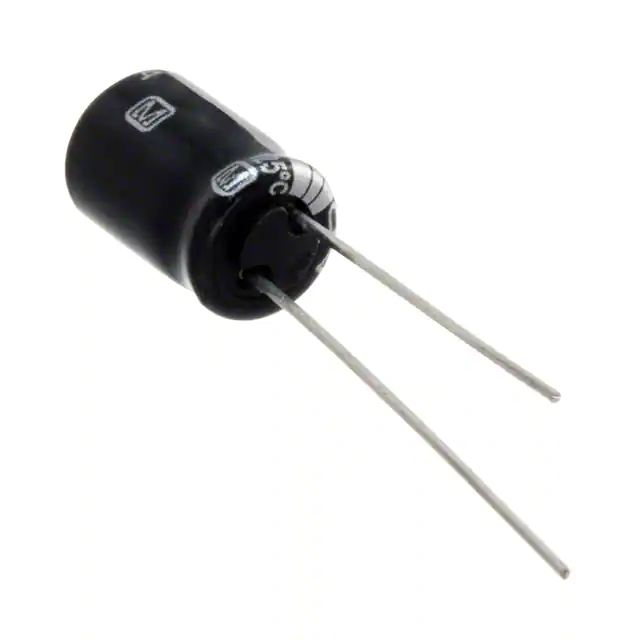

EEU-TA1H470S CAP ALUM 47UF 20% 50V RADIAL Panasonic Electronic Components	2,444	-	RFQ	Datasheet	Bulk	TA	Active	47 µF	±20%	50 V	-	2000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	General Purpose	286 mA @ 120 Hz	440 mA @ 100 kHz	350 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.492 (12.50mm)	-	Through Hole
477TTA010M CAP ALUM 470UF 20% 10V AXIAL Cornell Dubilier / Illinois Capacitor	22,663	-	RFQ	Datasheet	Bulk	TTA	Active	470 µF	±20%	10 V	846.6mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	350 mA @ 120 Hz	-	-	-	0.315 Dia x 0.630 L (8.00mm x 16.00mm)	-	-	Through Hole
336TTA100M CAP ALUM 33UF 20% 100V AXIAL Cornell Dubilier / Illinois Capacitor	11,612	-	RFQ	Datasheet	Bulk	TTA	Active	33 µF	±20%	100 V	5.0238Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	145 mA @ 120 Hz	221.85 mA @ 50 kHz	-	-	0.315 Dia x 0.630 L (8.00mm x 16.00mm)	-	-	Through Hole
