Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
6.3ZLQ4700MEFC10X25 CAP ALUM 4700UF 20% 6.3V RADIAL Rubycon	9,883	-	RFQ	Datasheet	Bulk	ZLQ	Active	4700 µF	±20%	6.3 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.75 A @ 120 Hz	2.5 A @ 100 kHz	15 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
EEU-EE2G470S CAP ALUM 47UF 20% 400V RADIAL Panasonic Electronic Components	40,758	-	RFQ	Datasheet	Bulk	EE-A	Active	47 µF	±20%	400 V	-	10000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	413 mA @ 120 Hz	1.18 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)	-	Through Hole
EEU-FC1H122S CAP ALUM 1200UF 20% 50V RADIAL Panasonic Electronic Components	3,628	-	RFQ	Datasheet	Bulk	FC	Active	1200 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	2.088 A @ 120 Hz	2.61 A @ 100 kHz	29 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.984 (25.00mm)	-	Through Hole
ELXY350ELL222ML35S CAP ALUM 2200UF 20% 35V RADIAL United Chemi-Con	1,001	-	RFQ	Datasheet	Bulk	LXY	Active	2200 µF	±20%	35 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	1.9125 A @ 120 Hz	2.55 A @ 100 kHz	22 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.437 (36.50mm)	-	Through Hole
ESK226M400AL4AA CAP ALUM 22UF 20% 400V RADIAL KEMET	7,732	-	RFQ	Datasheet	Box	ESK	Active	22 µF	±20%	400 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	110 mA @ 120 Hz	154 mA @ 10 kHz	-	0.197 (5.00mm)	0.512 Dia (13.00mm)	1.063 (27.00mm)	-	Through Hole
63PX470MEFC12.5X20 CAP ALUM 470UF 20% 63V RADIAL Rubycon	7,142	-	RFQ	Datasheet	Bulk	PX	Active	470 µF	±20%	63 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	700 mA @ 120 Hz	840 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
227TTA016M CAP ALUM 220UF 20% 16V AXIAL Cornell Dubilier / Illinois Capacitor	5,576	-	RFQ	Datasheet	Bulk	TTA	Active	220 µF	±20%	16 V	1.5071Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	260 mA @ 120 Hz	358.8 mA @ 50 kHz	-	-	0.315 Dia x 0.630 L (8.00mm x 16.00mm)	-	-	Through Hole
25ZLQ1500MEFC10X25 CAP ALUM 1500UF 20% 25V RADIAL Rubycon	1,732	-	RFQ	Datasheet	Bulk	ZLQ	Active	1500 µF	±20%	25 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.5 A @ 120 Hz	2.5 A @ 100 kHz	15 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole
MAL214097103E3 CAP ALUM 47UF 20% 50V SMD Vishay Beyschlag/Draloric/BC Components	4,789	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	140 CRH	Active	47 µF	±20%	50 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	87 mA @ 100 Hz	-	700 mOhms	-	0.315 Dia (8.00mm)	0.413 (10.50mm)	0.335 L x 0.335 W (8.50mm x 8.50mm)	Surface Mount
MAL214097602E3 CAP ALUM 100UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components	3,500	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	140 CRH	Active	100 µF	±20%	25 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	126 mA @ 100 Hz	-	400 mOhms	-	0.315 Dia (8.00mm)	0.413 (10.50mm)	0.335 L x 0.335 W (8.50mm x 8.50mm)	Surface Mount
MAL214097803E3 CAP ALUM 22UF 20% 63V SMD Vishay Beyschlag/Draloric/BC Components	3,486	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	140 CRH	Active	22 µF	±20%	63 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	79.75 mA @ 100 Hz	-	700 mOhms	-	0.315 Dia (8.00mm)	0.413 (10.50mm)	0.335 L x 0.335 W (8.50mm x 8.50mm)	Surface Mount
UHE1H102MHD3TN CAP ALUM 1000UF 20% 50V RADIAL Nichicon	5,000	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UHE	Not For New Designs	1000 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.868 A @ 120 Hz	2.49 A @ 100 kHz	36 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.866 (22.00mm)	-	Through Hole

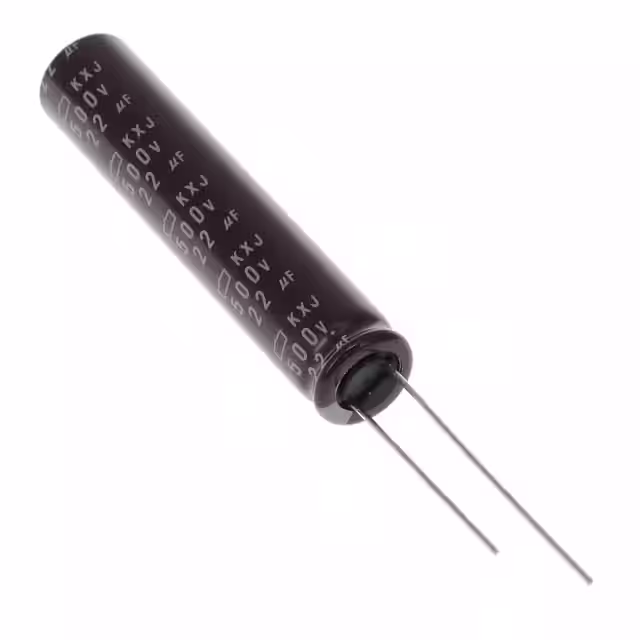

EKXJ501ELL220MJ50S CAP ALUM 22UF 20% 500V RADIAL TH United Chemi-Con	965	-	RFQ	Datasheet	Bulk	KXJ	Active	22 µF	±20%	500 V	-	8000 Hrs @ 105°C	-25°C ~ 105°C	Polar	AEC-Q200	Automotive	230 mA @ 120 Hz	595.7 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	2.028 (51.50mm)	-	Through Hole
477KXM050M CAP ALUM 470UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	10,159	-	RFQ	Datasheet	Bulk	KXM	Active	470 µF	±20%	50 V	352.7mOhm @ 120Hz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	950 mA @ 120 Hz	1.9 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
35USC4700MEFCSN22X25 CAP ALUM 4700UF 20% 35V SNAP Rubycon	410	-	RFQ	Datasheet	Bulk	USC	Active	4700 µF	±20%	35 V	-	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.46 A @ 120 Hz	2.829 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.063 (27.00mm)	-	Through Hole
227TTA025M CAP ALUM 220UF 20% 25V AXIAL Cornell Dubilier / Illinois Capacitor	4,849	-	RFQ	Datasheet	Bulk	TTA	Active	220 µF	±20%	25 V	1.2057Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	280 mA @ 120 Hz	386.4 mA @ 50 kHz	-	-	0.315 Dia x 0.630 L (8.00mm x 16.00mm)	-	-	Through Hole

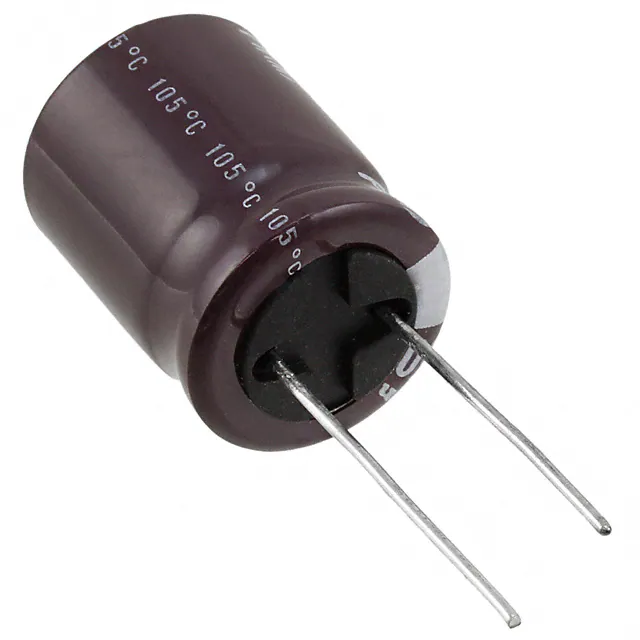

URZ1E102MHD CAP ALUM 1000UF 20% 25V RADIAL Nichicon	4,006	-	RFQ	Datasheet	Bulk	URZ	Active	1000 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	590 mA @ 120 Hz	678.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.650 (16.50mm)	-	Through Hole
UFW1V102MHD CAP ALUM 1000UF 20% 35V RADIAL Nichicon	2,286	-	RFQ	Datasheet	Bulk	UFW	Not For New Designs	1000 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	1.1 A @ 120 Hz	1.265 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.787 (20.00mm)	-	Through Hole
UPM1V331MHD6 CAP ALUM 330UF 20% 35V RADIAL Nichicon	1,416	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	330 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	780 mA @ 120 Hz	1.02 A @ 10 kHz	65 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.669 (17.00mm)	-	Through Hole
MAL203036101E3 CAP ALUM 100UF 25V AXIAL Vishay Beyschlag/Draloric/BC Components	2,719	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	030 AS	Active	100 µF	-10%, +50%	25 V	2.23Ohm @ 100Hz	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	160 mA @ 100 Hz	-	900 mOhms	-	0.315 Dia x 0.433 L (8.00mm x 11.00mm)	-	-	Through Hole
