Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

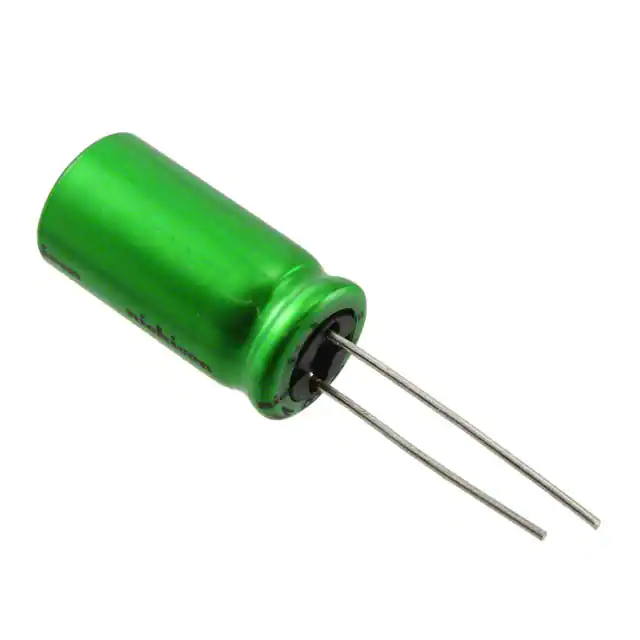

UES1E221MHM CAP ALUM 220UF 20% 25V RADIAL Nichicon	3,854	-	RFQ	Datasheet	Bulk	UES	Not For New Designs	220 µF	±20%	25 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole

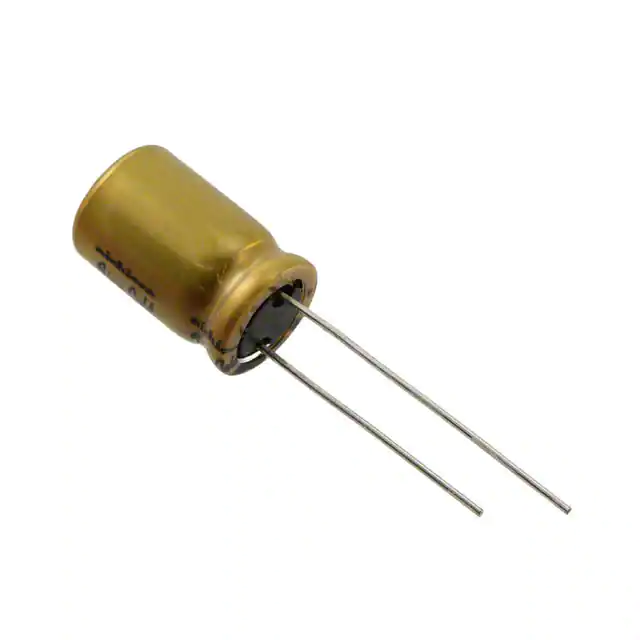

UFG1H101MPM CAP ALUM 100UF 20% 50V RADIAL Nichicon	3,238	-	RFQ	Datasheet	Bulk	UFG	Not For New Designs	100 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	215 mA @ 120 Hz	322.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
860040578014 CAP ALUM 1000UF 20% 35V RADIAL Würth Elektronik	2,579	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATUL	Active	1000 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.8 A @ 120 Hz	2.4 A @ 100 kHz	28 mOhms	0.197 (5.00mm)	0.512 Dia (13.00mm)	1.043 (26.50mm)	-	Through Hole
EEU-FC1V272 CAP ALUM 2700UF 20% 35V RADIAL Panasonic Electronic Components	3,366	-	RFQ	Datasheet	Bulk	FC	Active	2700 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	3.09 A @ 120 Hz	3.635 A @ 100 kHz	16 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.240 (31.50mm)	-	Through Hole

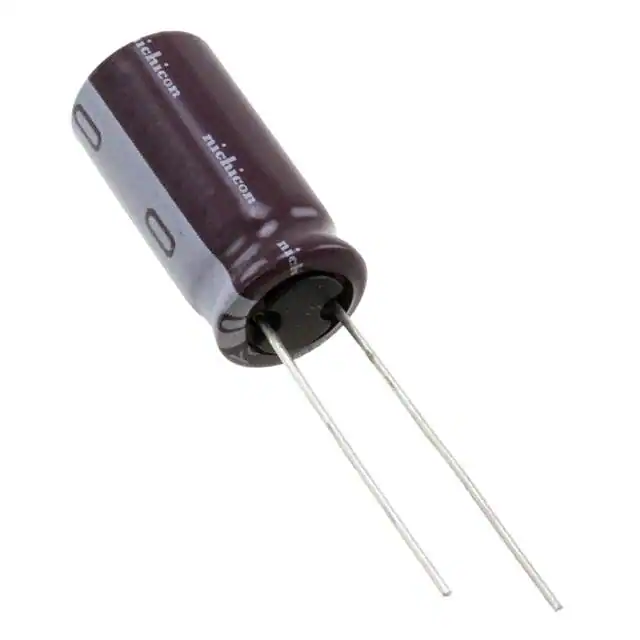

UCY2G150MPD CAP ALUM 15UF 20% 400V RADIAL Nichicon	5,539	-	RFQ	Datasheet	Bulk	UCY	Active	15 µF	±20%	400 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	180 mA @ 120 Hz	360 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
UVR1C103MRD6 CAP ALUM 10000UF 20% 16V RADIAL Nichicon	3,361	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	10000 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3 A @ 120 Hz	3.45 A @ 10 kHz	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.220 (31.00mm)	-	Through Hole
SEK221M035ST CAP ALUM 220UF 20% 35V RADIAL Cornell Dubilier Electronics (CDE)	13,498	-	RFQ	Datasheet	Bulk	SEK	Active	220 µF	±20%	35 V	840mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	315 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.512 (13.00mm)	-	Through Hole

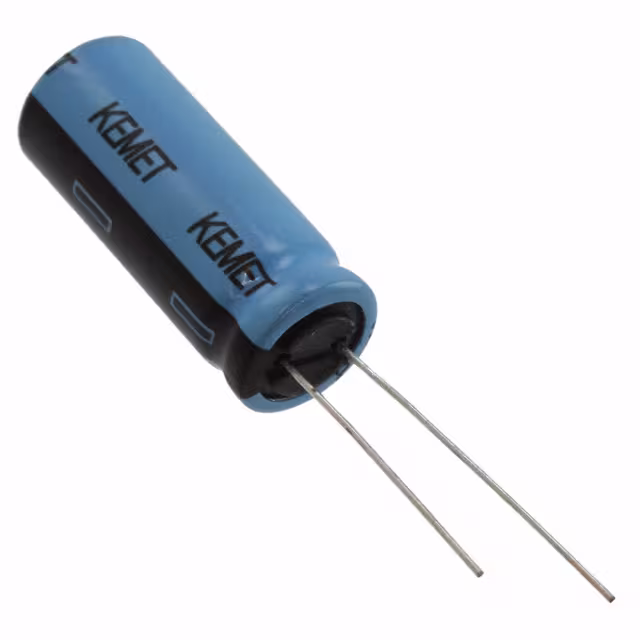

ESX108M035AK2AA CAP ALUM 1000UF 20% 35V RADIAL KEMET	9,944	-	RFQ	Datasheet	Bulk	ESX	Active	1000 µF	±20%	35 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.6 A @ 120 Hz	2 A @ 100 kHz	61 mOhms	0.197 (5.00mm)	0.472 Dia (12.00mm)	1.260 (32.00mm)	-	Through Hole
SEK100M160ST CAP ALUM 10UF 20% 160V RADIAL Cornell Dubilier Electronics (CDE)	3,825	-	RFQ	Datasheet	Bulk	SEK	Active	10 µF	±20%	160 V	19.9Ohm	2000 Hrs @ 105°C	-40°C ~ 105°C	-	-	General Purpose	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.433 (11.00mm)	-	Through Hole

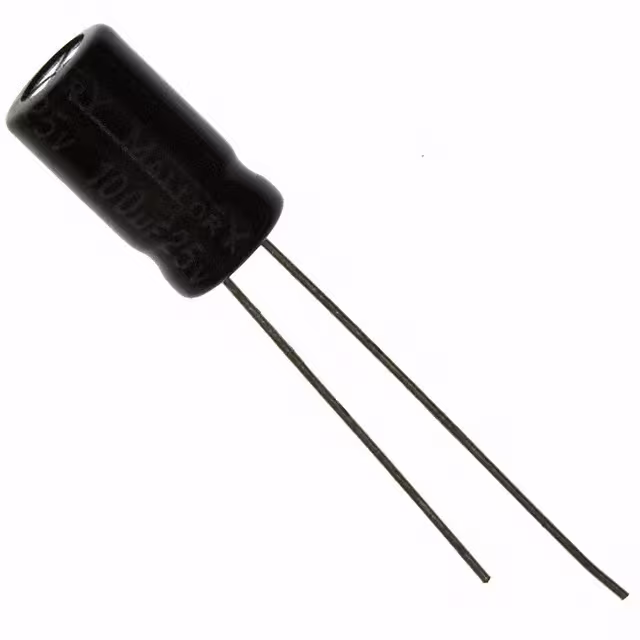

SEK101M025ST CAP ALUM 100UF 20% 25V RADIAL Cornell Dubilier Electronics (CDE)	2,792	-	RFQ	Datasheet	Bulk	SEK	Active	100 µF	±20%	25 V	2.12Ohm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.433 (11.00mm)	-	Through Hole
ESH228M025AM7AA CAP ALUM 2200UF 20% 25V RADIAL KEMET	1,491	-	RFQ	Datasheet	Bulk	ESH	Active	2200 µF	±20%	25 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.23 A @ 120 Hz	1.4145 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
UHE1H182MHD6 CAP ALUM 1800UF 20% 50V RADIAL Nichicon	4,584	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	1800 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.908 A @ 120 Hz	3.635 A @ 100 kHz	21 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.240 (31.50mm)	-	Through Hole
35ZLQ1000MEFC12.5X20 CAP ALUM 1000UF 20% 35V RADIAL Rubycon	18,933	-	RFQ	Datasheet	Bulk	ZLQ	Active	1000 µF	±20%	35 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.614 A @ 120 Hz	2.69 A @ 100 kHz	16 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

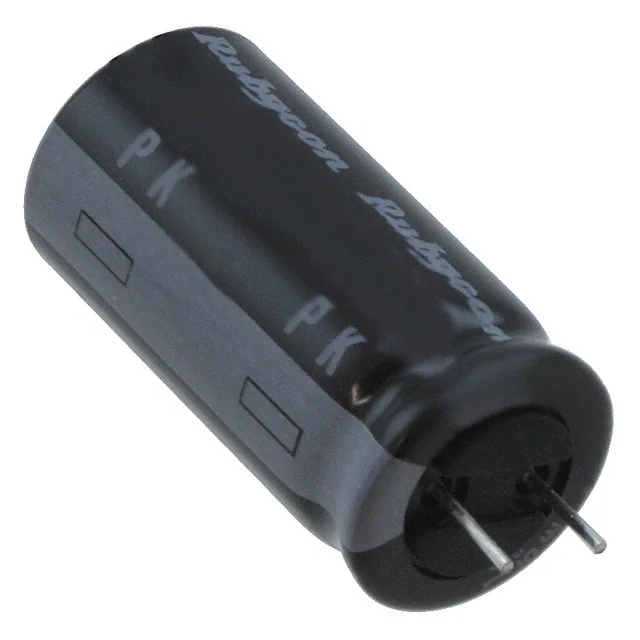

50PK1000MEFCCC12.5X25 CAP ALUM 1000UF 20% 50V RADIAL Rubycon	9,958	-	RFQ	Datasheet	Bulk	PK	Active	1000 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.35 A @ 120 Hz	1.62 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole

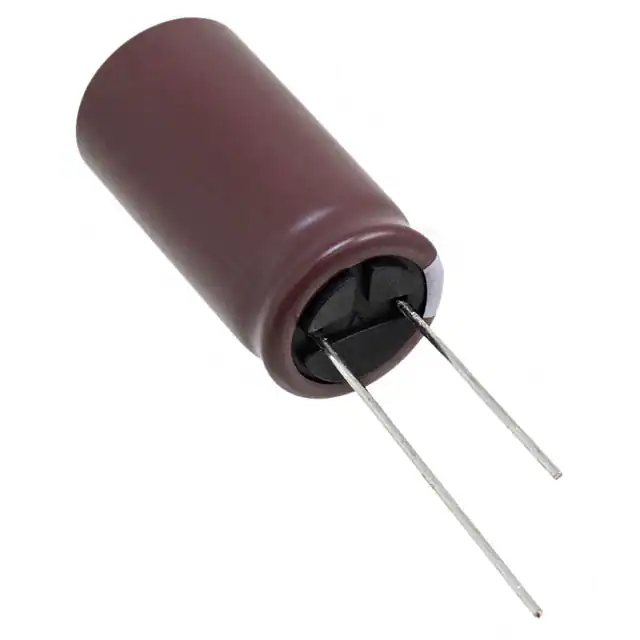

EKZN101ELL101MJ20S CAP ALUM 100UF 20% 100V RADIAL United Chemi-Con	1,555	-	RFQ	Datasheet	Bulk	KZN	Active	100 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	572 mA @ 120 Hz	1.43 A @ 100 kHz	68 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.846 (21.50mm)	-	Through Hole
UHE1A103MHD CAP ALUM 10000UF 20% 10V RADIAL Nichicon	8,033	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	10000 µF	±20%	10 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	3.264 A @ 120 Hz	4.08 A @ 100 kHz	13 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.575 (40.00mm)	-	Through Hole
228KXM016M CAP ALUM 2200UF 20% 16V RADIAL Cornell Dubilier / Illinois Capacitor	13,587	-	RFQ	Datasheet	Bulk	KXM	Active	2200 µF	±20%	16 V	120.6mOhm @ 120Hz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.078 A @ 120 Hz	2.77 A @ 100 kHz	45 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

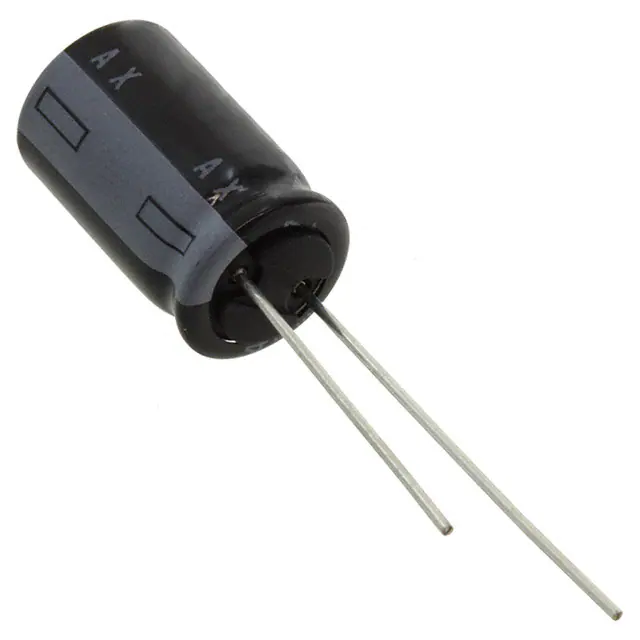

400AX22MEFC12.5X16 CAP ALUM 22UF 20% 400V RADIAL Rubycon	3,855	-	RFQ	Datasheet	Bulk	AX	Active	22 µF	±20%	400 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	180 mA @ 120 Hz	270 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.709 (18.00mm)	-	Through Hole
227TTA035M CAP ALUM 220UF 20% 35V AXIAL Cornell Dubilier / Illinois Capacitor	2,246	-	RFQ	Datasheet	Bulk	TTA	Active	220 µF	±20%	35 V	1.055Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	340 mA @ 120 Hz	-	-	-	0.315 Dia x 0.787 L (8.00mm x 20.00mm)	-	-	Through Hole
UKA1H221MPD CAP ALUM 220UF 20% 50V RADIAL Nichicon	1,589	-	RFQ	Datasheet	Bulk	UKA	Not For New Designs	220 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	300 mA @ 120 Hz	450 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
