Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

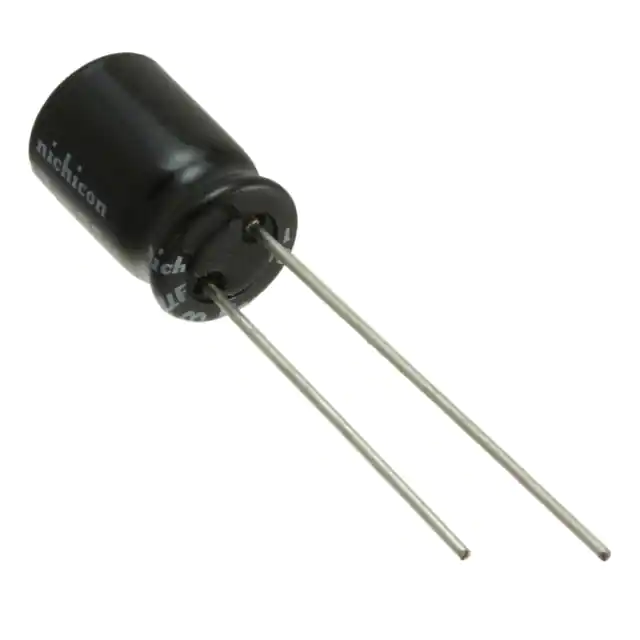

UEP1E221MPD CAP ALUM 220UF 20% 25V RADIAL Nichicon	5,062	-	RFQ	Datasheet	Bulk	UEP	Not For New Designs	220 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Bi-Polar	-	General Purpose	215 mA @ 120 Hz	322.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
477CKE063M CAP ALUM 470UF 20% 63V RADIAL Cornell Dubilier / Illinois Capacitor	1,816	-	RFQ	Datasheet	Bulk	CKE	Active	470 µF	±20%	63 V	317.5mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	810 mA @ 120 Hz	1.3365 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole

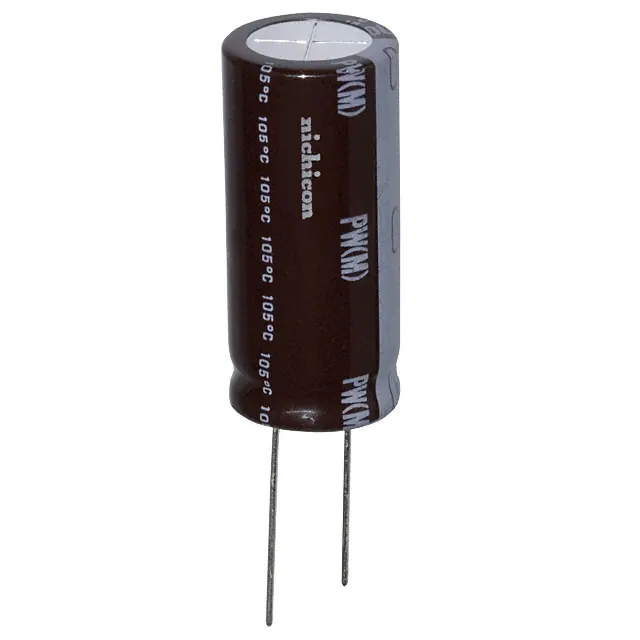

UPW1E682MHD CAP ALUM 6800UF 20% 25V RADIAL Nichicon	1,278	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	6800 µF	±20%	25 V	-	8000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	3.23 A @ 120 Hz	3.8 A @ 100 kHz	14 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.575 (40.00mm)	-	Through Hole

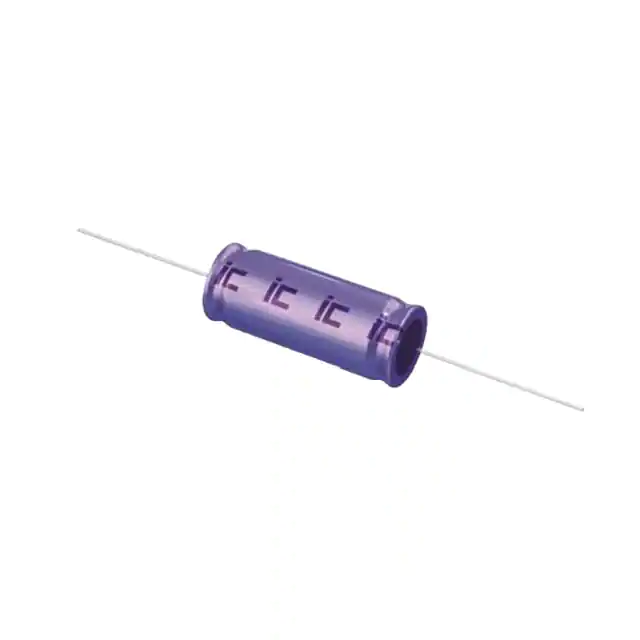

107BPA016M CAP ALUM 100UF 20% 16V AXIAL Cornell Dubilier / Illinois Capacitor	1,038	-	RFQ	Datasheet	Bulk	BPA	Active	100 µF	±20%	16 V	3.647Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	175 mA @ 120 Hz	274.75 mA @ 50 kHz	-	-	0.315 Dia x 0.748 L (8.00mm x 19.00mm)	-	-	Through Hole

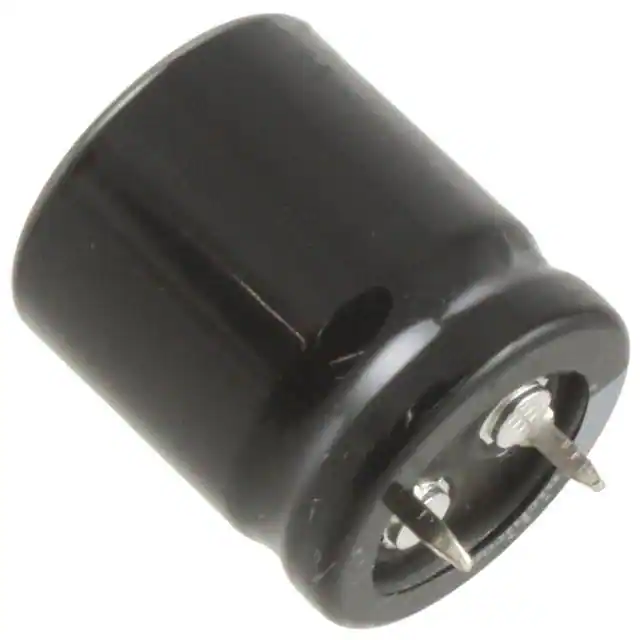

LGU2E221MELZ CAP ALUM 220UF 20% 250V SNAP Nichicon	2,920	-	RFQ	Datasheet	Bulk	LGU	Active	220 µF	±20%	250 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1 A @ 120 Hz	1.5 A @ 50 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	0.984 (25.00mm)	-	Through Hole

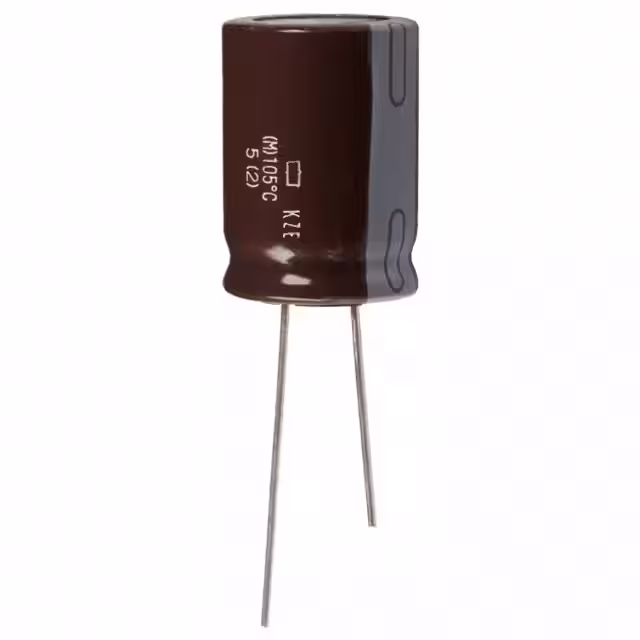

EKZE101ELL471MM25S CAP ALUM 470UF 20% 100V RADIAL United Chemi-Con	8,808	-	RFQ	Datasheet	Bulk	KZE	Active	470 µF	±20%	100 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	875 mA @ 120 Hz	1.75 A @ 100 kHz	36 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	0.984 (25.00mm)	-	Through Hole
EEV-EB2C101M CAP ALUM 100UF 20% 160V SMD Panasonic Electronic Components	5,951	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EB	Last Time Buy	100 µF	±20%	160 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	583 mA @ 120 Hz	1.06 A @ 100 kHz	-	-	0.709 Dia (18.00mm)	0.866 (22.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
MAL213816681E3 CAP ALUM 680UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	1,089	-	RFQ	Datasheet	Bulk	138 AML	Active	680 µF	±20%	25 V	360mOhm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	580 mA @ 100 Hz	754 mA @ 10 kHz	260 mOhms	-	0.394 Dia x 1.181 L (10.00mm x 30.00mm)	-	-	Through Hole
LLS2E331MELY CAP ALUM 330UF 20% 250V SNAP Nichicon	1,041	-	RFQ	Datasheet	Bulk	LLS	Active	330 µF	±20%	250 V	-	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.68 A @ 120 Hz	2.52 A @ 50 kHz	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.378 (35.00mm)	-	Through Hole
477CKH063M CAP ALUM 470UF 20% 63V RADIAL Cornell Dubilier / Illinois Capacitor	17,349	-	RFQ	Datasheet	Bulk	CKH	Active	470 µF	±20%	63 V	317.5mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	690 mA @ 120 Hz	1.1385 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole

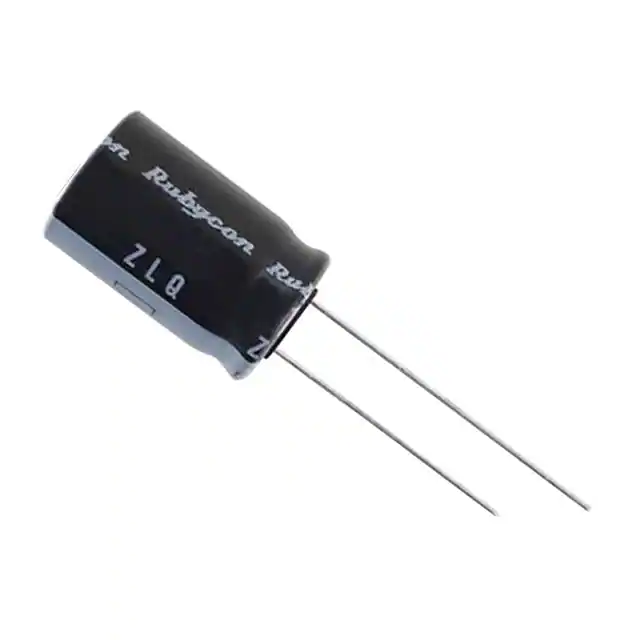

25ZLQ2200MEFC12.5X25 CAP ALUM 2200UF 20% 25V RADIAL Rubycon	4,106	-	RFQ	Datasheet	Bulk	ZLQ	Active	2200 µF	±20%	25 V	-	6000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.198 A @ 120 Hz	3.14 A @ 100 kHz	13 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

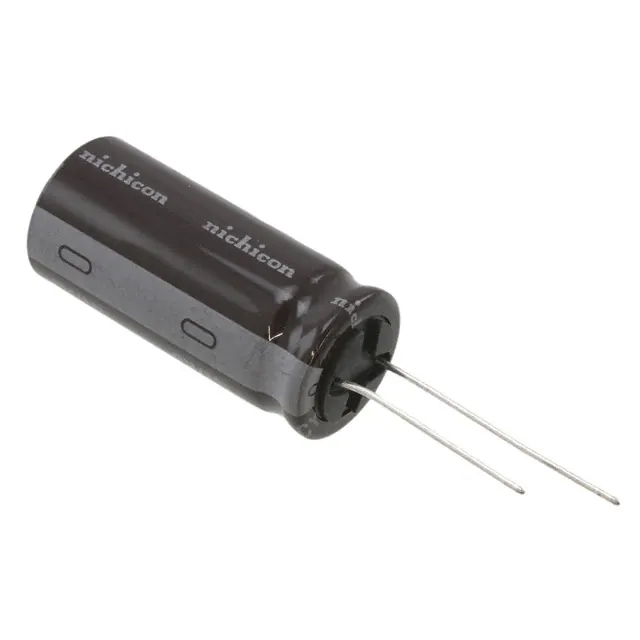

UCY2E221MHD9 CAP ALUM 220UF 20% 250V RADIAL Nichicon	277	-	RFQ	Datasheet	Bulk	UCY	Active	220 µF	±20%	250 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.22 A @ 120 Hz	2.44 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.457 (37.00mm)	-	Through Hole
UVR1V682MRD CAP ALUM 6800UF 20% 35V RADIAL Nichicon	300	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	6800 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3 A @ 120 Hz	3.45 A @ 10 kHz	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.654 (42.00mm)	-	Through Hole

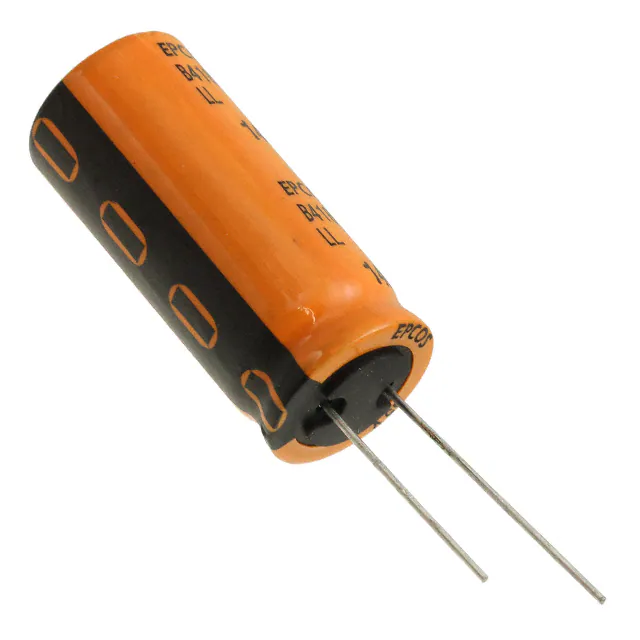

B41858C6278M000 CAP ALUM 2700UF 20% 50V RADIAL EPCOS - TDK Electronics	5,982	-	RFQ	Datasheet	Bulk	B41858	Active	2700 µF	±20%	50 V	21mOhm @ 10kHz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Automotive	-	3.871 A @ 100 kHz	20 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)	-	Through Hole

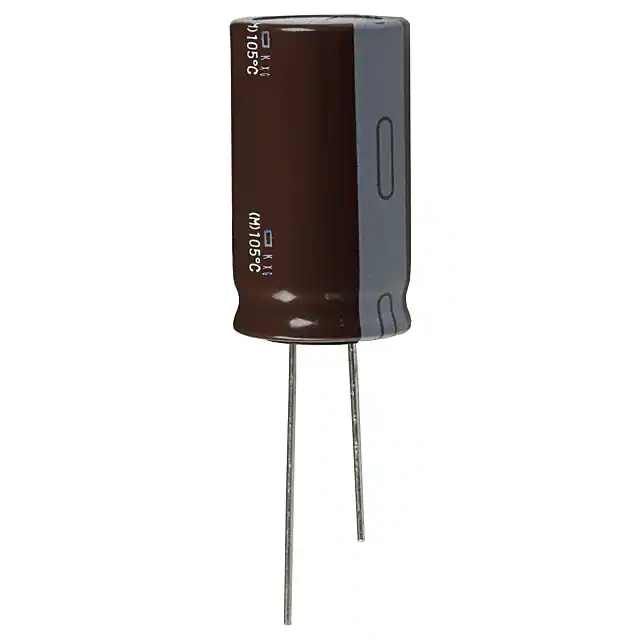

EKXG161ELL331MMN3S CAP ALUM 330UF 20% 160V RADIAL United Chemi-Con	3,940	-	RFQ	Datasheet	Bulk	KXG	Active	330 µF	±20%	160 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.39 A @ 120 Hz	3.1275 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.240 (31.50mm)	-	Through Hole
ESK108M063AM7AA CAP ALUM 1000UF 20% 63V RADIAL KEMET	4,397	-	RFQ	Datasheet	Box	ESK	Active	1000 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.31 A @ 120 Hz	1.507 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
EEU-HD1C472B CAP ALUM 4700UF 20% 16V RADIAL Panasonic Electronic Components	2,744	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	HD	Active	4700 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.48 A @ 120 Hz	1.702 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
LGU2D331MELA CAP ALUM 330UF 20% 200V SNAP Nichicon	929	-	RFQ	Datasheet	Bulk	LGU	Active	330 µF	±20%	200 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.25 A @ 120 Hz	1.875 A @ 50 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	0.984 (25.00mm)	-	Through Hole
MAL213819101E3 CAP ALUM 100UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	745	-	RFQ	Datasheet	Bulk	138 AML	Active	100 µF	±20%	100 V	1.1Ohm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	410 mA @ 100 Hz	574 mA @ 10 kHz	770 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
RFS-35V102MK8#5 CAP ALUM 1000UF 20% 35V RADIAL Elna America	1,675	-	RFQ	Datasheet	Bulk	RFS, SILMIC II	Last Time Buy	1000 µF	±20%	35 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	1.69 A @ 120 Hz	-	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.398 (35.50mm)	-	Through Hole
