Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
ESMQ401VSN331MQ40S CAP ALUM 330UF 20% 400V SNAP United Chemi-Con	3,418	-	RFQ	Datasheet	Bulk	SMQ	Active	330 µF	±20%	400 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	1.9 A @ 120 Hz	2.717 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	1.575 (40.00mm)	-	Through Hole
MAL211819101E3 CAP ALUM 100UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	3,145	-	RFQ	Datasheet	Bulk	118 AHT	Active	100 µF	±20%	100 V	1.4Ohm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	532 mA @ 10 kHz	1.15 Ohms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole

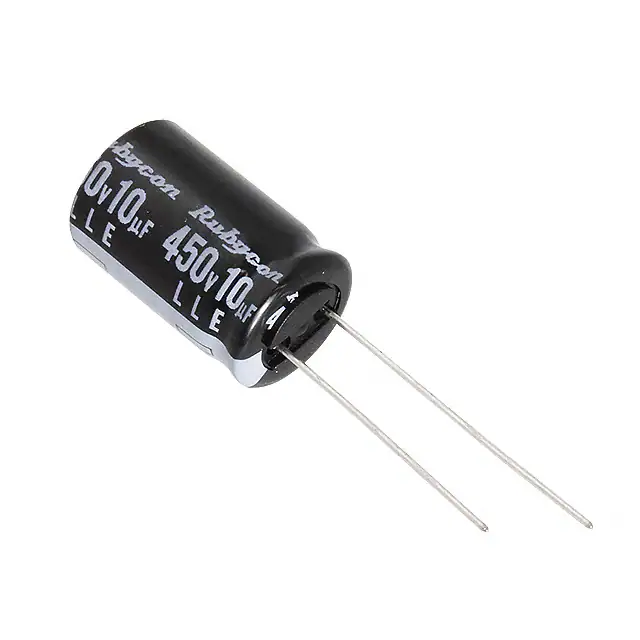

450LLE10MEFC12.5X20 CAP ALUM 10UF 20% 450V RADIAL Rubycon	1,857	-	RFQ	Datasheet	Bulk	LLE	Active	10 µF	±20%	450 V	-	20000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	135 mA @ 120 Hz	450 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

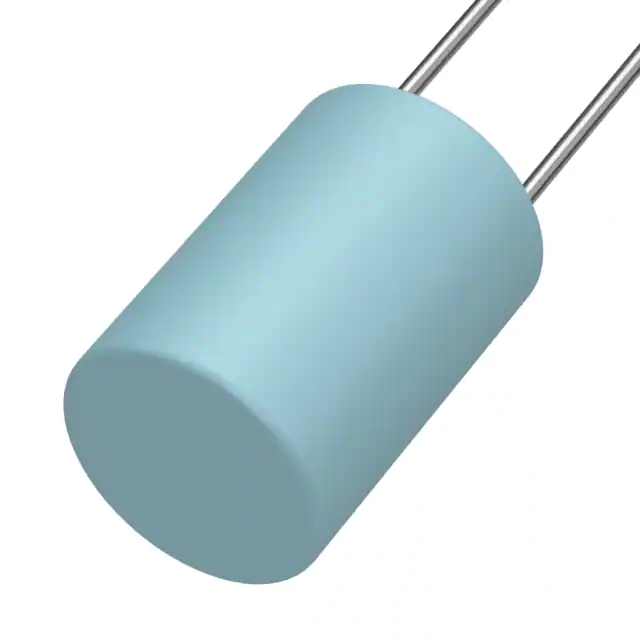

MAL211650101E3 CAP ALUM 100UF 20% 35V RADIAL Vishay Beyschlag/Draloric/BC Components	1,695	-	RFQ	Datasheet	Bulk	116 RLL	Active	100 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Automotive	170.4 mA @ 100 Hz	-	550 mOhms	0.197 (5.00mm)	0.323 Dia (8.20mm)	0.472 (12.00mm)	-	Through Hole
MAL202127221E3 CAP ALUM 220UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	3,967	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	021 ASM	Active	220 µF	±20%	40 V	800mOhm @ 100Hz	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	330 mA @ 100 Hz	-	320 mOhms	-	0.394 Dia x 0.709 L (10.00mm x 18.00mm)	-	-	Through Hole
EKMQ251VSN471MQ30S CAP ALUM 470UF 20% 250V SNAP United Chemi-Con	3,350	-	RFQ	Datasheet	Bulk	KMQ	Active	470 µF	±20%	250 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.4 A @ 120 Hz	2.1 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	1.260 (32.00mm)	-	Through Hole
225TTA450M CAP ALUM 2.2UF 20% 450V AXIAL Cornell Dubilier / Illinois Capacitor	1,507	-	RFQ	Datasheet	Bulk	TTA	Active	2.2 µF	±20%	450 V	188.394Ohm @ 120Hz	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	31 mA @ 120 Hz	-	-	-	0.394 Dia x 0.827 L (10.00mm x 21.00mm)	-	-	Through Hole
MAL213668479E3 CAP ALUM 47UF 20% 63V RADIAL Vishay Beyschlag/Draloric/BC Components	1,346	-	RFQ	Datasheet	Bulk	136 RVI	Active	47 µF	±20%	63 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	300 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.531 (13.50mm)	-	Through Hole
LKG1V222MESYBK CAP ALUM 2200UF 20% 35V SNAP Nichicon	3,194	-	RFQ	Datasheet	Bulk	LKG	Active	2200 µF	±20%	35 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	1.75 A @ 120 Hz	-	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.260 (32.00mm)	-	Through Hole
50MXG4700MEFCSN22X40 CAP ALUM 4700UF 20% 50V SNAP Rubycon	1,914	-	RFQ	Datasheet	Bulk	MXG	Active	4700 µF	±20%	50 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.43 A @ 120 Hz	2.7945 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.654 (42.00mm)	-	Through Hole
MAL202117102E3 CAP ALUM 1000UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	2,873	-	RFQ	Datasheet	Bulk	021 ASM	Active	1000 µF	±20%	40 V	190mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.17 A @ 10 kHz	110 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
MAL211816471E3 CAP ALUM 470UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	640	-	RFQ	Datasheet	Bulk	118 AHT	Active	470 µF	±20%	25 V	610mOhm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	588 mA @ 10 kHz	500 mOhms	-	0.394 Dia x 1.181 L (10.00mm x 30.00mm)	-	-	Through Hole
LKG1V102MESZCK CAP ALUM 1000UF 20% 35V SNAP Nichicon	356	-	RFQ	Datasheet	Bulk	LKG	Active	1000 µF	±20%	35 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	1 A @ 120 Hz	-	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.063 (27.00mm)	-	Through Hole

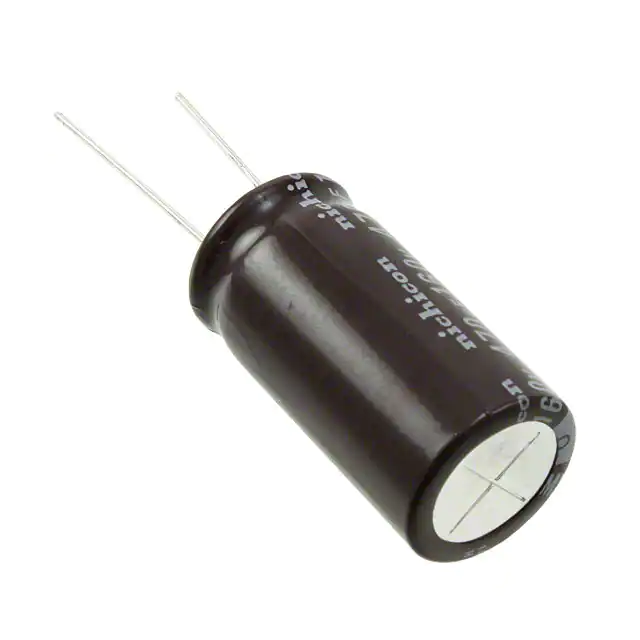

UCY2W101MHD CAP ALUM 100UF 20% 450V RADIAL Nichicon	4,544	-	RFQ	Datasheet	Bulk	UCY	Active	100 µF	±20%	450 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	835 mA @ 120 Hz	1.67 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.457 (37.00mm)	-	Through Hole
MAL215068101E3 CAP ALUM 100UF 20% 63V RADIAL Vishay Beyschlag/Draloric/BC Components	3,985	-	RFQ	Datasheet	Bulk	150 RMI	Active	100 µF	±20%	63 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	273 mA @ 100 Hz	-	270 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.512 (13.00mm)	-	Through Hole
MAL202115472E3 CAP ALUM 4700UF 20% 16V AXIAL Vishay Beyschlag/Draloric/BC Components	1,198	-	RFQ	Datasheet	Bulk	021 ASM	Active	4700 µF	±20%	16 V	87mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.872 A @ 10 kHz	65 mOhms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
MAL202119221E3 CAP ALUM 220UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	1,024	-	RFQ	Datasheet	Bulk	021 ASM	Active	220 µF	±20%	100 V	610mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	784 mA @ 10 kHz	560 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
UVZ1H682MRD CAP ALUM 6800UF 20% 50V RADIAL Nichicon	132	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	6800 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.5 A @ 120 Hz	2.875 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole
106TTA250M CAP ALUM 10UF 20% 250V AXIAL Cornell Dubilier / Illinois Capacitor	3,165	-	RFQ	Datasheet	Bulk	TTA	Active	10 µF	±20%	250 V	33.157Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	90 mA @ 120 Hz	153 mA @ 50 kHz	-	-	0.394 Dia x 0.827 L (10.00mm x 21.00mm)	-	-	Through Hole
50USC10000MEFCSN25X50 CAP ALUM 10000UF 20% 50V SNAP Rubycon	943	-	RFQ	Datasheet	Bulk	USC	Active	10000 µF	±20%	50 V	-	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	5.02 A @ 120 Hz	5.773 A @ 10 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	2.047 (52.00mm)	-	Through Hole
