Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
MAL202114472E3 CAP ALUM 4700UF 20% 10V AXIAL Vishay Beyschlag/Draloric/BC Components	1,018	-	RFQ	Datasheet	Bulk	021 ASM	Active	4700 µF	±20%	10 V	100mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.584 A @ 10 kHz	70 mOhms	-	0.591 Dia x 1.181 L (15.00mm x 30.00mm)	-	-	Through Hole

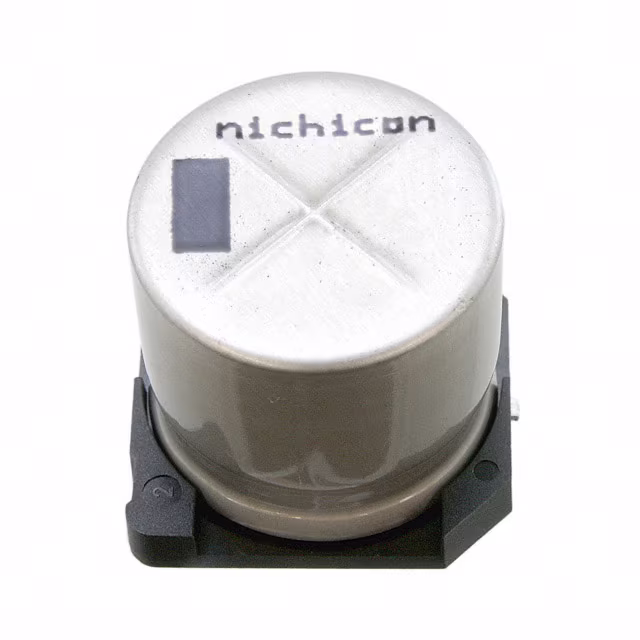

UCD2A331MNQ1MS CAP ALUM 330UF 20% 100V SMD Nichicon	4,517	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UCD	Not For New Designs	330 µF	±20%	100 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	458.5 mA @ 120 Hz	917 mA @ 100 kHz	150 mOhms	-	0.709 Dia (18.00mm)	0.689 (17.50mm)	0.752 L x 0.752 W (19.10mm x 19.10mm)	Surface Mount
EKXJ401ELL181MM45S CAP ALUM 180UF 20% 400V RADIAL United Chemi-Con	2,239	-	RFQ	Datasheet	Bulk	KXJ	Active	180 µF	±20%	400 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	1.095 A @ 120 Hz	2.46375 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.831 (46.50mm)	-	Through Hole
228CKS050MQW CAP ALUM 2200UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	26,625	-	RFQ	Datasheet	Bulk	CKS	Active	2200 µF	±20%	50 V	106mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.32 A @ 120 Hz	3.248 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.240 (31.50mm)	-	Through Hole
MAL202115222E3 CAP ALUM 2200UF 20% 16V AXIAL Vishay Beyschlag/Draloric/BC Components	1,509	-	RFQ	Datasheet	Bulk	021 ASM	Active	2200 µF	±20%	16 V	150mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.248 A @ 10 kHz	95 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
EKMQ401VSN221MP45S CAP ALUM 220UF 20% 400V SNAP United Chemi-Con	3,988	-	RFQ	Datasheet	Bulk	KMQ	Active	220 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.1 A @ 120 Hz	1.573 A @ 50 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.850 (47.00mm)	-	Through Hole
108CKS050M CAP ALUM 1000UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	11,499	-	RFQ	Datasheet	Bulk	CKS	Active	1000 µF	±20%	50 V	166mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.715 A @ 120 Hz	2.401 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
UVR1V103MRD CAP ALUM 10000UF 20% 35V RADIAL Nichicon	1,156	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	10000 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.7 A @ 120 Hz	4.255 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole
MAL202117152E3 CAP ALUM 1500UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	143	-	RFQ	Datasheet	Bulk	021 ASM	Active	1500 µF	±20%	40 V	159mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.456 A @ 10 kHz	70 mOhms	-	0.591 Dia x 1.181 L (15.00mm x 30.00mm)	-	-	Through Hole
MAL202116152E3 CAP ALUM 1500UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	2,012	-	RFQ	Datasheet	Bulk	021 ASM	Active	1500 µF	±20%	25 V	179mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.235 A @ 10 kHz	95 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole

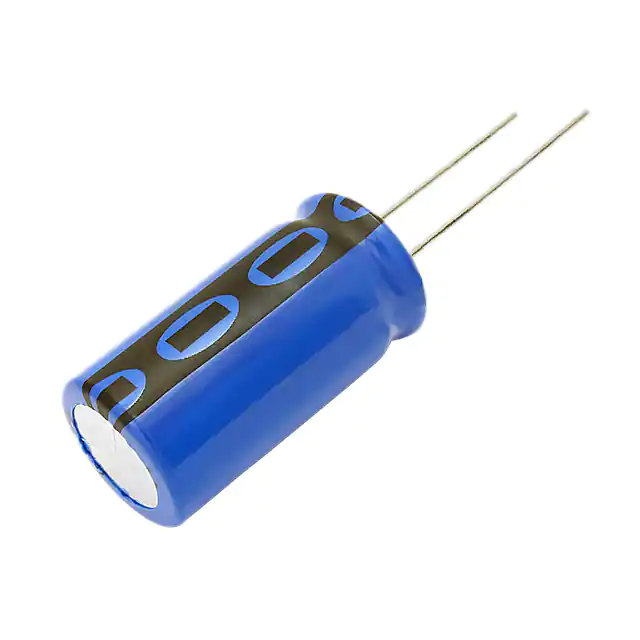

MAL216056101E3 CAP ALUM 100UF 20% 25V RADIAL Vishay Beyschlag/Draloric/BC Components	2,950	-	RFQ	Datasheet	Bulk	160 RLA	Active	100 µF	±20%	25 V	-	1000 Hrs @ 150°C	-55°C ~ 150°C	Polar	AEC-Q200	Automotive	175 mA @ 100 Hz	-	120 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.531 (13.50mm)	-	Through Hole

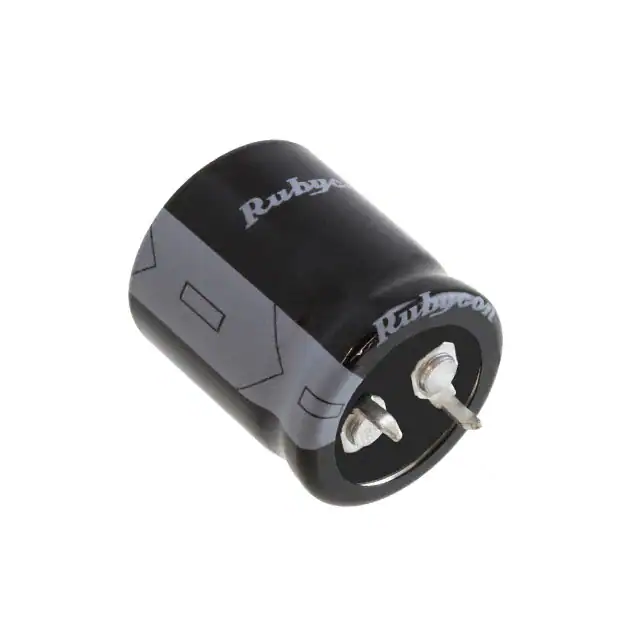

450MXG120MEFCSN25X25 CAP ALUM 120UF 20% 450V SNAP Rubycon	425	-	RFQ	Datasheet	Bulk	MXG	Active	120 µF	±20%	450 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	950 mA @ 120 Hz	1.33 A @ 10 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.063 (27.00mm)	-	Through Hole
MAL211817471E3 CAP ALUM 470UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	169	-	RFQ	Datasheet	Bulk	118 AHT	Active	470 µF	±20%	40 V	380mOhm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	806 mA @ 10 kHz	300 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
UVZ2W101MRD CAP ALUM 100UF 20% 450V RADIAL Nichicon	175	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	100 µF	±20%	450 V	-	1000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	270 mA @ 120 Hz	432 mA @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.654 (42.00mm)	-	Through Hole
106TTA160M CAP ALUM 10UF 20% 160V AXIAL Cornell Dubilier / Illinois Capacitor	9,490	-	RFQ	Datasheet	Bulk	TTA	Active	10 µF	±20%	160 V	33.157Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	80 mA @ 120 Hz	136 mA @ 50 kHz	-	-	0.315 Dia x 0.787 L (8.00mm x 20.00mm)	-	-	Through Hole

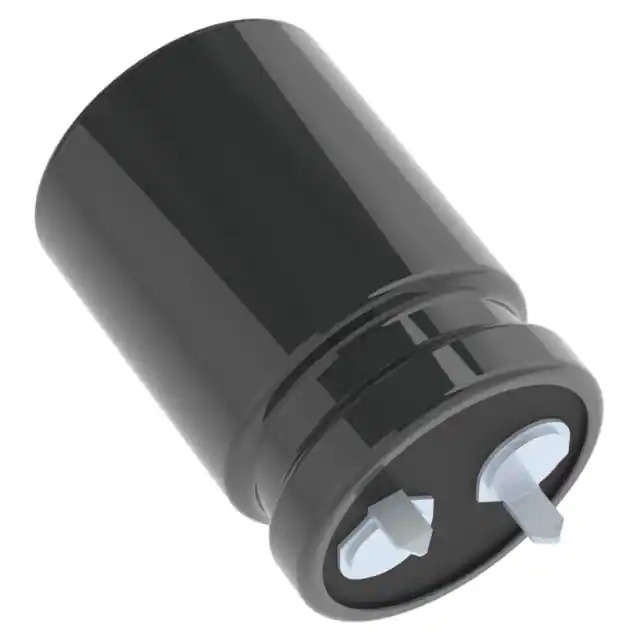

EKMQ401VSN151MP30S CAP ALUM 150UF 20% 400V SNAP United Chemi-Con	2,866	-	RFQ	Datasheet	Bulk	KMQ	Active	150 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	880 mA @ 120 Hz	1.2584 A @ 50 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.260 (32.00mm)	-	Through Hole
EGXF401ELL160MJ25S CAP ALUM 16UF 20% 400V RADIAL TH United Chemi-Con	1,624	-	RFQ	Datasheet	Bulk	GXF	Active	16 µF	±20%	400 V	-	3000 Hrs @ 125°C	-40°C ~ 125°C	Polar	AEC-Q200	Automotive	183 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.043 (26.50mm)	-	Through Hole
477KXM063M CAP ALUM 470UF 20% 63V RADIAL Cornell Dubilier / Illinois Capacitor	5,023	-	RFQ	Datasheet	Bulk	KXM	Active	470 µF	±20%	63 V	352.7mOhm @ 120Hz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	892.5 mA @ 120 Hz	1.785 A @ 100 kHz	80 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.457 (37.00mm)	-	Through Hole
450KXW150MEFC18X45 CAP ALUM 150UF 20% 450V RADIAL Rubycon	2,943	-	RFQ	Datasheet	Bulk	KXW	Active	150 µF	±20%	450 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	800 mA @ 120 Hz	1.2 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.850 (47.00mm)	-	Through Hole
EKMQ401VSN271MQ40S CAP ALUM 270UF 20% 400V SNAP United Chemi-Con	3,998	-	RFQ	Datasheet	Bulk	KMQ	Active	270 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.22 A @ 120 Hz	1.7446 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	1.654 (42.00mm)	-	Through Hole
