Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

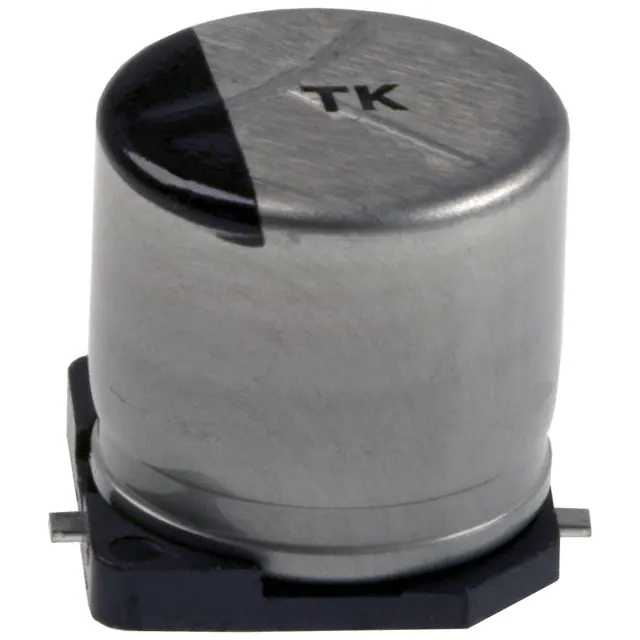

EEE-TKV471UAQ CAP ALUM 470UF 20% 35V SMD Panasonic Electronic Components	14,600	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TK	Active	470 µF	±20%	35 V	120mOhm @ 100kHz	2000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	General Purpose	600 mA @ 120 Hz	800 mA @ 100 kHz	-	-	0.492 Dia (12.50mm)	0.531 (13.50mm)	0.531 L x 0.531 W (13.50mm x 13.50mm)	Surface Mount
UVR1E103MRD CAP ALUM 10000UF 20% 25V RADIAL Nichicon	6,488	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	10000 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3 A @ 120 Hz	3.45 A @ 10 kHz	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.654 (42.00mm)	-	Through Hole

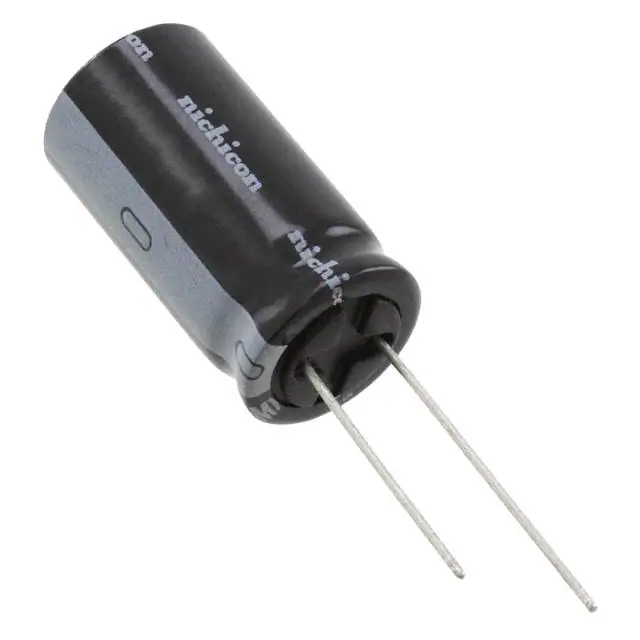

UHW1C682MHD CAP ALUM 6800UF 20% 16V RADIAL Nichicon	3,078	-	RFQ	Datasheet	Bulk	UHW	Not For New Designs	6800 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	3.2 A @ 120 Hz	4 A @ 100 kHz	11 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole
ESG226M400AL4AA CAP ALUM 22UF 20% 400V RADIAL KEMET	1,685	-	RFQ	Datasheet	Bulk	ESG	Active	22 µF	±20%	400 V	1.35Ohm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	170 mA @ 120 Hz	272 mA @ 10 kHz	1.35 Ohms	0.197 (5.00mm)	0.512 Dia (13.00mm)	1.063 (27.00mm)	-	Through Hole

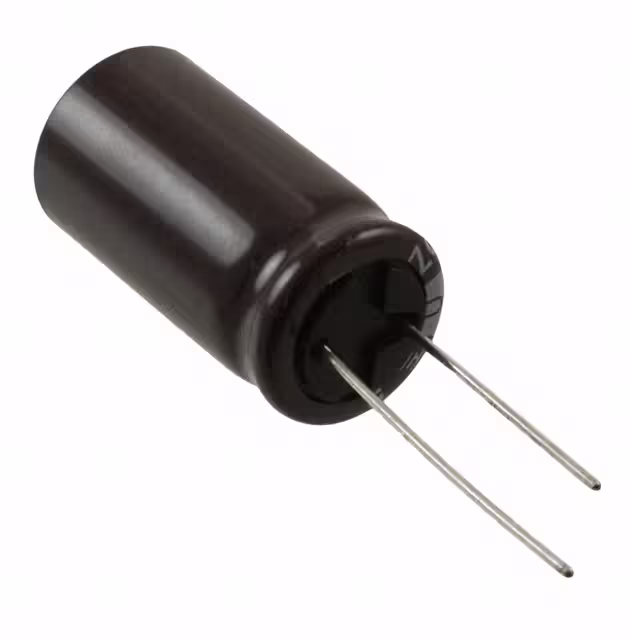

UPZ2G101MHD CAP ALUM 100UF 20% 400V RADIAL Nichicon	813	-	RFQ	Datasheet	Bulk	UPZ	Active	100 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	-	-	General Purpose	580 mA @ 120 Hz	870 mA @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole
108KXM035M CAP ALUM 1000UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	21,234	-	RFQ	Datasheet	Bulk	KXM	Active	1000 µF	±20%	35 V	198.9mOhm @ 120Hz	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.662 A @ 120 Hz	2.77 A @ 100 kHz	45 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
477TTA025M CAP ALUM 470UF 20% 25V AXIAL Cornell Dubilier / Illinois Capacitor	3,968	-	RFQ	Datasheet	Bulk	TTA	Active	470 µF	±20%	25 V	564.4mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	560 mA @ 120 Hz	772.8 mA @ 50 kHz	-	-	0.394 Dia x 0.827 L (10.00mm x 21.00mm)	-	-	Through Hole
ECA-2EM221 CAP ALUM 220UF 20% 250V RADIAL Panasonic Electronic Components	1,154	-	RFQ	Datasheet	Bulk	M-A	Active	220 µF	±20%	250 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	930 mA @ 120 Hz	1.581 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)	-	Through Hole
MAL203656221E3 CAP ALUM 220UF 20% 25V RADIAL Vishay Beyschlag/Draloric/BC Components	4,411	-	RFQ	Datasheet	Bulk	036 RSP	Active	220 µF	±20%	25 V	-	3000 Hrs @ 85°C	-55°C ~ 85°C	Polar	-	Automotive	310 mA @ 100 Hz	-	550 mOhms	0.197 (5.00mm)	0.323 Dia (8.20mm)	0.472 (12.00mm)	-	Through Hole
MAL203690109E3 CAP ALUM 100UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	4,001	-	RFQ	Datasheet	Bulk	036 RSP	Active	100 µF	±20%	50 V	-	3000 Hrs @ 85°C	-55°C ~ 85°C	Polar	-	Automotive	250 mA @ 100 Hz	-	700 mOhms	0.197 (5.00mm)	0.323 Dia (8.20mm)	0.472 (12.00mm)	-	Through Hole
MAL214097102E3 CAP ALUM 100UF 20% 50V SMD Vishay Beyschlag/Draloric/BC Components	1,659	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	140 CRH	Active	100 µF	±20%	50 V	-	1500 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	153 mA @ 100 Hz	-	400 mOhms	-	0.394 Dia (10.00mm)	0.563 (14.30mm)	0.413 L x 0.413 W (10.50mm x 10.50mm)	Surface Mount

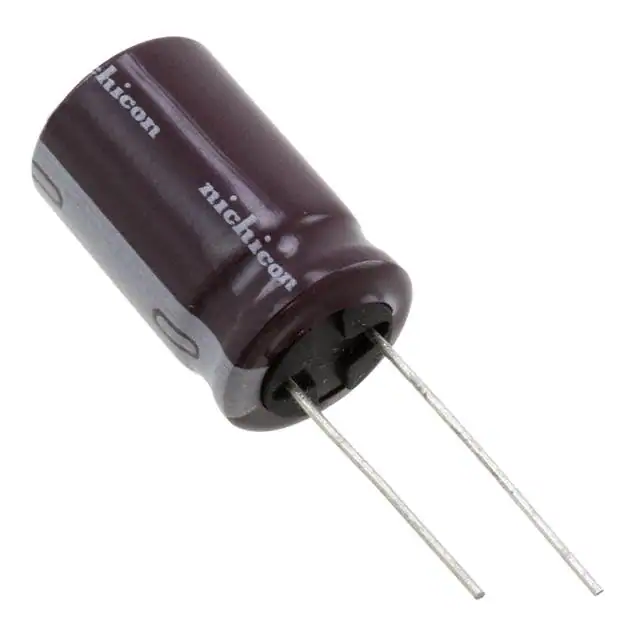

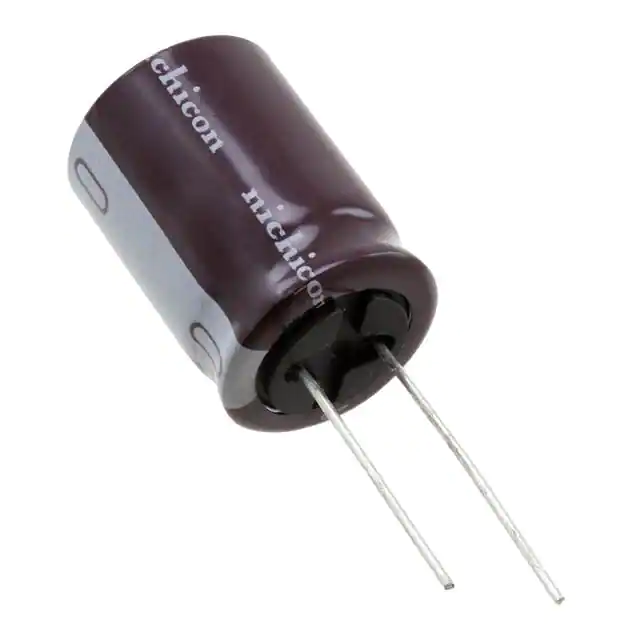

UCY2H330MHD3 CAP ALUM 33UF 20% 500V RADIAL Nichicon	2,942	-	RFQ	Datasheet	Bulk	UCY	Active	33 µF	±20%	500 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	350 mA @ 120 Hz	700 mA @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.043 (26.50mm)	-	Through Hole
108RSS035M CAP ALUM 1000UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	12,818	-	RFQ	Datasheet	Bulk	RSS	Active	1000 µF	±20%	35 V	199mOhm @ 120Hz	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1 A @ 120 Hz	1.4 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.630 (16.00mm)	-	Through Hole

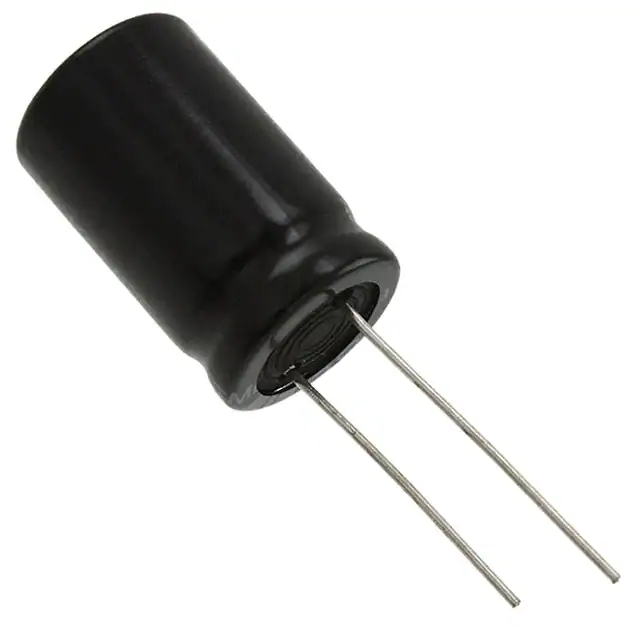

ESH228M035AM7AA CAP ALUM 2200UF 20% 35V RADIAL KEMET	3,003	-	RFQ	Datasheet	Bulk	ESH	Active	2200 µF	±20%	35 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.37 A @ 120 Hz	1.5755 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
UCY2H330MHD CAP ALUM 33UF 20% 500V RADIAL Nichicon	1,044	-	RFQ	Datasheet	Bulk	UCY	Active	33 µF	±20%	500 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	350 mA @ 120 Hz	700 mA @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.299 (33.00mm)	-	Through Hole
MAL214699104E3 CAP ALUM 100UF 20% 50V SMD Vishay Beyschlag/Draloric/BC Components	3,351	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	100 µF	±20%	50 V	-	2000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	420 mA @ 100 Hz	700 mA @ 100 kHz	170 mOhms	-	0.394 Dia (10.00mm)	0.492 (12.50mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
MAL214699105E3 CAP ALUM 150UF 20% 50V SMD Vishay Beyschlag/Draloric/BC Components	1,695	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	150 µF	±20%	50 V	-	2000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	420 mA @ 100 Hz	700 mA @ 100 kHz	170 mOhms	-	0.394 Dia (10.00mm)	0.492 (12.50mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
UCY2D181MHD6TN CAP ALUM 180UF 20% 200V RADIAL Nichicon	4,704	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UCY	Active	180 µF	±20%	200 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.035 A @ 120 Hz	2.07 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
UCS2E221MHD CAP ALUM 220UF 20% 250V RADIAL Nichicon	2,888	-	RFQ	Datasheet	Bulk	UCS	Active	220 µF	±20%	250 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.565 A @ 120 Hz	3.13 A @ 100 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.299 (33.00mm)	-	Through Hole
226TTA160M CAP ALUM 22UF 20% 160V AXIAL Cornell Dubilier / Illinois Capacitor	6,652	-	RFQ	Datasheet	Bulk	TTA	Active	22 µF	±20%	160 V	15.072Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	130 mA @ 120 Hz	198.9 mA @ 50 kHz	-	-	0.394 Dia x 1.024 L (10.00mm x 26.00mm)	-	-	Through Hole
