Aluminum Electrolytic Capacitors- Page 134

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
476CKS250M CAP ALUM 47UF 20% 250V RADIAL Cornell Dubilier / Illinois Capacitor	8,269	-	RFQ	Datasheet	Bulk	CKS	Active	47 µF	±20%	250 V	7.055Ohm @ 120Hz	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	350 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
ESG226M400AM5AA CAP ALUM 22UF 20% 400V RADIAL KEMET	3,843	-	RFQ	Datasheet	Bulk	ESG	Active	22 µF	±20%	400 V	1Ohm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	200 mA @ 120 Hz	320 mA @ 10 kHz	1 Ohms	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.866 (22.00mm)	-	Through Hole

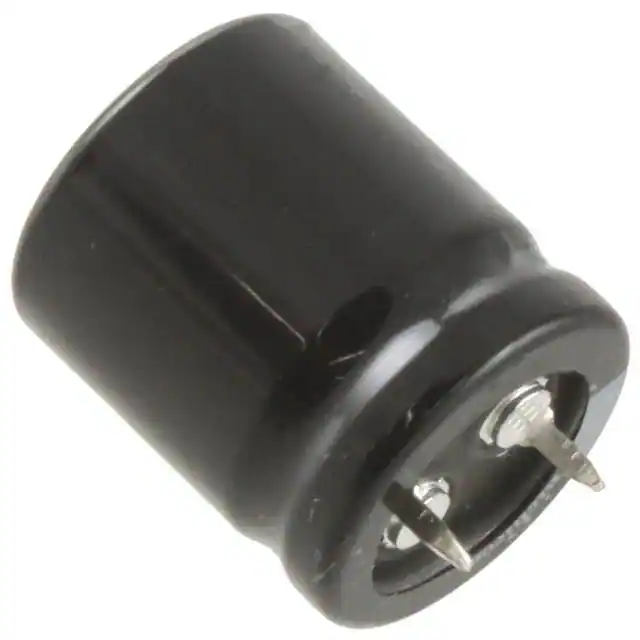

LGUW6101MELA CAP ALUM 100UF 20% 420V SNAP Nichicon	3,353	-	RFQ	Datasheet	Bulk	LGU	Active	100 µF	±20%	420 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	700 mA @ 120 Hz	1.001 A @ 50 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	0.984 (25.00mm)	-	Through Hole
476TTA100M CAP ALUM 47UF 20% 100V AXIAL Cornell Dubilier / Illinois Capacitor	2,863	-	RFQ	Datasheet	Bulk	TTA	Active	47 µF	±20%	100 V	3.527Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	190 mA @ 120 Hz	290.7 mA @ 50 kHz	-	-	0.315 Dia x 0.787 L (8.00mm x 20.00mm)	-	-	Through Hole
B41888C7478M000 CAP ALUM 4700UF 20% 35V RADIAL EPCOS - TDK Electronics	343	-	RFQ	Datasheet	Bulk	B41888	Active	4700 µF	±20%	35 V	13mOhm @ 10kHz	10000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	-	5.327 A @ 100 kHz	12 mOhms	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)	-	Through Hole
MAL215058101E3 CAP ALUM 100UF 20% 63V RADIAL Vishay Beyschlag/Draloric/BC Components	2,718	-	RFQ	Datasheet	Bulk	150 RMI	Active	100 µF	±20%	63 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	273 mA @ 100 Hz	-	270 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.512 (13.00mm)	-	Through Hole
RFS-50V101MI5#5 CAP ALUM 100UF 20% 50V RADIAL Elna America	4,737	-	RFQ	Datasheet	Bulk	RFS, SILMIC II	Last Time Buy	100 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	380 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.787 (20.00mm)	-	Through Hole
UVZ1H472MRD CAP ALUM 4700UF 20% 50V RADIAL Nichicon	10,826	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	4700 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.1 A @ 120 Hz	2.415 A @ 10 kHz	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.654 (42.00mm)	-	Through Hole
LLS2E681MELA CAP ALUM 680UF 20% 250V SNAP Nichicon	3,617	-	RFQ	Datasheet	Bulk	LLS	Active	680 µF	±20%	250 V	-	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.67 A @ 120 Hz	4.005 A @ 50 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.575 (40.00mm)	-	Through Hole
25USC15000MEFCSN30X25 CAP ALUM 15000UF 20% 25V SNAP Rubycon	8,397	-	RFQ	Datasheet	Bulk	USC	Active	15000 µF	±20%	25 V	-	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	4.08 A @ 120 Hz	4.692 A @ 10 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.063 (27.00mm)	-	Through Hole

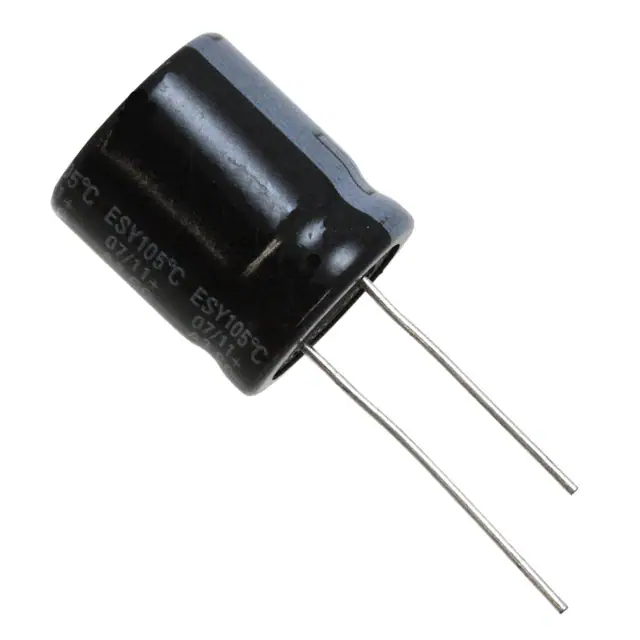

ESY477M050AL3AA CAP ALUM 470UF 20% 50V RADIAL KEMET	1,915	-	RFQ	Datasheet	Bulk	ESY	Active	470 µF	±20%	50 V	27mOhm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.538 A @ 120 Hz	2.05 A @ 100 kHz	27 mOhms	0.197 (5.00mm)	0.512 Dia (13.00mm)	0.866 (22.00mm)	-	Through Hole
LGX2G151MELZ35 CAP ALUM 150UF 20% 400V SNAP Nichicon	2,333	-	RFQ	Datasheet	Bulk	LGX	Active	150 µF	±20%	400 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	860 mA @ 120 Hz	1.2298 A @ 50 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.457 (37.00mm)	-	Through Hole

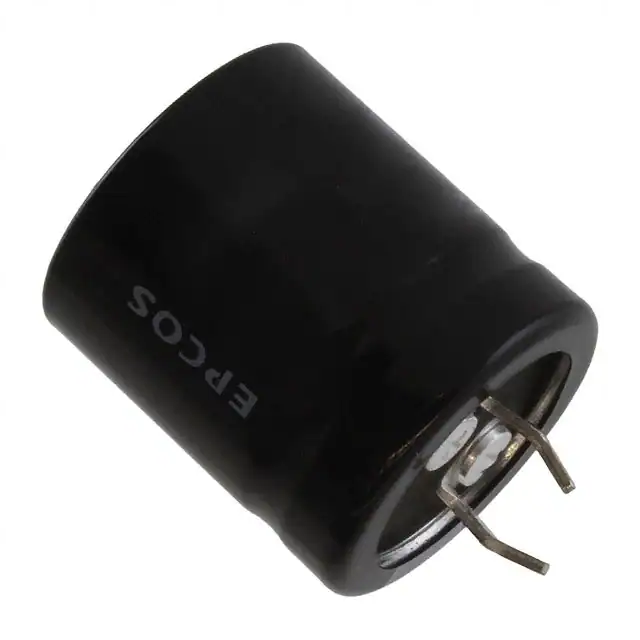

B43501A6476M000 CAP ALUM 47UF 20% 500V SNAP EPCOS - TDK Electronics	3,376	-	RFQ	Datasheet	Bulk	B43501	Not For New Designs	47 µF	±20%	500 V	2.82Ohm @ 100Hz	10000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	510 mA @ 100 Hz	-	3.39 Ohms	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.063 (27.00mm)	-	Through Hole
ESK478M025AM2AA CAP ALUM 4700UF 20% 25V RADIAL KEMET	3,601	-	RFQ	Datasheet	Box	ESK	Active	4700 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.95 A @ 120 Hz	2.243 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.339 (34.00mm)	-	Through Hole
UVR1H682MRD6 CAP ALUM 6800UF 20% 50V RADIAL Nichicon	5,677	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	6800 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.3 A @ 120 Hz	3.795 A @ 10 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	1.654 (42.00mm)	-	Through Hole
UVZ1V103MRD CAP ALUM 10000UF 20% 35V RADIAL Nichicon	6,783	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	10000 µF	±20%	35 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	2.65 A @ 120 Hz	3.0475 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole
MAL215099012E3 CAP ALUM 470UF 20% 35V SMD Vishay Beyschlag/Draloric/BC Components	2,198	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	150 CRZ	Active	470 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	-	905 mA @ 100 kHz	77 mOhms	-	0.492 Dia (12.50mm)	0.551 (14.00mm)	0.492 L x 0.492 W (12.50mm x 12.50mm)	Surface Mount
UCD2A221MNQ1MS CAP ALUM 220UF 20% 100V SMD Nichicon	4,996	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UCD	Not For New Designs	220 µF	±20%	100 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	458.5 mA @ 120 Hz	917 mA @ 100 kHz	150 mOhms	-	0.709 Dia (18.00mm)	0.689 (17.50mm)	0.752 L x 0.752 W (19.10mm x 19.10mm)	Surface Mount

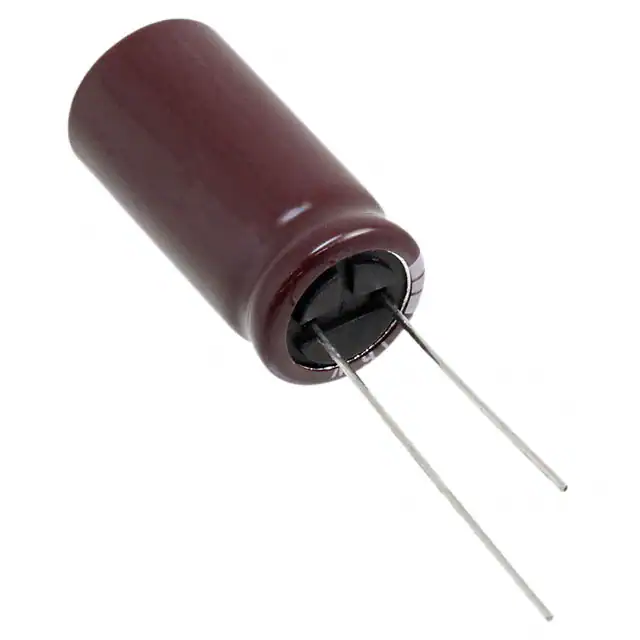

EKYB250ELL222MK25S CAP ALUM 2200UF 20% 25V RADIAL United Chemi-Con	6,975	-	RFQ	Datasheet	Bulk	KYB	Active	2200 µF	±20%	25 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.8975 A @ 120 Hz	2.53 A @ 100 kHz	24 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.043 (26.50mm)	-	Through Hole
RFS-100V470MI6#5 CAP ALUM 47UF 20% 100V RADIAL Elna America	1,002	-	RFQ	Datasheet	Bulk	RFS, SILMIC II	Active	47 µF	±20%	100 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	285 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)	-	Through Hole
