Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
MAL213815222E3 CAP ALUM 2200UF 20% 16V AXIAL Vishay Beyschlag/Draloric/BC Components	978	-	RFQ	Datasheet	Bulk	138 AML	Active	2200 µF	±20%	16 V	170mOhm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	1.09 A @ 100 Hz	1.417 A @ 10 kHz	140 mOhms	-	0.591 Dia x 1.181 L (15.00mm x 30.00mm)	-	-	Through Hole

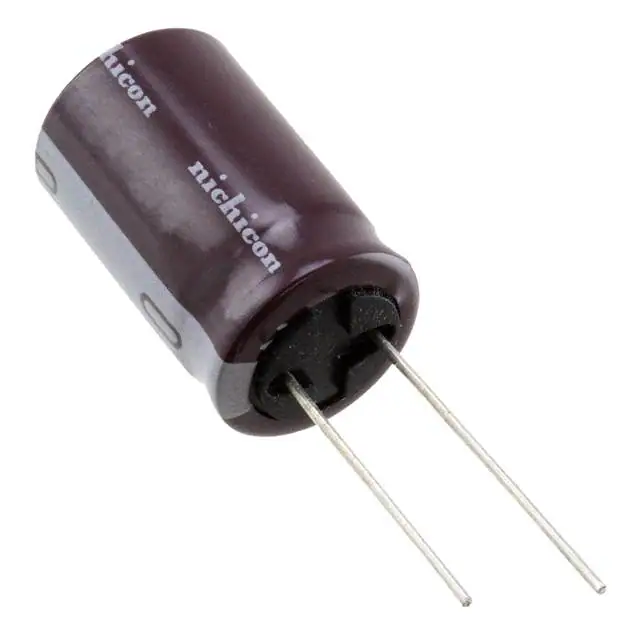

UPS2A331MHD CAP ALUM 330UF 20% 100V RADIAL Nichicon	4,284	-	RFQ	Datasheet	Bulk	UPS	Not For New Designs	330 µF	±20%	100 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	766.8 mA @ 120 Hz	1.08 A @ 100 kHz	90 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
MAL213660221E3 CAP ALUM 220UF 20% 35V RADIAL Vishay Beyschlag/Draloric/BC Components	1,436	-	RFQ	Datasheet	Bulk	136 RVI	Active	220 µF	±20%	35 V	-	6000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	415 mA @ 100 Hz	-	84 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
MAL213668101E3 CAP ALUM 100UF 20% 63V RADIAL Vishay Beyschlag/Draloric/BC Components	1,182	-	RFQ	Datasheet	Bulk	136 RVI	Active	100 µF	±20%	63 V	-	6000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	203 mA @ 100 Hz	-	190 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
MAL211818221E3 CAP ALUM 220UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	1,193	-	RFQ	Datasheet	Bulk	118 AHT	Active	220 µF	±20%	63 V	940mOhm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	715 mA @ 10 kHz	820 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
LGU2W101MELZ CAP ALUM 100UF 20% 450V SNAP Nichicon	1,247	-	RFQ	Datasheet	Bulk	LGU	Active	100 µF	±20%	450 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	690 mA @ 120 Hz	986.7 mA @ 50 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.378 (35.00mm)	-	Through Hole
MAL213816222E3 CAP ALUM 2200UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	729	-	RFQ	Datasheet	Bulk	138 AML	Active	2200 µF	±20%	25 V	130mOhm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	1.32 A @ 100 Hz	1.716 A @ 10 kHz	100 mOhms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
MAL202118681E3 CAP ALUM 680UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	1,258	-	RFQ	Datasheet	Bulk	021 ASM	Active	680 µF	±20%	63 V	199mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	1.246 A @ 10 kHz	95 mOhms	-	0.591 Dia x 1.181 L (15.00mm x 30.00mm)	-	-	Through Hole
MAL214699106E3 CAP ALUM 220UF 20% 50V SMD Vishay Beyschlag/Draloric/BC Components	2,366	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	220 µF	±20%	50 V	-	3000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	540 mA @ 100 Hz	900 mA @ 100 kHz	120 mOhms	-	0.492 Dia (12.50mm)	0.551 (14.00mm)	0.492 L x 0.492 W (12.50mm x 12.50mm)	Surface Mount
MAL214699603E3 CAP ALUM 470UF 20% 25V SMD Vishay Beyschlag/Draloric/BC Components	1,451	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	146 CTI	Active	470 µF	±20%	25 V	-	3000 Hrs @ 125°C	-55°C ~ 125°C	Polar	AEC-Q200	Automotive	770 mA @ 100 Hz	1.1 A @ 100 kHz	75 mOhms	-	0.492 Dia (12.50mm)	0.551 (14.00mm)	0.492 L x 0.492 W (12.50mm x 12.50mm)	Surface Mount

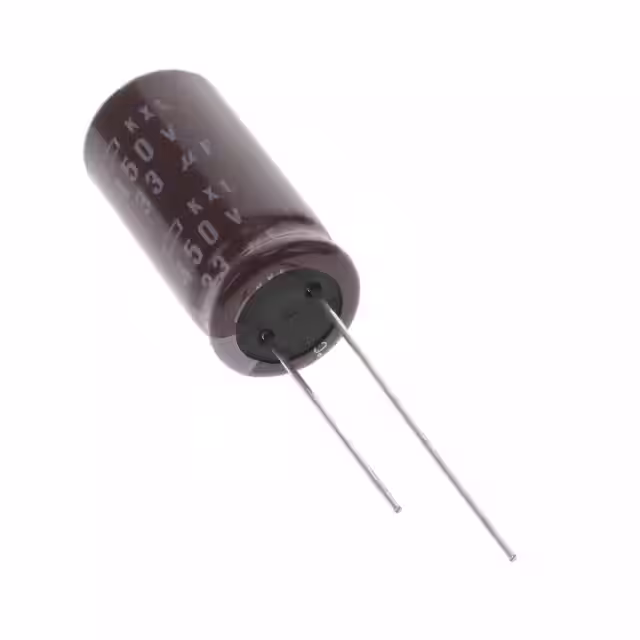

EKXL451ELL330MK25S CAP ALUM 33UF 20% 450V RADIAL TH United Chemi-Con	19,637	-	RFQ	Datasheet	Bulk	KXL	Active	33 µF	±20%	450 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	360 mA @ 120 Hz	900 mA @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole
478CKH016M CAP ALUM 4700UF 20% 16V RADIAL Cornell Dubilier / Illinois Capacitor	4,538	-	RFQ	Datasheet	Bulk	CKH	Active	4700 µF	±20%	16 V	84.7mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.56 A @ 120 Hz	2.184 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.240 (31.50mm)	-	Through Hole
227TTA063M CAP ALUM 220UF 20% 63V AXIAL Cornell Dubilier / Illinois Capacitor	2,116	-	RFQ	Datasheet	Bulk	TTA	Active	220 µF	±20%	63 V	754mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	490 mA @ 120 Hz	676.2 mA @ 50 kHz	-	-	0.394 Dia x 0.984 L (10.00mm x 25.00mm)	-	-	Through Hole

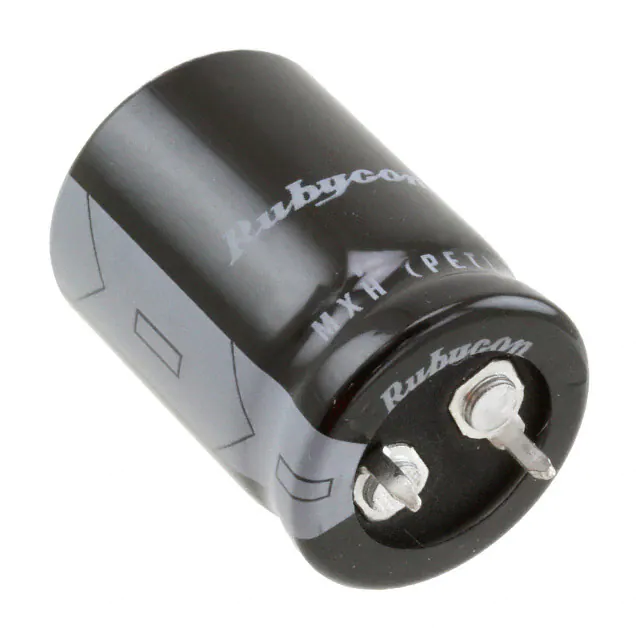

450MXH120MEFCSN22X30 CAP ALUM 120UF 20% 450V SNAP Rubycon	1,456	-	RFQ	Datasheet	Bulk	MXH	Active	120 µF	±20%	450 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	980 mA @ 120 Hz	1.372 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.260 (32.00mm)	-	Through Hole
MAL215051221E3 CAP ALUM 220UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	1,370	-	RFQ	Datasheet	Bulk	150 RMI	Active	220 µF	±20%	50 V	-	6000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	455 mA @ 100 Hz	-	120 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
RFS-6V102MI5#5 CAP ALUM 1000UF 20% 6.3V RADIAL Elna America	1,176	-	RFQ	Datasheet	Bulk	RFS, SILMIC II	Last Time Buy	1000 µF	±20%	6.3 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	710 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.787 (20.00mm)	-	Through Hole
UVR1V103MRD6 CAP ALUM 10000UF 20% 35V RADIAL Nichicon	698	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	10000 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.6 A @ 120 Hz	4.14 A @ 10 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	1.654 (42.00mm)	-	Through Hole
LGU2G151MELB CAP ALUM 150UF 20% 400V SNAP Nichicon	1,466	-	RFQ	Datasheet	Bulk	LGU	Active	150 µF	±20%	400 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	880 mA @ 120 Hz	1.2584 A @ 50 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	0.984 (25.00mm)	-	Through Hole
63TXW220MEFC8X30 CAP ALUM 220UF 20% 63V RADIAL Rubycon	2,079	-	RFQ	Datasheet	Bulk	TXW	Active	220 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	785 mA @ 120 Hz	1.57 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	1.280 (32.50mm)	-	Through Hole
MAL211819479E3 CAP ALUM 47UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	423	-	RFQ	Datasheet	Bulk	118 AHT	Active	47 µF	±20%	100 V	2.6Ohm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	336 mA @ 10 kHz	2 Ohms	-	0.394 Dia x 1.181 L (10.00mm x 30.00mm)	-	-	Through Hole
