Aluminum Electrolytic Capacitors- Page 140

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
LKG1V472MESZAK CAP ALUM 4700UF 20% 35V SNAP Nichicon	380	-	RFQ	Datasheet	Bulk	LKG	Active	4700 µF	±20%	35 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	2.2 A @ 120 Hz	-	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.260 (32.00mm)	-	Through Hole
B41231A6109M000 CAP ALUM 10000UF 20% 50V SNAP EPCOS - TDK Electronics	264	-	RFQ	Datasheet	Bulk	B41231	Active	10000 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	6.07 A @ 120 Hz	-	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.850 (47.00mm)	-	Through Hole
450BXW15MEFR10X20 CAP ALUM 15UF 20% 450V RADIAL Rubycon	3,397	-	RFQ	Datasheet	Bulk	BXW	Active	15 µF	±20%	450 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	190 mA @ 120 Hz	475 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole

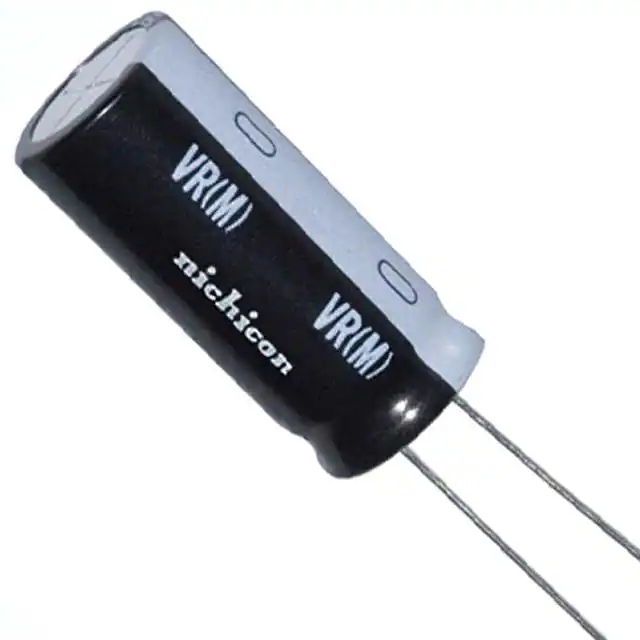

UVR1J332MRD CAP ALUM 3300UF 20% 63V RADIAL Nichicon	981	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	3300 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.7 A @ 120 Hz	3.105 A @ 10 kHz	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.654 (42.00mm)	-	Through Hole
LLG2C102MELA30 CAP ALUM 1000UF 20% 160V SNAP Nichicon	319	-	RFQ	Datasheet	Bulk	LLG	Active	1000 µF	±20%	160 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3 A @ 120 Hz	4.5 A @ 50 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.260 (32.00mm)	-	Through Hole

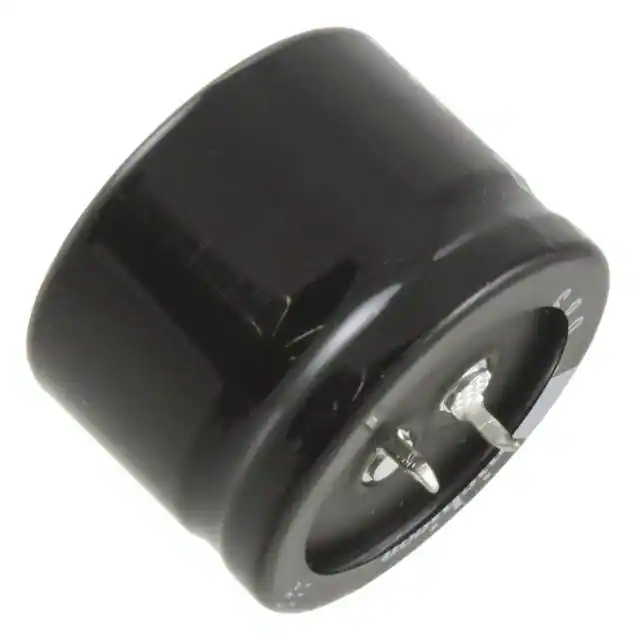

LGU2D821MELC CAP ALUM 820UF 20% 200V SNAP Nichicon	2,844	-	RFQ	Datasheet	Bulk	LGU	Active	820 µF	±20%	200 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.04 A @ 120 Hz	3.06 A @ 50 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	0.984 (25.00mm)	-	Through Hole

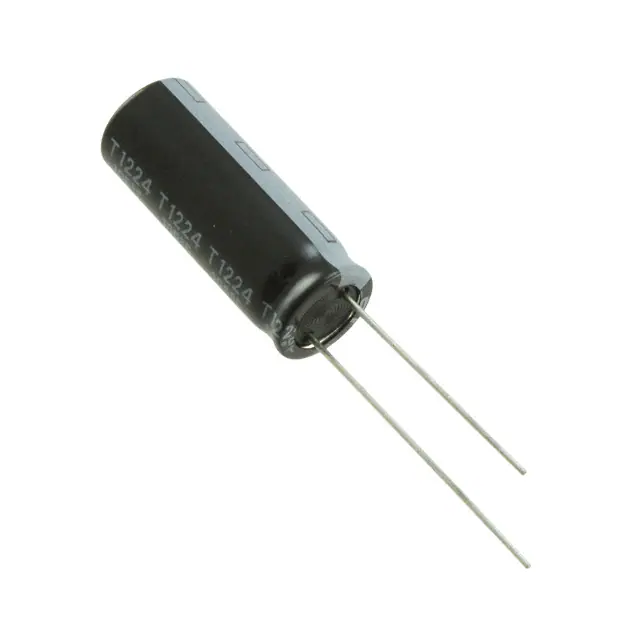

400BXW22MEFR10X25 CAP ALUM 22UF 20% 400V RADIAL Rubycon	6,291	-	RFQ	Datasheet	Bulk	BXW	Active	22 µF	±20%	400 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	240 mA @ 120 Hz	600 mA @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.063 (27.00mm)	-	Through Hole

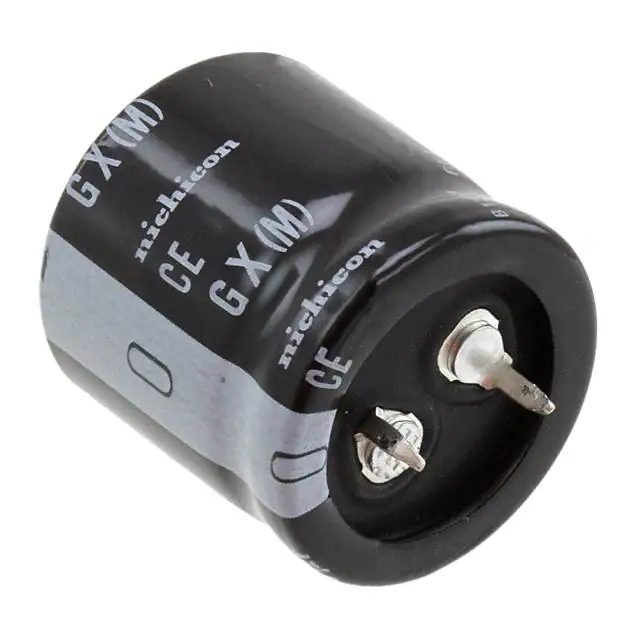

LGX2G151MELA25 CAP ALUM 150UF 20% 400V SNAP Nichicon	370	-	RFQ	Datasheet	Bulk	LGX	Active	150 µF	±20%	400 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	860 mA @ 120 Hz	1.2298 A @ 50 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.063 (27.00mm)	-	Through Hole
ESMQ451VSN271MR30S CAP ALUM 270UF 20% 450V SNAP United Chemi-Con	406	-	RFQ	Datasheet	Bulk	SMQ	Active	270 µF	±20%	450 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	1.78 A @ 120 Hz	2.5454 A @ 50 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.181 (30.00mm)	-	Through Hole

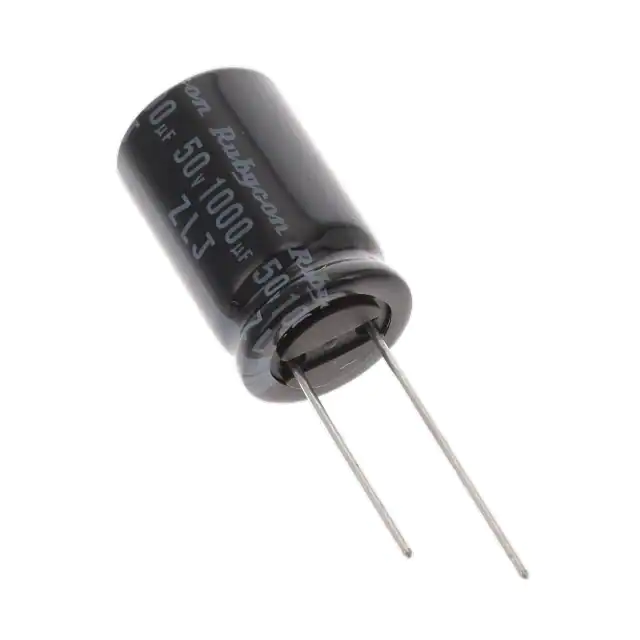

50ZLJ1000M16X25 CAP ALUM 1000UF 20% 50V RADIAL Rubycon	2,220	-	RFQ	Datasheet	Bulk	ZLJ	Active	1000 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.106 A @ 120 Hz	3.51 A @ 100 kHz	22 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
MAL213819331E3 CAP ALUM 330UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	1,922	-	RFQ	Datasheet	Bulk	138 AML	Active	330 µF	±20%	100 V	380mOhm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	880 mA @ 100 Hz	1.232 A @ 10 kHz	270 mOhms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
LKG1E222MESYCK CAP ALUM 2200UF 20% 25V SNAP Nichicon	348	-	RFQ	Datasheet	Bulk	LKG	Active	2200 µF	±20%	25 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	1.85 A @ 120 Hz	-	-	0.394 (10.00mm)	0.787 Dia (20.00mm)	1.654 (42.00mm)	-	Through Hole

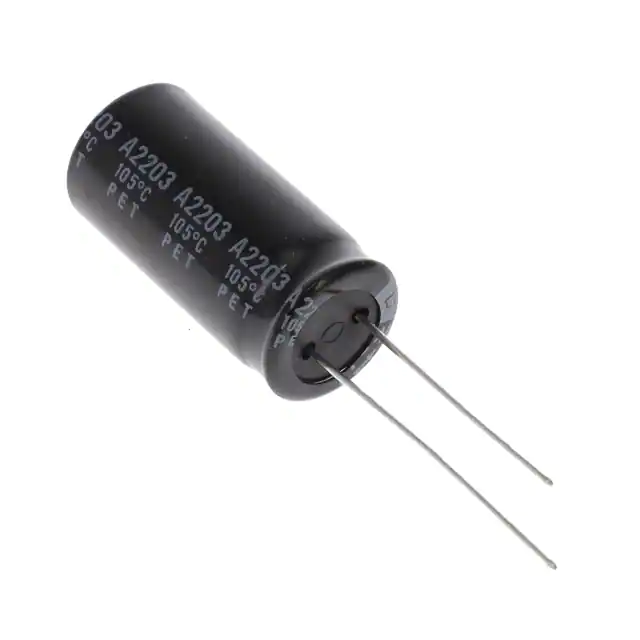

350BXW47MEFR12.5X25 CAP ALUM 47UF 20% 350V RADIAL Rubycon	3,886	-	RFQ	Datasheet	Bulk	BXW	Active	47 µF	±20%	350 V	-	12000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	450 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.063 (27.00mm)	-	Through Hole

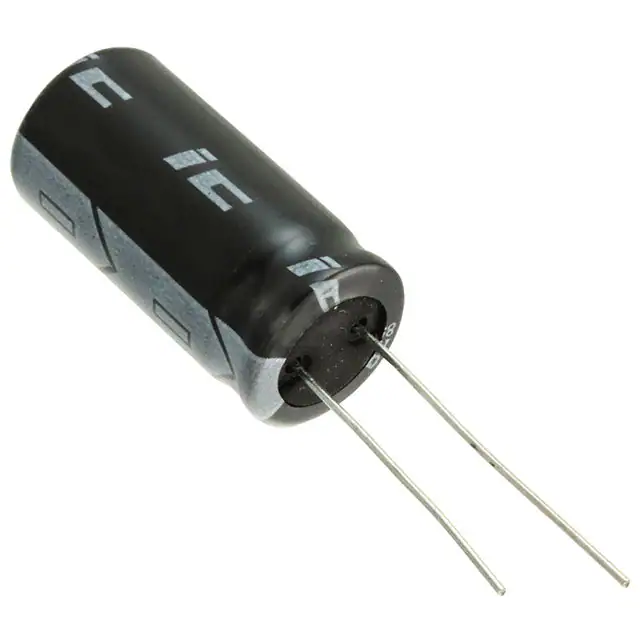

478CKS016M CAP ALUM 4700UF 20% 16V RADIAL Cornell Dubilier / Illinois Capacitor	2,374	-	RFQ	Datasheet	Bulk	CKS	Active	4700 µF	±20%	16 V	85mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.49 A @ 120 Hz	3.486 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole

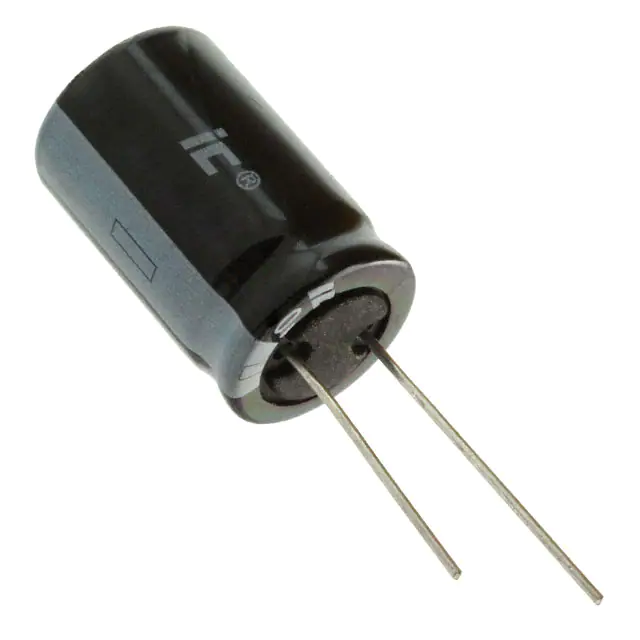

108CKR050M CAP ALUM 1000UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	1,319	-	RFQ	Datasheet	Bulk	CKR	Active	1000 µF	±20%	50 V	166mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.51 A @ 120 Hz	2.114 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.043 (26.50mm)	-	Through Hole
106TTA350M CAP ALUM 10UF 20% 350V AXIAL Cornell Dubilier / Illinois Capacitor	1,066	-	RFQ	Datasheet	Bulk	TTA	Active	10 µF	±20%	350 V	33.157Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	100 mA @ 120 Hz	170 mA @ 50 kHz	-	-	0.512 Dia x 1.024 L (13.00mm x 26.00mm)	-	-	Through Hole
EEE-FK1K471AM CAP ALUM 470UF 20% 80V SMD Panasonic Electronic Components	6,120	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	470 µF	±20%	80 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	687.8 mA @ 120 Hz	917 mA @ 100 kHz	153 mOhms	-	0.709 Dia (18.00mm)	0.669 (17.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount
EEE-FK1E332AM CAP ALUM 3300UF 20% 25V SMD Panasonic Electronic Components	1,386	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	3300 µF	±20%	25 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive, High Temperature Reflow	1.545 A @ 120 Hz	2.06 A @ 100 kHz	33 mOhms	-	0.709 Dia (18.00mm)	0.669 (17.00mm)	0.748 L x 0.748 W (19.00mm x 19.00mm)	Surface Mount

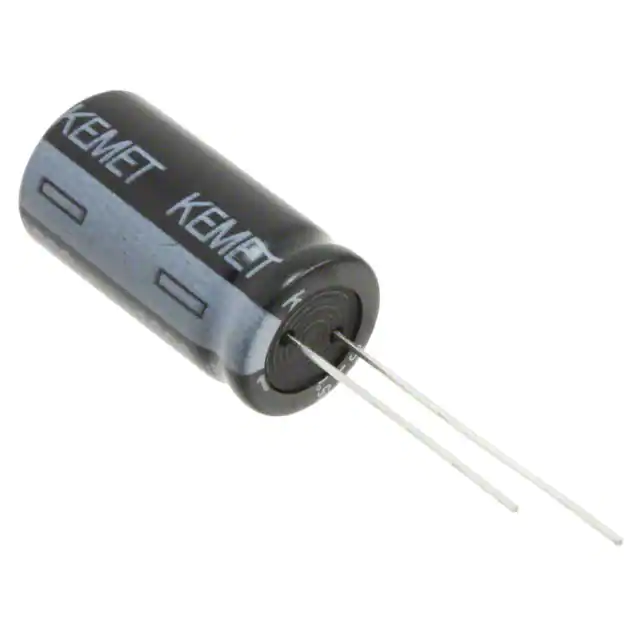

ESY228M016AL4AA CAP ALUM 2200UF 20% 16V RADIAL KEMET	2,380	-	RFQ	Datasheet	Bulk	ESY	Active	2200 µF	±20%	16 V	18mOhm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.216 A @ 120 Hz	2.77 A @ 100 kHz	18 mOhms	0.197 (5.00mm)	0.512 Dia (13.00mm)	1.063 (27.00mm)	-	Through Hole
228CKS050M CAP ALUM 2200UF 20% 50V RADIAL Cornell Dubilier / Illinois Capacitor	20,329	-	RFQ	Datasheet	Bulk	CKS	Active	2200 µF	±20%	50 V	106mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.39 A @ 120 Hz	3.346 A @ 100 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.437 (36.50mm)	-	Through Hole
