Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
250MXG820MEFCSN25X45 CAP ALUM 820UF 20% 250V SNAP Rubycon	3,078	-	RFQ	Datasheet	Bulk	MXG	Active	820 µF	±20%	250 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	2.45 A @ 120 Hz	3.675 A @ 10 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.850 (47.00mm)	-	Through Hole
ESG336M450AM2AA CAP ALUM 33UF 20% 450V RADIAL KEMET	1,920	-	RFQ	Datasheet	Bulk	ESG	Active	33 µF	±20%	450 V	1.3Ohm @ 100kHz	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	275 mA @ 120 Hz	440 mA @ 10 kHz	1.3 Ohms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.339 (34.00mm)	-	Through Hole
ESMQ201VSN152MQ50S CAP ALUM 1500UF 20% 200V SNAP United Chemi-Con	3,596	-	RFQ	Datasheet	Bulk	SMQ	Active	1500 µF	±20%	200 V	-	2000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	3.87 A @ 120 Hz	5.805 A @ 50 kHz	-	0.394 (10.00mm)	1.000 Dia (25.40mm)	1.969 (50.00mm)	-	Through Hole

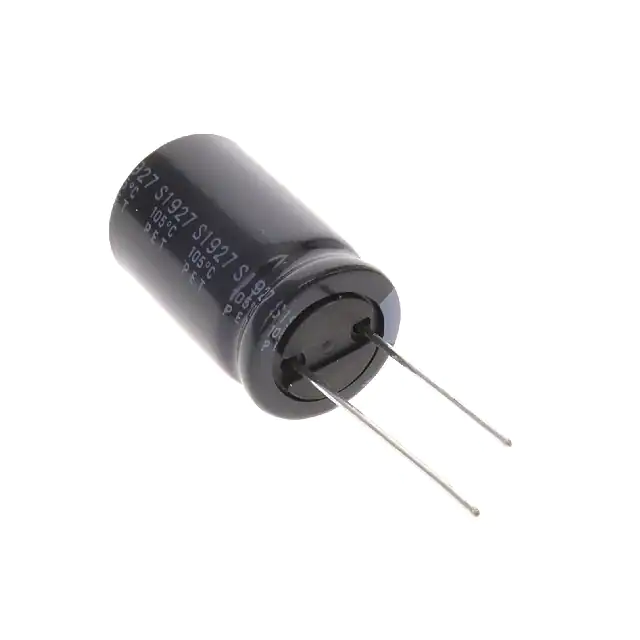

50ZLJ1500M16X25 CAP ALUM 1500UF 20% 50V RADIAL Rubycon	1,741	-	RFQ	Datasheet	Bulk	ZLJ	Active	1500 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	900 mA @ 120 Hz	3.6 A @ 100 kHz	18 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole
UVZ2A222MRD CAP ALUM 2200UF 20% 100V RADIAL Nichicon	250	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	2200 µF	±20%	100 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.75 A @ 120 Hz	2.0125 A @ 10 kHz	-	0.394 (10.00mm)	0.866 Dia (22.00mm)	2.047 (52.00mm)	-	Through Hole
UVZ2G221MRD CAP ALUM 220UF 20% 400V RADIAL Nichicon	217	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	220 µF	±20%	400 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	660 mA @ 120 Hz	1.056 A @ 10 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	2.047 (52.00mm)	-	Through Hole
450HXG220MEFCSN25X40 CAP ALUM 220UF 20% 450V SNAP Rubycon	2,530	-	RFQ	Datasheet	Bulk	HXG	Active	220 µF	±20%	450 V	-	3000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.97 A @ 120 Hz	2.758 A @ 10 kHz	-	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.654 (42.00mm)	-	Through Hole
MAL213819471E3 CAP ALUM 470UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	746	-	RFQ	Datasheet	Bulk	138 AML	Active	470 µF	±20%	100 V	270mOhm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	1.13 A @ 100 Hz	1.582 A @ 10 kHz	190 mOhms	-	0.709 Dia x 1.496 L (18.00mm x 38.00mm)	-	-	Through Hole

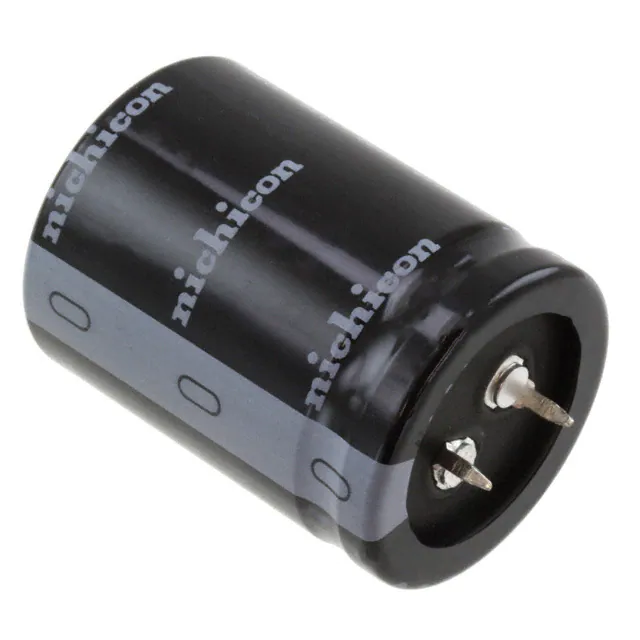

LLS2E102MELB CAP ALUM 1000UF 20% 250V SNAP Nichicon	6,281	-	RFQ	Datasheet	Bulk	LLS	Active	1000 µF	±20%	250 V	-	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.56 A @ 120 Hz	5.34 A @ 50 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.575 (40.00mm)	-	Through Hole
MAL202128471E3 CAP ALUM 470UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	1,080	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	021 ASM	Active	470 µF	±20%	63 V	287mOhm @ 100Hz	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	700 mA @ 100 Hz	-	130 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole

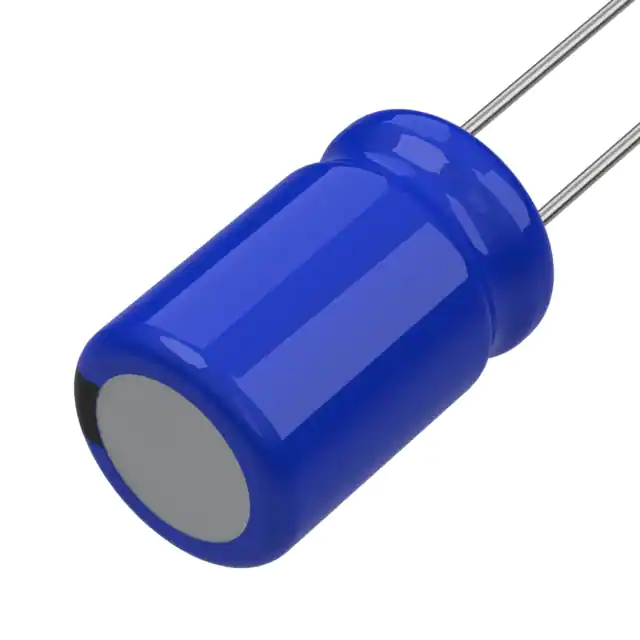

MAL214831222E3 CAP ALUM 2200UF 20% 50V RADIAL Vishay Beyschlag/Draloric/BC Components	1,650	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	148 RUS	Active	2200 µF	±20%	50 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.52 A @ 100 Hz	-	39 mOhms	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.319 (33.50mm)	-	Through Hole
EKMH101VSN472MA50S CAP ALUM 4700UF 20% 100V SNAP United Chemi-Con	1,112	-	RFQ	Datasheet	Bulk	KMH	Active	4700 µF	±20%	100 V	53mOhm @ 120Hz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	3.8 A @ 120 Hz	4.56 A @ 100 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	2.047 (52.00mm)	-	Through Hole
MAL211816222E3 CAP ALUM 2200UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	305	-	RFQ	Datasheet	Bulk	118 AHT	Active	2200 µF	±20%	25 V	185mOhm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	1.488 A @ 10 kHz	170 mOhms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
MAL211892479E3 CAP ALUM 47UF 20% 200V AXIAL Vishay Beyschlag/Draloric/BC Components	515	-	RFQ	Datasheet	Bulk	118 AHT	Active	47 µF	±20%	200 V	1.48Ohm	8000 Hrs @ 125°C	-55°C ~ 125°C	Polar	-	Automotive	-	546 mA @ 10 kHz	600 mOhms	-	0.709 Dia x 1.181 L (18.00mm x 30.00mm)	-	-	Through Hole
MAL202127102E3 CAP ALUM 1000UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	2,559	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	021 ASM	Active	1000 µF	±20%	40 V	190mOhm @ 100Hz	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	900 mA @ 100 Hz	-	110 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole

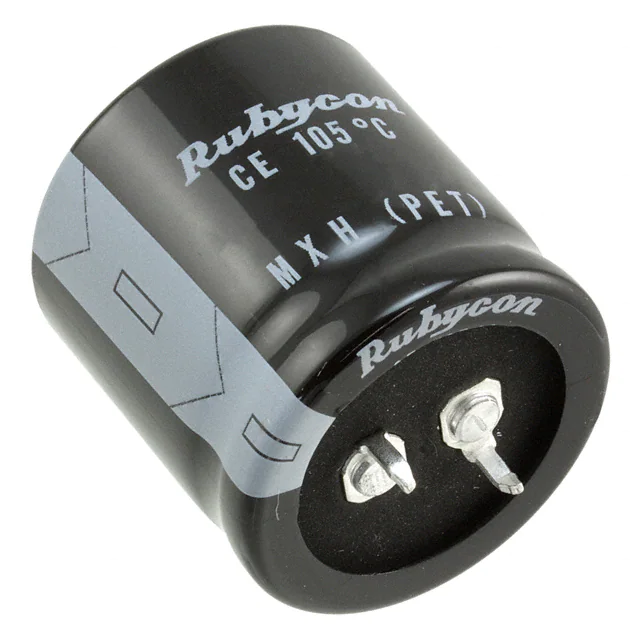

450MXH270MEFCSN30X30 CAP ALUM 270UF 20% 450V SNAP Rubycon	156	-	RFQ	Datasheet	Bulk	MXH	Active	270 µF	±20%	450 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.44 A @ 120 Hz	2.016 A @ 10 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.260 (32.00mm)	-	Through Hole

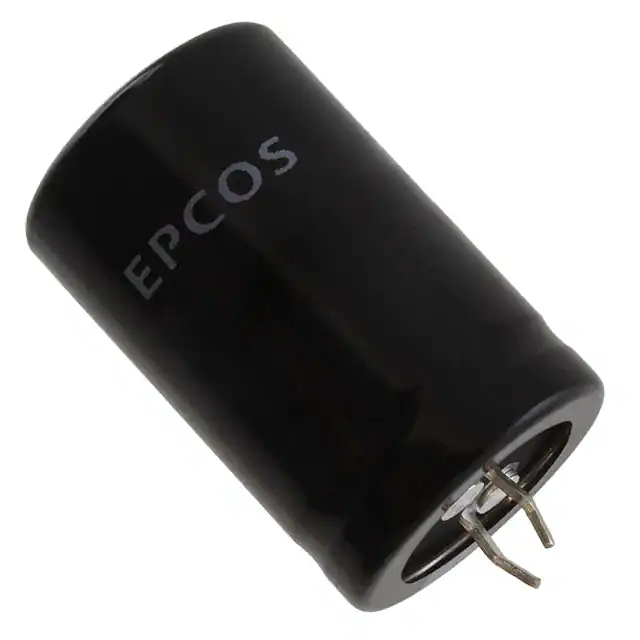

B43501A9227M000 CAP ALUM 220UF 20% 400V SNAP EPCOS - TDK Electronics	2,822	-	RFQ	Datasheet	Bulk	B43501	Not For New Designs	220 µF	±20%	400 V	300mOhm @ 100Hz	10000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.41 A @ 100 Hz	-	490 mOhms	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.654 (42.00mm)	-	Through Hole
UCZ1V162MNQ1MS CAP ALUM 1600UF 20% 35V SMD Nichicon	24,752	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UCZ	Not For New Designs	1600 µF	±20%	35 V	47mOhm @ 100kHz	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	General Purpose	1.5 A @ 120 Hz	3 A @ 100 kHz	-	-	0.630 Dia (16.00mm)	0.886 (22.50mm)	0.673 L x 0.673 W (17.10mm x 17.10mm)	Surface Mount
MAL202129221E3 CAP ALUM 220UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	1,229	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	021 ASM	Active	220 µF	±20%	100 V	610mOhm @ 100Hz	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	560 mA @ 100 Hz	-	560 mOhms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
ESK478M035AN2AA CAP ALUM 4700UF 20% 35V RADIAL KEMET	2,153	-	RFQ	Datasheet	Box	ESK	Active	4700 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	2.4 A @ 120 Hz	2.76 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.496 (38.00mm)	-	Through Hole
