Aluminum Electrolytic Capacitors- Page 145

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
MAL202117472E3 CAP ALUM 4700UF 20% 40V AXIAL Vishay Beyschlag/Draloric/BC Components	326	-	RFQ	Datasheet	Bulk	021 ASM	Active	4700 µF	±20%	40 V	72mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	2.522 A @ 10 kHz	35 mOhms	-	0.827 Dia x 1.496 L (21.00mm x 38.00mm)	-	-	Through Hole
100ZLJ390M12.5X40 CAP ALUM 390UF 20% 100V RADIAL Rubycon	11,224	-	RFQ	Datasheet	Bulk	ZLJ	Active	390 µF	±20%	100 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.573 A @ 120 Hz	2.86 A @ 100 kHz	32 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.654 (42.00mm)	-	Through Hole
EEU-HD1E222 CAP ALUM 2200UF 20% 25V RADIAL Panasonic Electronic Components	6,447	-	RFQ	Datasheet	Bulk	HD	Active	2200 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.09 A @ 120 Hz	1.254 A @ 100 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)	-	Through Hole

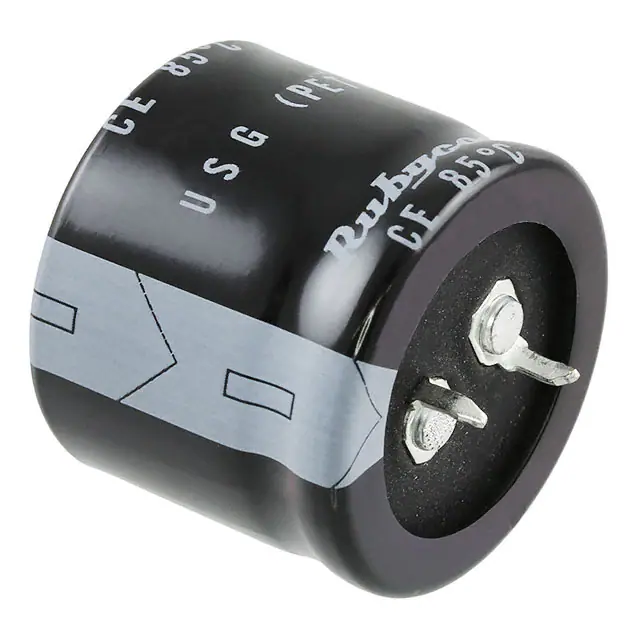

25USG33000MEFCSN30X45 CAP ALUM 33000UF 20% 25V SNAP Rubycon	121	-	RFQ	Datasheet	Bulk	USG	Active	33000 µF	±20%	25 V	-	3000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	6.75 A @ 120 Hz	7.763 A @ 100 kHz	-	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.850 (47.00mm)	-	Through Hole
477TTA050M CAP ALUM 470UF 20% 50V AXIAL Cornell Dubilier / Illinois Capacitor	3,754	-	RFQ	Datasheet	Bulk	TTA	Active	470 µF	±20%	50 V	423.3mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	740 mA @ 120 Hz	1.0212 A @ 50 kHz	-	-	0.512 Dia x 1.024 L (13.00mm x 26.00mm)	-	-	Through Hole
476TTA160M CAP ALUM 47UF 20% 160V AXIAL Cornell Dubilier / Illinois Capacitor	7,722	-	RFQ	Datasheet	Bulk	TTA	Active	47 µF	±20%	160 V	7.055Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	225 mA @ 120 Hz	344.25 mA @ 50 kHz	-	-	0.512 Dia x 1.220 L (13.00mm x 31.00mm)	-	-	Through Hole

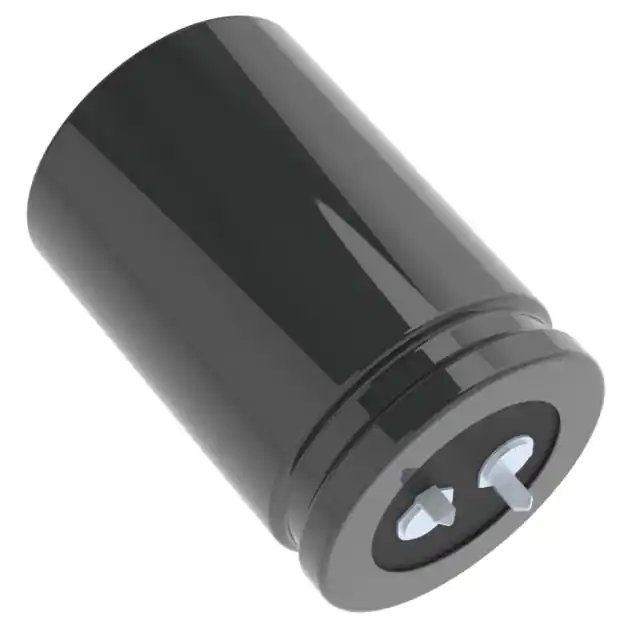

EKMQ451VSN561MA50S CAP ALUM 560UF 20% 450V SNAP United Chemi-Con	715	-	RFQ	Datasheet	Bulk	KMQ	Active	560 µF	±20%	450 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	1.9 A @ 120 Hz	2.717 A @ 50 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	2.047 (52.00mm)	-	Through Hole

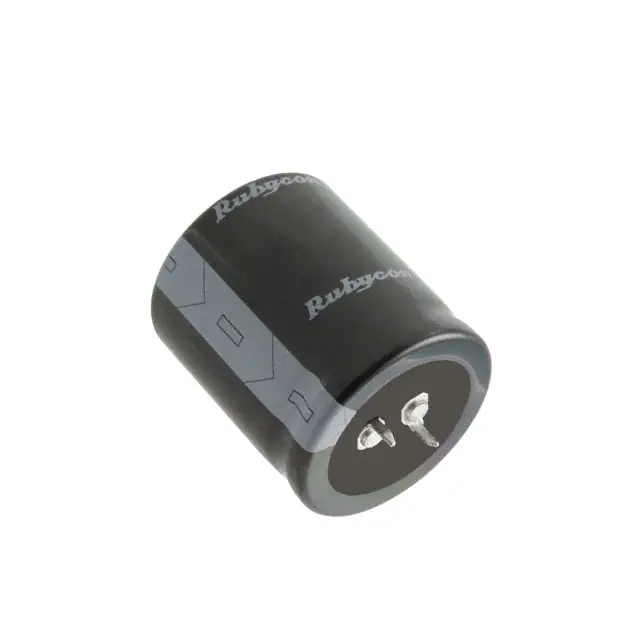

63MXG10000MEFCSN35X40 CAP ALUM 10000UF 20% 63V SNAP Rubycon	2,993	-	RFQ	Datasheet	Bulk	MXG	Active	10000 µF	±20%	63 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	4.48 A @ 120 Hz	5.152 A @ 10 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.654 (42.00mm)	-	Through Hole

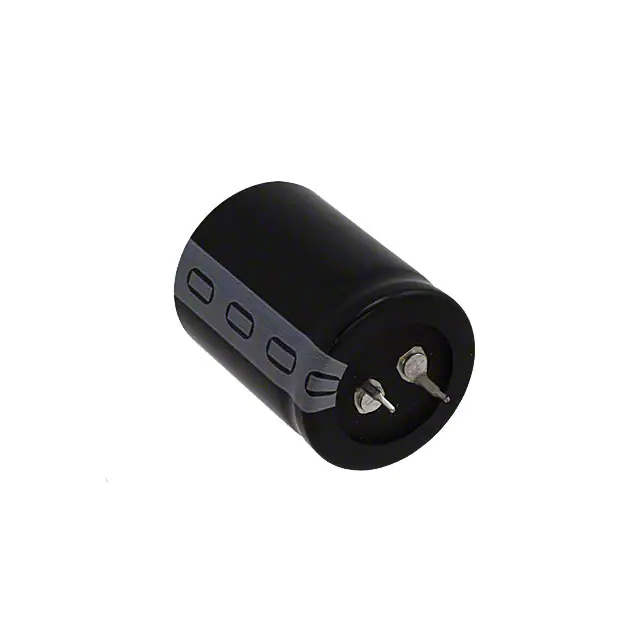

B41505A7109M000 CAP ALUM 10000UF 20% 35V SNAP EPCOS - TDK Electronics	1,972	-	RFQ	Datasheet	Bulk	B41505	Active	10000 µF	±20%	35 V	26mOhm @ 100Hz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.9 A @ 100 Hz	-	28 mOhms	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.654 (42.00mm)	-	Through Hole
MAL202119102E3 CAP ALUM 1000UF 20% 100V AXIAL Vishay Beyschlag/Draloric/BC Components	374	-	RFQ	Datasheet	Bulk	021 ASM	Active	1000 µF	±20%	100 V	160mOhm	8000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	2.058 A @ 10 kHz	150 mOhms	-	0.827 Dia x 1.496 L (21.00mm x 38.00mm)	-	-	Through Hole

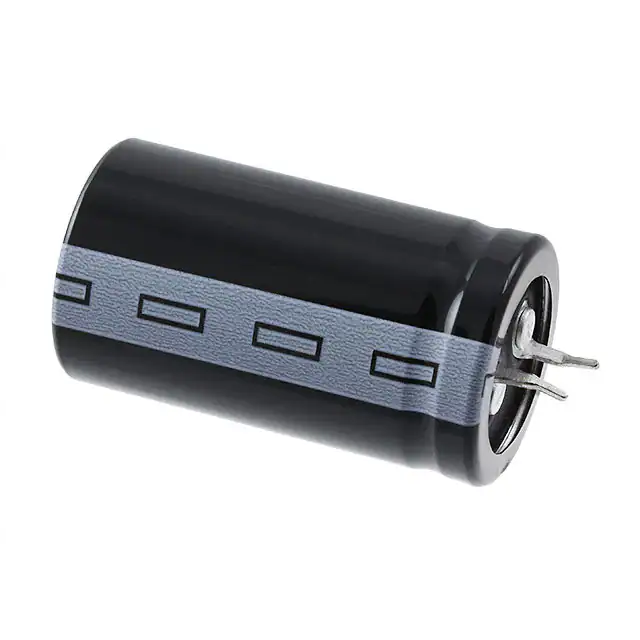

B43504A9227M000 CAP ALUM 220UF 20% 400V SNAP EPCOS - TDK Electronics	1,740	-	RFQ	Datasheet	Bulk	B43504	Not For New Designs	220 µF	±20%	400 V	400mOhm @ 100Hz	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.12 A @ 100 Hz	-	500 mOhms	0.394 (10.00mm)	0.984 Dia (25.00mm)	1.850 (47.00mm)	-	Through Hole
MAL213818152E3 CAP ALUM 1500UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	1,806	-	RFQ	Datasheet	Bulk	138 AML	Active	1500 µF	±20%	63 V	100mOhm @ 100Hz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	1.68 A @ 100 Hz	2.352 A @ 10 kHz	72 mOhms	-	0.827 Dia x 1.496 L (21.00mm x 38.00mm)	-	-	Through Hole

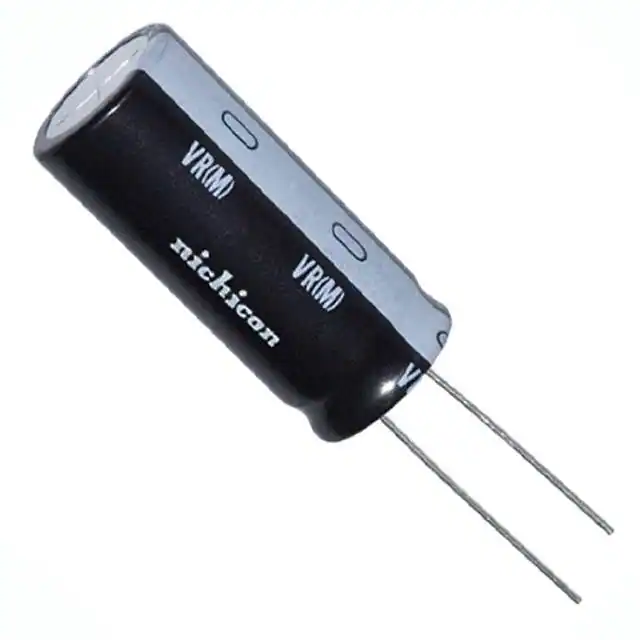

UVR1J682MRD CAP ALUM 6800UF 20% 63V RADIAL Nichicon	170	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	6800 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	3.9 A @ 120 Hz	4.485 A @ 10 kHz	-	0.492 (12.50mm)	0.984 Dia (25.00mm)	1.969 (50.00mm)	-	Through Hole

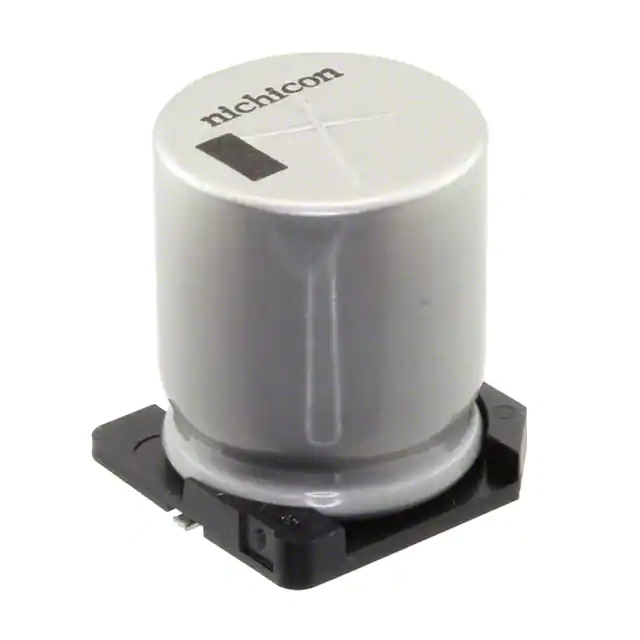

UCZ1V222MNQ1MS CAP ALUM 2200UF 20% 35V SMD Nichicon	8,443	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UCZ	Not For New Designs	2200 µF	±20%	35 V	32mOhm @ 100kHz	4000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	General Purpose	1.625 A @ 120 Hz	3.25 A @ 100 kHz	-	-	0.709 Dia (18.00mm)	0.886 (22.50mm)	0.752 L x 0.752 W (19.10mm x 19.10mm)	Surface Mount

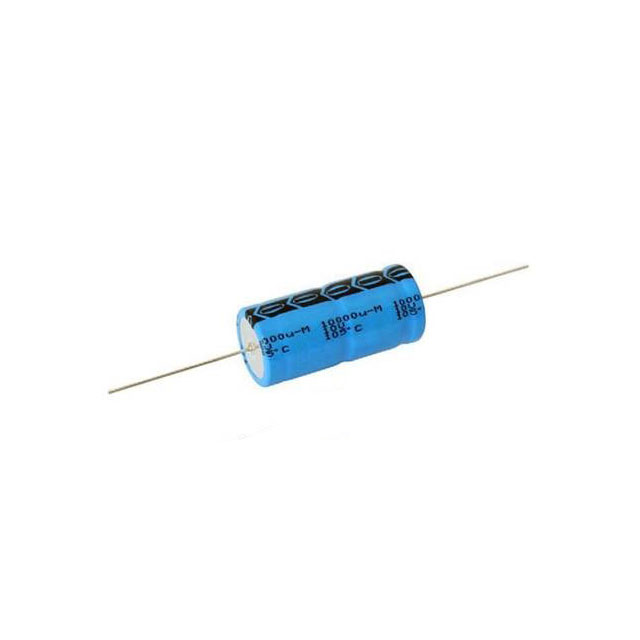

MAL213828471E3 CAP ALUM 470UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	861	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	138 AML	Active	470 µF	±20%	63 V	260mOhm @ 100kHz	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	Automotive	860 mA @ 100 Hz	-	160 mOhms	-	0.591 Dia x 1.181 L (15.00mm x 30.00mm)	-	-	Through Hole

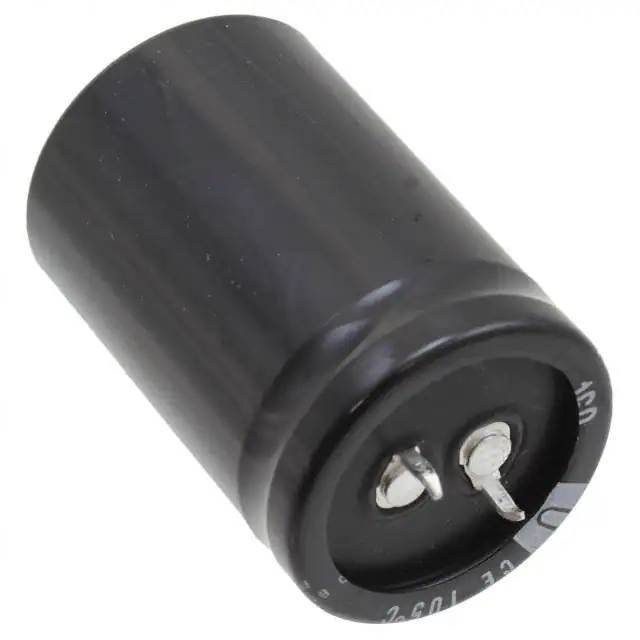

LGU2E102MELC CAP ALUM 1000UF 20% 250V SNAP Nichicon	3,860	-	RFQ	Datasheet	Bulk	LGU	Active	1000 µF	±20%	250 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.47 A @ 120 Hz	3.705 A @ 50 kHz	-	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.575 (40.00mm)	-	Through Hole

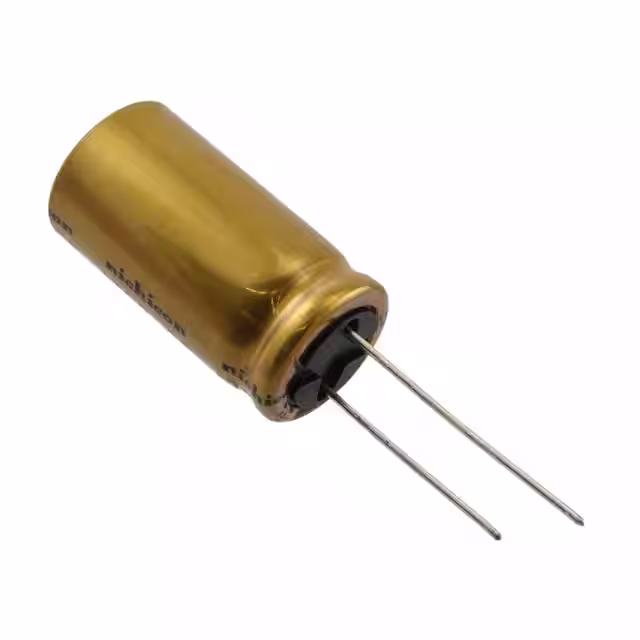

UFW1E472MHD CAP ALUM 4700UF 20% 25V RADIAL Nichicon	2,455	-	RFQ	Datasheet	Bulk	UFW	Not For New Designs	4700 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	2.36 A @ 120 Hz	2.714 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.240 (31.50mm)	-	Through Hole

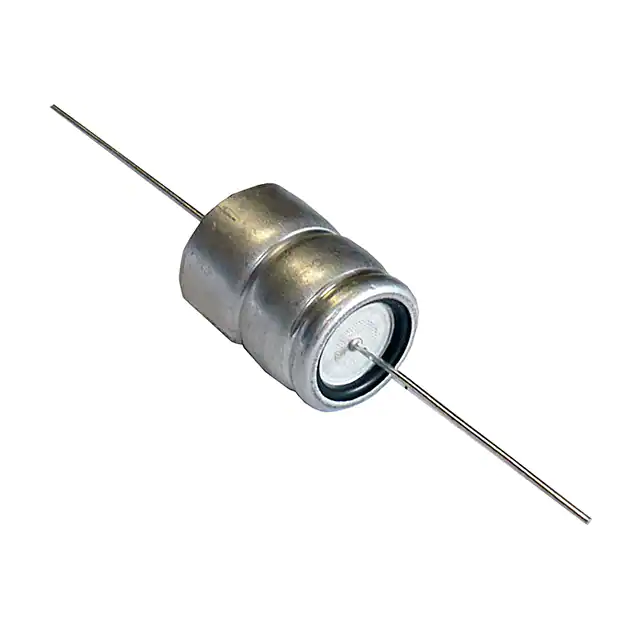

AXLH152P040ED CAP ALUM 1500UF 40V AXIAL Cornell Dubilier Electronics (CDE)	953	-	RFQ	Datasheet	Bulk	AXLH	Obsolete	1500 µF	-10%, +30%	40 V	57mOhm @ 100Hz	2000 Hrs @ 150°C	-40°C ~ 150°C	Polar	-	High Temperature Reflow	2.555 A @ 100 Hz	7.3 A @ 5 kHz	-	-	0.787 Dia x 1.063 L (20.00mm x 27.00mm)	-	-	Through Hole

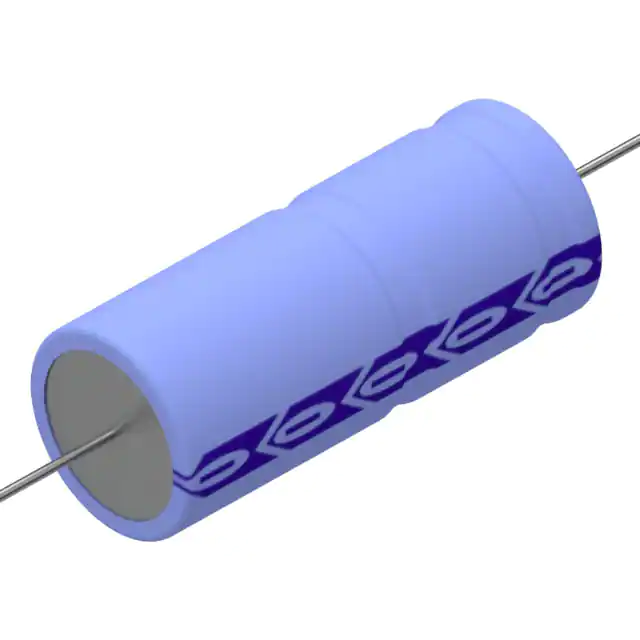

MAL204217109E3 CAP ALUM 10UF 450V AXIAL Vishay Beyschlag/Draloric/BC Components	755	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	042 ASH	Active	10 µF	-10%, +50%	450 V	15Ohm @ 100Hz	10000 Hrs @ 85°C	-25°C ~ 85°C	Polar	-	General Purpose	150 mA @ 100 Hz	-	10 Ohms	-	0.492 Dia x 1.181 L (12.50mm x 30.00mm)	-	-	Through Hole
ESH478M035AN2AA CAP ALUM 4700UF 20% 35V RADIAL KEMET	3,904	-	RFQ	Datasheet	Bulk	ESH	Active	4700 µF	±20%	35 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.92 A @ 120 Hz	2.208 A @ 10 kHz	-	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.496 (38.00mm)	-	Through Hole
